密封件 - 轴 - 后驱动电机 - 左侧（拆卸和更换）

校正代码 40301002 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2023 年 11 月 7 日：将安装章节的最后一步改为“根据定位要求表确定所需定位类型”。
此程序需要使用专业工具：

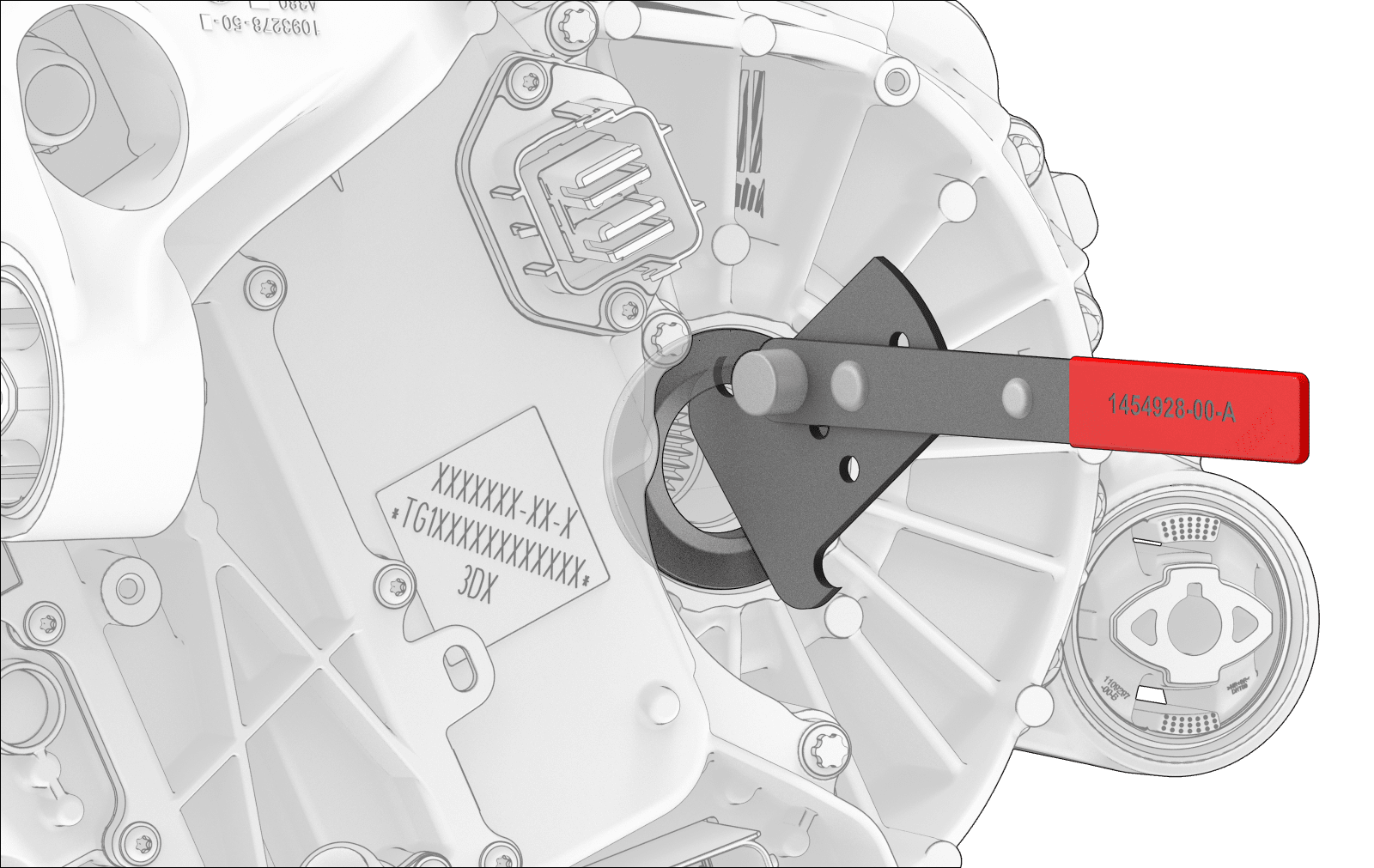

  • 1454928-00-A可调密封件拉拔器工具，MS/MX/M3

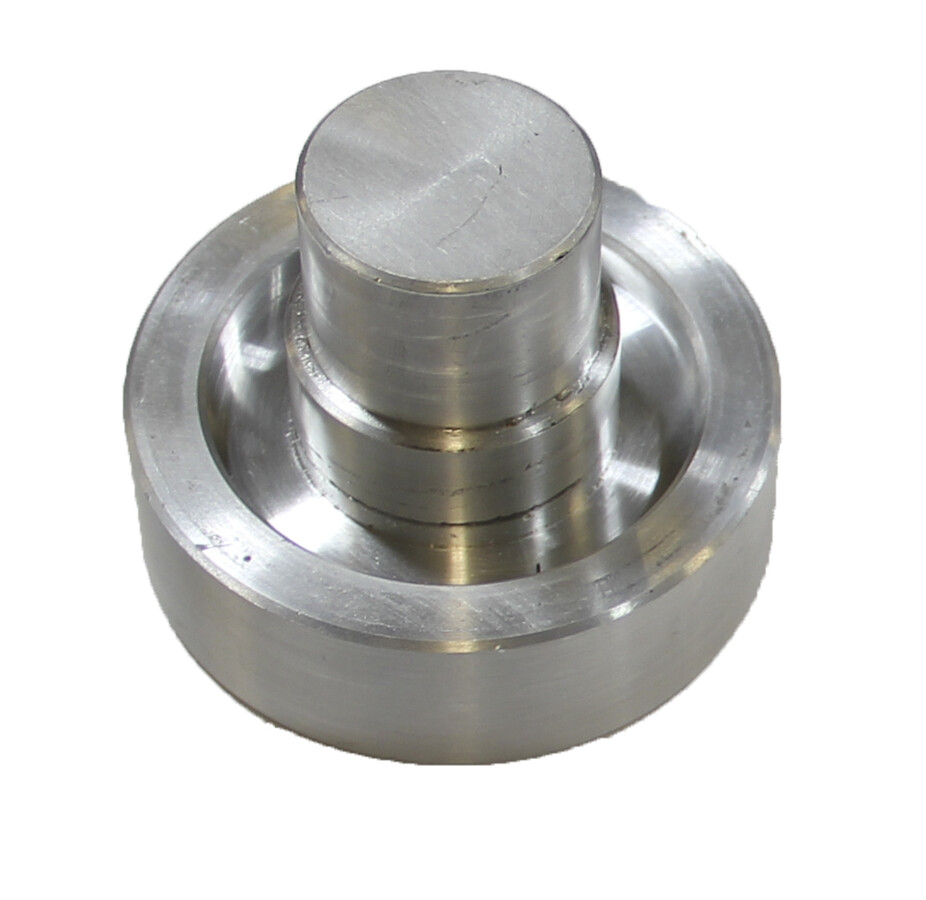

  • 1131206-00-A输出密封件安装工具，Model 3

安装

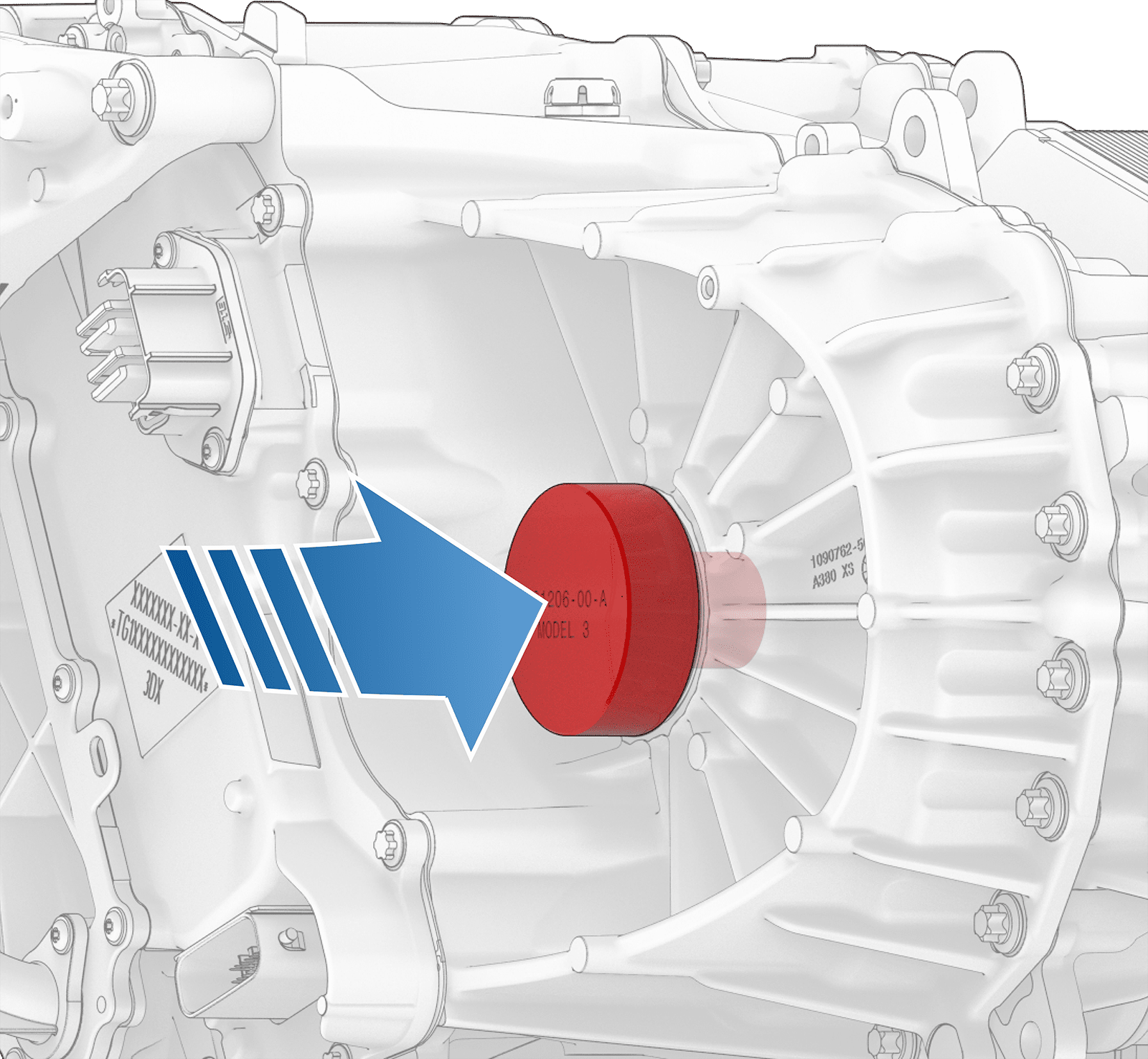

  1. 使用密封件安装工具将新的密封件安装到后驱动单元。
    注
    充分敲击密封件安装工具周围，以安装新的密封件。确保密封件与后驱动单元外壳完全齐平。
  2. 安装左后驱动单元半轴。请参阅半轴 - 后驱动电机 - 左侧（拆卸和更换）。
  3. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See 定位要求 - 悬架.
