盖板 - 门槛板 - 下 - 左侧(拆卸和更换)
校正代码
12202602 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
扭矩规格
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|
| 将左侧下部门槛板罩固定到车身的螺栓 |
![]() 5 Nm (3.7 lbs-ft) |
|
重复使用 |
拆卸
-

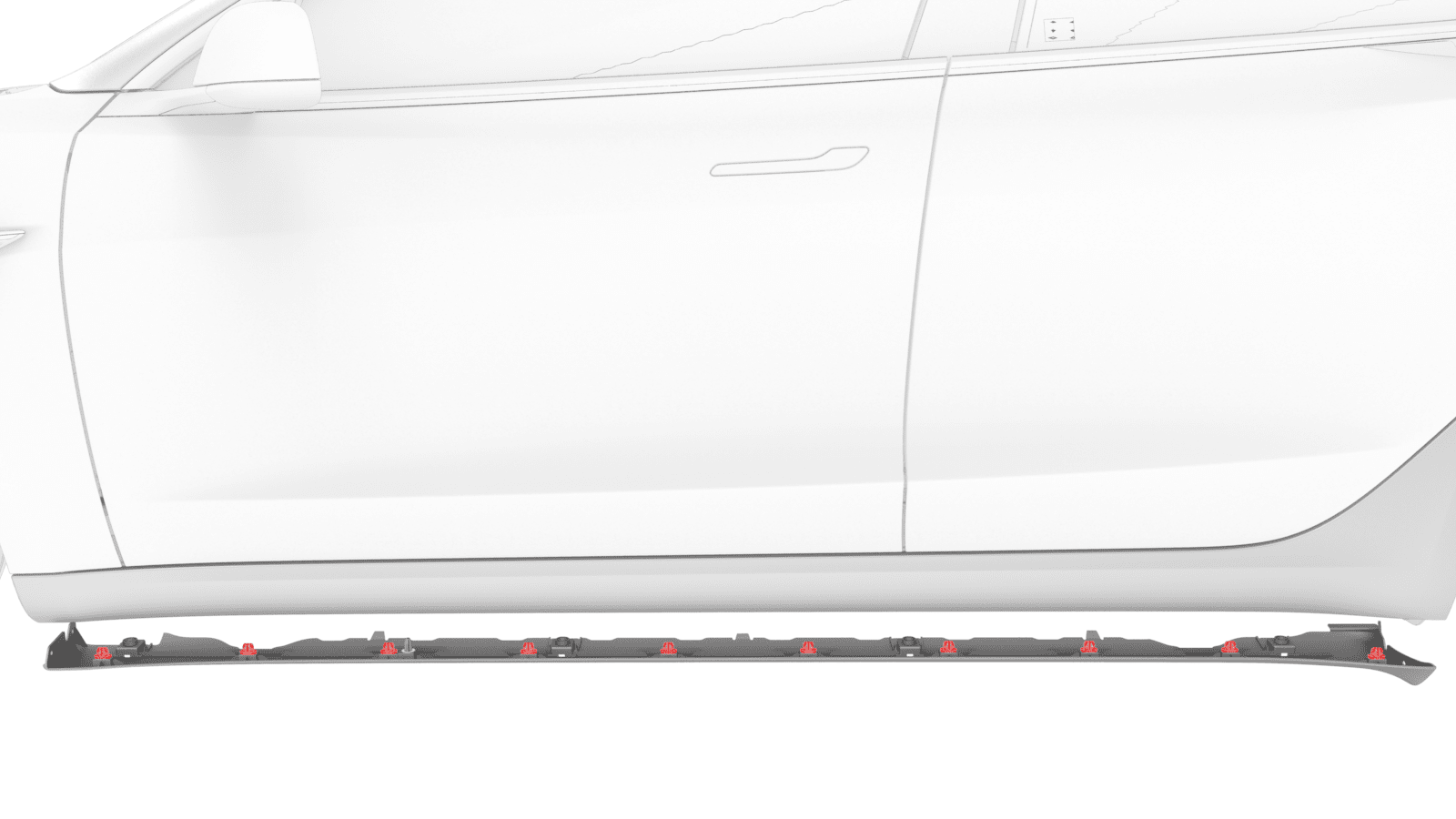

松开 LH 下部门槛板螺栓盖。
-

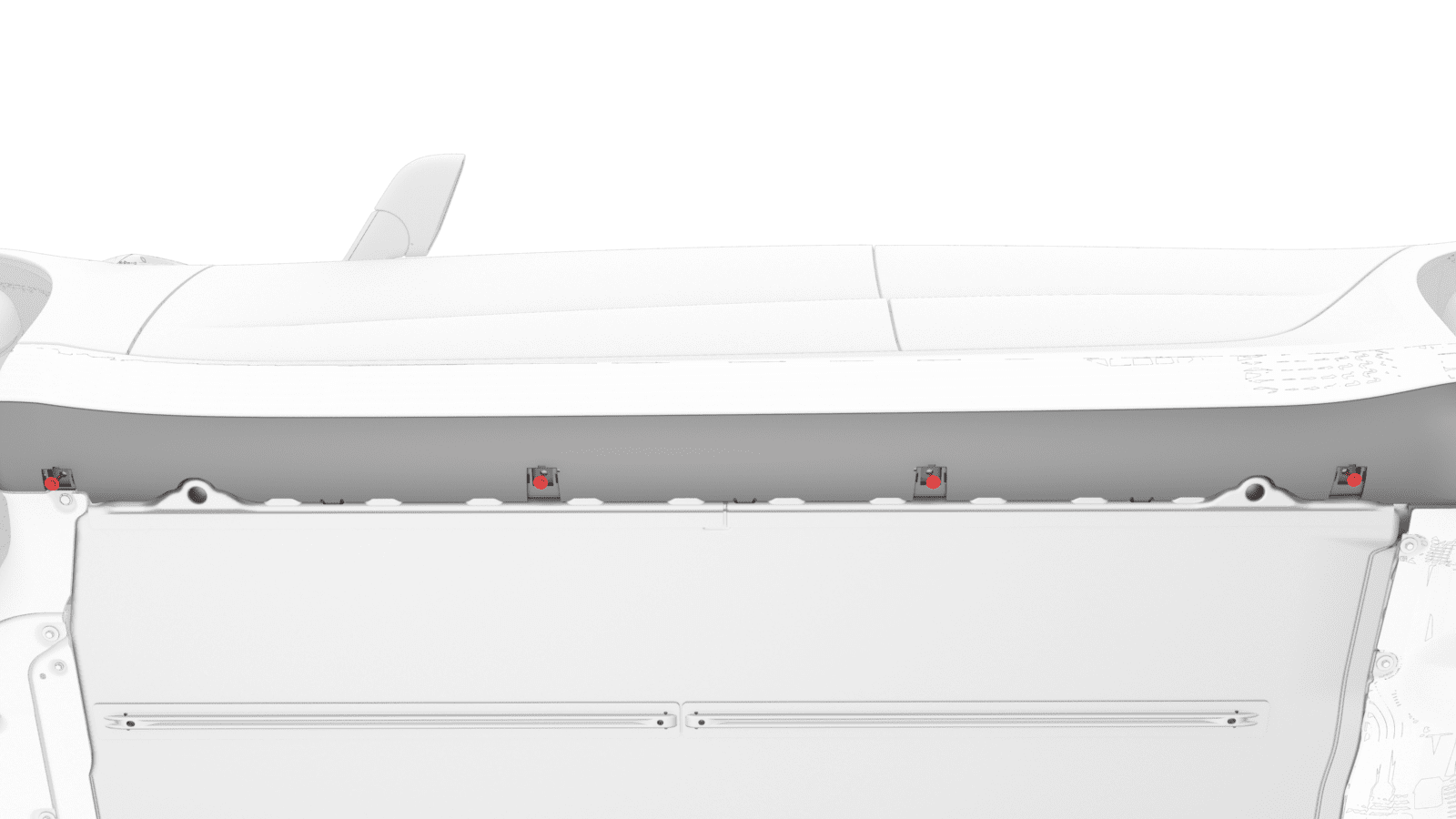

拆下将 LH 下部门槛板罩固定到车身的螺栓。
5 Nm (3.7 lbs-ft)提示推荐使用以下工具- 10 毫米套筒扳手
-

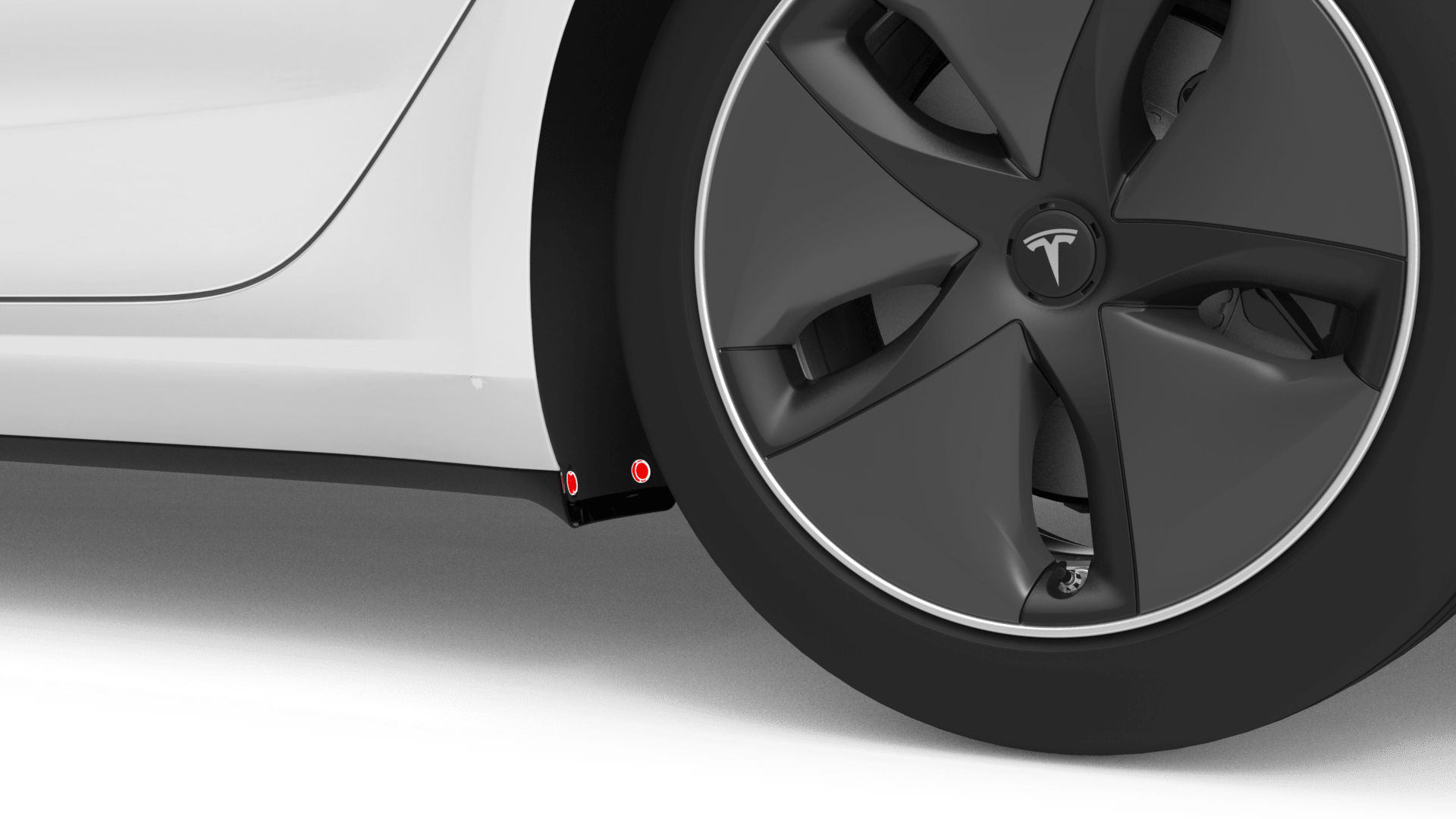

松开将 LH 下部门槛板罩固定到前后轮拱内衬的夹子。
图 1. 前 图 2. 后 -

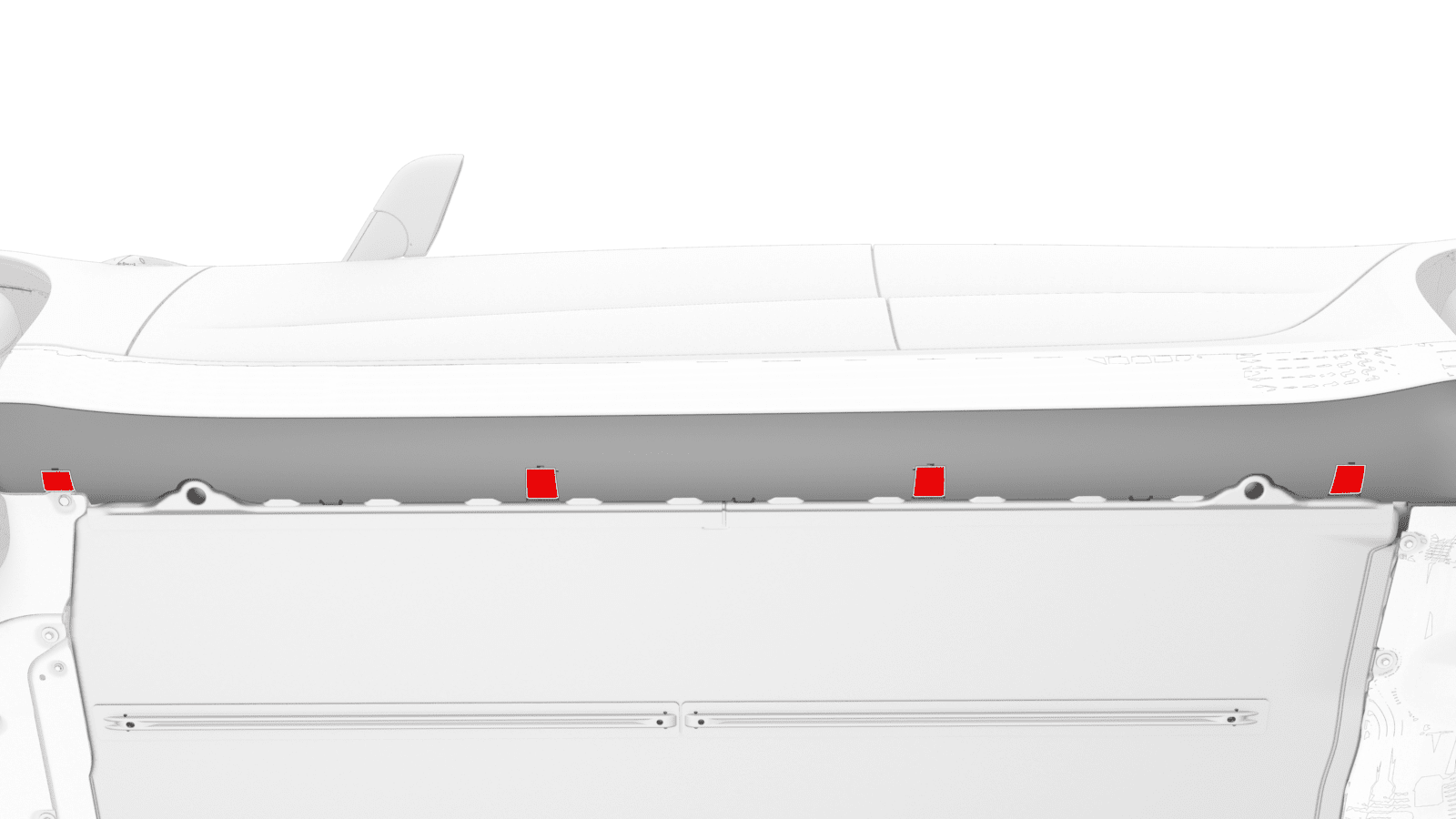

松开将 LH 下部门槛板罩固定到门槛板的夹子,然后从面板上拆下盖罩。
安装
安装程序与拆卸程序相反。
