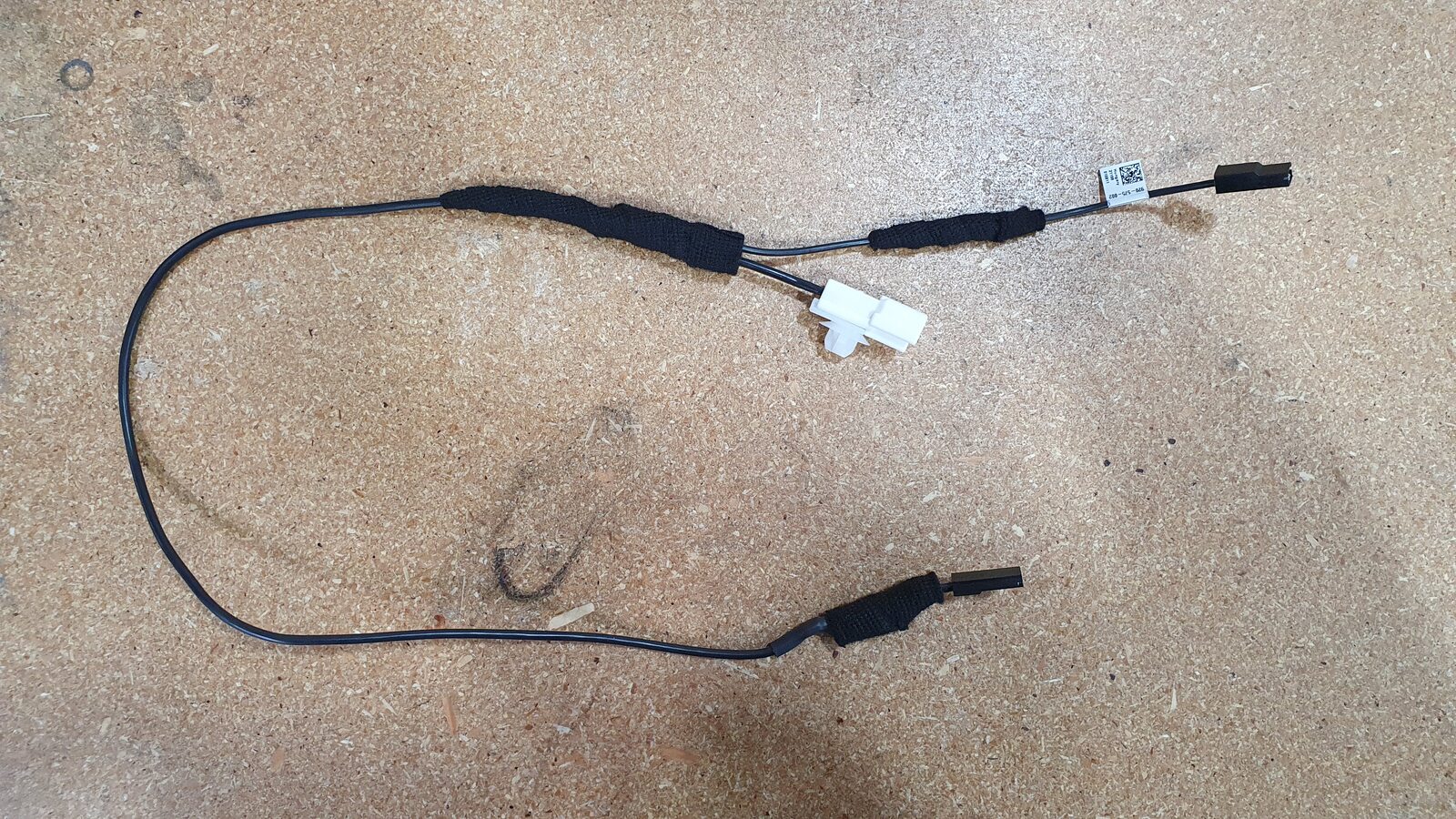

线束 - 滤波器 - 天线 - RH（拆卸和更换）

校正代码 17108402 0.25 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open all the doors and fully lower all the windows.
    Informational PurposesAn informational icon, calling your attention
    注
    If the vehicle is being powered down, latch the rear doors to prevent accidental closure.
  2. Move the LH and RH front seats fully forward.
  3. Remove the LH 2nd row seat side bolster. See 承梁 - 侧 - 座椅 - 第二排 - LH（拆卸和更换）.
  4. Remove the LH side rail trim. See 饰板 - 纵梁 - LH（拆卸和更换）.
  5. Remove the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH（拆卸和更换）.
  6. Release the clip and tabs (x4) that attach the LH rear C-pillar trim to the body, and then set the trim aside.
    Informational PurposesAn informational icon, calling your attention
    注
    Pull the rear of the trim forward, and then upward to remove it.
    提示： 推荐使用以下工具：
    • Plastic trim tool
  7. Remove the RH 2nd row seat side bolster. See 承梁 - 侧 - 座椅 - 第二排 - LH（拆卸和更换）.
  8. Remove the RH side rail trim. See 饰板 - 纵梁 - LH（拆卸和更换）.
  9. Remove the RH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH（拆卸和更换）.
  10. Release the clip and tabs (x4) that attach the RH rear C-pillar trim to the body, and then set the trim aside.
    Informational PurposesAn informational icon, calling your attention
    注
    Pull the rear of the trim forward, and then upward to remove it.
    提示： 推荐使用以下工具：
    • Plastic trim tool
  11. Remove the package tray trim. See 饰板 - 杂物盘（拆卸和更换）.

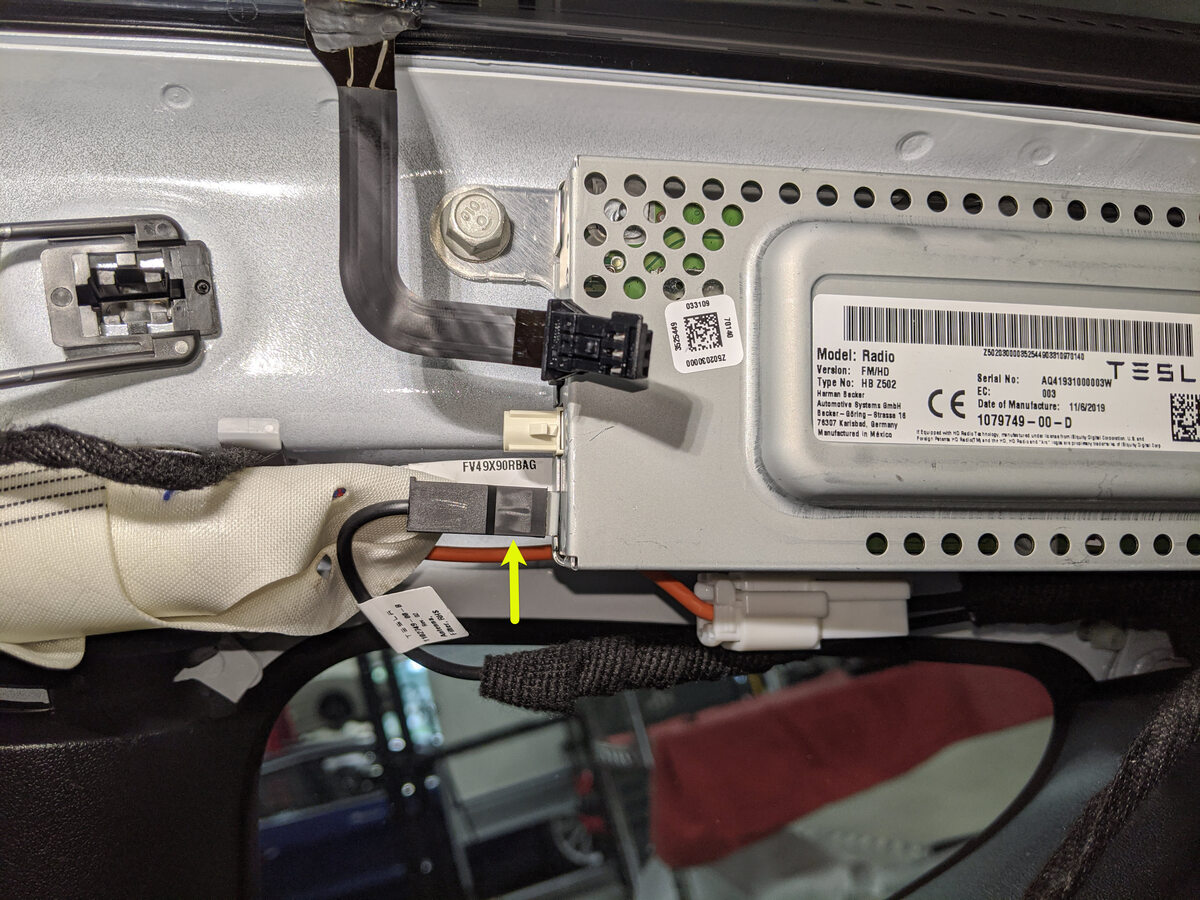

  12. Disconnect the RH antenna filter harness connector from the tuner.
    提示： 推荐使用以下工具：
    • Small flat head screwdriver

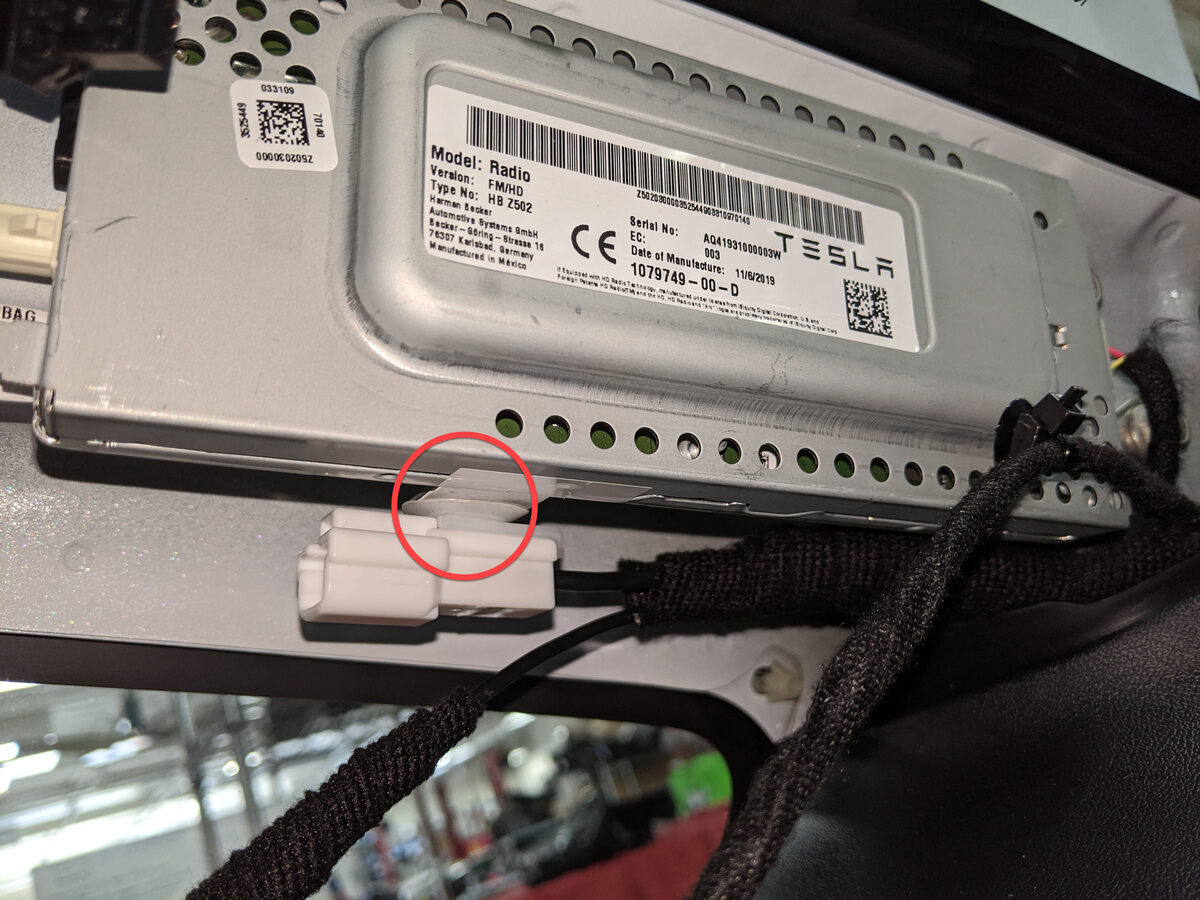

  13. Disconnect the RH antenna filter harness connector from the tuner and body harness.
    提示： 推荐使用以下工具：
    • Small flat head screwdriver

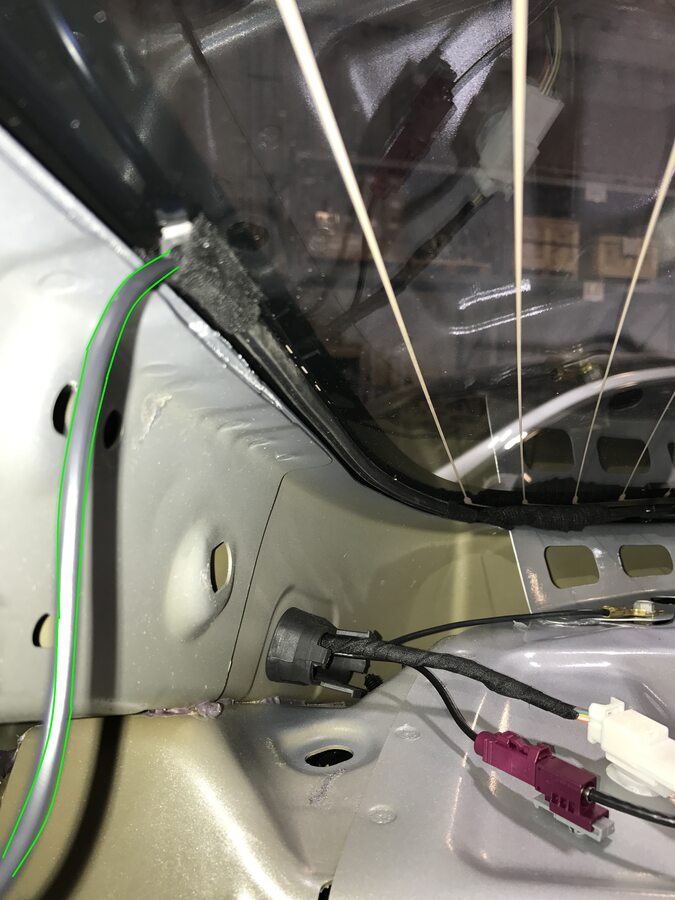

  14. Release the clip that attaches the RH antenna filter harness to the body.
    提示： 推荐使用以下工具：
    • 卡子撬具
  15. Remove the RH antenna filter harness from the backlight glass.
    Informational PurposesAn informational icon, calling your attention
    注
    Peel the tape back found at each end of harness housing seal.
    提示： 推荐使用以下工具：
    • Plastic trim tool

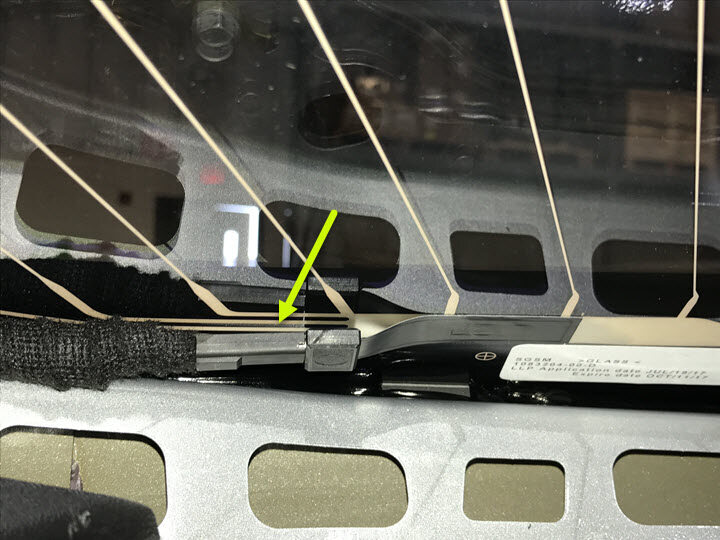

  16. Disconnect the RH antenna filter harness connector from the heater grid, and then remove the harness from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Gently disconnect the harness. Do not damage the heater grid.
    提示： 推荐使用以下工具：
    • 小号软柄拨子，90 度尖嘴，6 英寸

安装

  1. Position the RH antenna filter harness on the vehicle, and then connect the harness connector to the heater grid.
  2. Install the clip that attaches the RH antenna filter harness to the body.
  3. Connect the RH antenna filter harness connector to the tuner and body harness.
  4. Connect the RH antenna filter harness connector to the tuner.
  5. Install the RH antenna filter harness on the backlight glass.
    Informational PurposesAn informational icon, calling your attention
    注
    Apply a small piece of tape at each end of the seal clip.
    提示： 推荐使用以下工具：
    • Felt tape
    • Scissors
  6. Install the package tray trim. See 饰板 - 杂物盘（拆卸和更换）.
  7. Install the clip and tabs (x4) that attach the LH rear C-pillar trim to the body.
    Informational PurposesAn informational icon, calling your attention
    注
    Slide the back tabs into package tray, and then push the front tabs toward the rear.
  8. Install the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH（拆卸和更换）.
  9. Install the LH side rail trim. See 饰板 - 纵梁 - LH（拆卸和更换）.
  10. Install the LH 2nd row seat side bolster. See 承梁 - 侧 - 座椅 - 第二排 - LH（拆卸和更换）.
  11. Raise the LH 2nd row seat.
  12. Repeat step 7 through step 11 for the RH side of the vehicle.
  13. Move the LH and RH front seats to the original positions.
  14. Raise all the windows and close all the doors.
