Door Assembly - Charge Port (NA) (Remove and Replace)

校正代码 44011502 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2023 年 10 月 27 日：将充电接口至车身螺栓扭矩更新至 9 Nm。
  • 2023 年 10 月 10 日：添加了“请勿手动关闭充电接口盖板”的注意事项。
  • 1076921-00-B 绝缘电阻万用表，Fluke 1507（北美）
  • 1108272-00-B 变流器逻辑连接器盖，3DU
  • 1130480-00-A 超薄测试探针，Fluke TP38
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

Only technicians who have been trained in High Voltage Awareness and have completed all required certification courses (if applicable) are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional safety information.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告

Remove all jewelry (watches, bracelets, rings, necklaces, earrings, ID tags, piercings, etc.) from your person, and all objects (keys, coins, pens, pencils, tools, fasteners, etc.) from your pockets before performing any procedure that exposes you to high voltage.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
If corrective eyewear is necessary to safely perform any procedure, make sure that the eyewear is securely restrained to the head and cannot fall off.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

执行此程序时需要穿戴适当的个人防护装备 (PPE)：

  • 高压 (HV) 绝缘手套
  • 皮革手套保护罩
  • 高压绝缘手套测试器
  • 护目镜
  • 电气绝缘保护安全鞋
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

手套充气机是测试高压绝缘手套的唯一推荐方式。开始此程序前，需确认两只高压绝缘手套均通过测试。如果任何一只手套未通过充气检测，则需弃置这副手套。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告

确保高压绝缘手套未过期。高压绝缘手套有效期为印在手套上的测试日期后 12 个月内，但首次使用后，即使手套仍处于上述 12 个月有效期内，也只能使用 6 个月。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. 打开左车门，降下所有车窗。

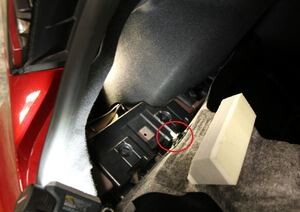

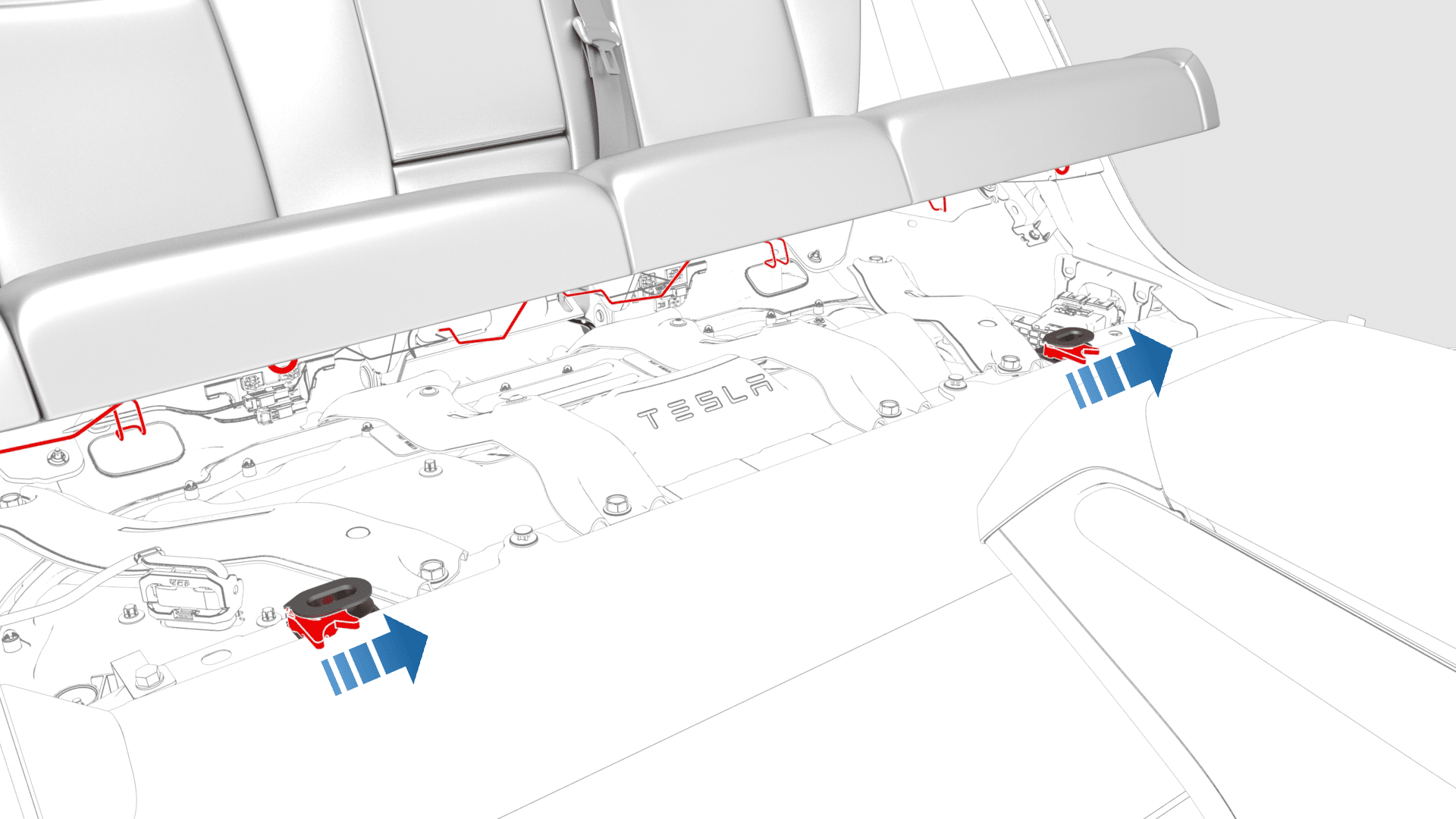

  2. 将左右锁片朝车辆左侧拨动，同时提起座垫前边缘，以部分松开座垫。
  3. 打开后备箱。
  4. 打开充电接口盖板。
  5. 拆下前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
  6. 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
  7. 执行充电接口电压检查程序。请参阅Charge Port Voltage Check。
  8. 拆卸后备箱饰板。请参阅Garnish - Trunk (Remove and Replace)。
  9. 拆卸后备箱底板饰板。请参阅Trim - Floor - Trunk (Remove and Replace)。
  10. 拆卸后备箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。

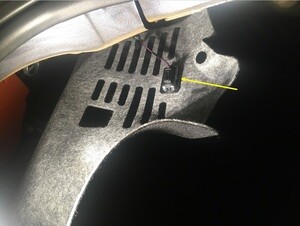

  11. 断开后备箱左侧作业灯电气连接器。

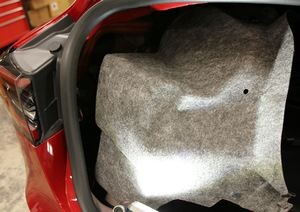

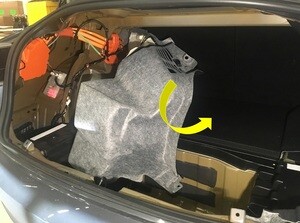

  12. 松开用于固定后备箱地毯边缘的卡子，将后备箱左侧饰板移至一旁，然后将地毯塞入饰板下方。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    注意不要造成过度褶皱。
  13. 拆卸左侧尾灯。请参阅Taillight - LH (Remove and Replace)。
  14. 在充电接口区域周围粘贴遮蔽胶带。

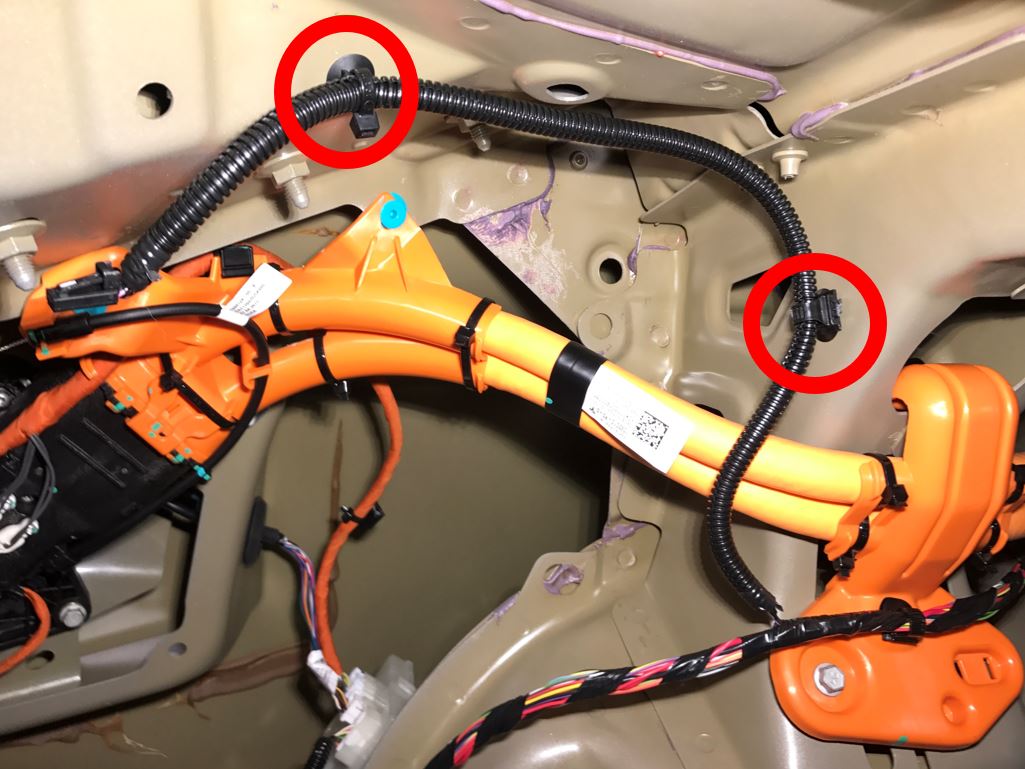

  15. 松开将线束固定到车身的夹子（2 个）。
  16. 拆卸将充电接口总成固定到车身的螺栓，然后从车身上松开总成。
  17. 从充电接口电子控制单元 (ECU) 上断开低压电气连接器。

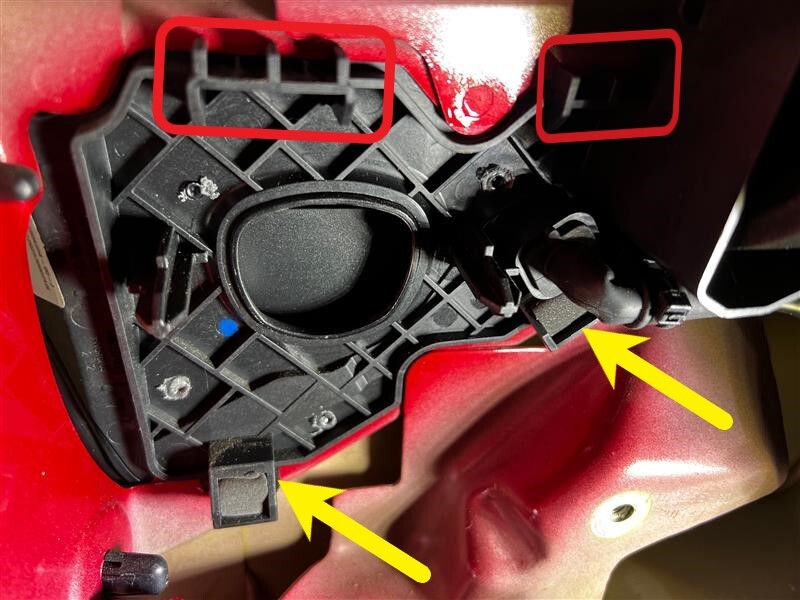

  18. 从车身上松开充电接口盖板索环。
  19. 将充电接口盖板总成拉向车辆后部。当车门传动装置到达围板后部时，向下拉动充电接口以免阻碍传动装置，然后将传动装置拉出并拉离车身，再从车上拆下。
    Informational PurposesAn informational icon, calling your attention
    注
    可能需要移动充电接口盖板才能完全拆下总成。

安装

  1. 转动充电接口盖板总成并将其放置到车辆上，确保传动装置在围板下方无阻碍，然后向前（朝后车门）滑动充电接口盖板。
    Informational PurposesAn informational icon, calling your attention
    注
    可能需要移动充电接口盖板才能将总成与车身完全对齐。
  2. 将充电接口盖板索环安装到车身上。
  3. 将低压电气连接器与充电接口电子控制单元 (ECU) 相连。
  4. 安装将充电接口盖板总成固定到车身的螺栓。
    9 Nm (6.6 lbs-ft)
  5. 紧固将线束固定到车身的夹子（2 个）。
  6. 安装左侧尾灯。请参阅Taillight - LH (Remove and Replace)。
  7. 将后备箱左侧饰板移回原位，然后固定将饰板固定到车身的卡子。
  8. 连接后备箱左侧作业灯电气连接器。
  9. 安装后备箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。
  10. 安装后备箱底板饰板。请参阅Trim - Floor - Trunk (Remove and Replace)。
  11. 安装后备箱饰板。请参阅Garnish - Trunk (Remove and Replace)。
  12. 重新连接 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
  13. 安装前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
  14. 安装第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
  15. 验证充电系统是否工作正常。
    Informational PurposesAn informational icon, calling your attention
    注
    使用客户的充电设备（若有）。确保所有充电适配器均已就位。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    请勿尝试手动关闭充电端口盖板。
  16. 揭下充电接口盖板区域的遮蔽胶带。
  17. 升起所有车窗，关闭所有车门。
