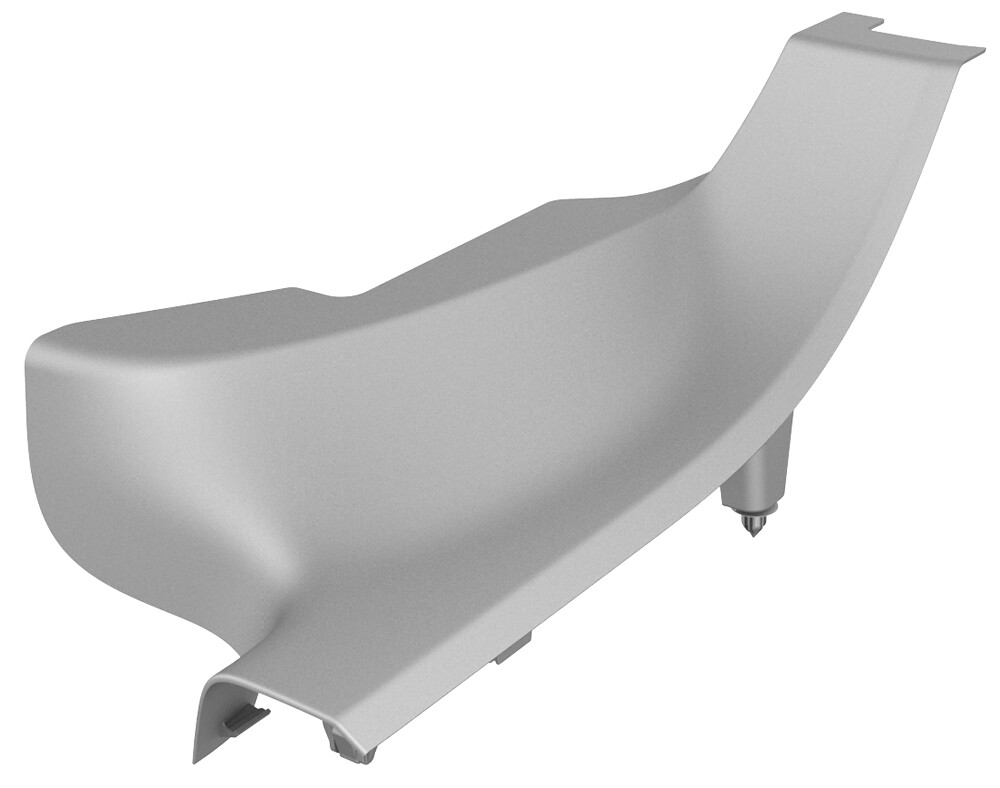

Trim - Sill Panel - Rear - LH (Remove and Replace)
校正代码
15180502
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
拆卸
- 打开全部车门。
- 降下全部车窗。
- 拆下第二排下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
- 在第二排下部座垫区域的顶部放置一个保护盖,例如翼子板盖。
- 拆下第二排座椅 LH 侧承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)。
-

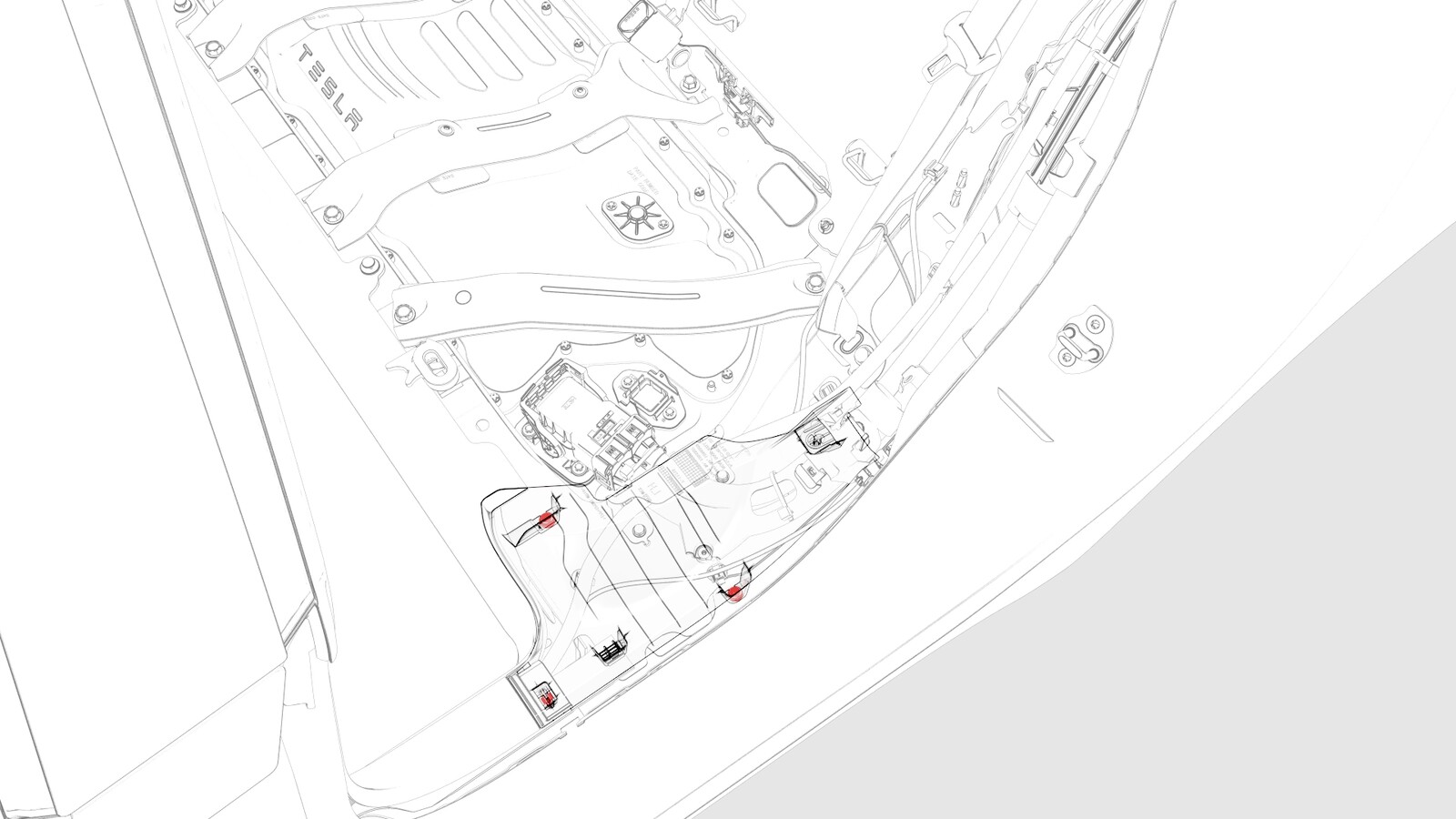

向上拉动 LH 后侧门槛饰板的底角,以便松开将 LH 后侧门槛饰板固定到 C 柱下部的夹子,然后从车上拆下门槛饰板。
注拆下 LH C 柱上剩余的所有 LH 后侧门槛饰板夹,如果稍后需要安装 LH 后侧门槛饰板,请从饰板上拆下所有夹子。
安装
安装程序与拆卸程序相反,以下各项除外:
- 如果需要重复使用同一个 LH 后侧门槛饰板,请在饰板上安装新夹子。
- 将导片与卡槽对齐,然后下推以锁紧夹子。
- 确保密封条覆盖住饰板。
