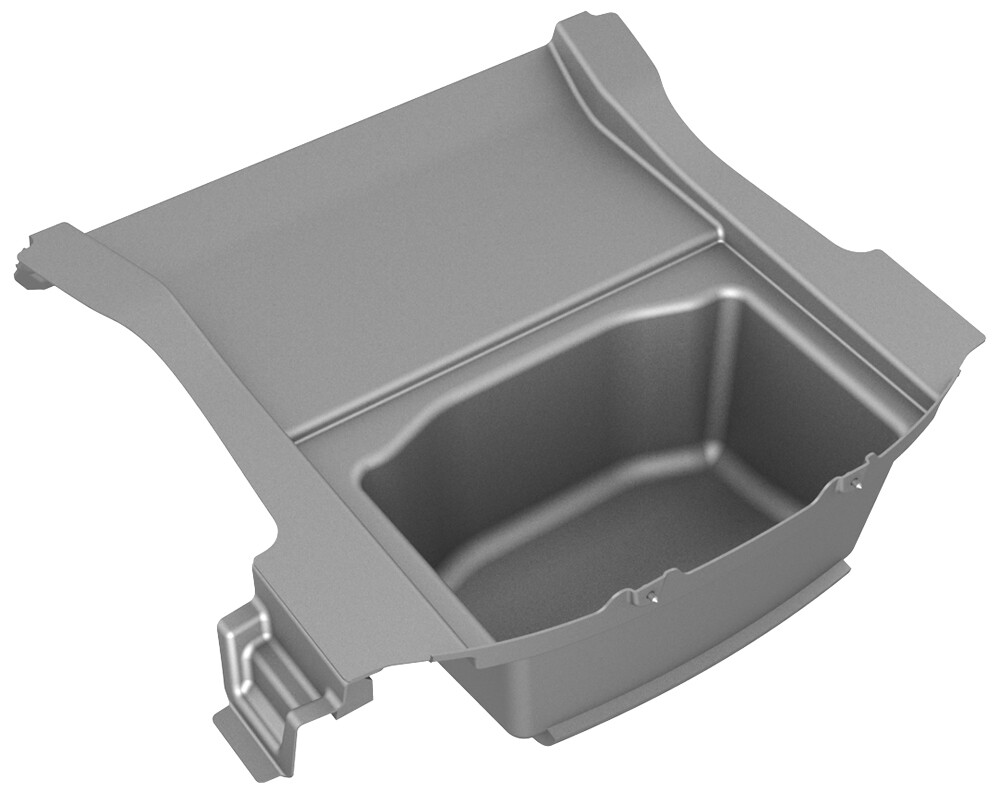

Carpet - Rear Trunk (Remove and Replace)
校正代码
15245402
0.36
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
拆卸
- 拆下行李箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。

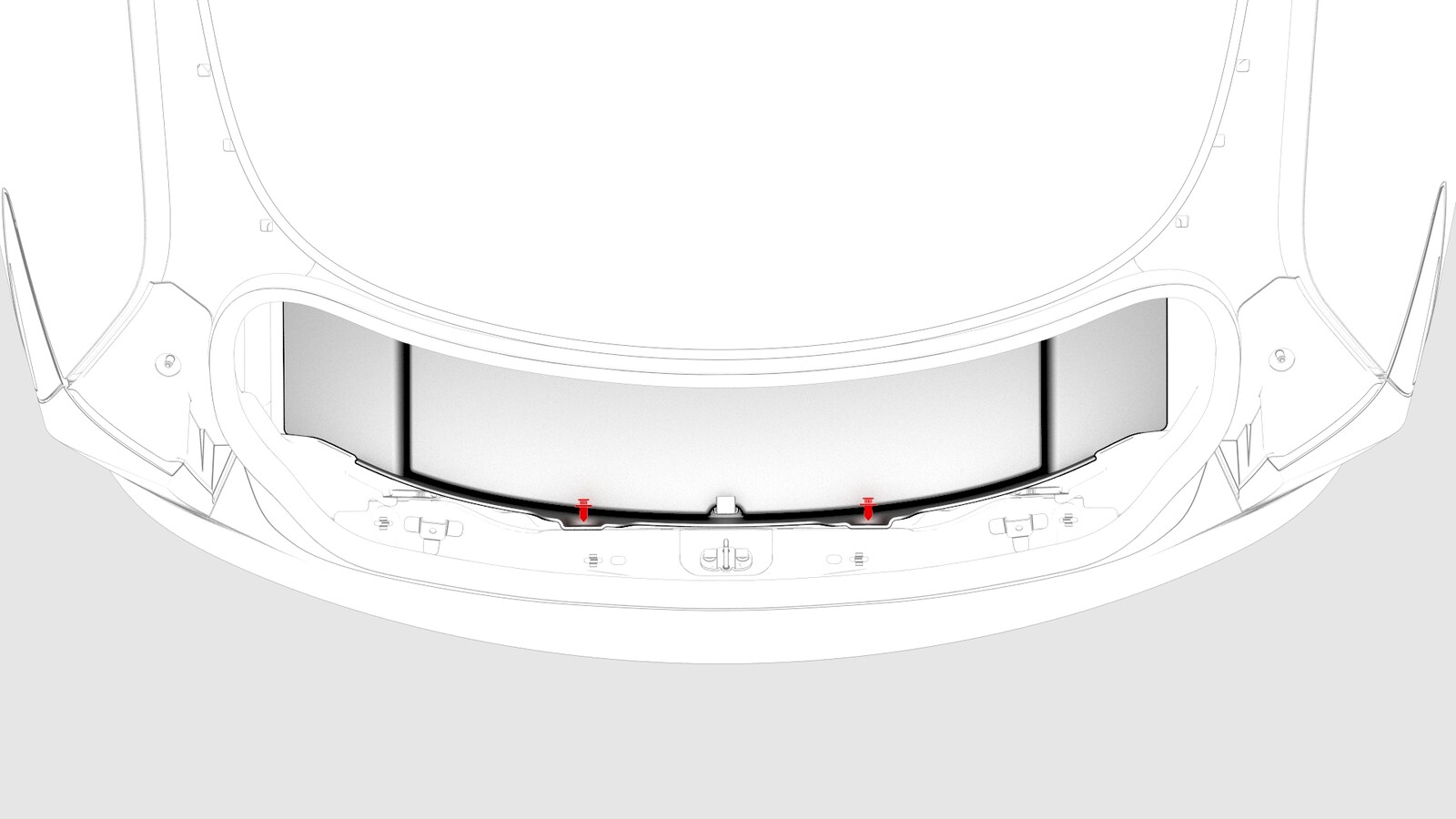

- 松开将行李箱毡毯固定到门槛的卡扣。
- 拆下第二排 LH 座椅靠背。请参阅Seat Back - 2nd Row - LH (Remove and Replace)。
- 拆下第二排 RH 座椅靠背。请参阅Seat Back - 2nd Row - RH (Remove and Replace)。
- 松开将行李箱毡毯固定到第二排区域的卡扣。
- 掀起李箱箱毡毯,与 ISOFIX 横梁分离。

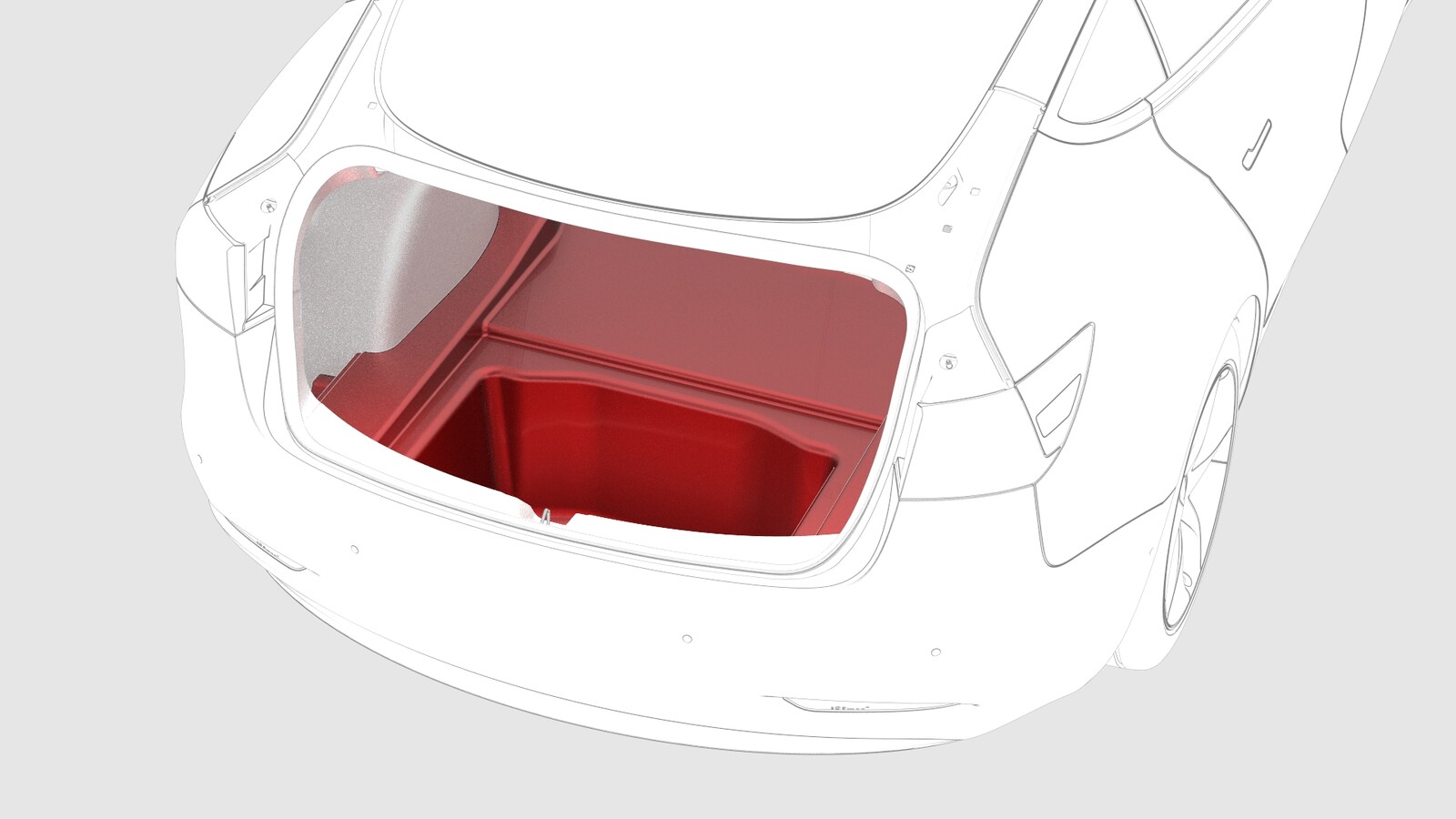

- 松开将行李箱毡毯固定到车身螺柱的卡扣,然后从车上拆下行李箱毡毯。
安装
安装程序与拆卸程序相反。
