Hose - Passthrough - Front Manifold - HV Battery (Male Coupler) (Retrofit)

校正代码 18309906 FRT 0.06 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅人体工程学注意事项查看安全健康的作业规程。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。

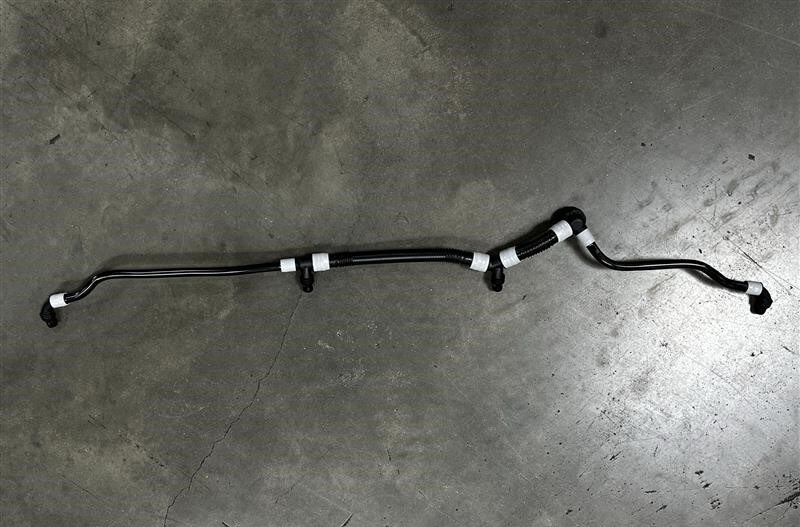

  1. Position front manifold coolant hose onto HV battery

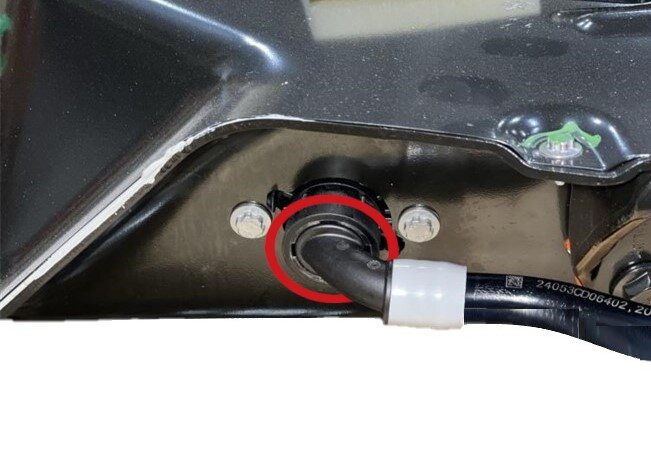

  2. Install front hose assembly onto HV battery and secure RH outer coolant hose connection
    Informational PurposesAn informational icon, calling your attention
    注
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated

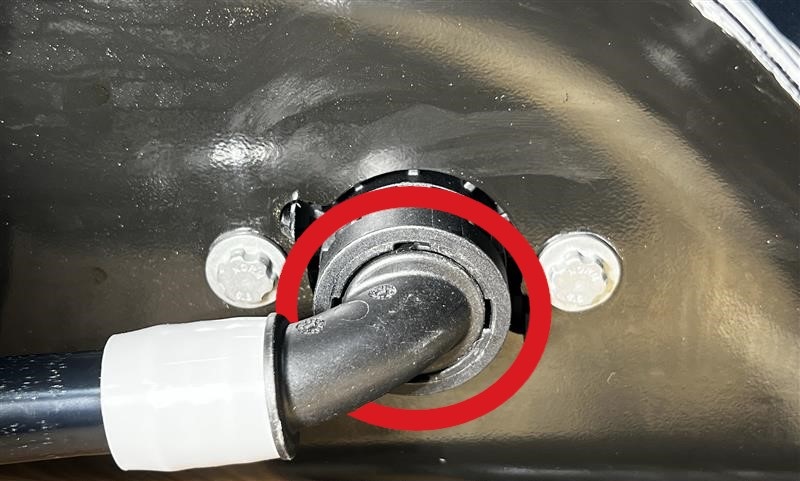

  3. Connect RH inner coolant hose to front of HV battery
    Informational PurposesAn informational icon, calling your attention
    注
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated

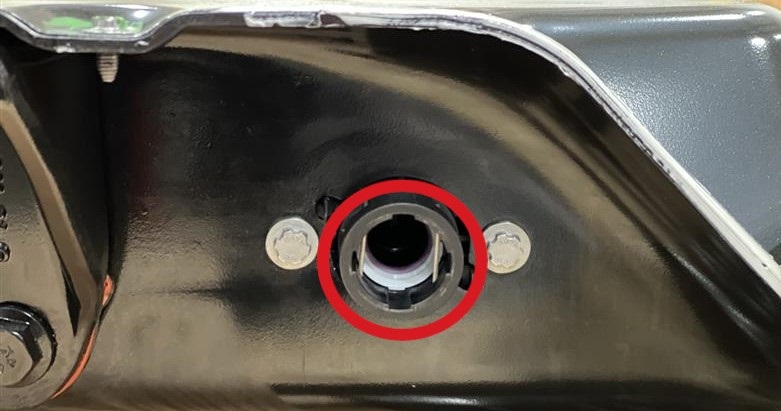

  4. Connect LH inner coolant hose to front of HV battery
    Informational PurposesAn informational icon, calling your attention
    注
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated

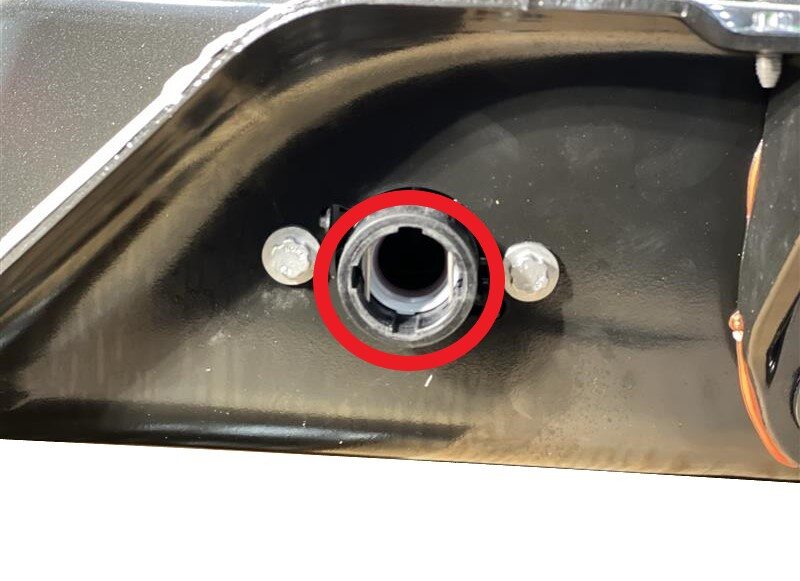

  5. Connect LH outer coolant hose to front of HV battery
    Informational PurposesAn informational icon, calling your attention
    注
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated

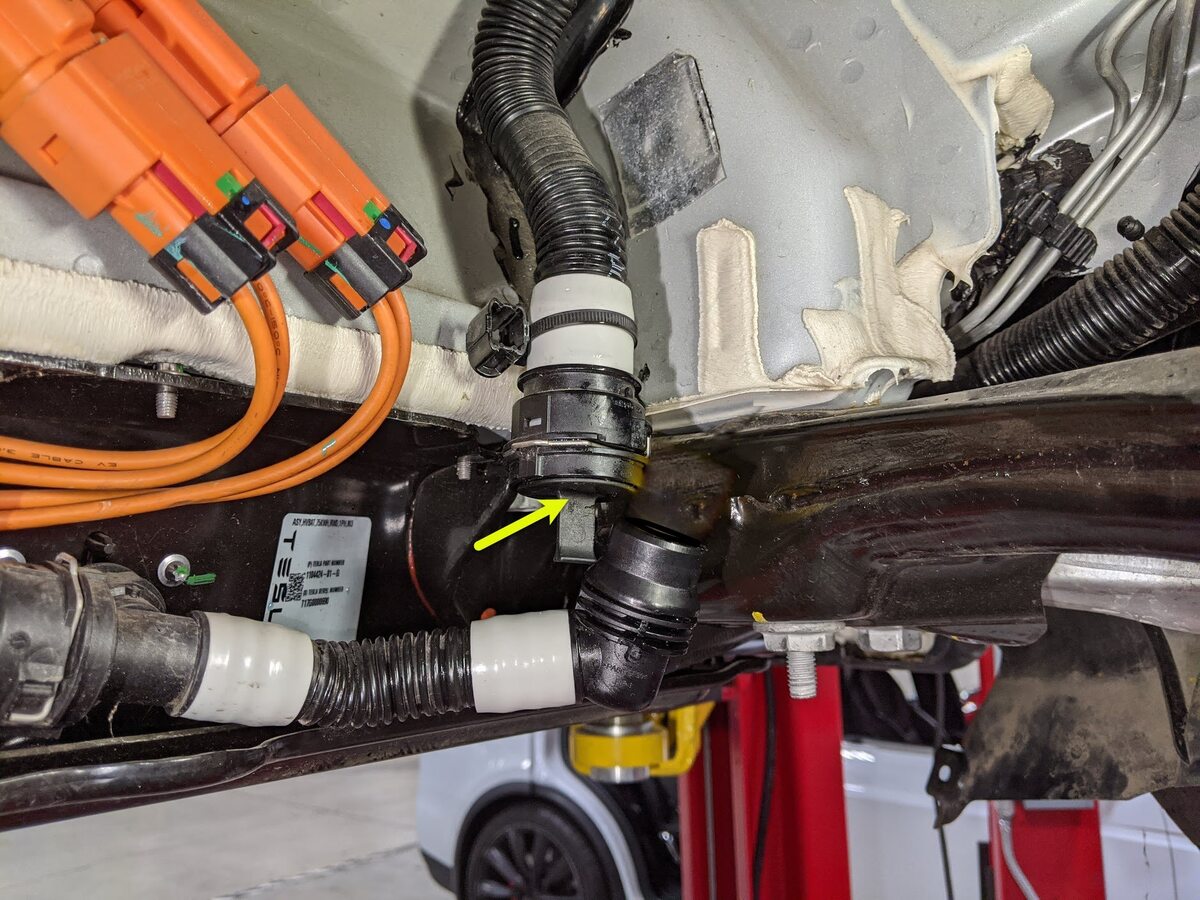

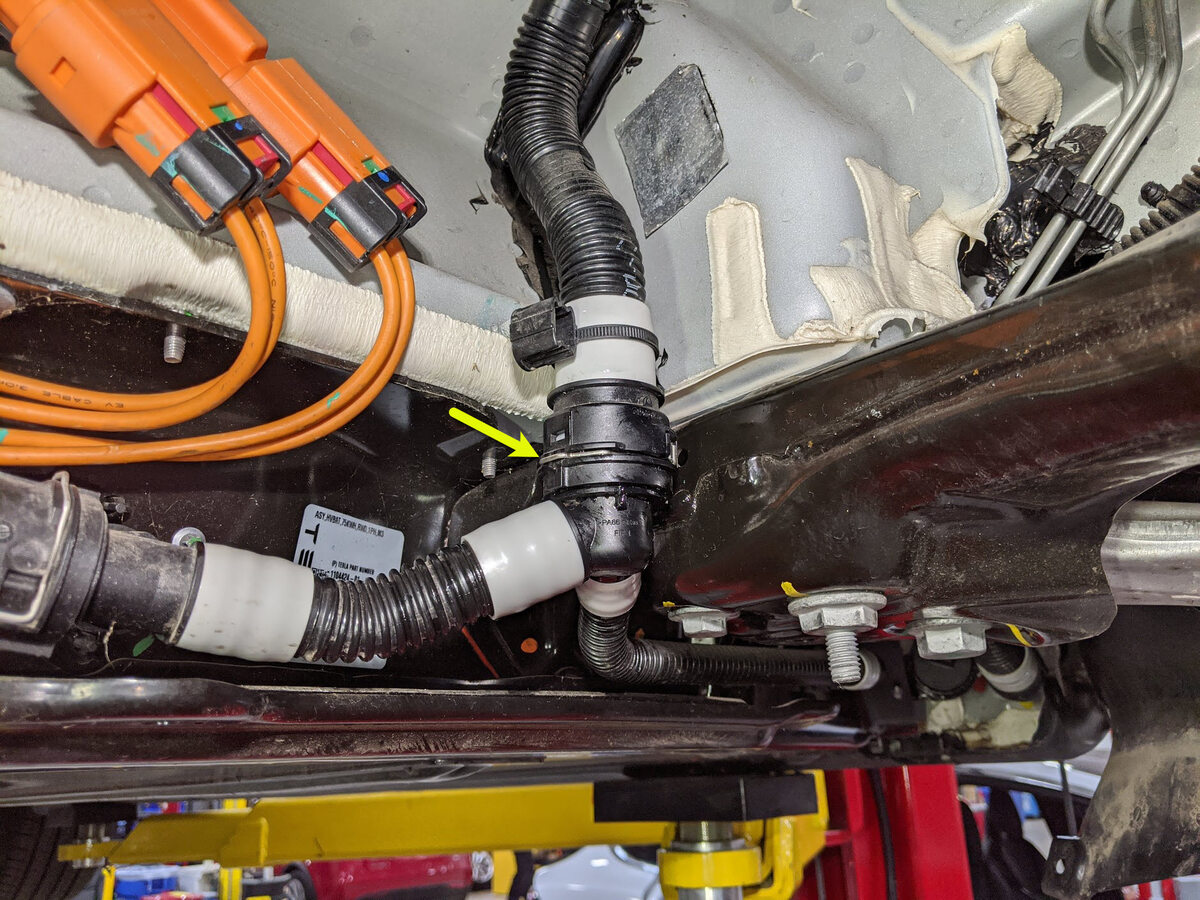

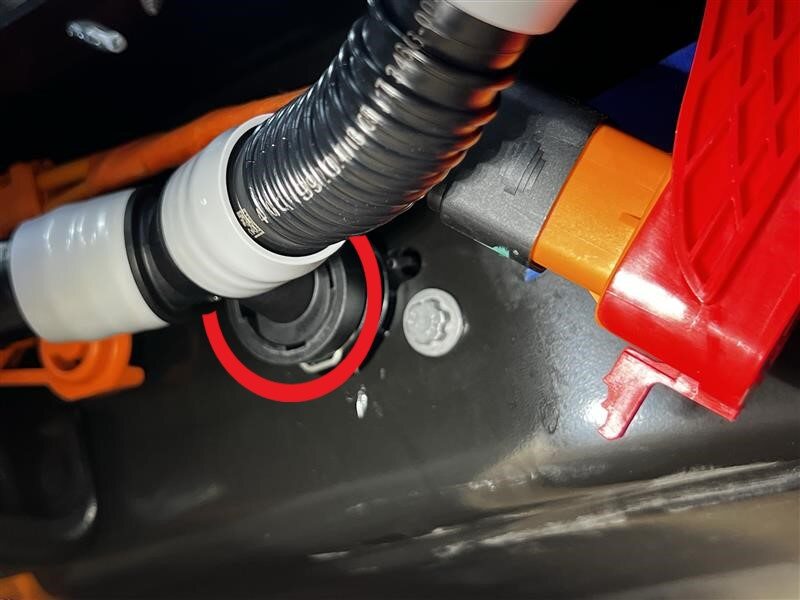

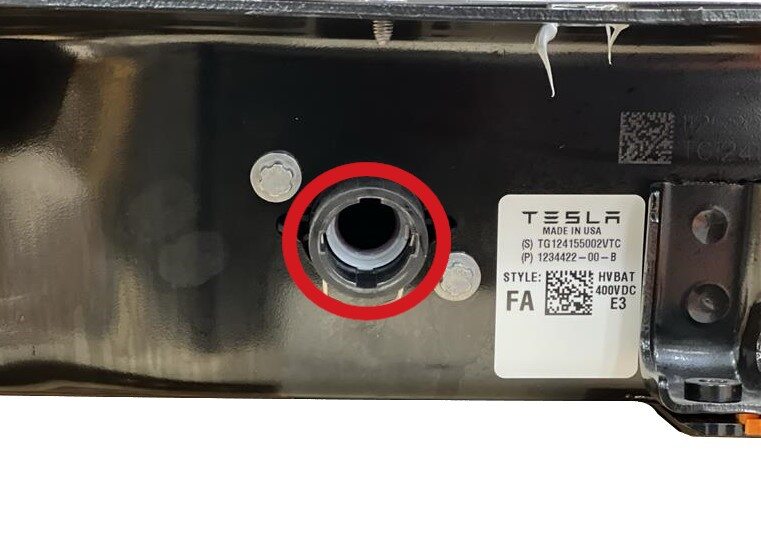

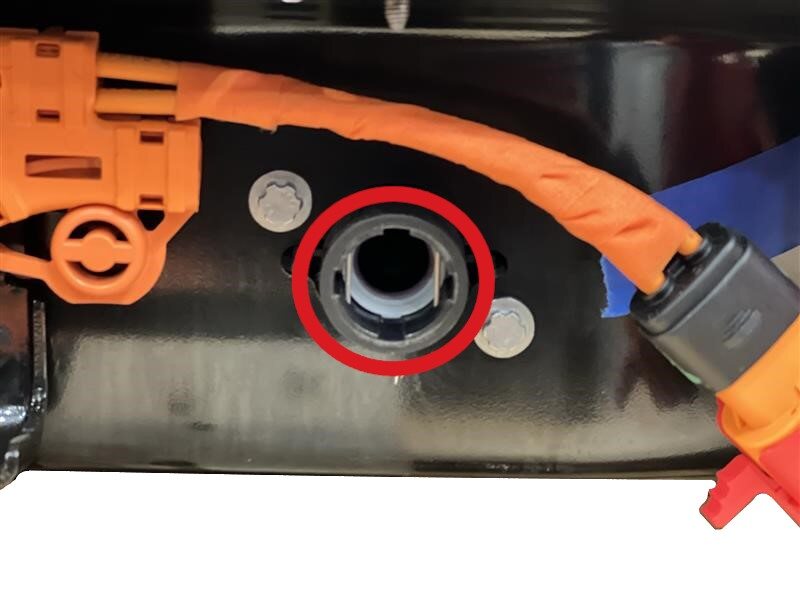

  6. Remove plug then connect HV battery front manifold coolant hose
    Informational PurposesAn informational icon, calling your attention
    注
    1x spring clip, 1x plugs, Perform push-pull-push test to make sure hose is fully seated, Loss of coolant greater than 1L requires coolant vacuum fill
