风管 - 脚部空间 - 左侧(右侧驱动)(拆卸和更换)
校正代码 18108632 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.
拆卸
- 拆下副驾位脚部空间罩。请参阅盖板 - 脚部空间 - 副驾位(右侧驾驶)(拆卸和更换)。
- 拆下仪表板主饰板。请参阅饰板 - 仪表板 - 主(拆卸和更换)。
- 拆下手套箱。请参阅手套箱 - 不带膝部气囊(拆卸和更换)。
-

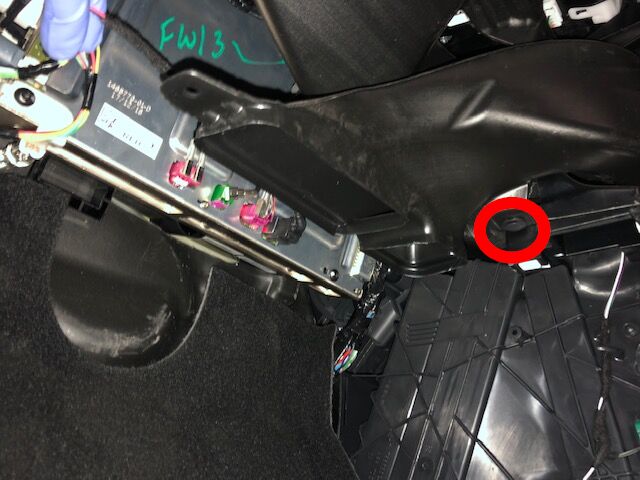

松开将 LH 脚部空间通风槽固定到仪表板的推拉式夹,然后拆下通风槽。
安装
安装程序与拆卸程序相反。
