按钮 - 座垫调节 - 驾驶位座椅(拆卸和更换)
校正代码
13018102 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
警告
The video(s)
included in this procedure are meant as an overview for supplemental purposes only.
Follow all of the steps listed in the procedure to avoid damage to components and/or
personal
injury.
拆卸
- 打开 LH 前车门,然后完全降下 LH 前车窗。
-

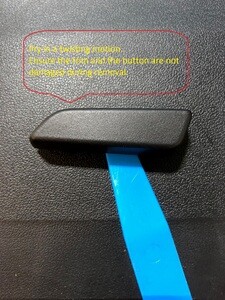

使用饰板工具小心地松开将驾驶位座垫开关按钮固定到座椅总成的夹子,然后从总成上拆下按钮。
警告小心操作,切勿损坏按钮和座椅饰板。提示通过扭动撬开。
安装
- 将驾驶位座垫开关按钮安装到座椅总成上。
- 升起 LH 前车窗,关闭 LH 前车门。
