导锁 - 头枕 - 第二排(拆卸和更换)
校正代码
13059452 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下第二排中间头枕。请参阅头枕 - 第二排 - 中央(拆卸和更换)。
-

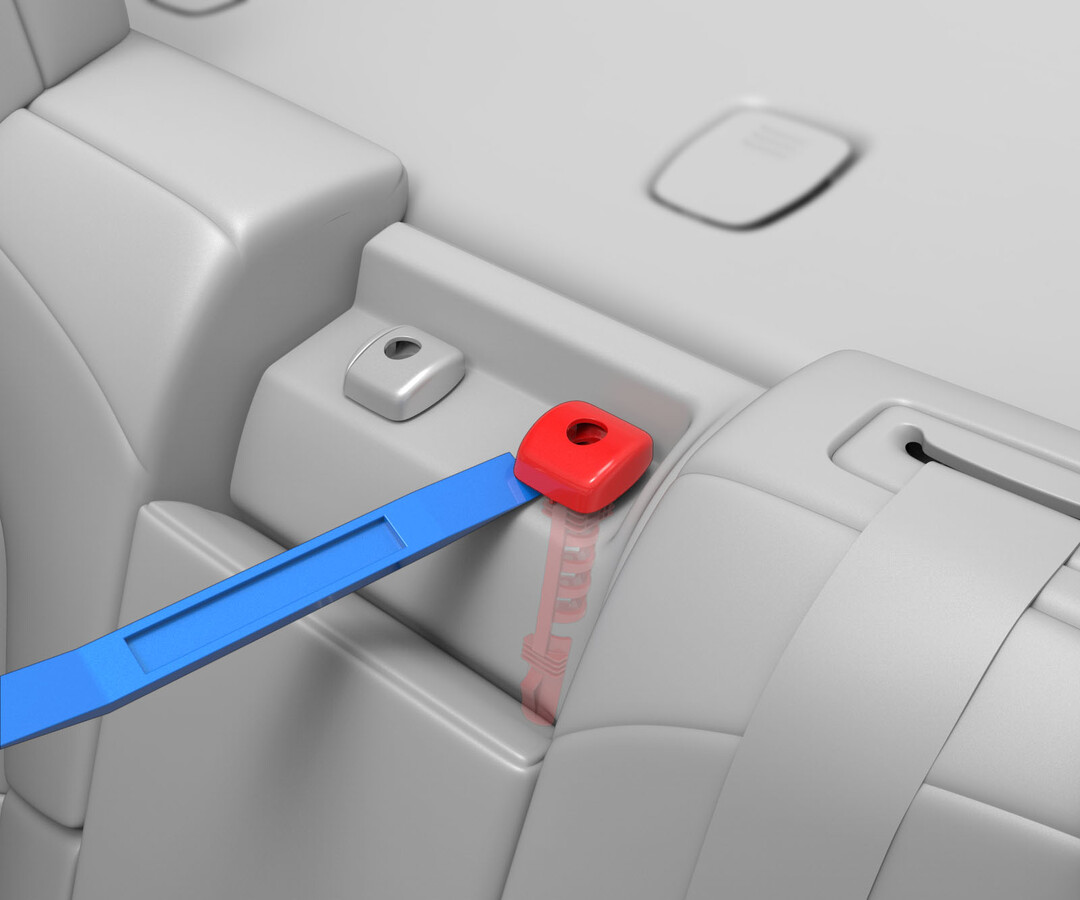

使用塑料饰板工具将导管锁与第二排座椅分离。
- 从车上拆下导管锁。
安装
-

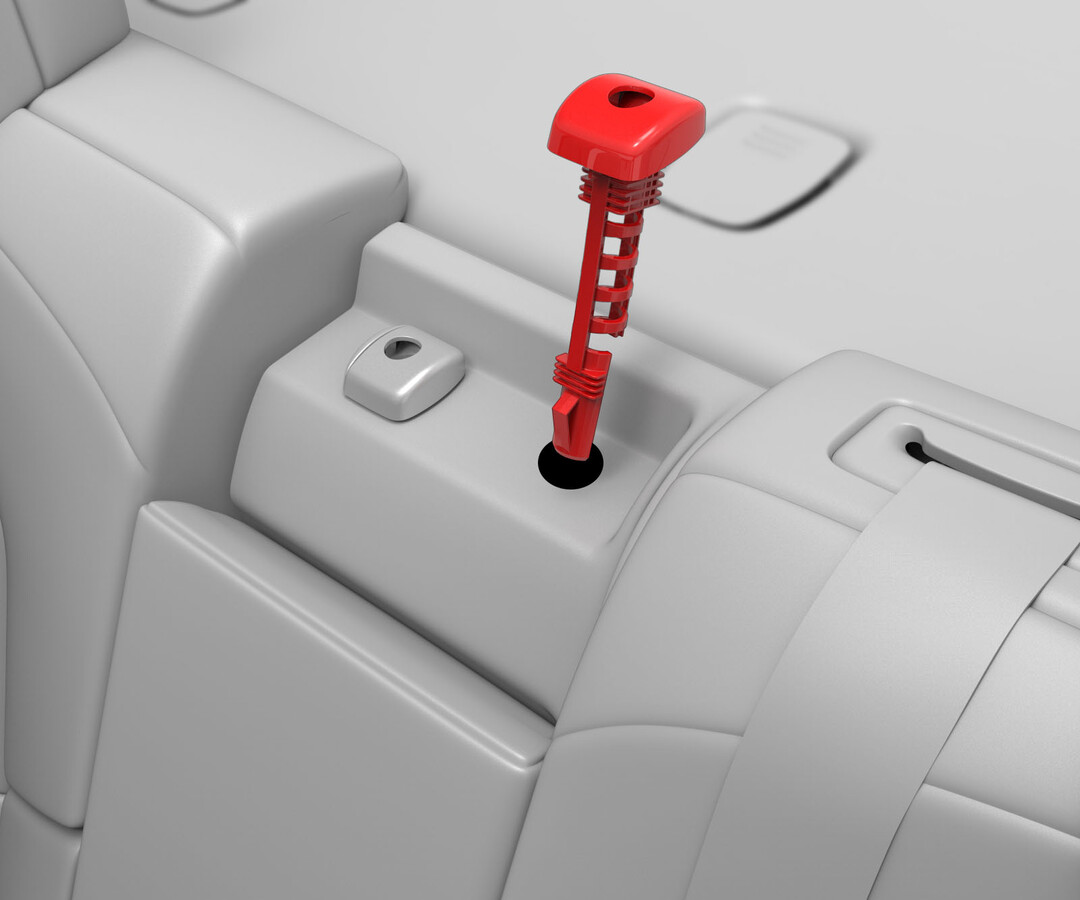

将导管锁完全插入座椅,使导管锁上的开口朝向车辆的 RH 侧。
- 安装第二排中间头枕。请参阅头枕 - 第二排 - 中央(拆卸和更换)。
