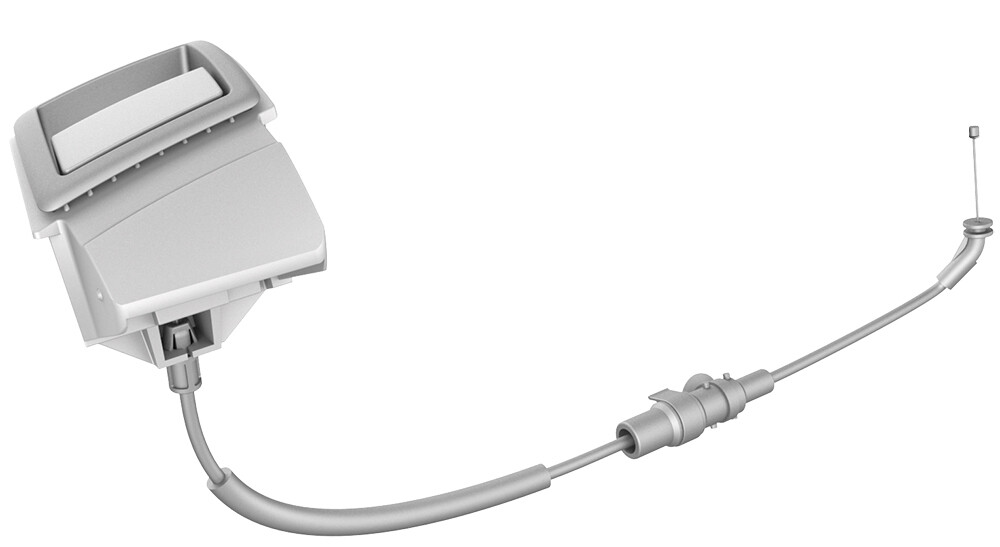

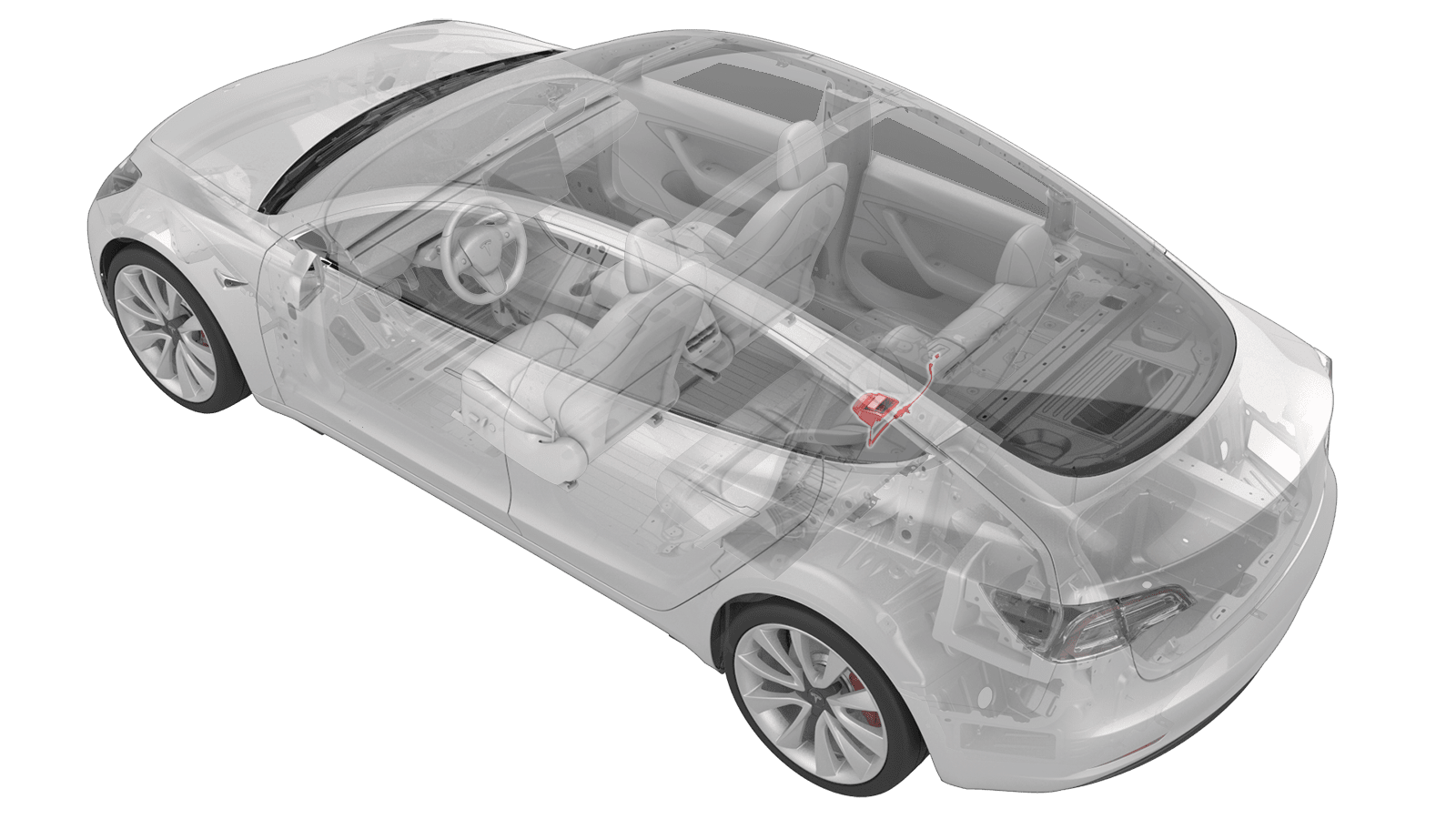

Handle - Seat Back - 2nd Row - LH (Remove and Replace)

校正代码 13054012 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 拆卸第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)
  2. 拆卸前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)
  3. 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)
  4. 拆卸第二排左侧锁扣。请参阅Buckle - 2nd Row - LH (Remove and Replace)
  5. 拆卸第二排座椅左侧侧部承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)
  6. 拆卸第二排左侧座椅靠背铰链支架。请参阅Bracket - Hinge - Seat Back - 2nd Row - LH (Remove and Replace)
  7. 拆卸第二排中央座椅安全带总成。请参阅Seatbelt - 2nd Row - Center (Remove and Replace)
  8. 拆卸第二排左侧座椅靠背闩锁。请参阅Latch - Seat Back - 2nd Row - LH (Remove and Replace)

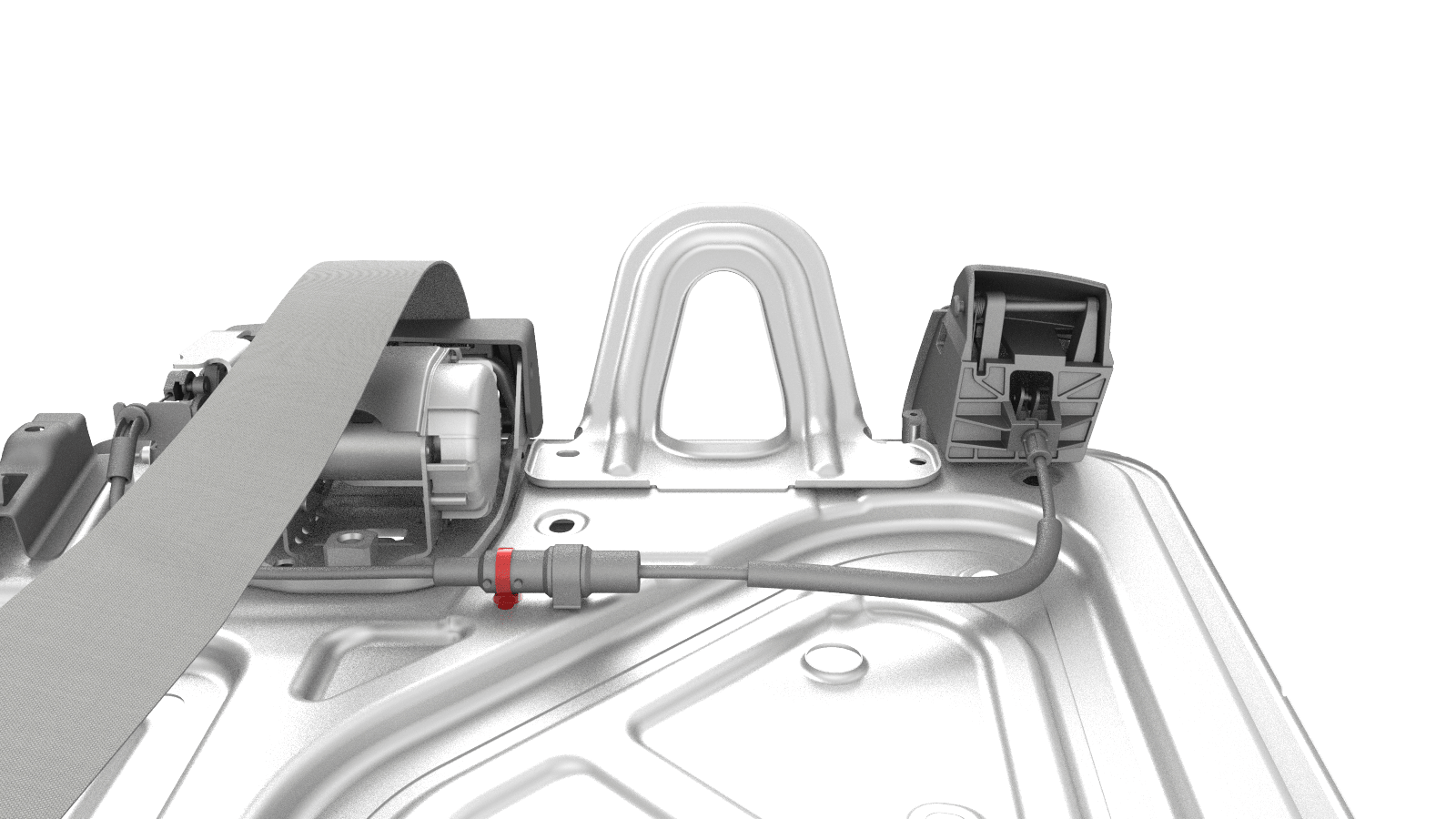

  9. 松开将第二排左侧座椅靠背闩锁控制线缆固定到第二排左侧座椅背板的夹子。

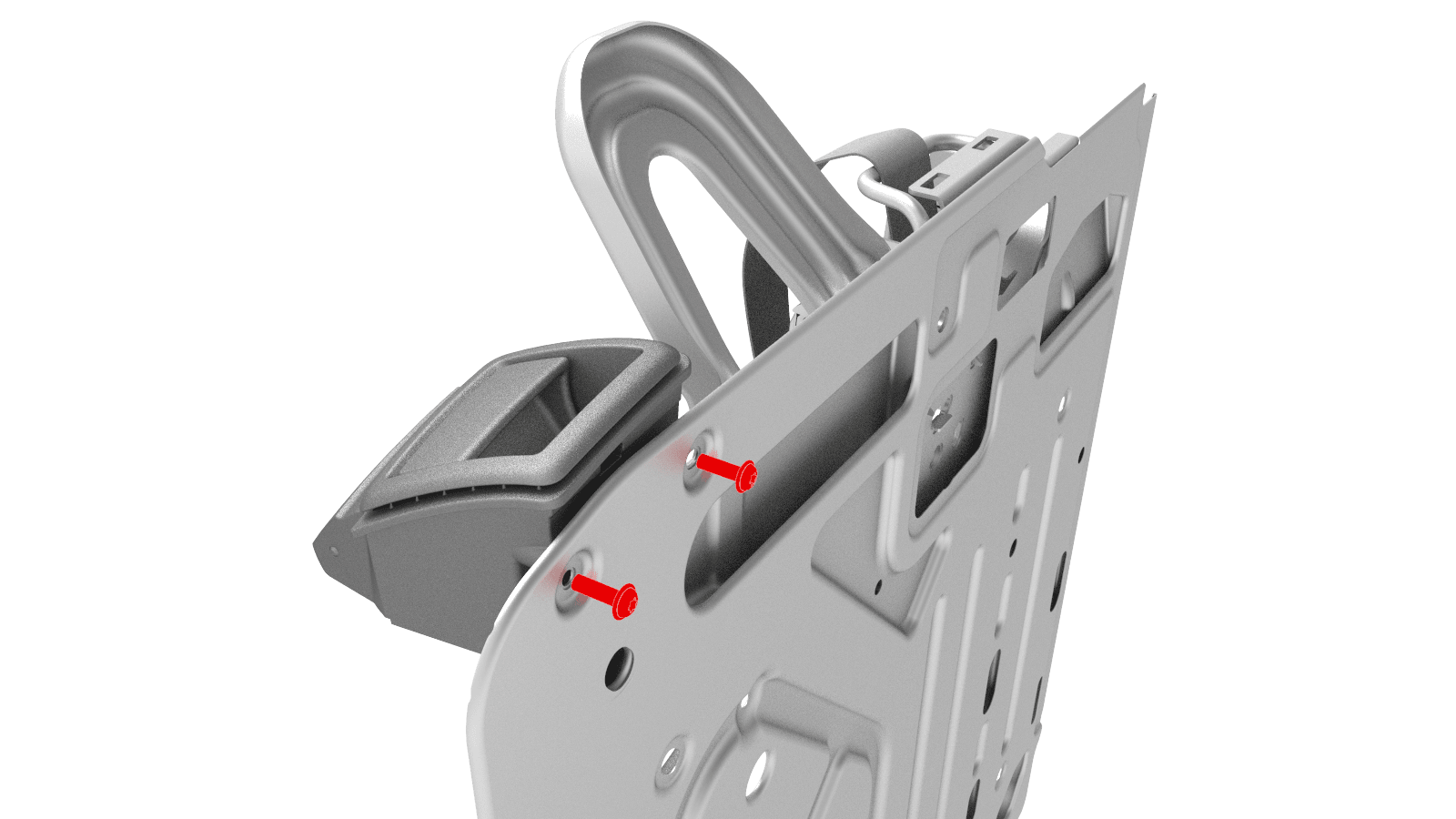

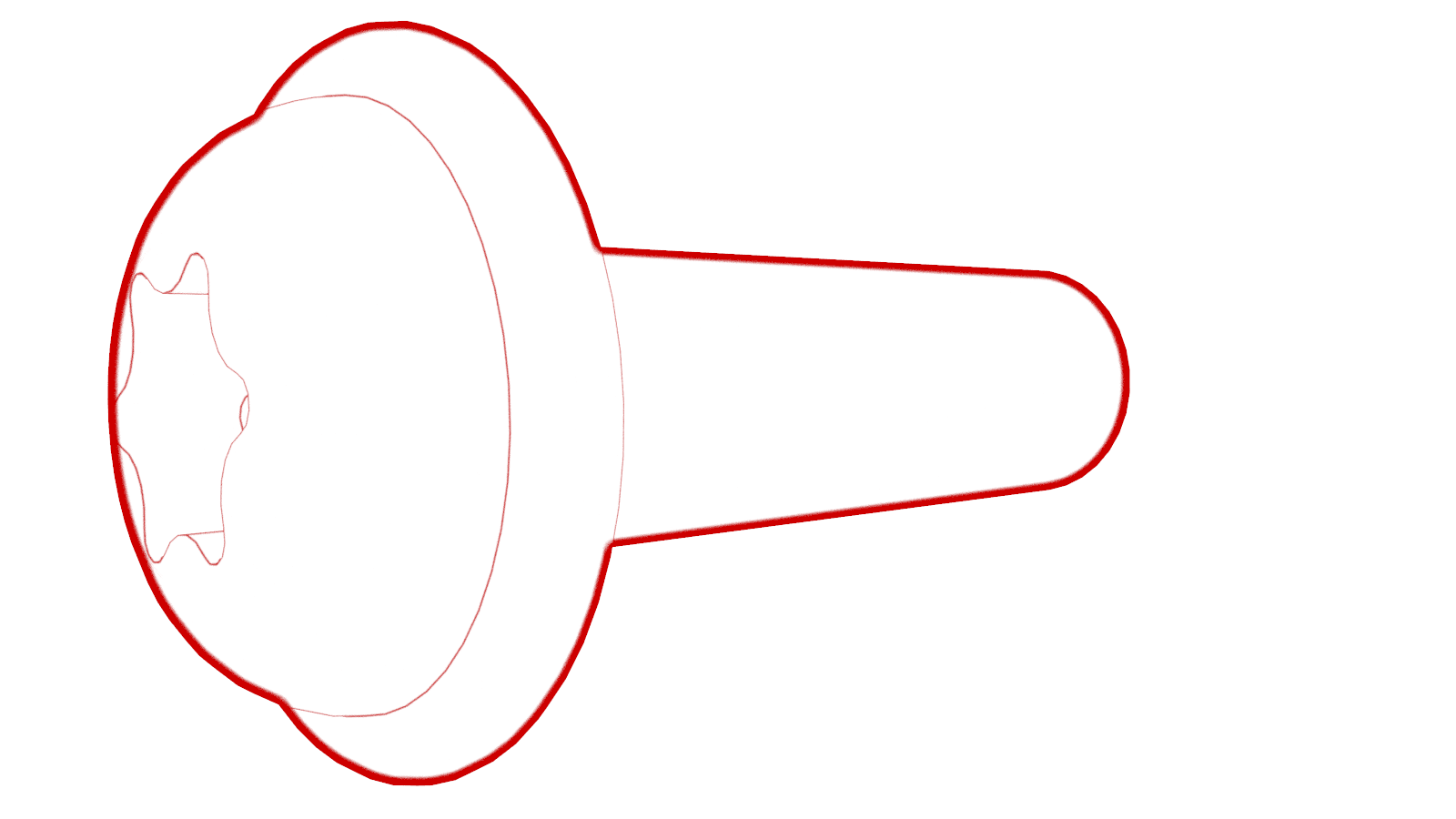

  10. 拆卸将第二排左侧座椅靠背把手总成固定到背板的螺塞;然后从背板中滑出把手总成。

安装

  1. 将第二排左侧座椅靠背把手总成滑到第二排左侧座椅背板上,然后安装将把手总成固定到背板的螺栓。
    2 Nm (1.5 lbs-ft)
  2. 紧固将第二排左侧座椅靠背闩锁控制线缆固定到第二排左侧座椅背板的夹子。
  3. 安装第二排左侧座椅靠背闩锁。请参阅Latch - Seat Back - 2nd Row - LH (Remove and Replace)
  4. 安装第二排中央座椅安全带总成。请参阅Seatbelt - 2nd Row - Center (Remove and Replace)
  5. 安装第二排左侧座椅靠背铰链支架。请参阅Bracket - Hinge - Seat Back - 2nd Row - LH (Remove and Replace)
  6. 安装第二排座椅左侧侧部承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)
  7. 本视频展示了如何将第二排左侧座椅锁扣正确叠加到第二排中间座椅安全带锚固件上:
  8. 将第二排中间座椅安全带锚固件放置到第二排左侧高压电池仓内侧纵梁上,安全带置于右侧。
  9. 确保安全带未扭曲,并平放在第二排座椅靠背上。
  10. 将第二排左侧座椅锁扣支架导销插入第二排左侧高压电池仓内侧纵梁孔中,然后将支架向下转到锚固件上,将导销对准锚固件上的槽口。
  11. 安装一个新螺栓,将座椅锁扣支架、座椅安全带锚固件和高压电池仓内侧纵梁固定到车身上。
    40 Nm (29.5 lbs-ft)
  12. 验证叠加情况。
    标注 描述
    1 第二排左侧顶部锁扣
    2 第二排中间座椅安全带锚固件
    3 底部左侧高压电池仓内侧纵梁
  13. 安装将电气连接器内螺纹接口侧固定到车身螺柱的塑料支架。
  14. 将电气线束连接至左后座椅安全带锁扣连接器。
  15. 连接 12V 电源。请参阅12V/LV Power (Disconnect and Connect)
  16. 安装前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)
  17. 安装第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)
