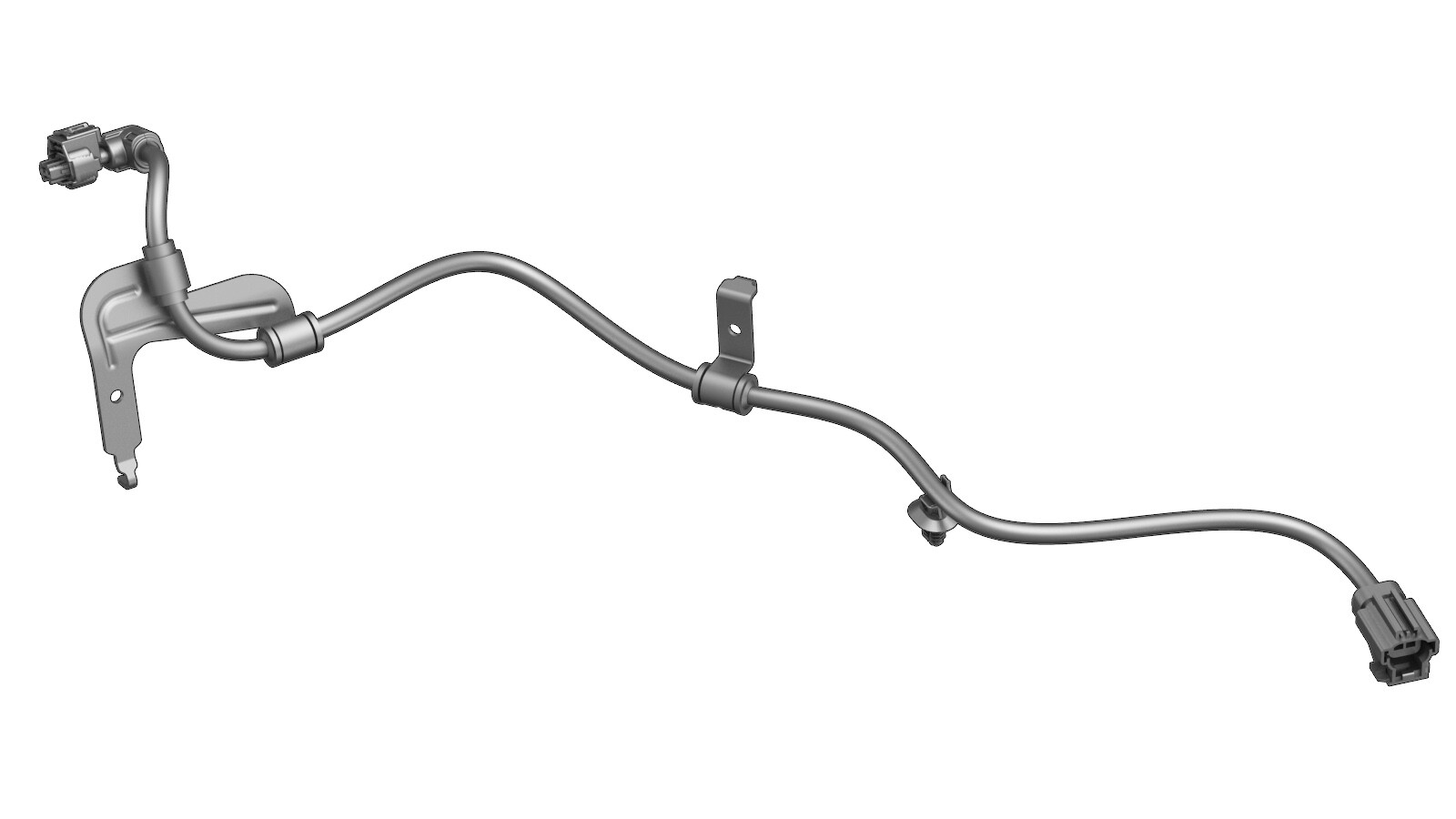

Harness - Electronic Parking Brake (EPB) - LH (Remove and Replace)

校正代码 17102102 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

扭矩规格

表 1. 扭矩规格: Harness - Electronic Parking Brake (EPB) - LH (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Bolt that attaches the LH rear EPB harness bracket to the LH rear caliper
5 Nm (3.7 lbs-ft)
  • 10 毫米套筒
  • 4 英寸加长件
重复使用
Bolt that attaches the LH rear EBP harness bracket to the body
5 Nm (3.7 lbs-ft)
  • 10 毫米套筒
重复使用

拆卸

  1. 使用卧式千斤顶和千斤顶支架举升并支撑车辆。请参阅 Raise Vehicle - Floor Jack (Mobile Service)
  2. 拆下左后车轮。请参阅Wheel Assembly (Remove and Install)

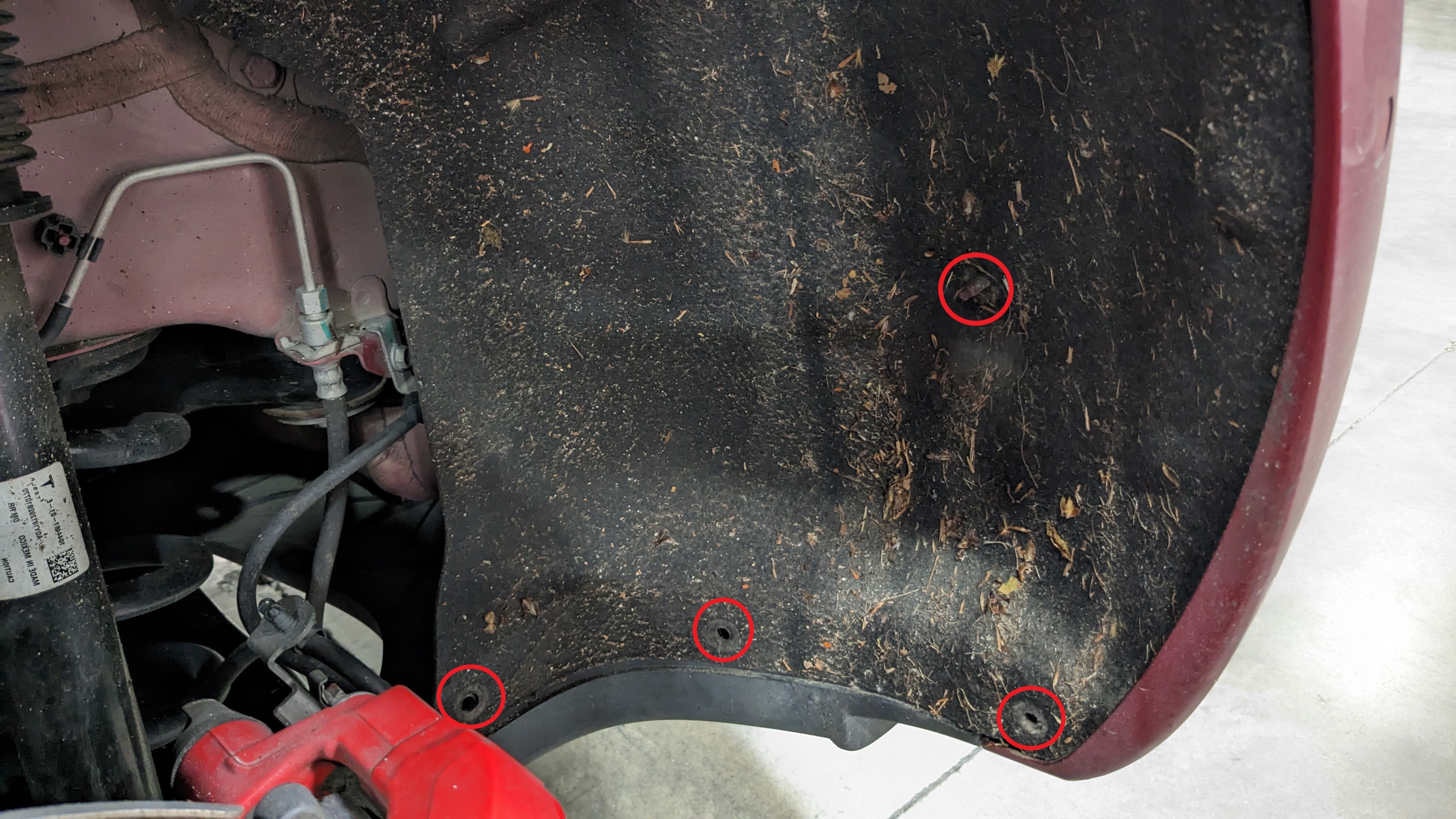

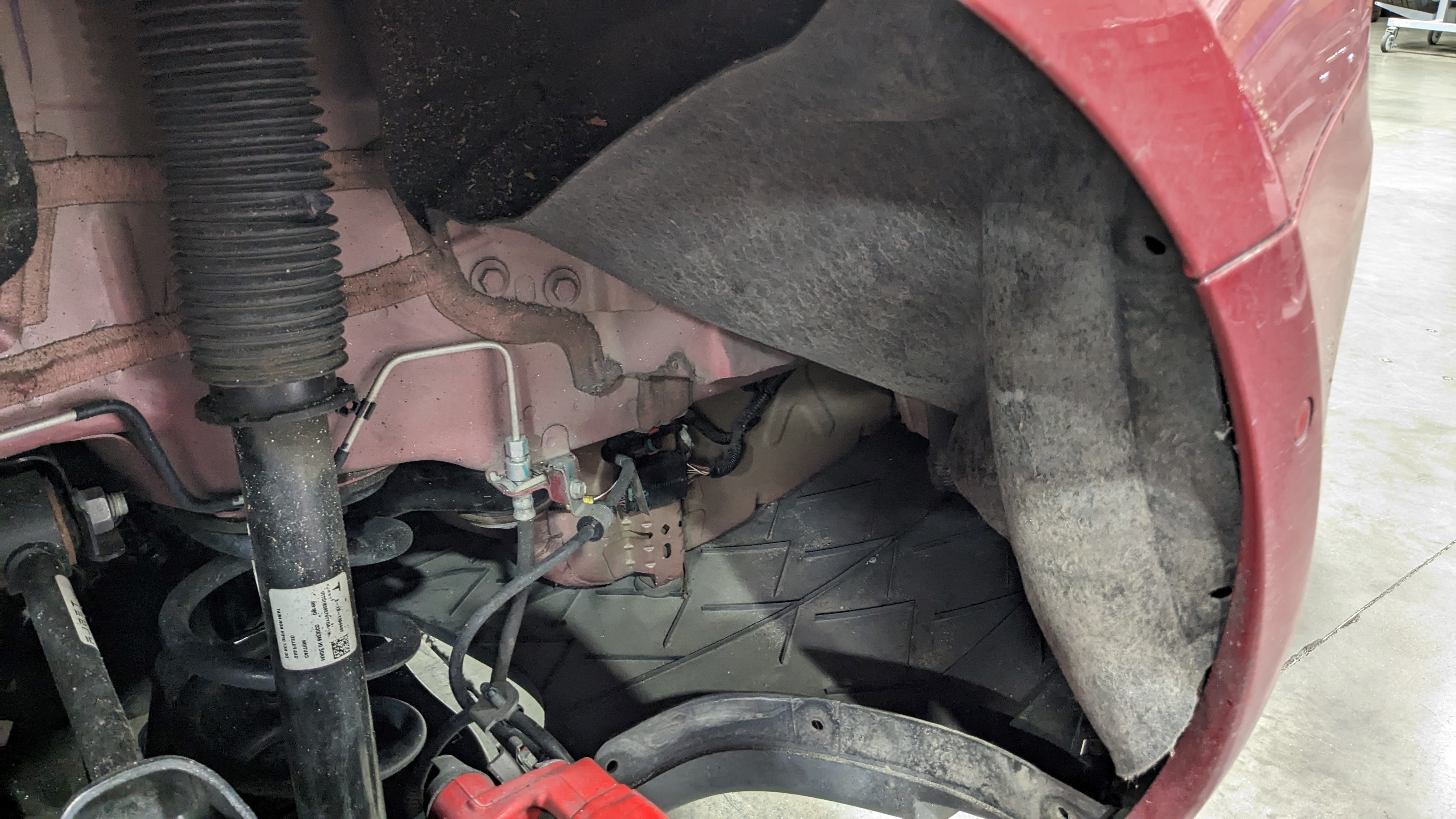

  3. 拆下夹子 (x3),推按将 LH 后轮拱内衬固定到车辆的螺母,然后提起内衬以便操作线束。

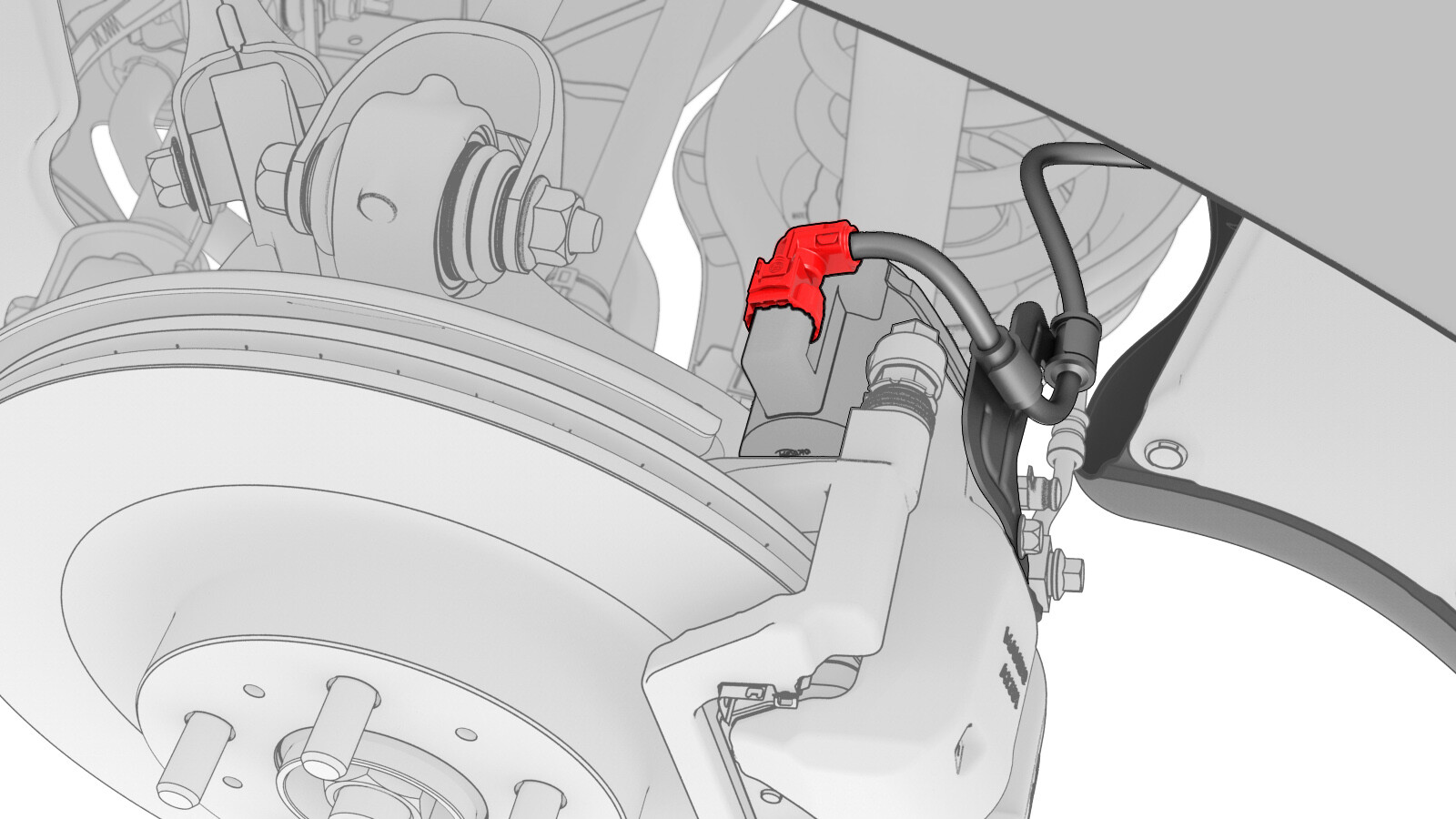

  4. 释放连接器锁,然后断开 LH 电子驻车制动钳电气连接器。

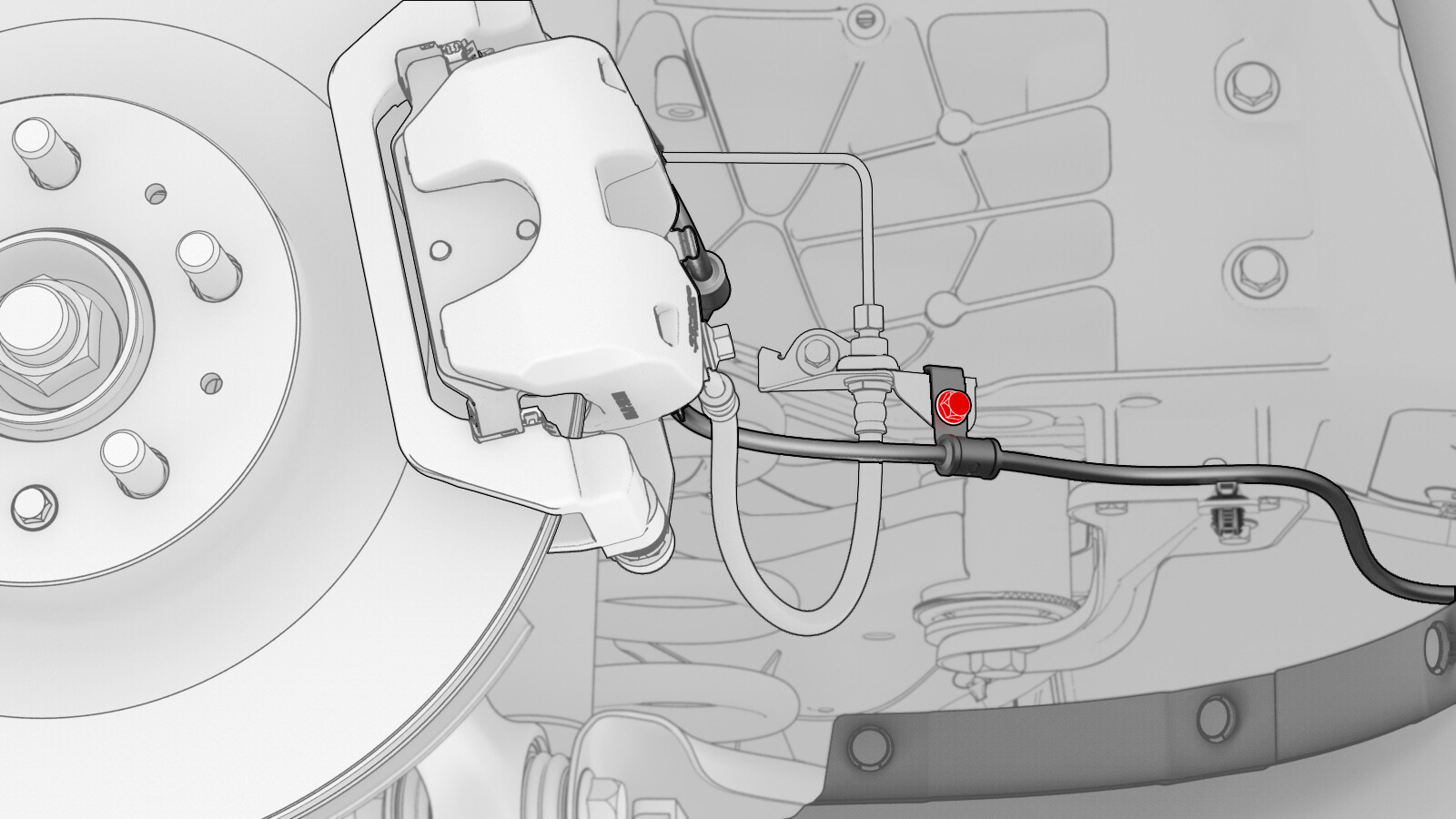

  5. 拆下将 LH 后 EPB 线束支架固定到 LH 后制动钳的螺栓。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
    • 4 英寸加长件
  6. 拆下将 LH 后 EPB 线束支架固定到车身的螺栓。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒

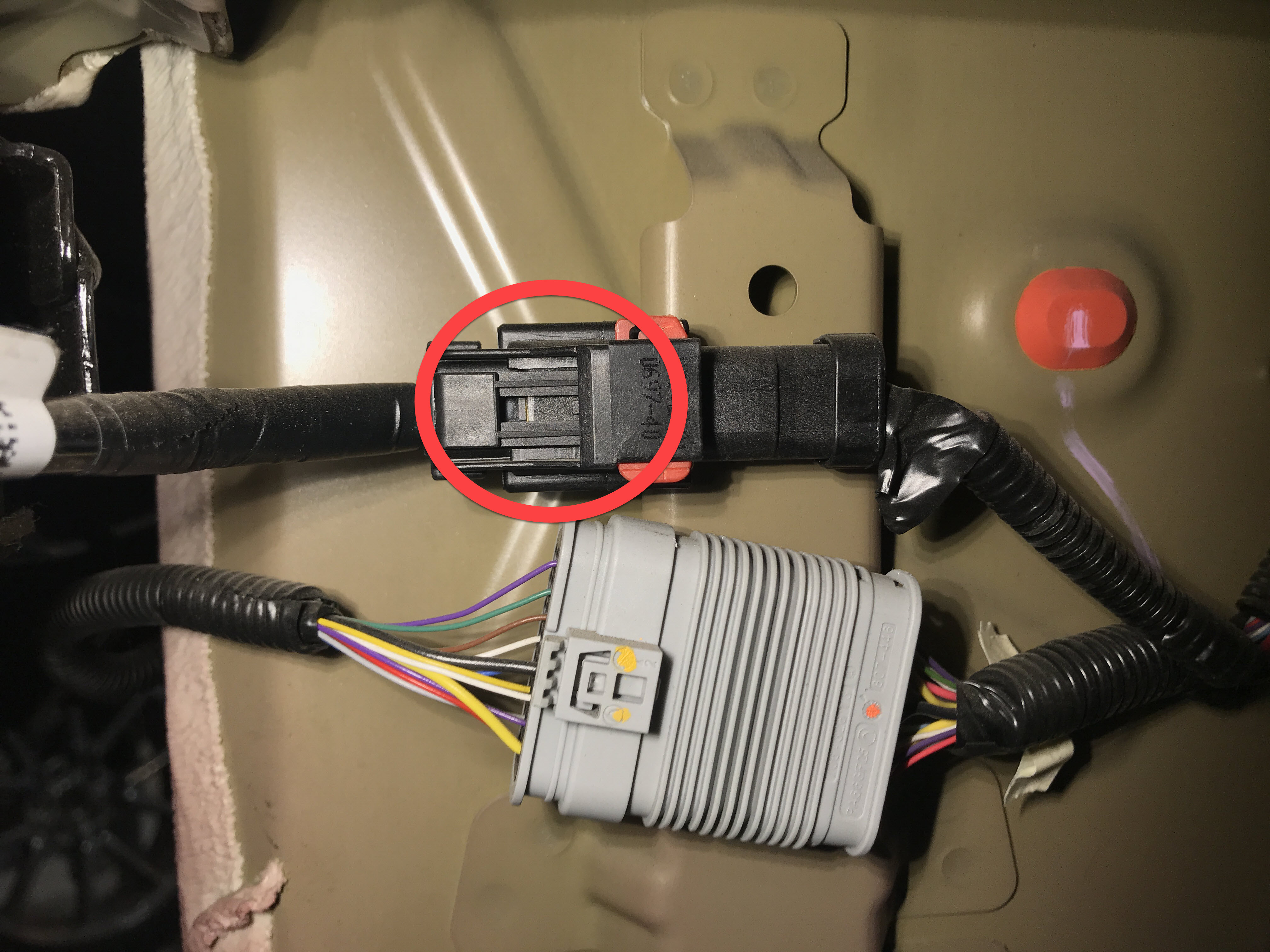

  7. 释放连接器锁,然后断开 LH 后电子驻车制动线束与后车身主线束之间的连接。

安装

安装程序与拆卸程序相反。
