罐盖 - 储液罐 - 挡风玻璃清洗器(拆卸和更换)
校正代码
17501202 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下前备箱后部挡板。请参阅 前备箱挡板 - 后部(拆卸和更换)
-
使用塑料饰板工具将锁帽从挡风玻璃清洗器储液罐加注口上拆下。
注锁帽和止动环是一体的。
安装
-

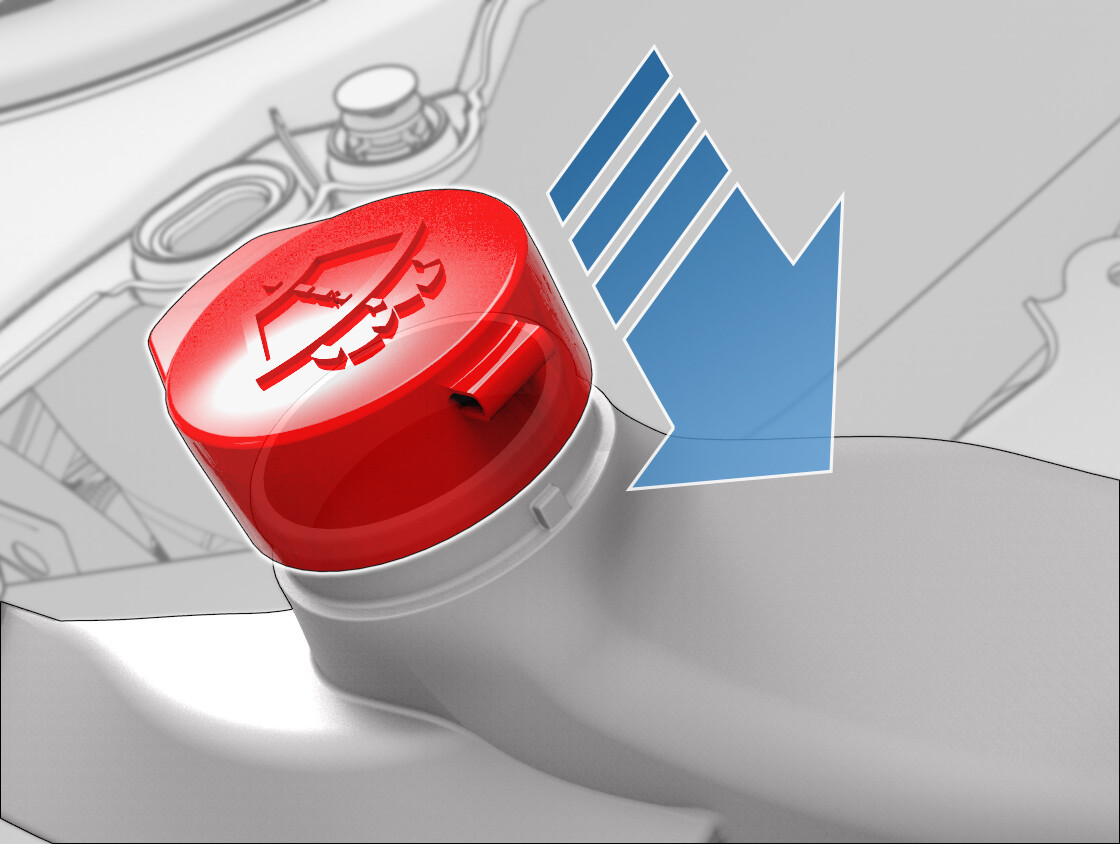

将锁帽定位槽与加注口定位锁片对齐,然后将锁帽完全放置在加注口上。
- 安装前备箱后部挡板。请参阅 前备箱挡板 - 后部(拆卸和更换)
