Deadfronts - Pin - Charge Port (NA) (Undamaged) (Remove and Replace)

校正代码 44012112 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 1552269-00-A 屏蔽前端安装工具，Model 3
  • 1076921-00-B 绝缘万用表，Fluke 1507 （北美地区）
  • 1108272-00-B 变流器逻辑连接器盖，3DU
  • 1130480-00-A 超薄测试探针，Fluke TP38
  • 1076899-00-A 防静电 Express Plus HEPA 真空吸尘器
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

Only technicians who have been trained in High Voltage Awareness and have completed all required certification courses (if applicable) are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional safety information.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告

Remove all jewelry (watches, bracelets, rings, necklaces, earrings, ID tags, piercings, etc.) from your person, and all objects (keys, coins, pens, pencils, tools, fasteners, etc.) from your pockets before performing any procedure that exposes you to high voltage.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
If corrective eyewear is necessary to safely perform any procedure, make sure that the eyewear is securely restrained to the head and cannot fall off.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

执行此程序时需要穿戴适当的个人防护装备 (PPE)：

  • 高压 (HV) 绝缘手套
  • 皮革手套保护罩
  • 高压绝缘手套测试器
  • 护目镜
  • 电气绝缘保护安全鞋
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

手套充气机是测试高压绝缘手套的唯一推荐方式。开始此程序前，需确认两只高压绝缘手套均通过测试。如果任何一只手套未通过充气检测，则需弃置这副手套。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告

确保高压绝缘手套未过期。高压绝缘手套有效期为印在手套上的测试日期后 12 个月内，但首次使用后，即使手套仍处于上述 12 个月有效期内，也只能使用 6 个月。

图 1. 图示为 Model 3；Model Y 与之类似
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. 打开左侧车门，降下所有车窗。
  2. 拆下前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。

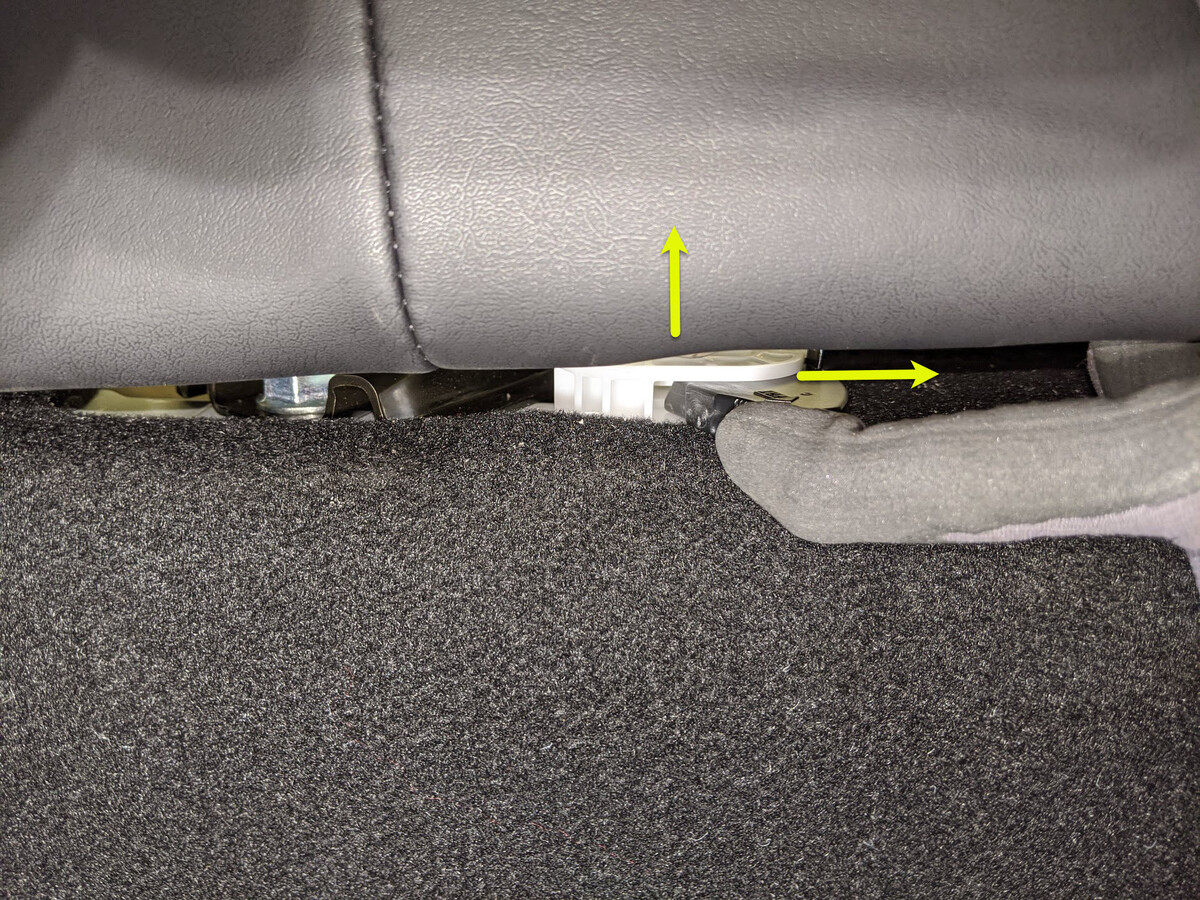

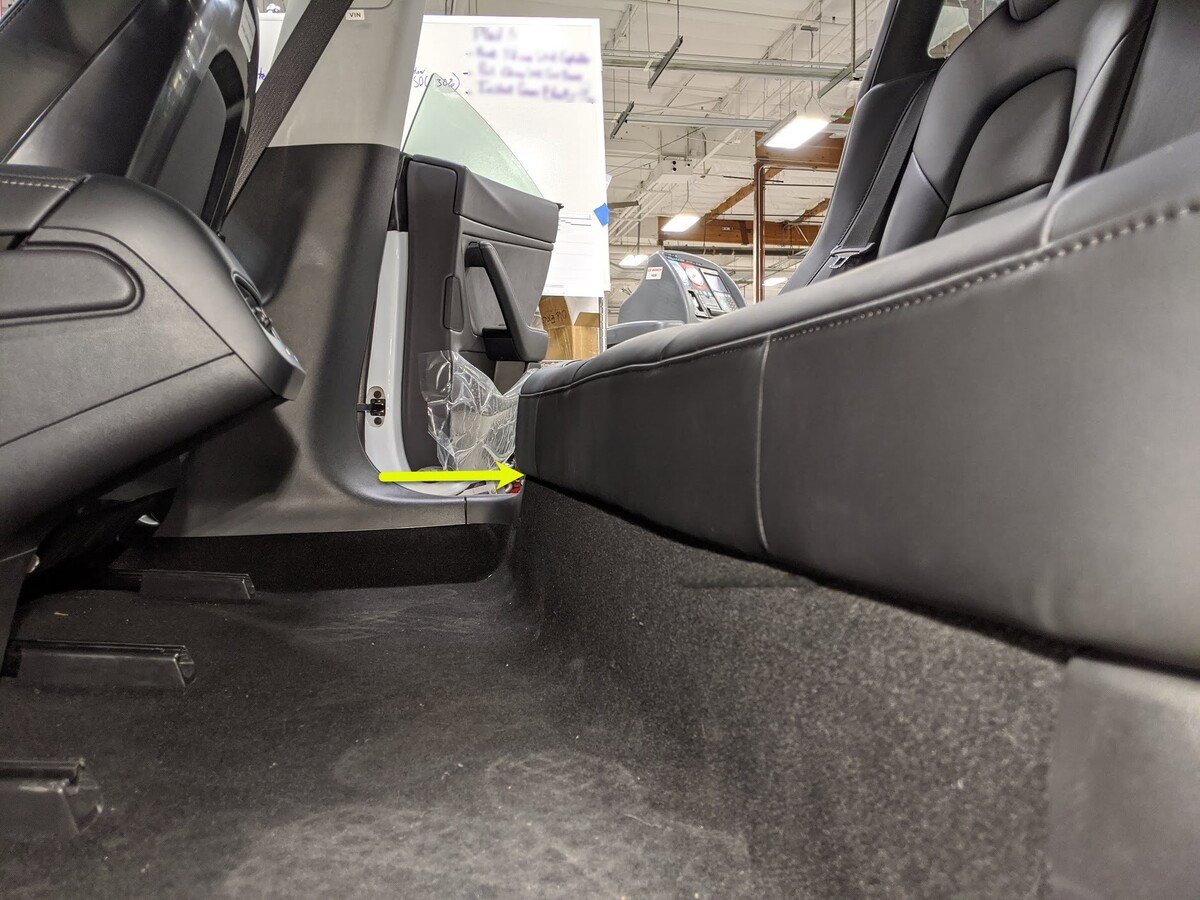

  3. 松开第二排下部座垫右侧的锁片，以将座垫的右前边缘从车上松开，然后使用 12V 盖支撑下部座垫。
  4. 打开充电接口盖板。
  5. 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
  6. 戴上高压手套、皮质外手套和其他个人防护装备 (PPE)，在得到指示前请勿将其取下。
  7. 执行充电接口电压检查程序。请参阅Charge Port Voltage Check。

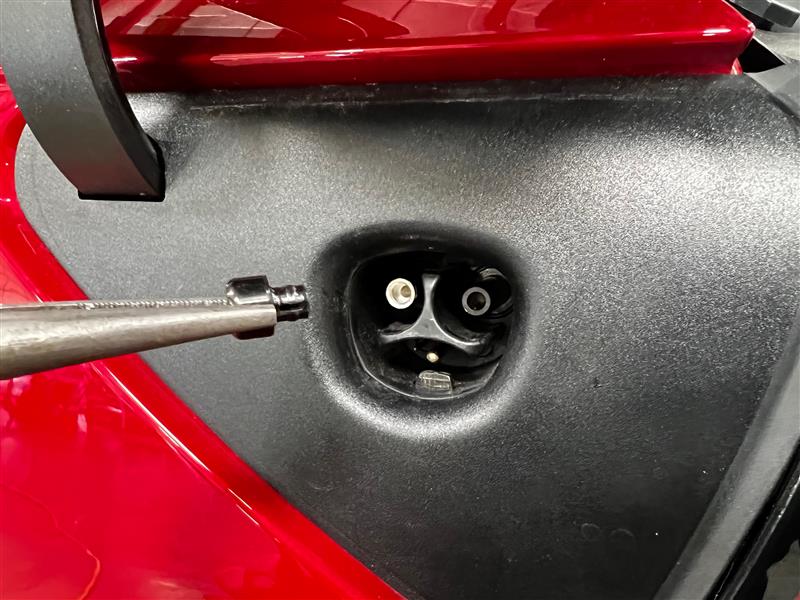

  8. 使用尖嘴钳小心地将屏蔽前端拉离充电接口总成，将其从车上拆下。对其余屏蔽前端重复此步骤。
  9. 检查充电接口是否存在任何已损坏针脚屏蔽前端残件或碎片，并使用防静电 (ESD-safe) 真空吸尘器将其从充电接口总成上清除。
    Informational PurposesAn informational icon, calling your attention
    注
    一些残件可能需要使用尖嘴钳、弯曲手术钳或袖珍螺丝刀才能取出。

安装

  1. 将一个新的充电接口针脚屏蔽前端安装到屏蔽前端安装工具的针脚上（如图所示）。
    Informational PurposesAn informational icon, calling your attention
    TIp
    也可以使用以下工具：
    • 3 毫米六角套筒
    • 6 英寸加长件

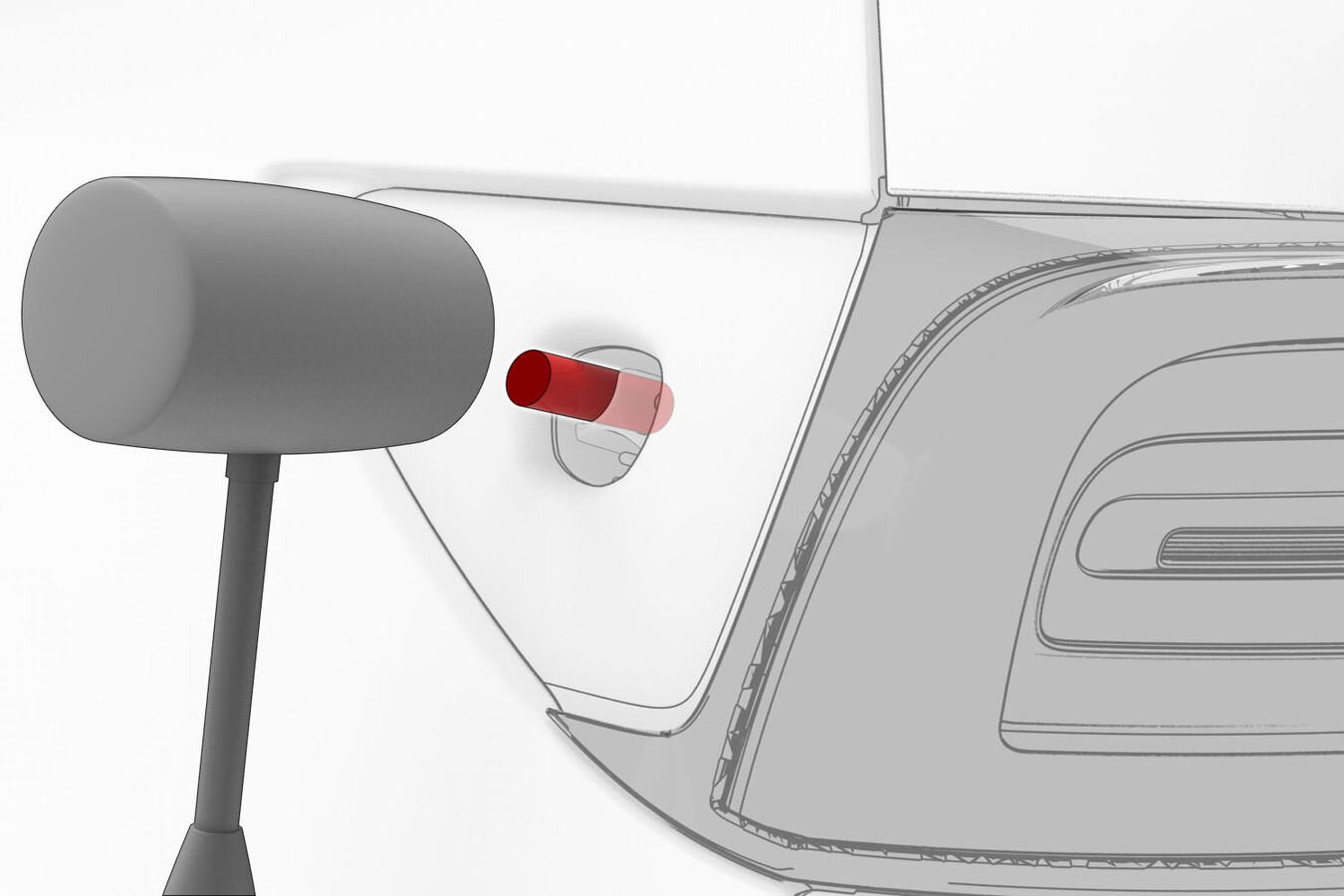

  2. 使用无弹力锤将充电接口针脚屏蔽前端敲入充电接口针脚中，直至完全就位。
  3. 为其他新充电接口针脚屏蔽前端重复第1步和第2步。
  4. 脱下皮质外手套、高压手套和其他高压个人防护装备 (PPE)。
  5. 重新连接 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
  6. 安装前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
  7. 安装第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
  8. 验证车辆充电正常。
