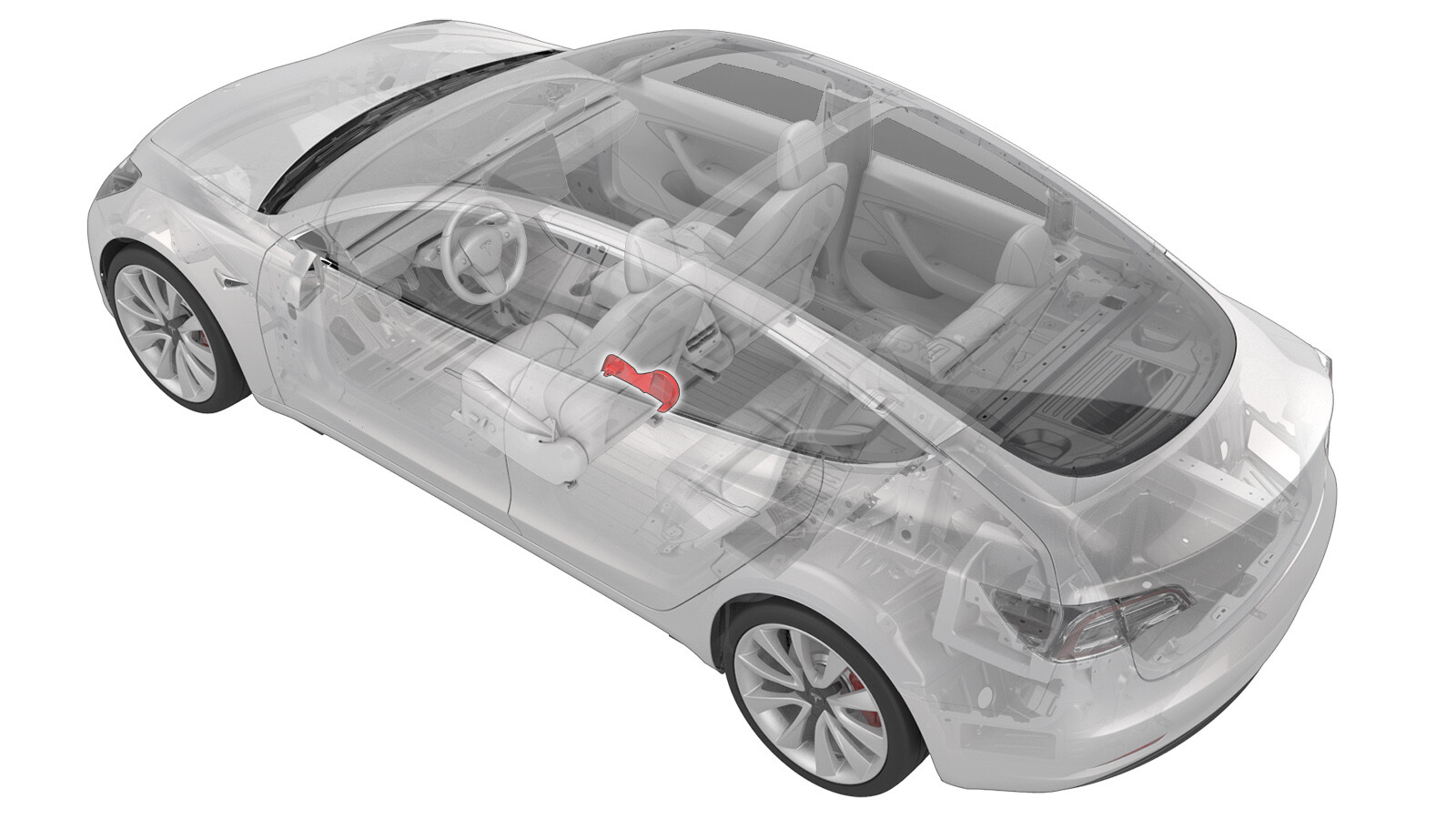

侧护板 - 内侧 - 驾驶位座椅(拆卸和更换)

校正代码 13074602 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 打开 LH 前门。
  2. 将驾驶位座椅朝后下方移至极限。
  3. 打开 RH 后车门。
  4. 拆下内侧护板:

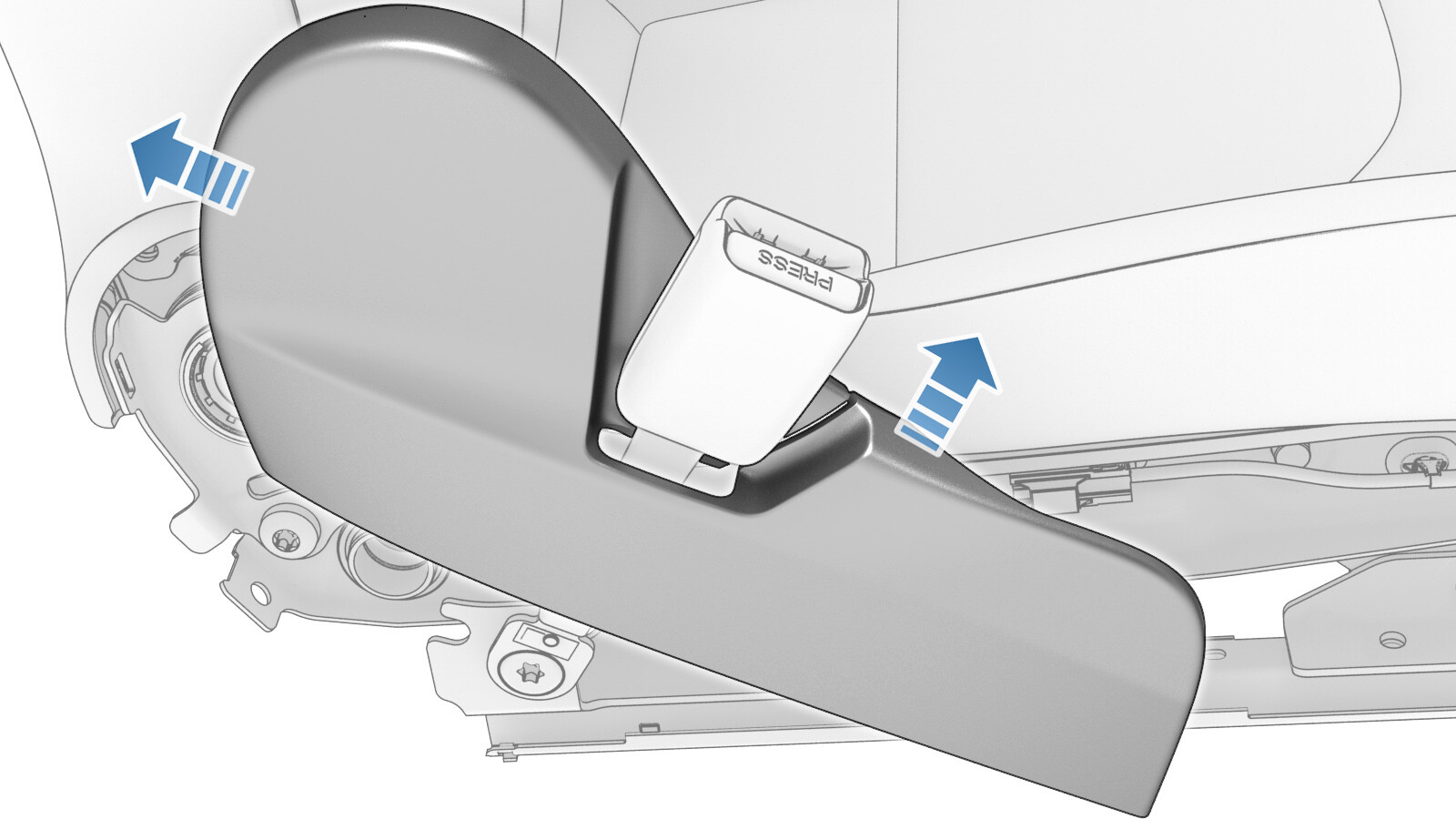

    1. 松开将内侧护板固定到座椅内侧导轨的前部夹具。

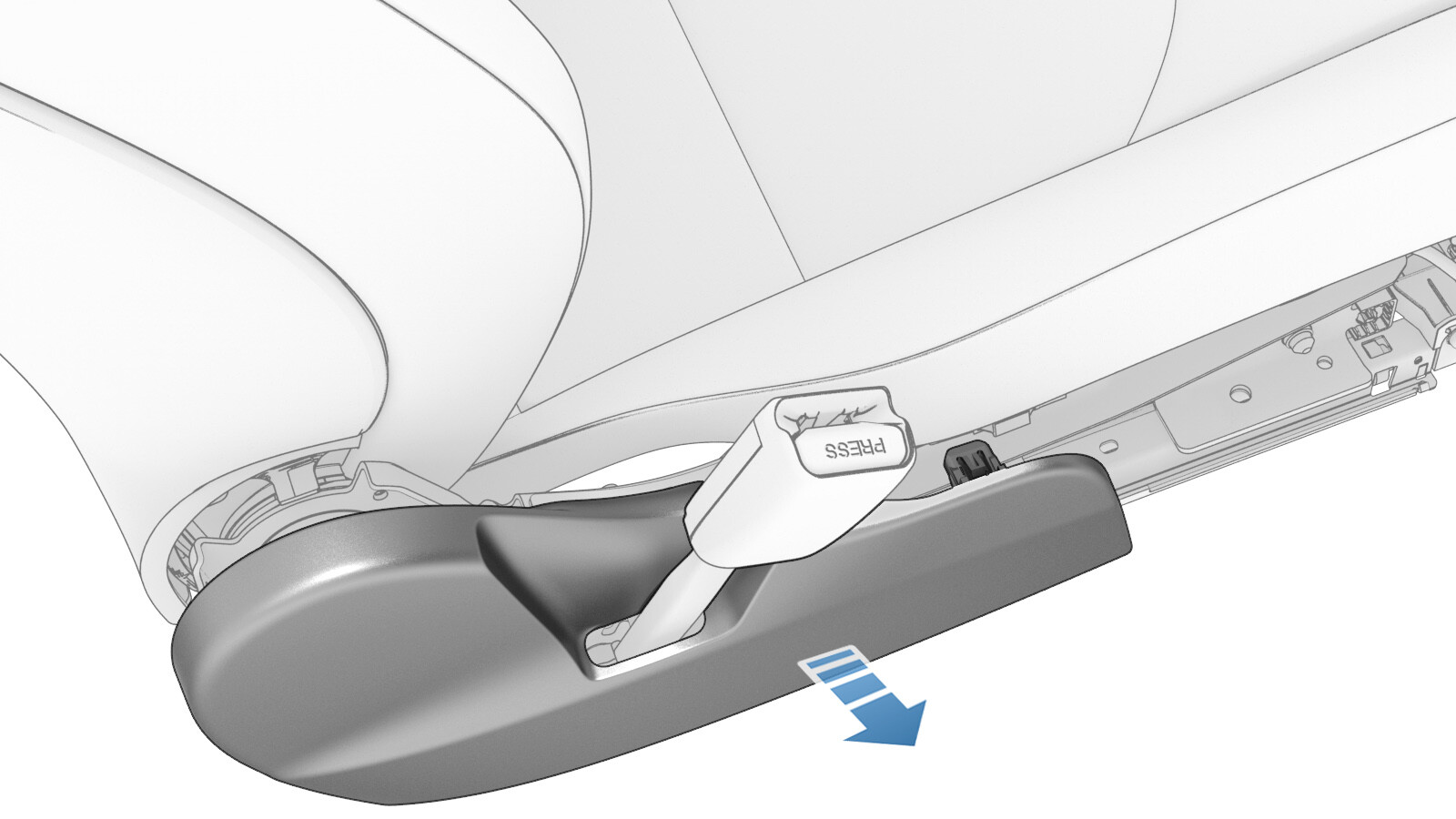

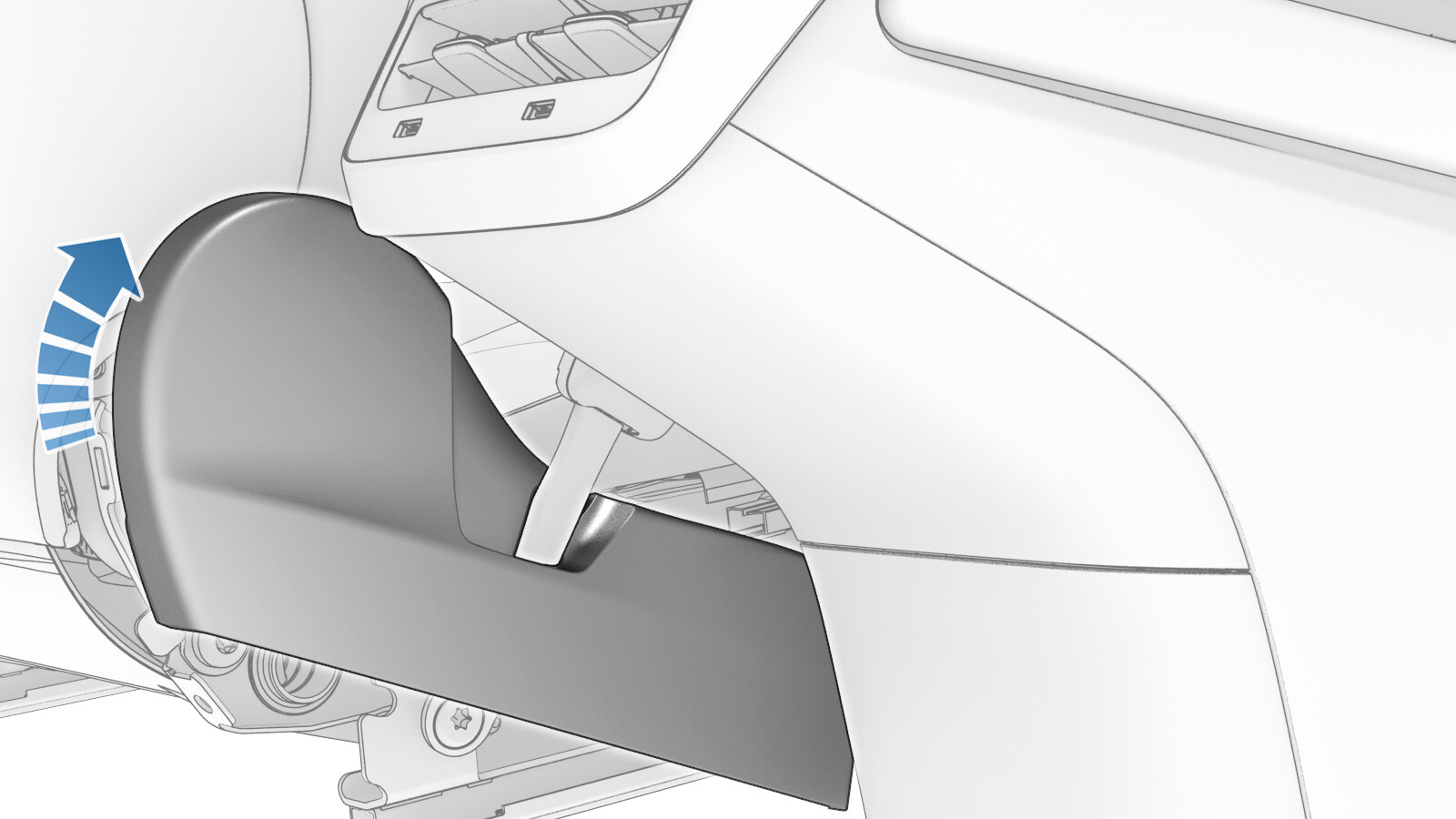

    2. 将内侧护板的后半部分从座椅内侧导轨中释放出来,然后向上转动侧护板。
    3. 将带扣穿过内侧护板上的槽孔,然后从车上拆下内侧护板。

安装

安装程序与拆卸程序相反。
