杯托 - 第二排(拆卸和更换)
校正代码
13082002 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 打开 RH 后车门,。
-

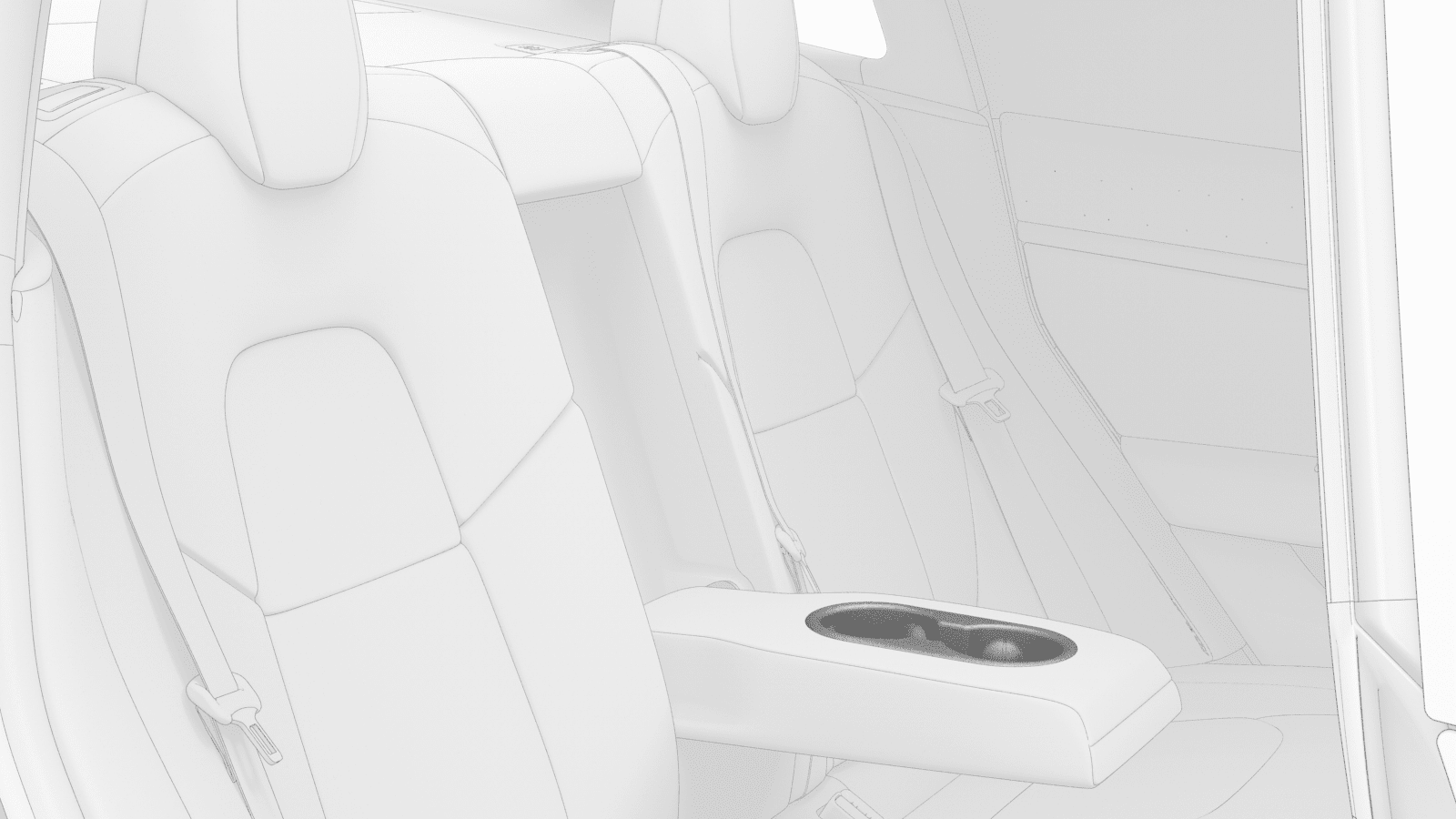

放下扶手。
-

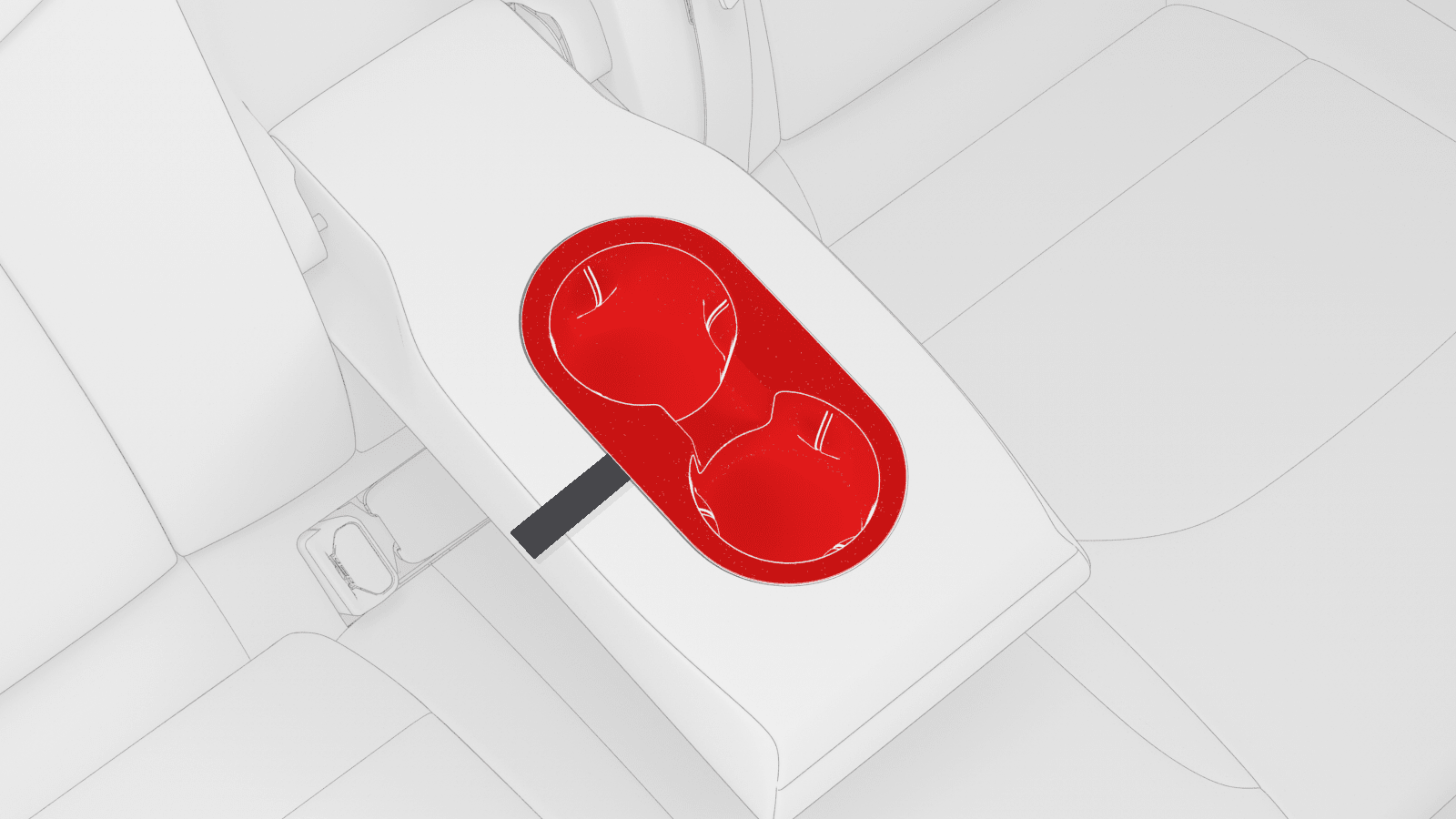

借助塑料饰板工具,使杯托与锁片分离。
-

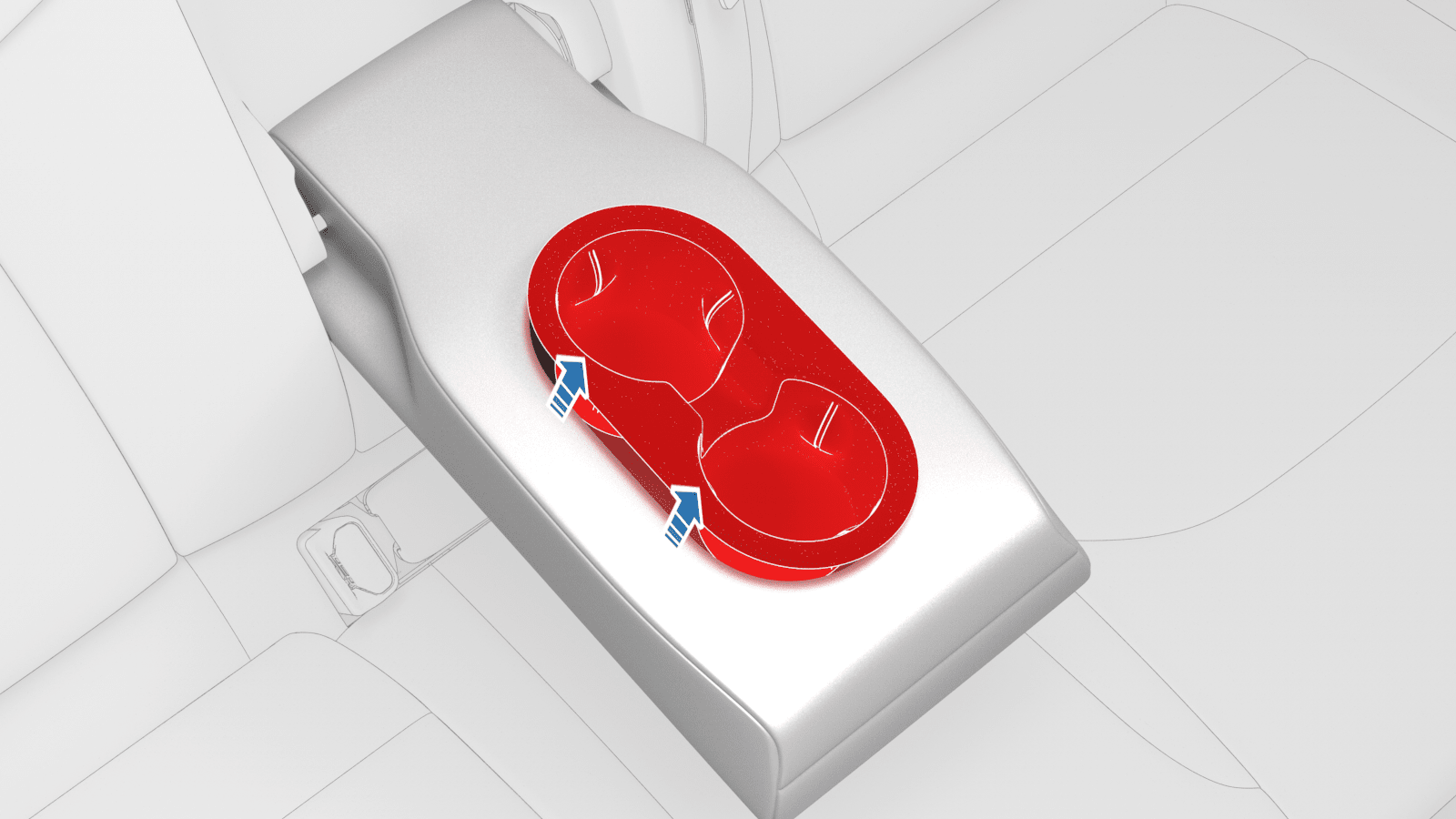

掀起杯托,并将其从车上拆下。
安装
-

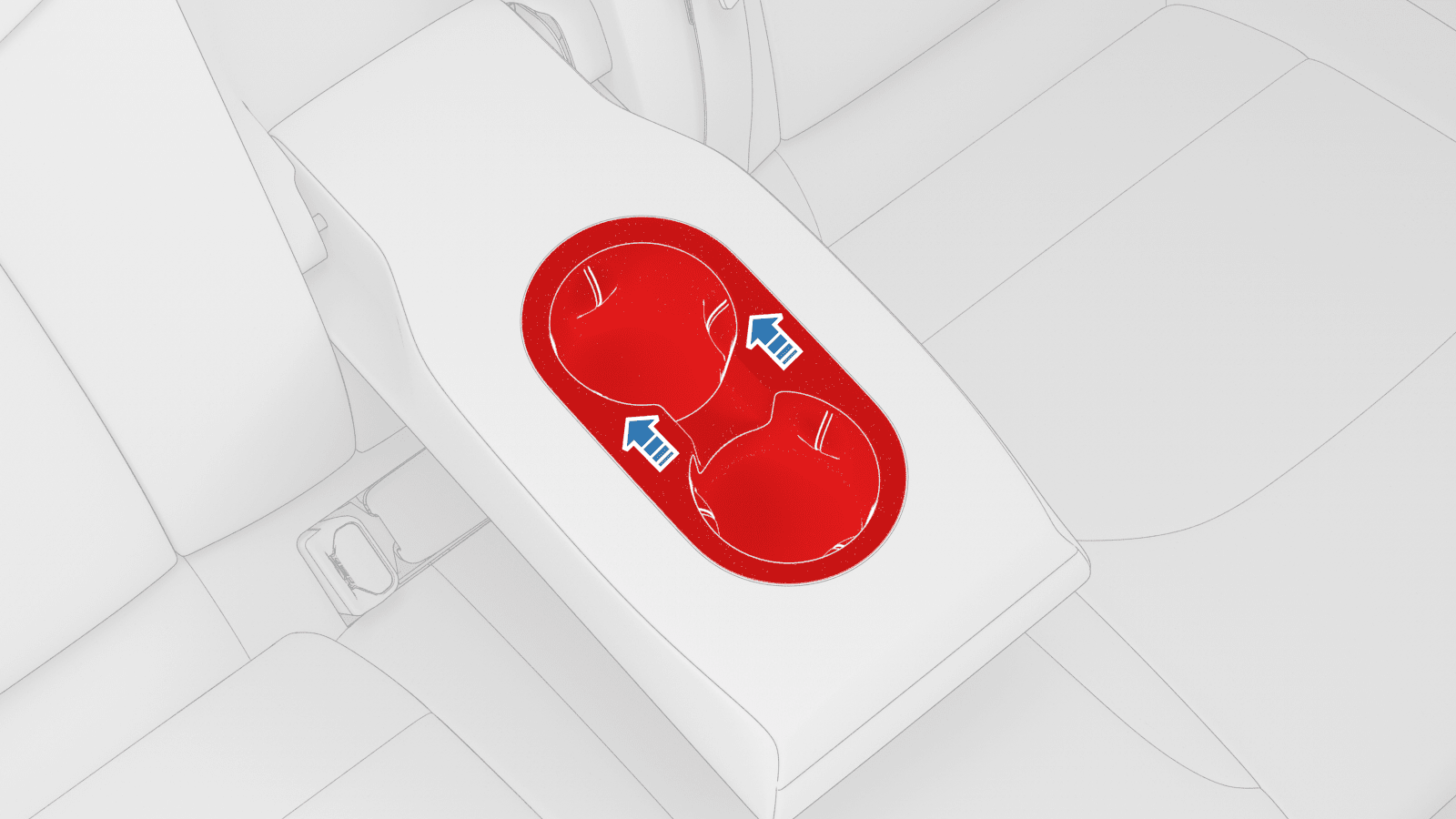

将新杯托安装到扶手上。
注将杯托边缘压牢,以便锁紧锁片。
-

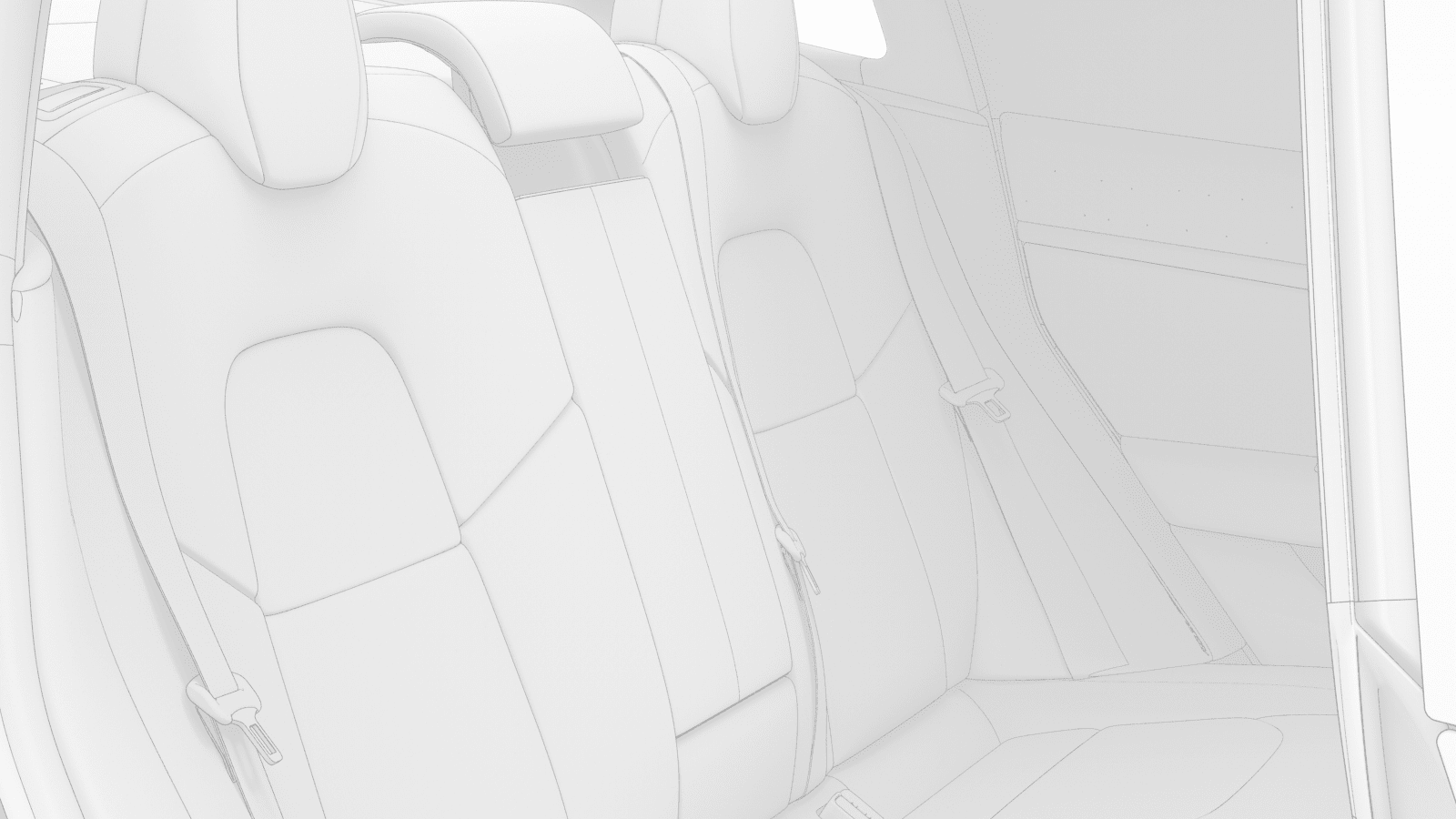

将扶手恢复至竖直位置。
- 关闭 RH 后车门,。
