Trim - Package Tray (Remove and Replace)

校正代码 15243002 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2023 年 10 月 26 日:针对将杂物盘固定到车辆的卡子数量,添加了“新款车辆上的卡子数量可能有所不同”的说明。

拆卸

  1. 将驾驶位和副驾位座椅移至最前侧。
    Informational PurposesAn informational icon, calling your attention
    在移动前,请标记驾驶位和副驾位座椅位置,以便在安装时恢复原位。
  2. 拆卸第二排座椅左侧侧部承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)
  3. 拆卸左侧纵梁饰板。请参阅Trim - Side Rail - LH (Remove and Replace)
  4. 拆卸左侧 C 柱上饰板。请参阅Trim - C-Pillar - Upper - LH (Remove and Replace)
  5. 拆卸左侧 C 柱后饰板。请参阅Trim - C-Pillar - Rear - LH (Remove and Replace)
  6. 拆卸第二排座椅右侧侧部承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)
  7. 拆卸右侧纵梁饰板。请参阅Trim - Side Rail - LH (Remove and Install)
  8. 拆卸右侧 C 柱上饰板。请参阅Trim - C-Pillar - Upper - LH (Remove and Replace)
  9. 拆卸右侧 C 柱后饰板。请参阅Trim - C-Pillar - Rear - LH (Remove and Replace)

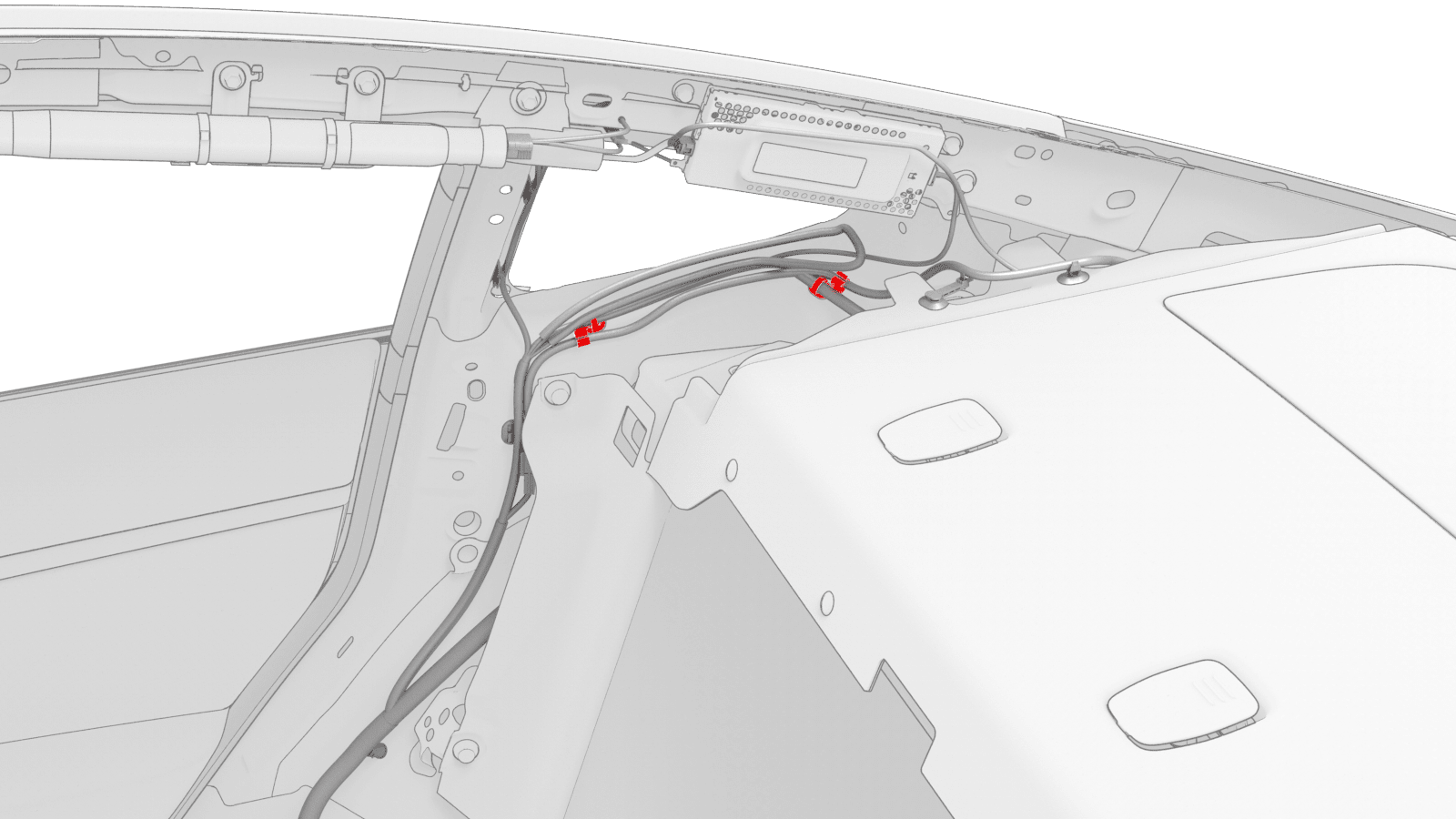

  10. 松开将杂物盘线束固定到 C 柱的卡子。
  11. 将杂物盘线束连接器从右车身电气线束上断开。

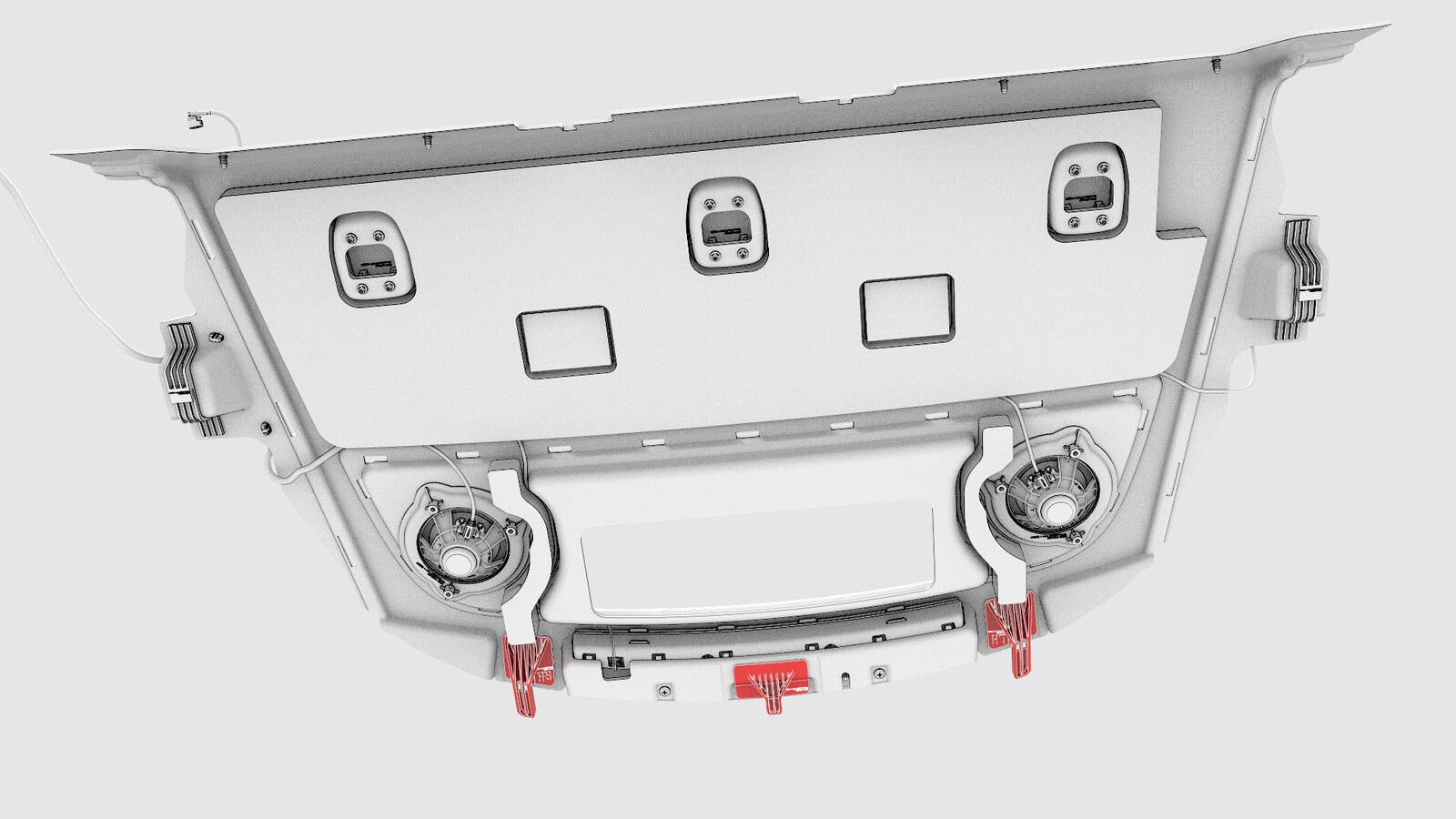

  12. 松开将扬声器线束固定到调谐器的夹子。
  13. 将扬声器线束连接器从调谐器上断开。

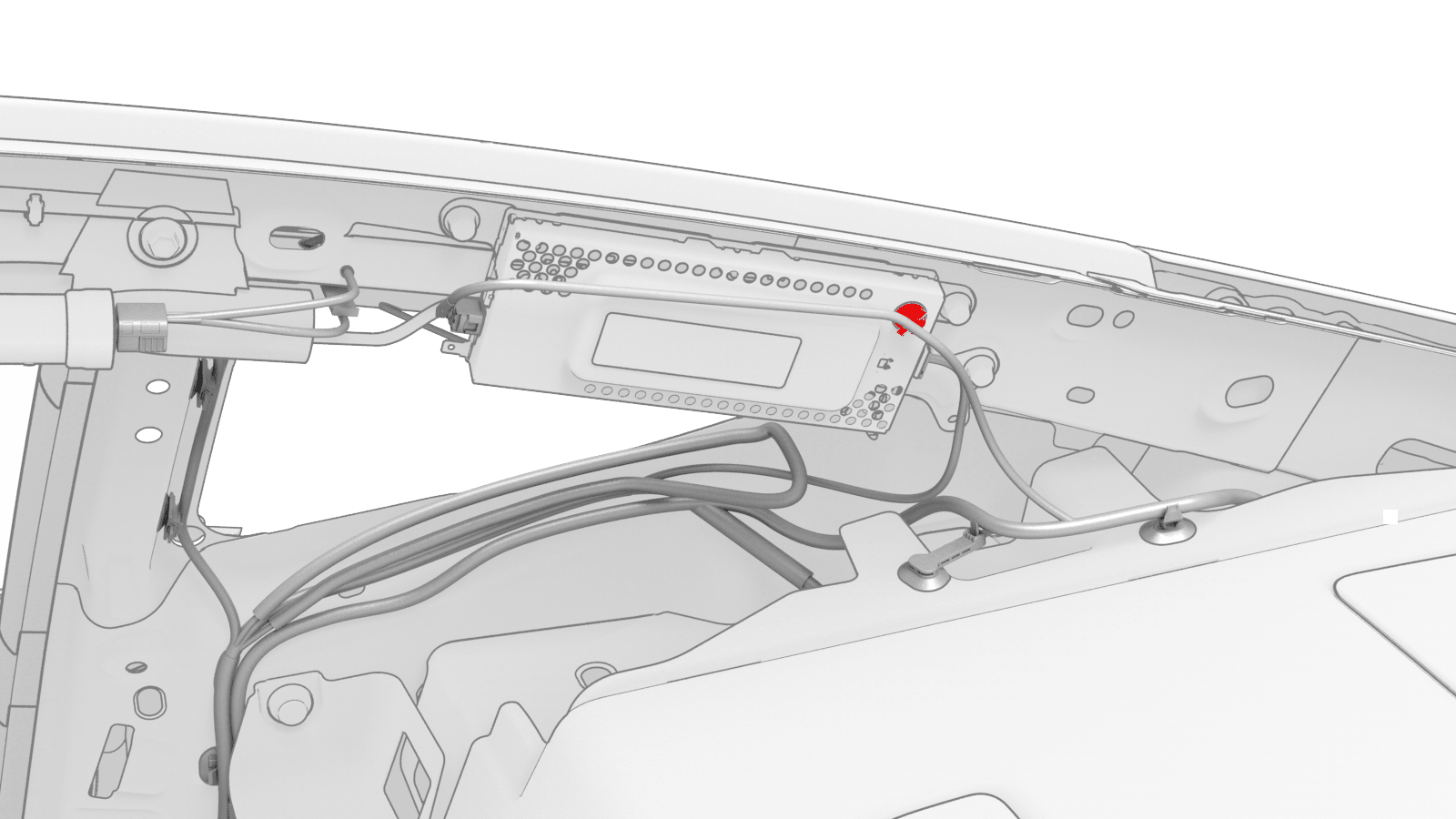

  14. 松开将天线放大器线束固定到车身的夹子。
  15. 将电气连接器从天线放大器上断开。
  16. 松开将杂物盘饰板固定到车身的卡子(2 个或 4 个)。
    Informational PurposesAn informational icon, calling your attention
    新款车上的卡子数量可能有所不同。

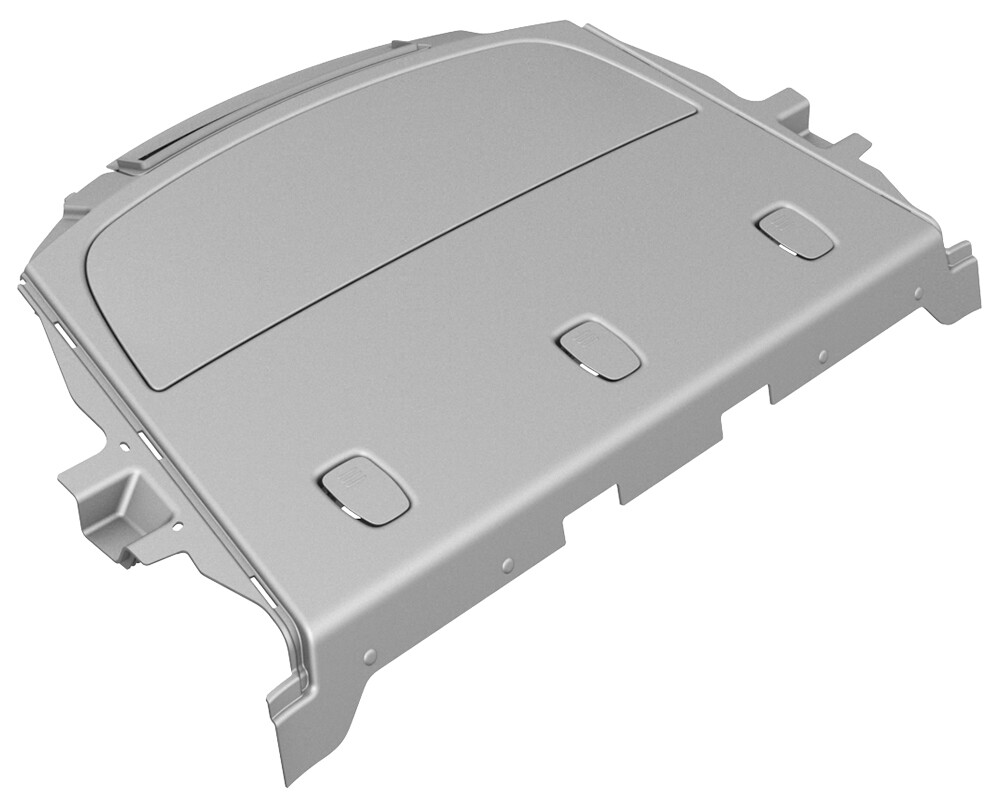

  17. 松开将杂物盘固定到车身的锁片,然后将杂物盘向前滑动,以便从车辆上拆下。

安装

  1. 将杂物盘饰板安装到车辆上。
    Informational PurposesAn informational icon, calling your attention
    向后滑动杂物盘,以便将其安装到车辆上,然后通过锁片将杂物盘固定到车身。
  2. 安装将杂物盘饰板固定到车身的卡子。
  3. 将电气连接器连接到天线放大器。
  4. 安装将天线放大器线束固定到车身的夹子。
  5. 将扬声器线束连接器连接到调谐器。
  6. 安装将扬声器线束固定到调谐器的夹子。
  7. 将杂物盘线束连接器连接到右车身电气线束。
  8. 安装将杂物盘线束固定到 C 柱的夹子。
  9. 安装右侧 C 柱后饰板。请参阅 Trim - C-Pillar - Rear - LH (Remove and Replace)
  10. 安装右侧 C 柱上饰板。请参阅Trim - C-Pillar - Upper - LH (Remove and Replace)
  11. 安装右侧纵梁饰板。请参阅Trim - Side Rail - LH (Remove and Install)
  12. 安装第二排座椅右侧侧部承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)
  13. 安装左侧 C 柱后饰板。请参阅Trim - C-Pillar - Rear - LH (Remove and Replace)
  14. 安装左侧 C 柱上饰板。请参阅Trim - C-Pillar - Upper - LH (Remove and Replace)
  15. 安装左侧纵梁饰板。请参阅Trim - Side Rail - LH (Remove and Replace)
  16. 安装第二排座椅左侧侧部承梁。请参阅Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)
  17. 将驾驶位和副驾位座椅移回原位。
