Sensor - Impact Accelerometer - Front Bumper - LH (Remove and Replace)

校正代码 20203102 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see 气囊和辅助约束系统 (SRS) 预防措施.

扭矩规格

表 1. 扭矩规格: Sensor - Impact Accelerometer - Front Bumper - LH (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Bolt that attaches the airbag sensor to the front end carrier
10 Nm (7.4 lbs-ft)
  • 10 毫米深套筒
  • 1/4 英寸标准回旋头棘轮
  • 1/4 英寸回旋头扭矩扳手(仅适用于安装程序)
重复使用

拆卸

  1. 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)
  2. 拆下 LH 前轮拱内衬。请参阅Wheel Arch Liner - Front - LH (Remove and Replace)
  3. 断开电气线束连接器与 LH 前气囊传感器的连接。

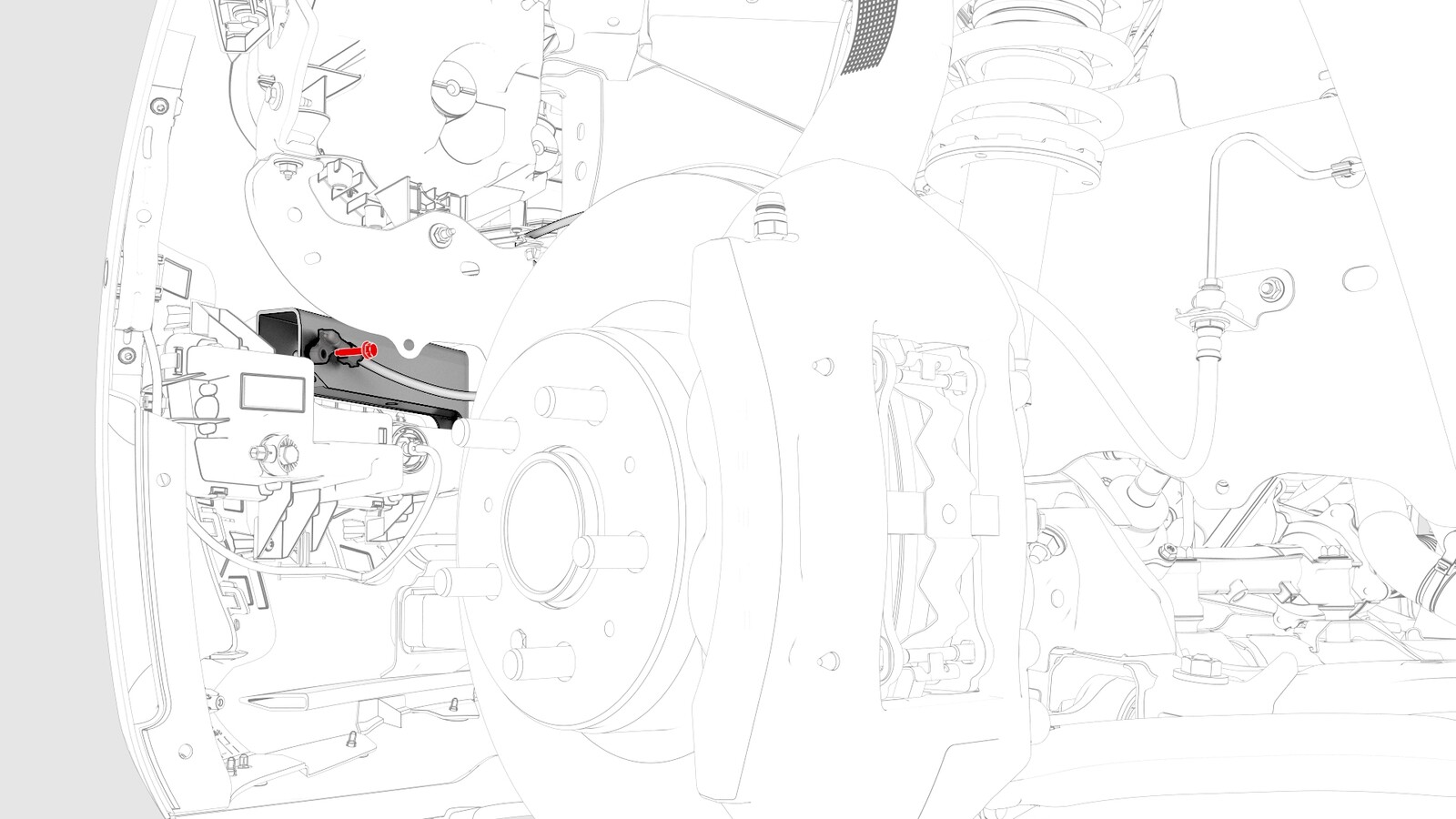

  4. 拆下将气囊传感器固定到前端支架的螺栓,然后从车上拆下传感器。
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp

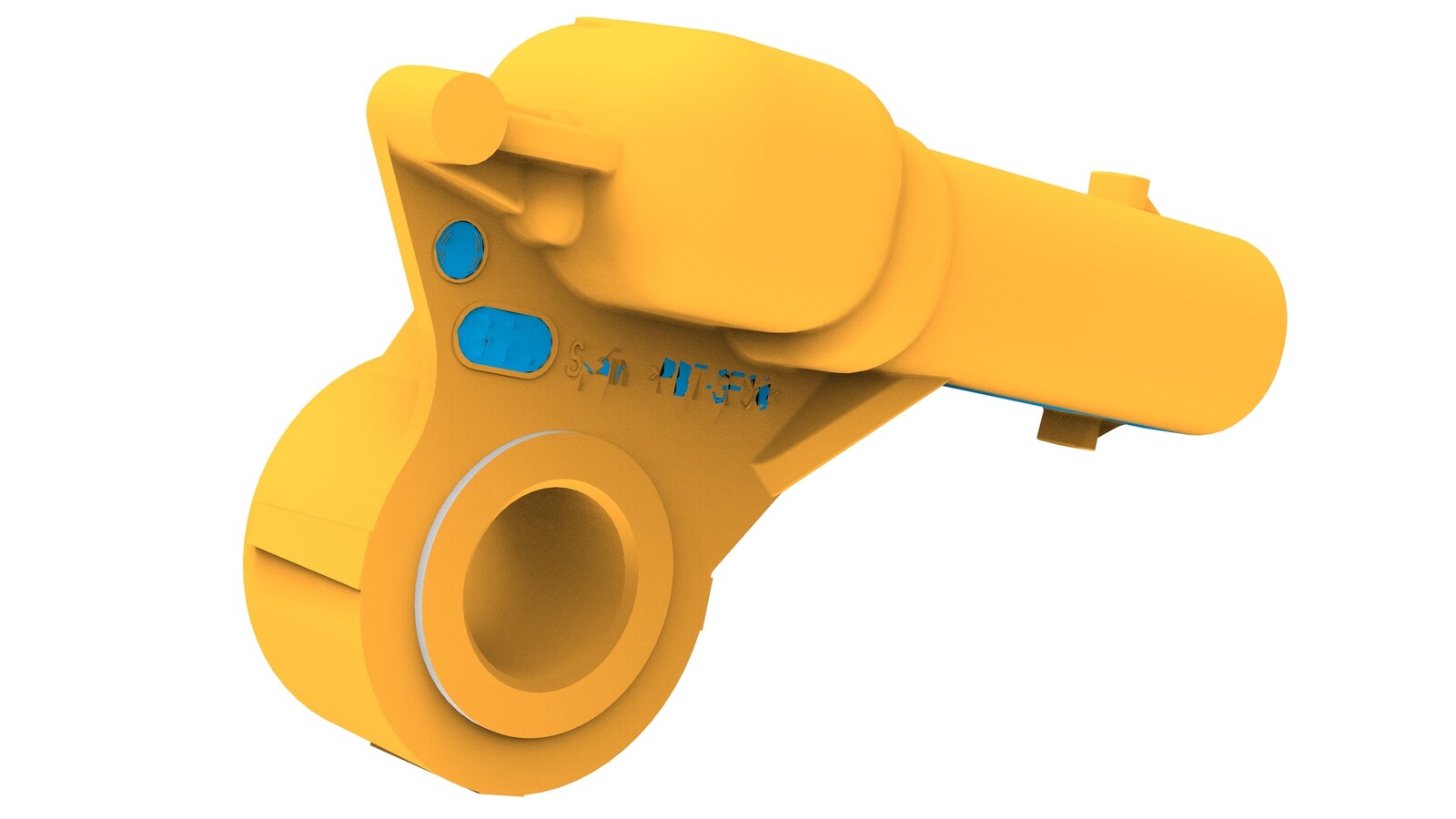

    推荐使用以下工具:
    • 10 毫米深套筒
    • 1/4 英寸标准回旋头棘轮
    • 1/4 英寸回旋头扭矩扳手(仅适用于安装程序)

安装

安装程序与拆卸程序相反。
