Antenna - GPS (Remove and Replace)
校正代码
21320102
0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
- 2024 年 9 月 12 日：添加了“无需将线束从三摄像头总成上断开”的说明。
拆卸
-
拆下前置摄像头。请参阅Camera - Triple - Forward Facing (Remove and Replace)。
注无需将电气线束从三摄像头总成上断开。拆下将三摄像头总成固定到车辆的紧固件后，请使总成悬挂在线束上。
-

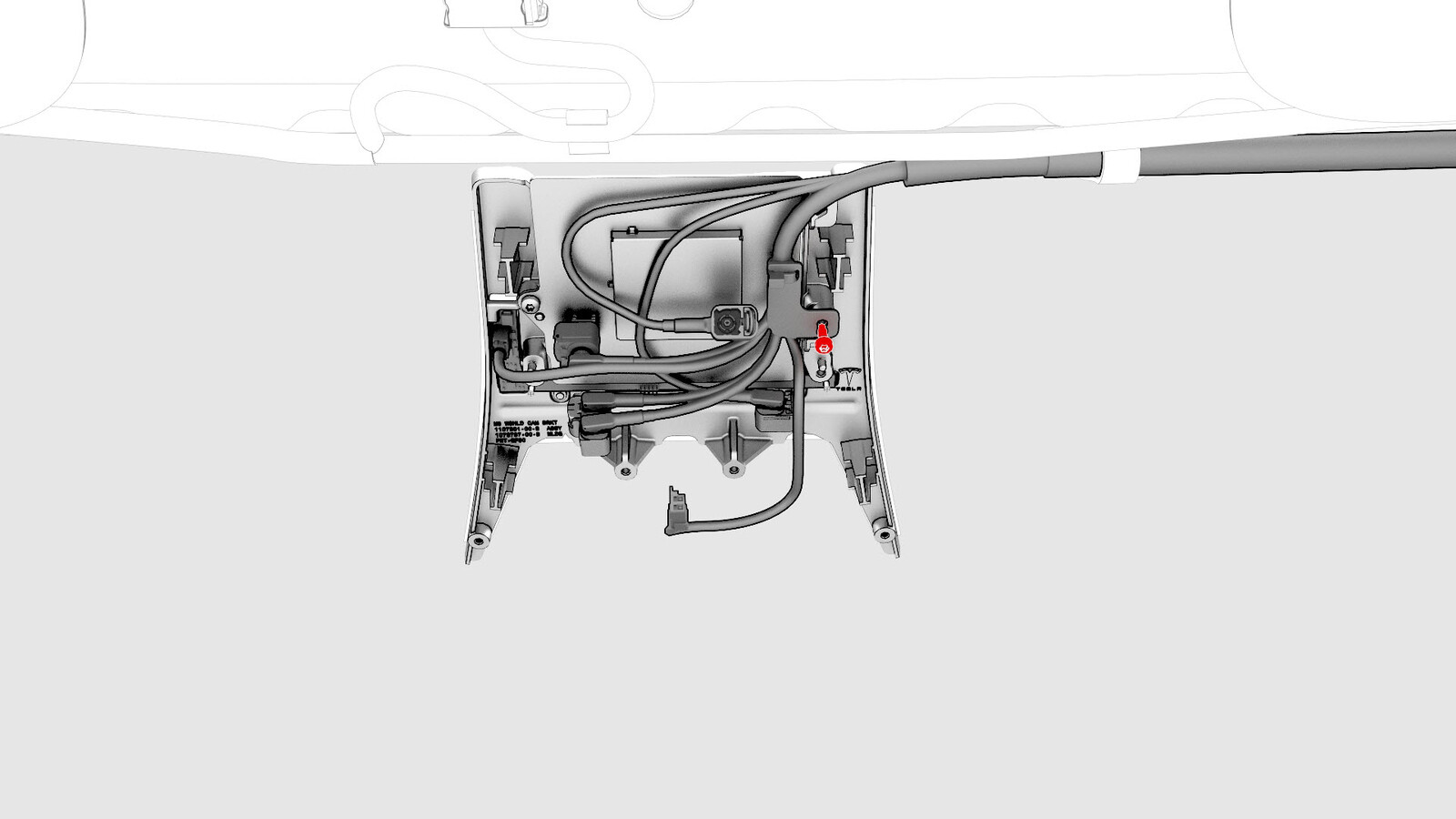

断开电气线束与湿度和温度传感器连接器的连接。
-
断开电气线束与 GPS 天线连接器的连接。
-

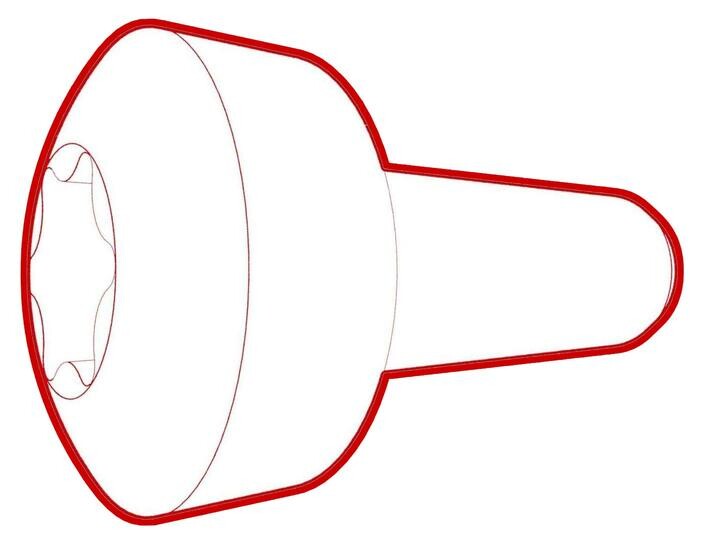

拆下将电气线束固定到挡风玻璃支架的螺钉，然后将电气线束移至一旁。
1 Nm (.7 lbs-ft)
-

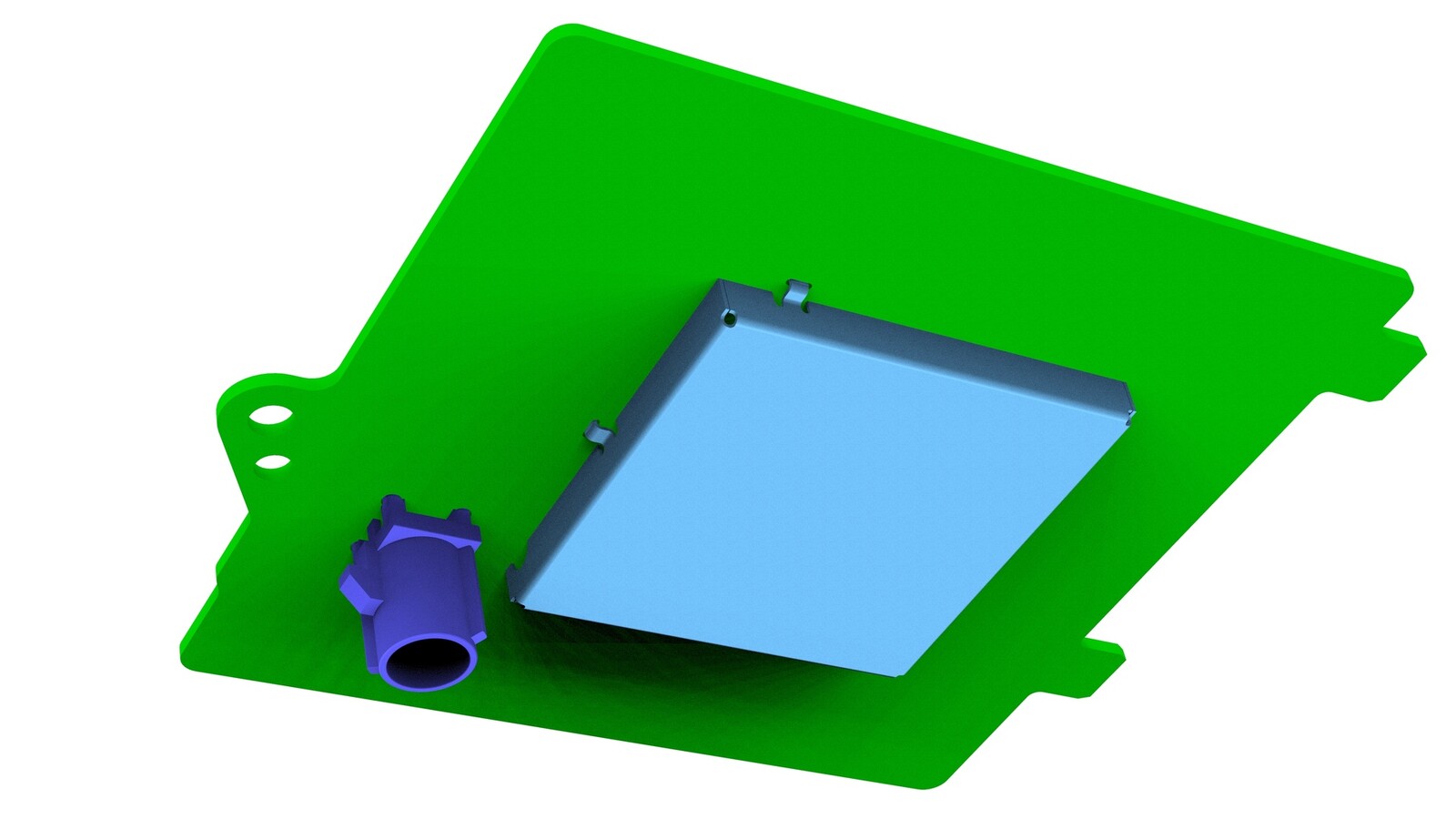

拆下将 GPS 天线固定到支架的螺钉，然后将 GPS 天线从车辆上拆下。1 Nm (.7 lbs-ft)
安装
安装程序与拆卸程序相反，以下各项除外：
- 安装新 GPS 天线后，执行前置摄像头目标校准。请参阅Camera - Forward Facing (Pitch Verification)。
