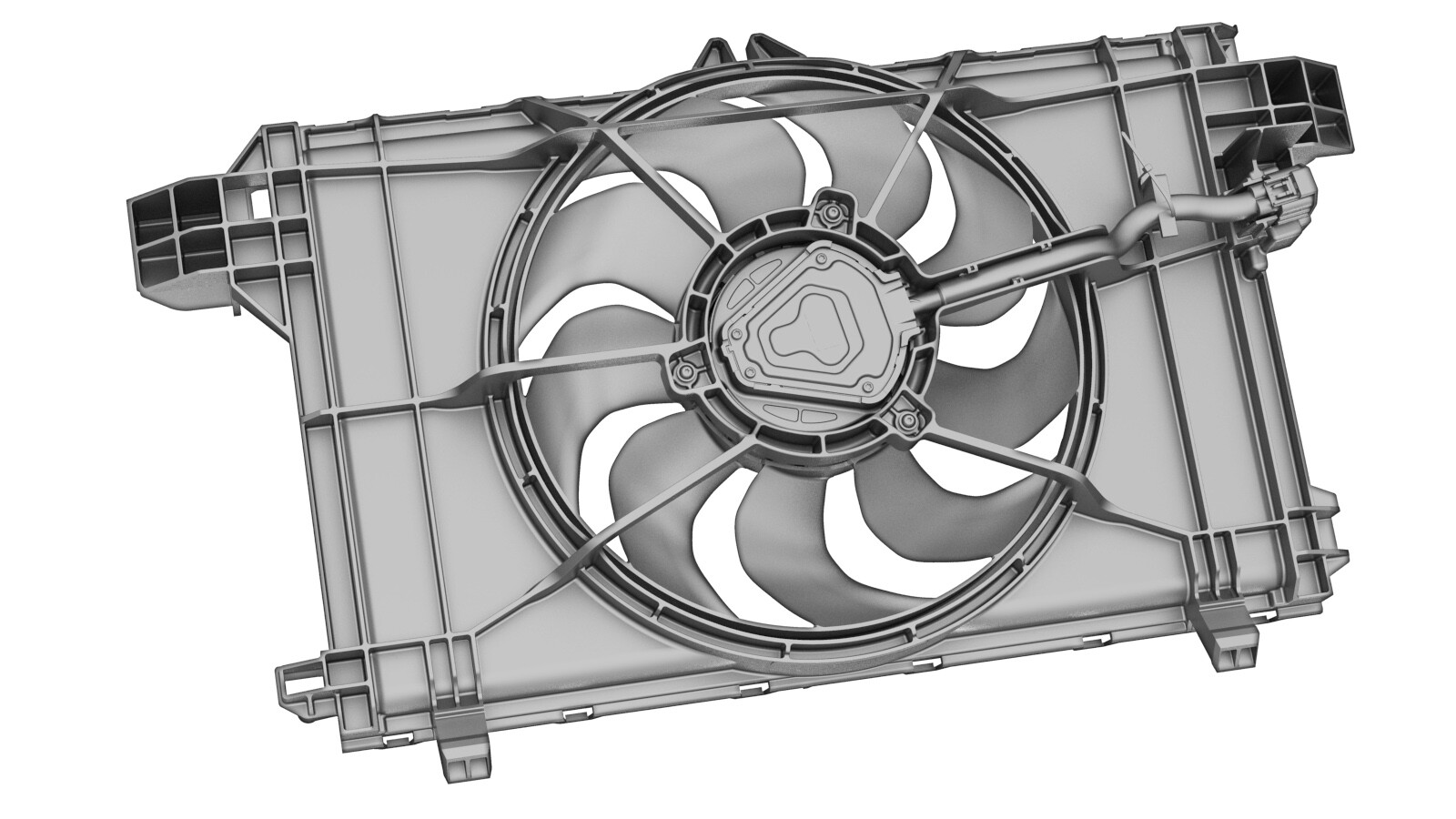

风扇 - 散热器(拆卸和更换)
校正代码
18201502 1.02
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下主动进气格栅。请参阅主动进气格栅(带加热泵款)(拆卸和更换)。
-

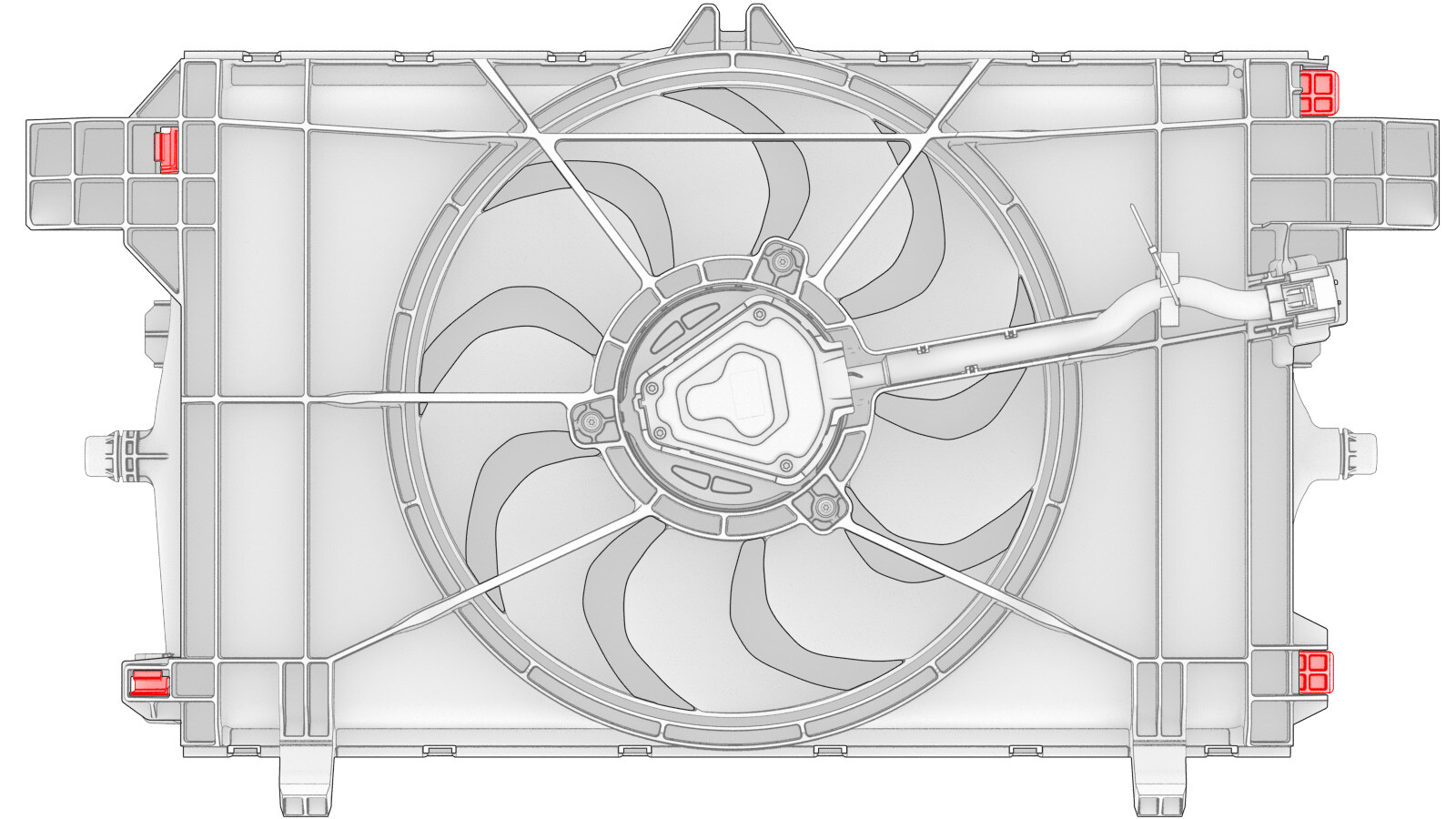

松开将散热器固定到冷却风扇和护罩总成的上部和下部锁片,然后将散热器从冷却风扇和护罩总成上拆下。
-

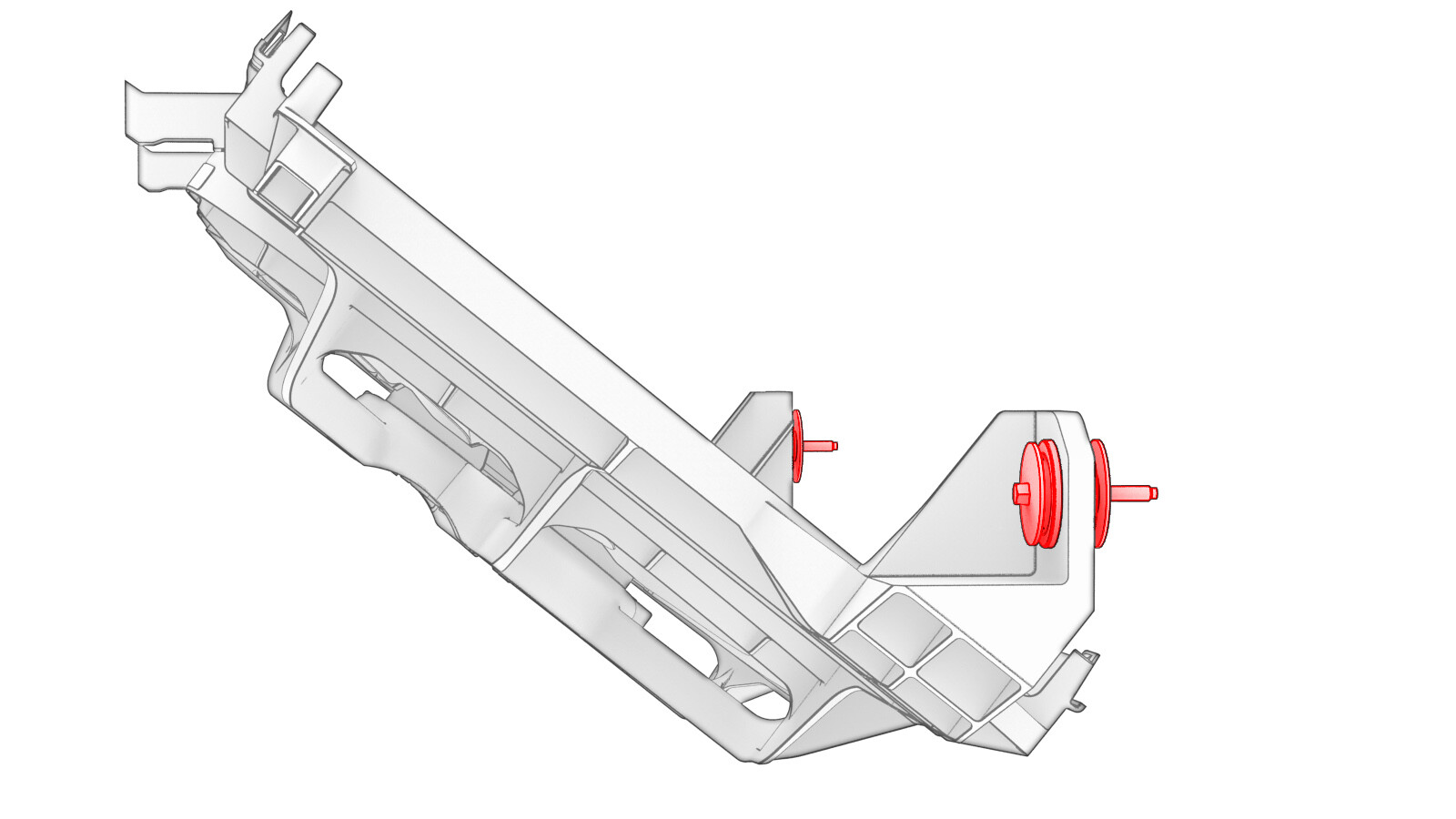

将螺栓和隔离器从冷却风扇和护罩总成上拆下。
安装
安装程序与拆卸程序相反。
