2026-08-09
NVH 垫 - 车门 - 前 - 左侧(拆卸和更换)
校正代码
15131402 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下 LH 前门饰板。请参阅面板 - 车门饰板 - 前 - 左侧(拆卸和安装)。
-

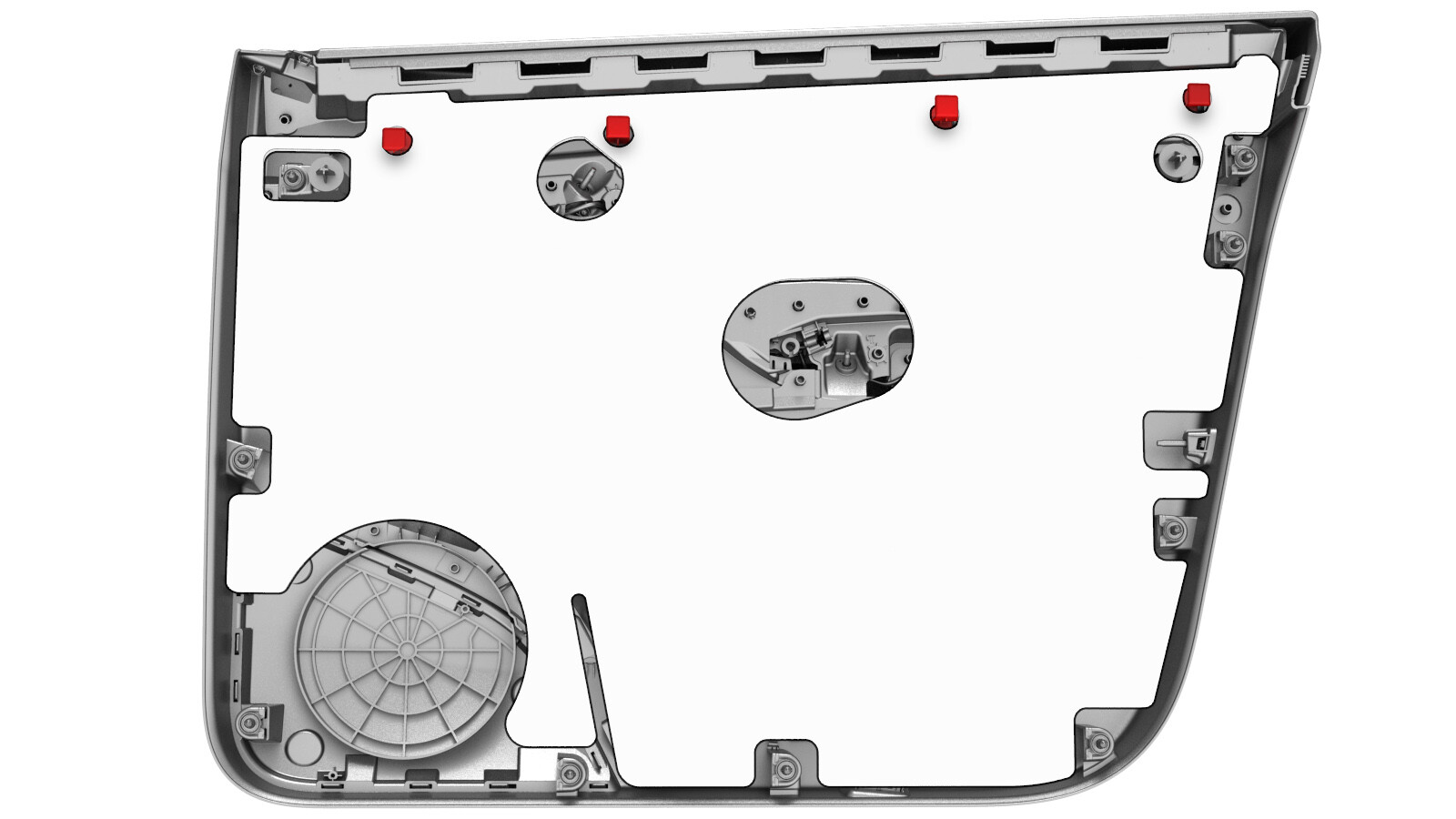

从锁片上松开 NVH 垫,然后将其从 LH 前车门饰板上拆下。
安装
-

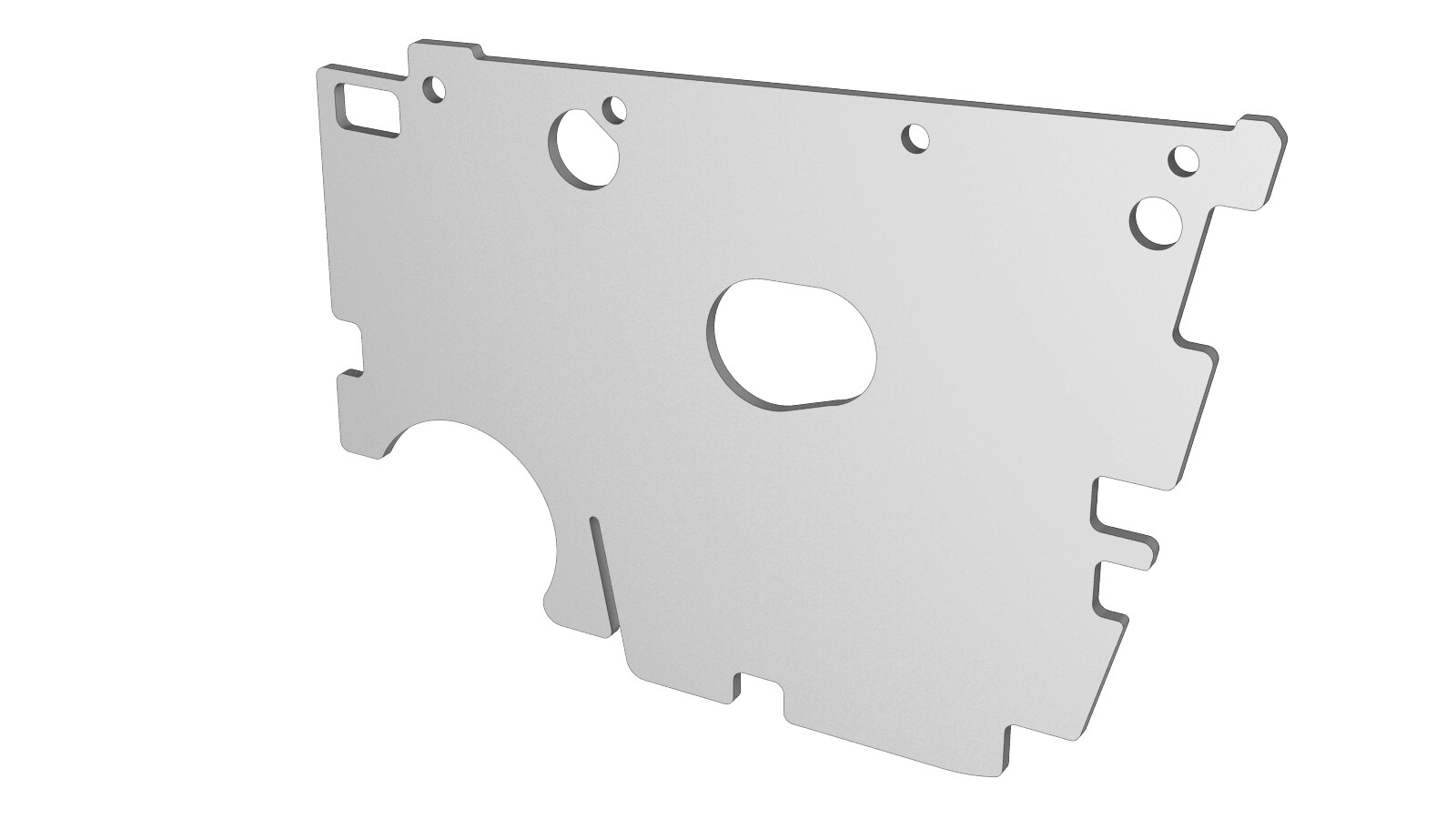

将 LH 前车门 NVH 垫安装到 LH 前车门饰板上。
- 安装 LH 前门饰板。请参阅面板 - 车门饰板 - 前 - 左侧(拆卸和安装)。
