交流线缆 - 充电接口至高压电池（三相）（改装）

校正代码 44501406 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

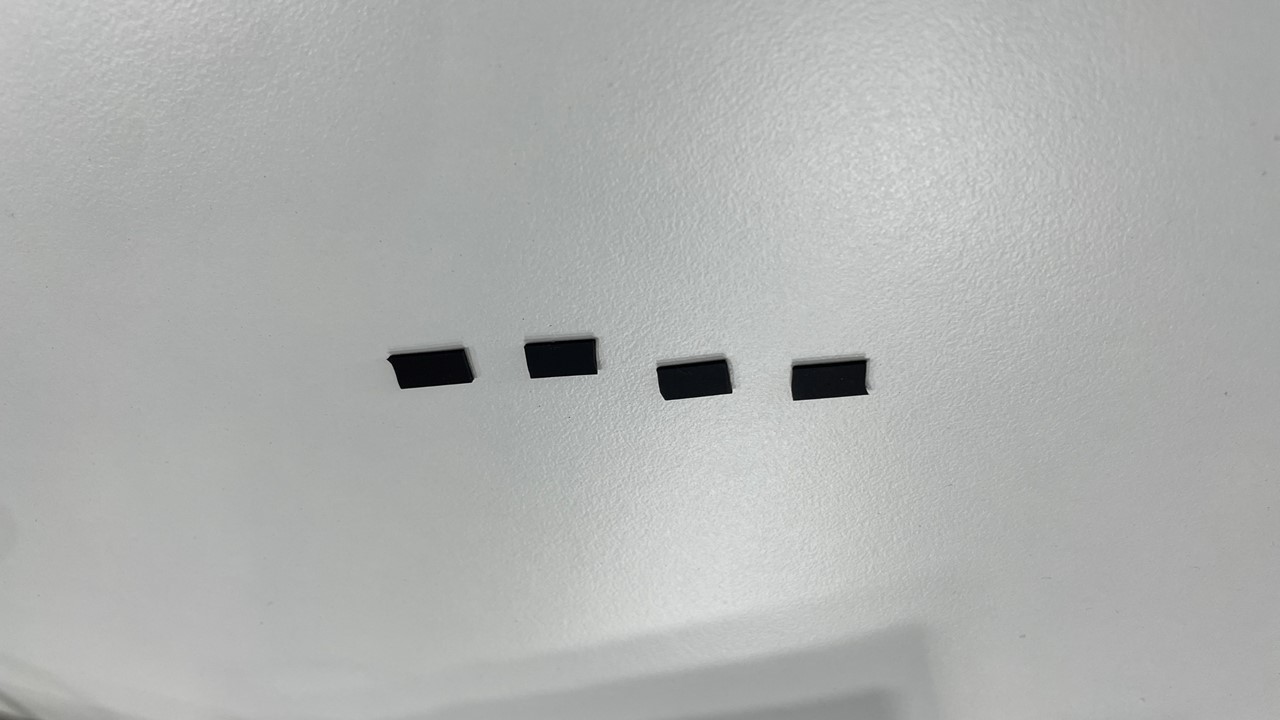

  • 2026-09-22: 添加了硅橡胶零件号 2101123-00-A。
设备：
  • 1076921-00-B 绝缘电阻万用表，Fluke 1507（北美地区）
  • 1108272-00-B 变流器逻辑连接器盖，3DU
  • 1130480-00-A 超薄测试探针，Fluke TP38

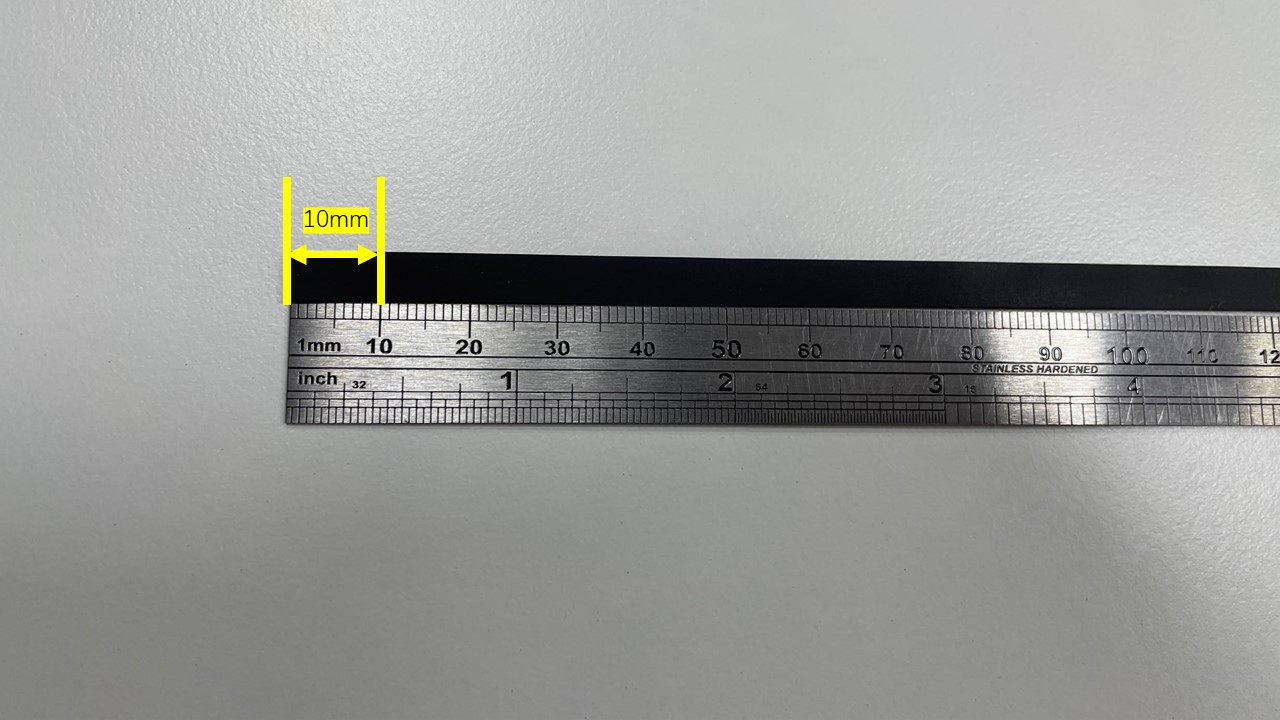

  • 1115203-00-A 公制/6 英寸折尺
警告

Only technicians who have completed all required certification courses are permitted to perform this procedure. Tesla recommends third party service provider technicians undergo equivalent training before performing this procedure. For more information on Tesla Technician requirements, or descriptions of the subject matter for third parties, see HV Certification Requirements. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional safety information.

警告

Remove all jewelry (watches, bracelets, rings, necklaces, earrings, ID tags, piercings, etc.) from your person, and all objects (keys, coins, pens, pencils, tools, fasteners, etc.) from your pockets before performing any procedure that exposes you to high voltage.

警告
If corrective eyewear is necessary to safely perform any procedure, make sure that the eyewear is securely restrained to the head and cannot fall off.
警告

执行此程序时需要穿戴适当的个人防护装备 (PPE)：

  • 高压 (HV) 绝缘手套
  • 皮革手套保护罩
  • 高压绝缘手套测试仪
  • 护目镜
  • 电气绝缘保护安全鞋
警告

手套充气机是测试高压绝缘手套的唯一推荐方式。开始此程序前，需确认两只高压绝缘手套均通过测试。如果任何一只手套未通过充气检测，则需弃置这副手套。

警告

确保高压绝缘手套未过期。高压绝缘手套有效期为印在手套上的测试日期后 12 个月内，但首次使用后，即使手套仍处于上述 12 个月有效期内，也只能使用 6 个月。
