扬声器 - 紧急(拆卸和更换)
校正代码
21214002 0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸

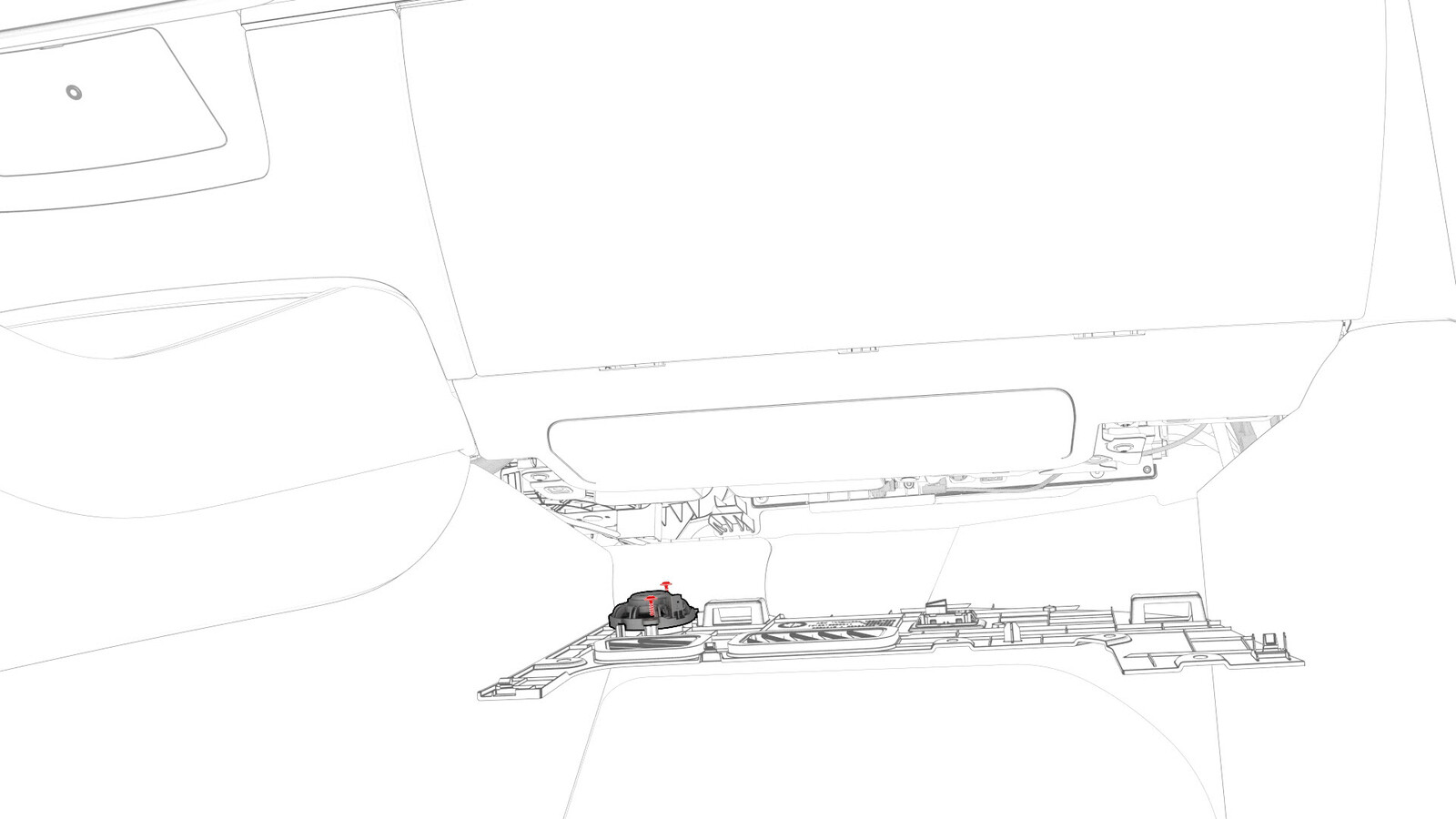

- 拆下 RH 脚部空间罩。请参阅罩 - 脚部空间 - 副驾位 (LHD)(拆卸和更换)。
-

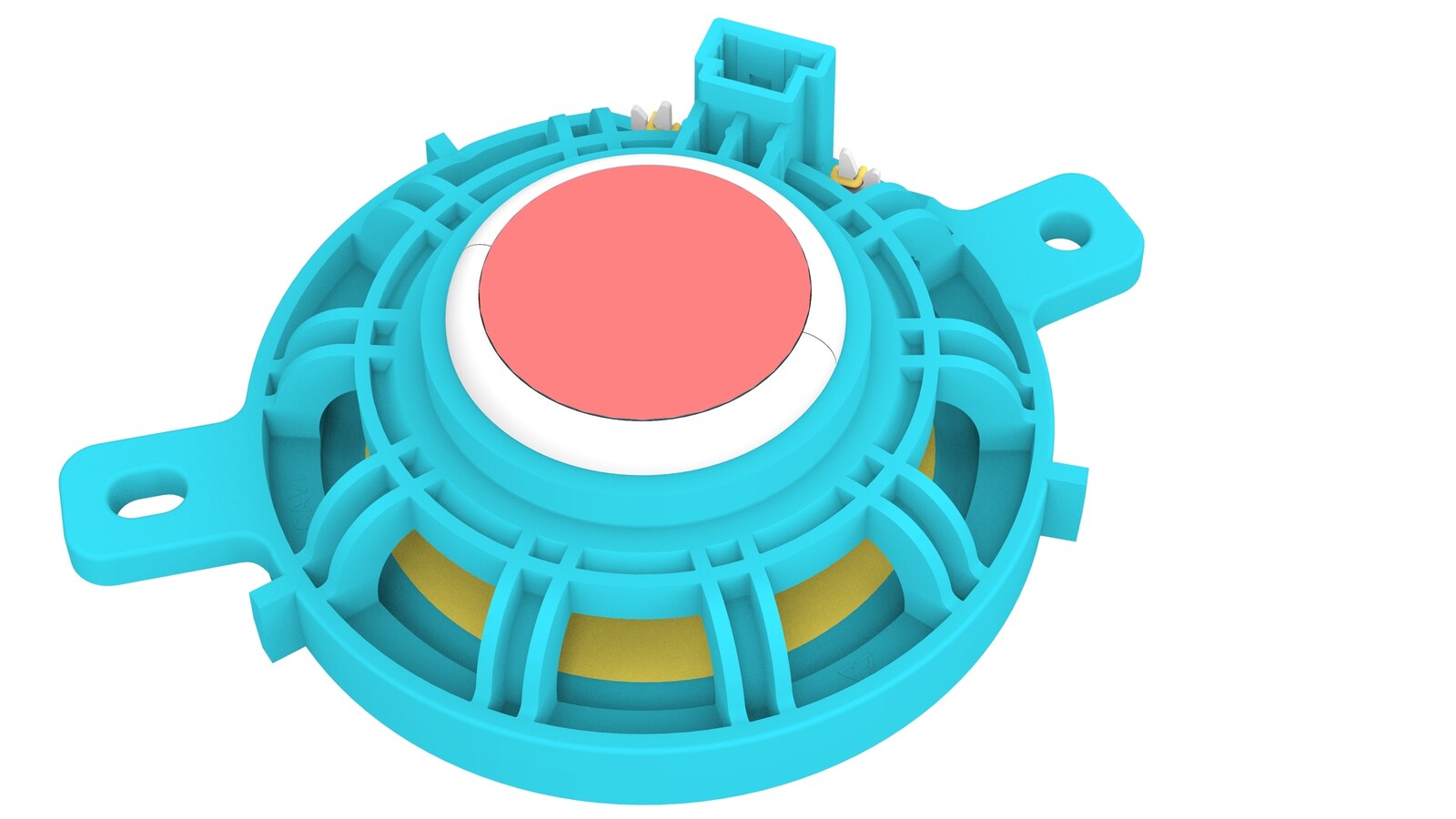

断开电气连接器与紧急扬声器的连接。
-

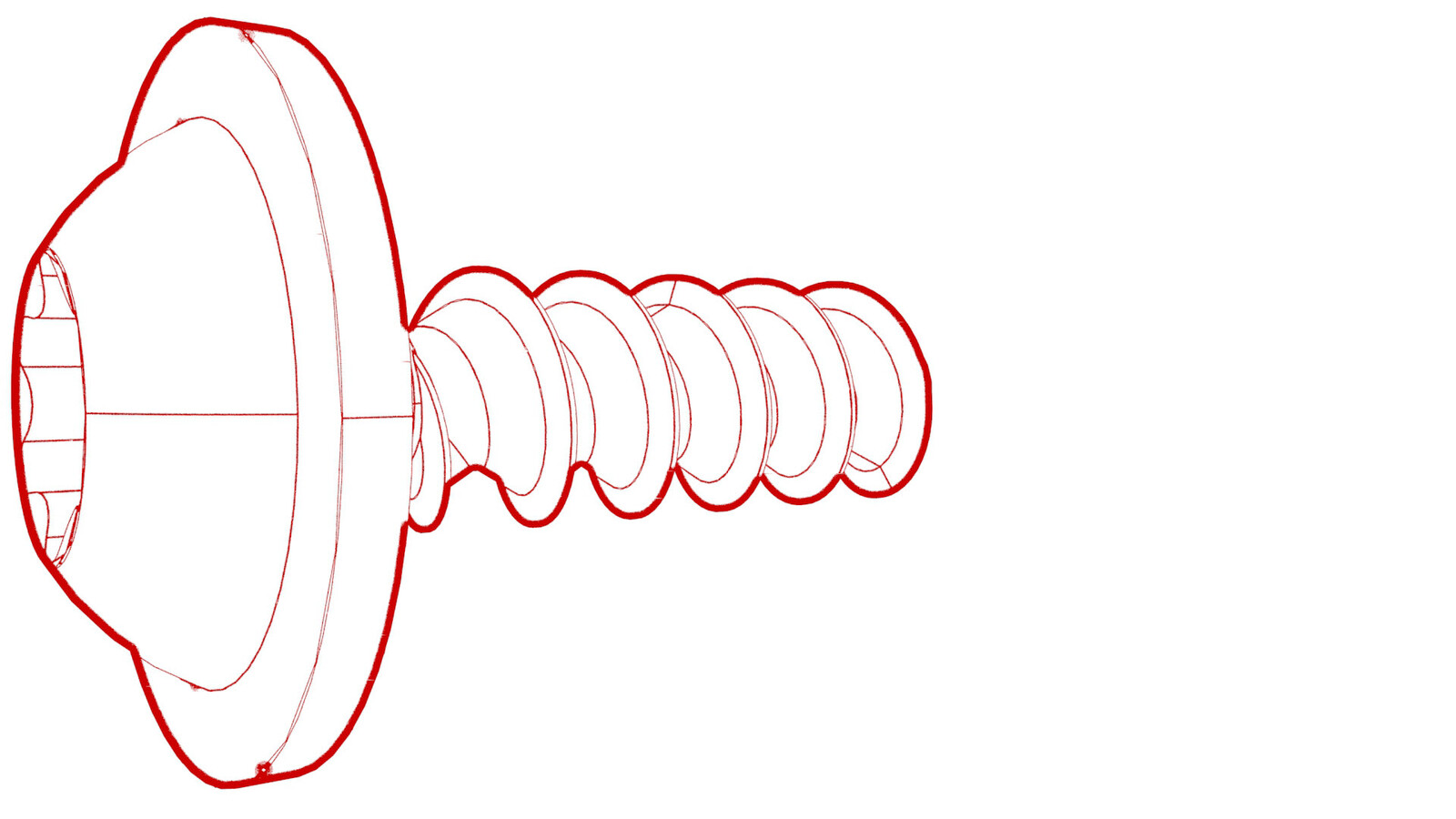

松开将紧急扬声器固定到 RH 脚部空间罩的螺钉,然后拆下紧急扬声器。
0.9 Nm (8 lbs-in)
安装
安装程序与拆卸程序相反。
