Trim - Sill - Trunk (Remove and Replace)

校正代码 15244802 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. 拆卸后备箱底板饰板。请参阅Trim - Floor - Trunk (Remove and Replace)。

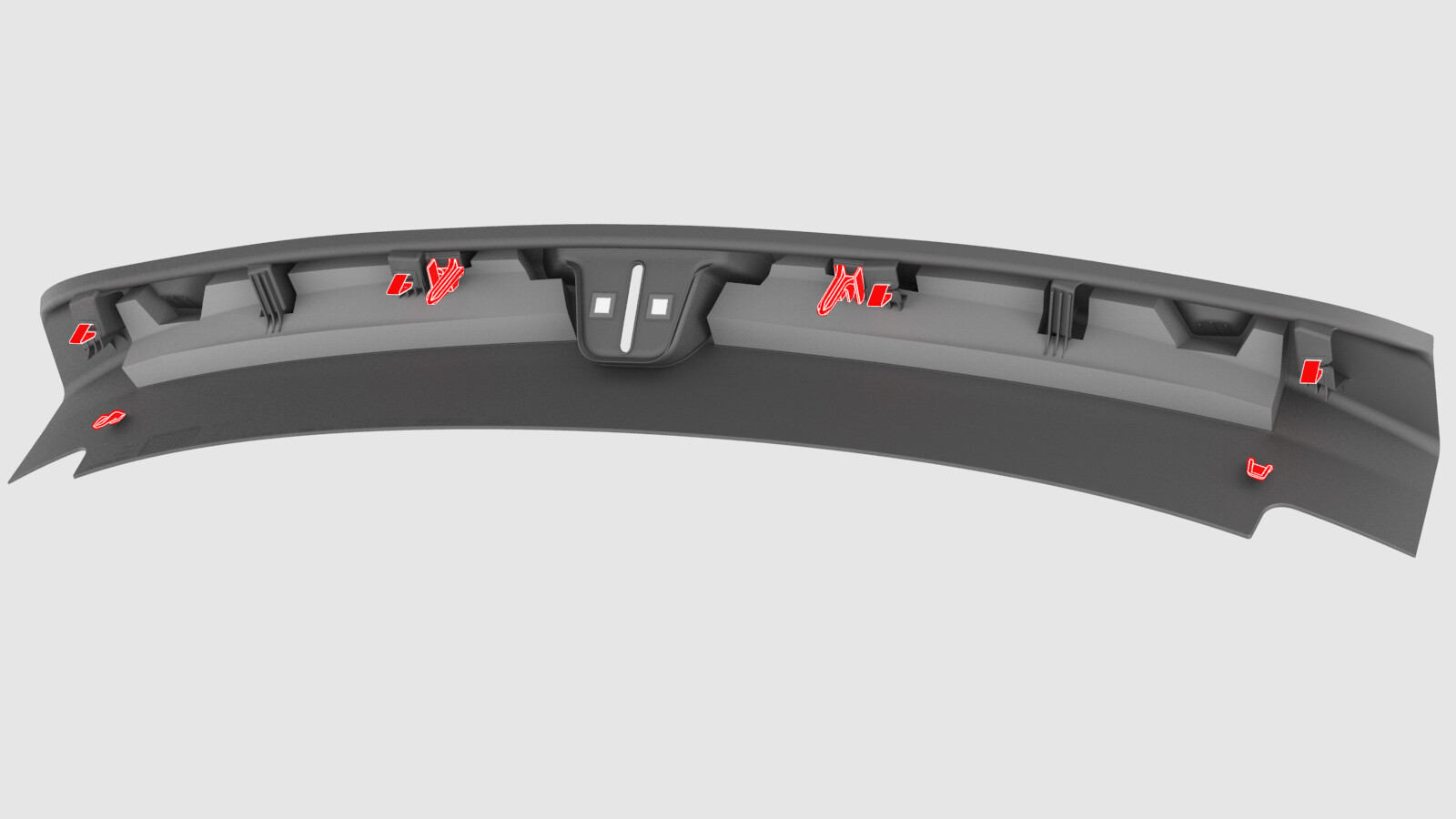

  2. 松开将后备箱门槛饰板固定到车身的卡子。
    Informational PurposesAn informational icon, calling your attention
    TIp
    向上拉动后备箱门槛饰板的一角，松开边角卡子，然后松开剩余卡子。

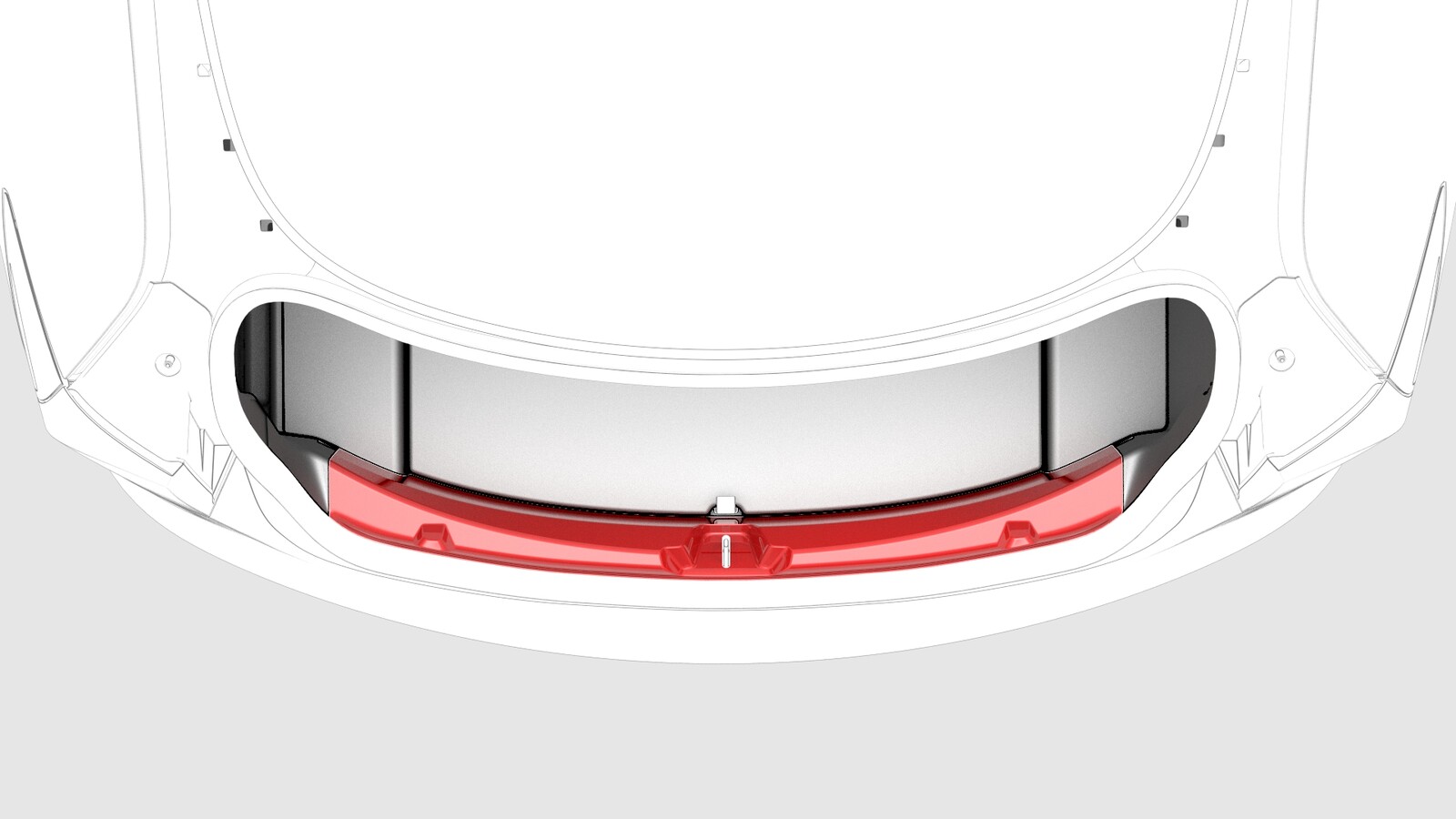

  3. 将后备箱门槛饰板从车上拆下。

安装

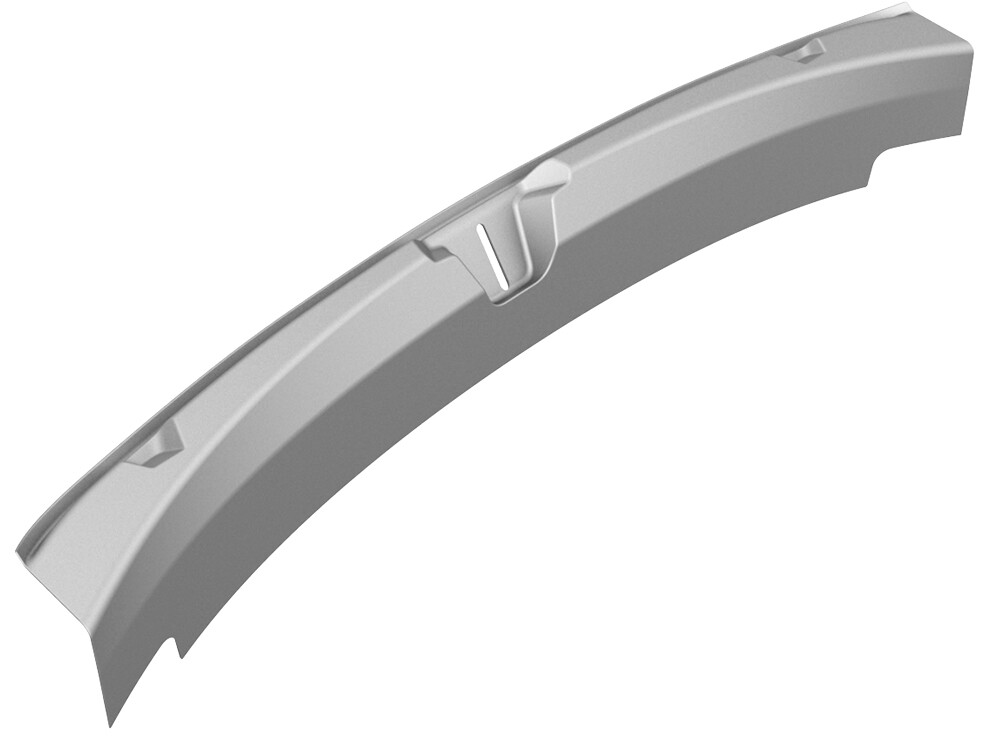

  1. 将后备箱闩锁与后备箱门槛饰板凹槽对齐，将长锁片（2 个）与后备箱盖上的凹槽对齐，然后下压饰板，以便固定锁片和所有剩余卡子。
    Informational PurposesAn informational icon, calling your attention
    注
    确保行李箱密封条覆盖行李箱门槛饰板。
  2. 安装后备箱底板饰板。请参阅Trim - Floor - Trunk (Remove and Replace)。
