Torque Specifications - Chassis
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|

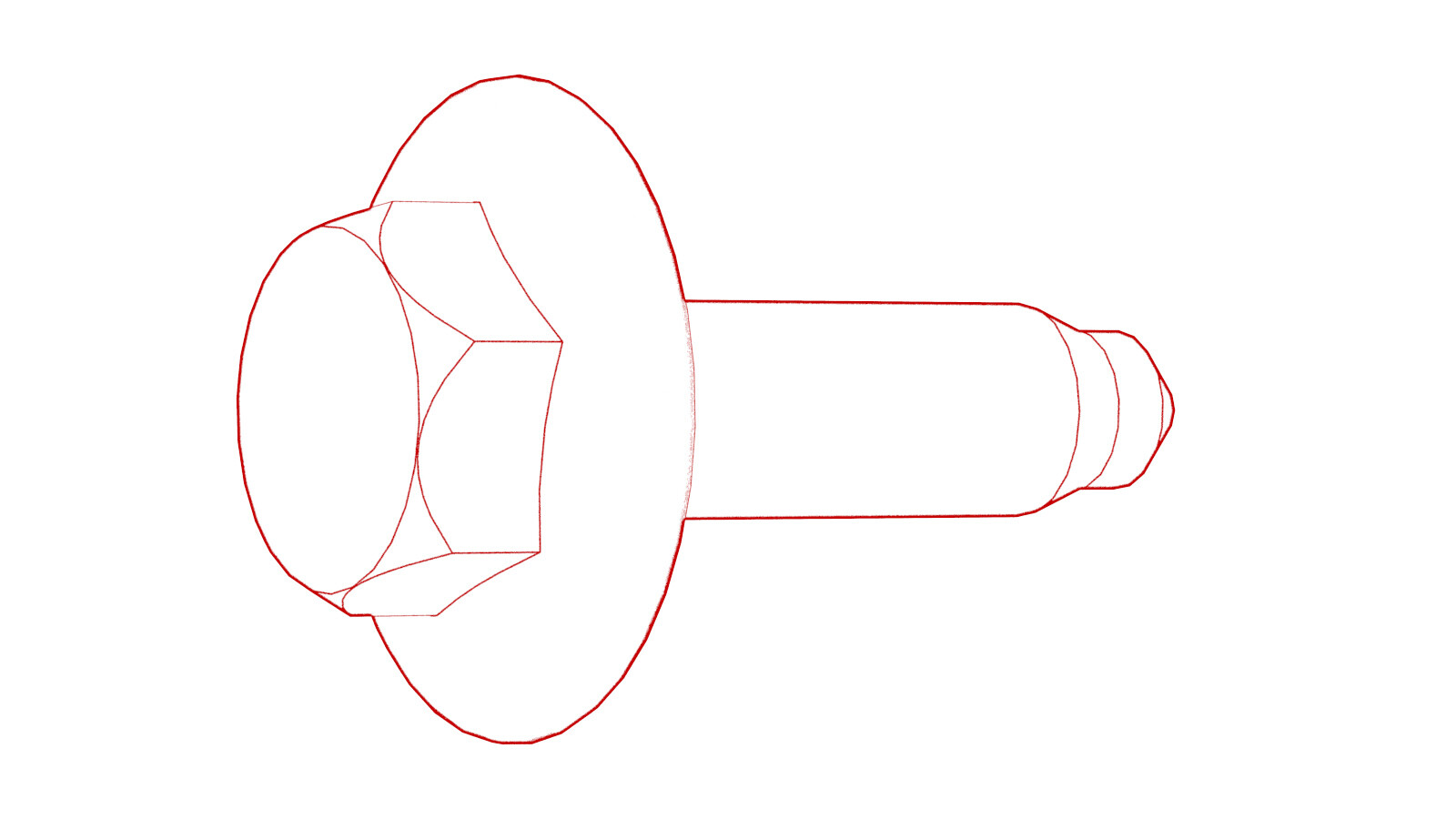

| Small bolts that attach the LH shear plate to the HV battery |
 35 Nm (25.8 lbs-ft) |
|
重复使用 | |

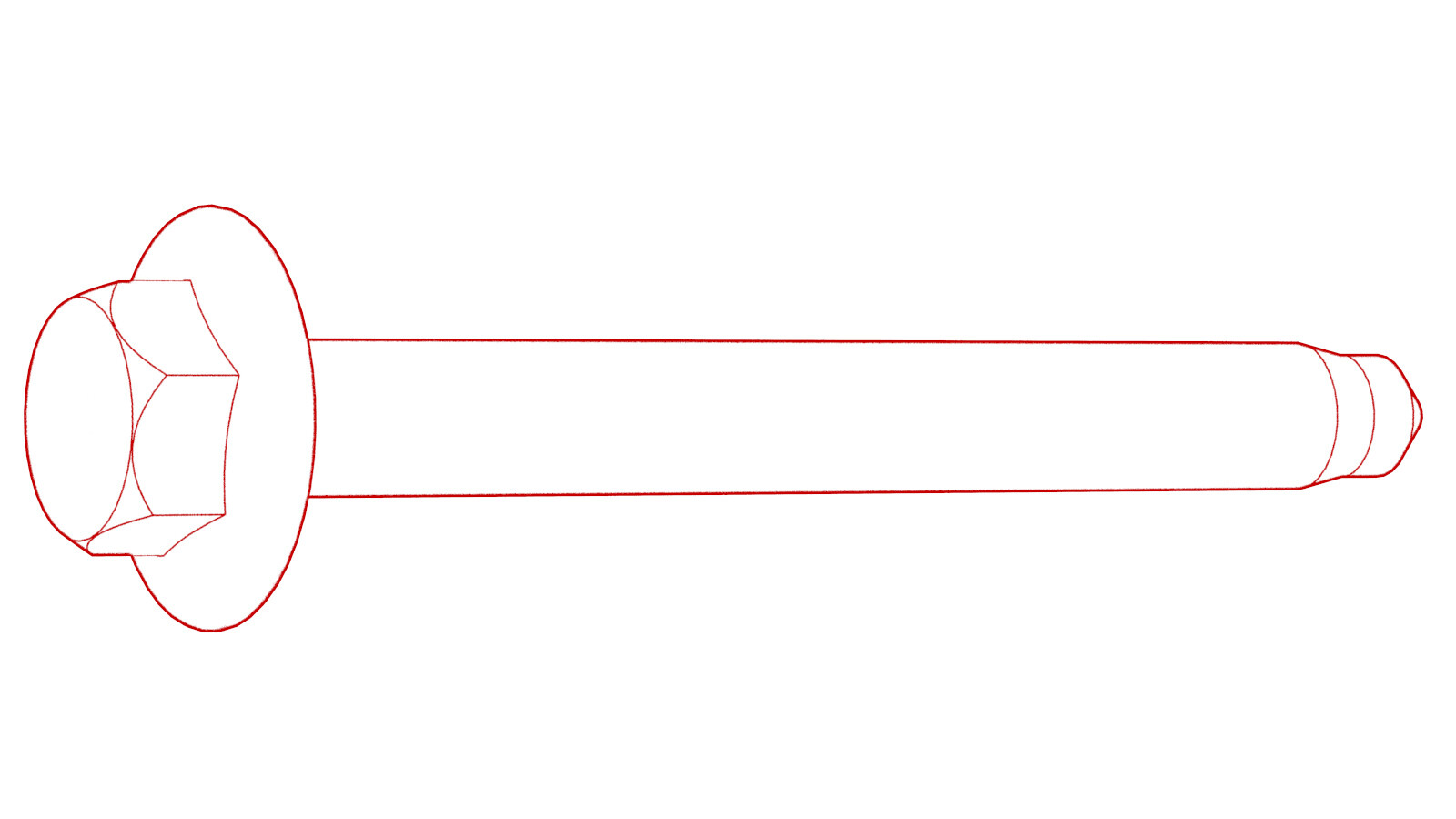

| Large bolt that attaches the LH shear plate and rear subframe to the body |
 130 Nm (95.9 lbs-ft) |
|
更换 | 1461657-00-A |
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|

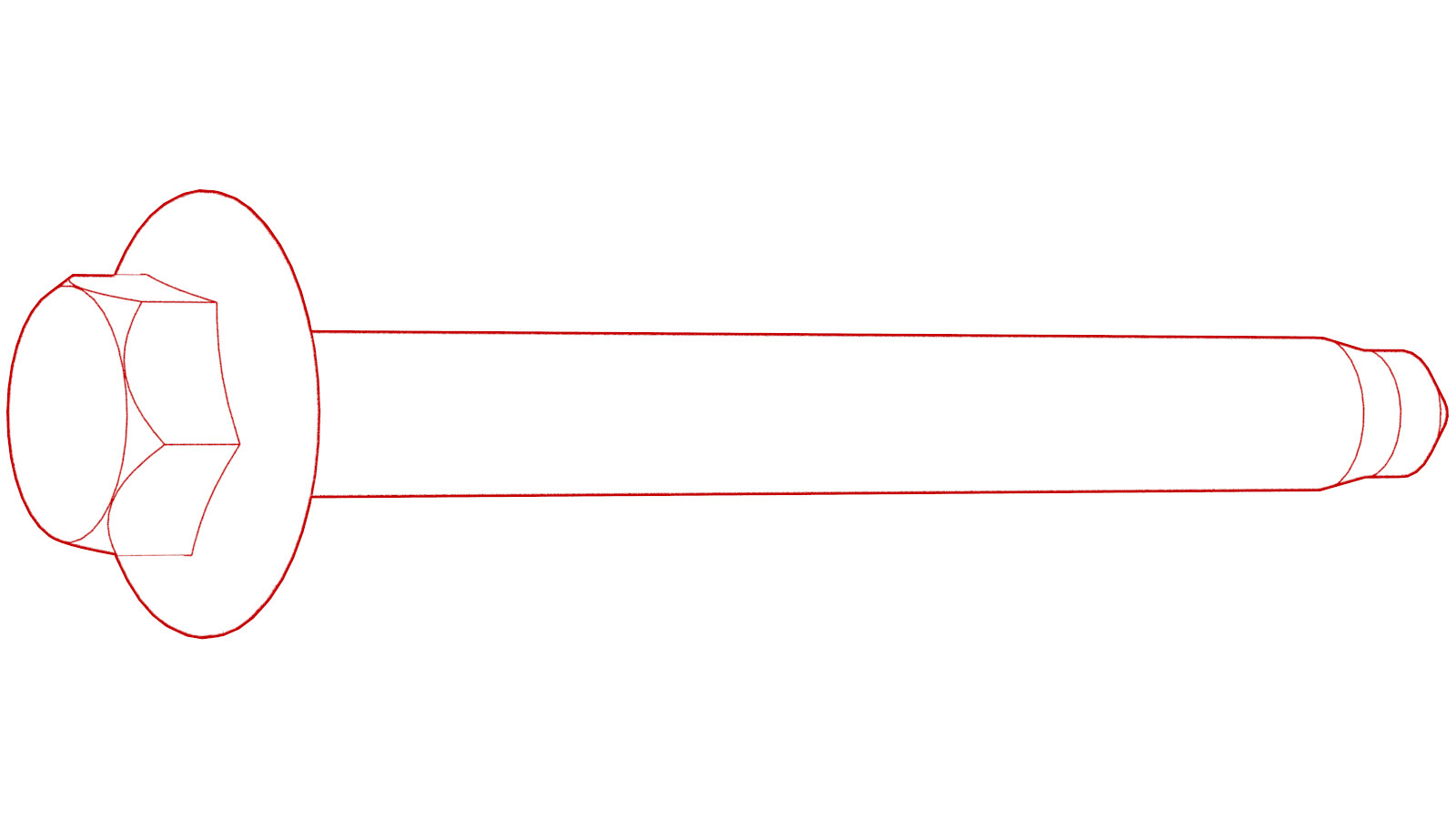

| Bolt that mounts front drive unit to front subframe |
 80 Nm (59.0 lbs-ft) |
|
重复使用 | |
| Bolts that attaches horn assembly to front subframe |
12 Nm (8.8 lbs-ft) |
|
重复使用 | |
| Bolts that secure front subframe crush can assembly to front subframe |
53 Nm (39.1 lbs-ft) |
|
重复使用 | |

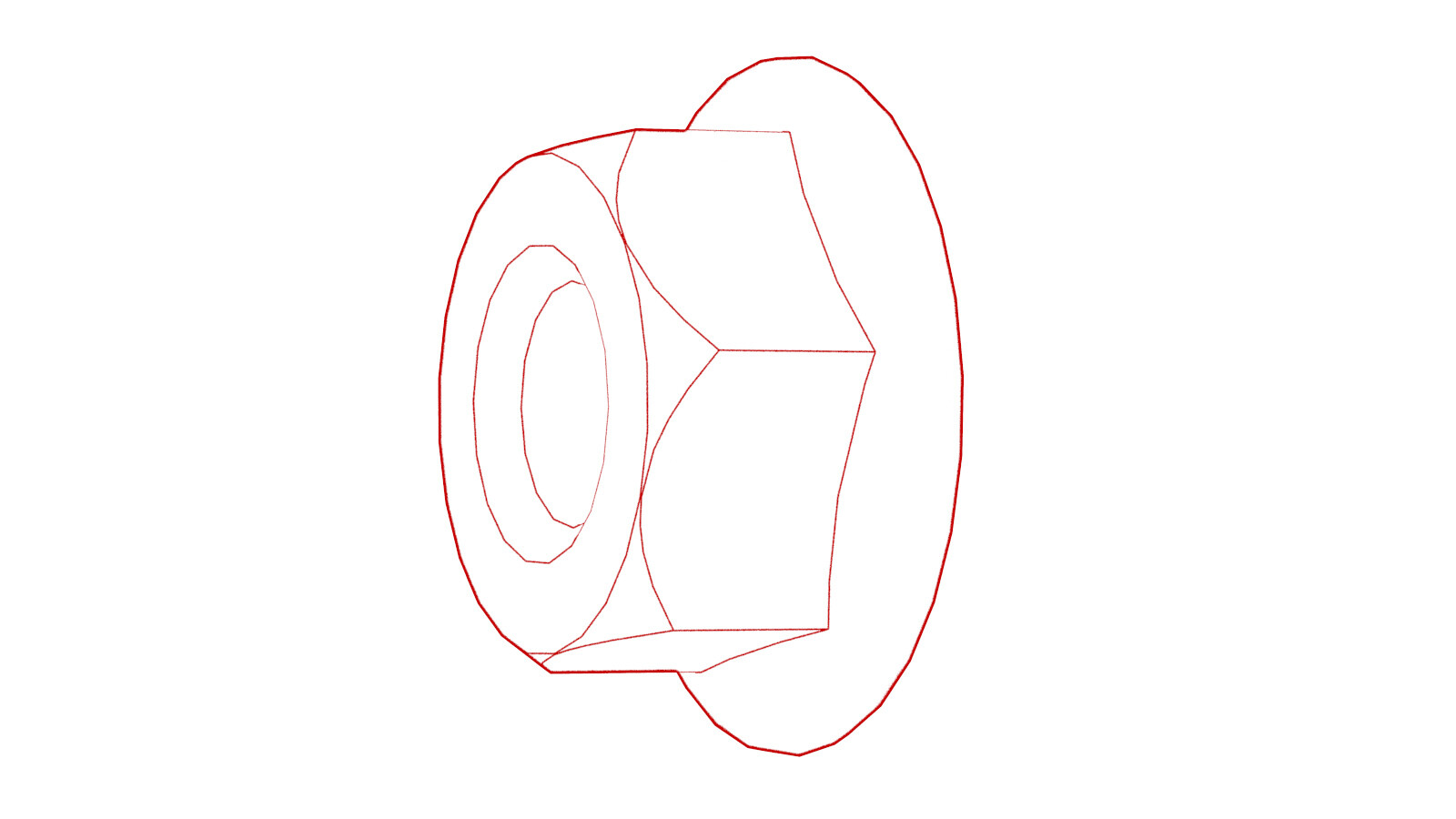

| Nyloc nuts that attach the front stabar to front subframe |
35 Nm (25.8 lbs-ft) |
|
Replace |
紧固后，使用油性记号笔标记紧固件。 Recommended assistance. |
| Bolts that attach the inner part of the steering gear assembly to the front subframe |
75 Nm (55.3 lbs-ft) |
|
重复使用 | |
| Bolts that attach the outer part of the steering gear assembly to the front subframe |
47 Nm (34.7 lbs-ft) |
|
重复使用 | |
| Bolts that attach the motor mount to the motor mount bracket |
105 Nm (77.4 lbs-ft) |
|
重复使用 | May need to adjust subframe jig to align mount with bolt hole. |
| Bolts that attach rear portion of front subframe to body (larger bolt) |
125 Nm (92.2 lbs-ft) |
|
更换 | |
| Bolts that attach rear portion of front subframe to body (smaller bolt) |
50 Nm (36.9 lbs-ft) |
|
更换 | |
| Bolts that attach front portion of front subframe to body |
72 Nm (53.1 lbs-ft) |
|
更换 | Adjust subframe lifting tool if necessary. |
| Bolts that attach mid mount to body |
50 Nm (36.9 lbs-ft) |
|
更换 | |
| Bolts that attach front end carrier to front subframe crush can assembly |
16 Nm (11.8 lbs-ft) |
|
重复使用 | |

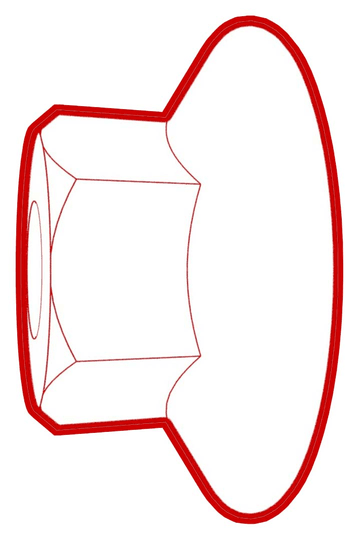

| Nut/washer assemblies that secure the front halfshaft into the front hub assembly |
16 Nm (11.8 lbs-ft) |
32 毫米深冲击套筒 | 更换 | |
| Bolts and nuts that attach strut to lower control arm |
106 Nm (78.2 lbs-ft) |
|
重复使用 |
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|
| Bolts that attach the LH rear brake caliper bracket to the knuckle |
 83 Nm (61.2 lbs-ft) |
|
更换 | |
| Bolts that attach the LH rear damper at the top mount |
 41 Nm (30.2 lbs-ft) |
|
重复使用 | |
| Nut that attaches the rear drive unit ground strap to the body |
 10 Nm (7.4 lbs-ft) |
|
重复使用 | |
| Nuts that attach the HV battery to rear drive unit harness bracket to the HV battery |
 10 Nm (7.4 lbs-ft) |
|
重复使用 | |
| Small bolts that attach the LH shear plate to the HV battery |
35 Nm (25.8 lbs-ft) |
|
重复使用 | |
| Large bolt that attaches the LH shear plate and rear subframe to the body |
125 Nm (92.2 lbs-ft) |
|
更换 | |
| Bolts that attach the rear subframe to the body |
 160 Nm (118.0 lbs-ft) |
|
更换 |
