模块 - 冷却风扇（不带加热泵款）（拆卸和更换）

校正代码 18201302 1.40 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-10-16: 添加了维修后的例行程序。
  • 2026-07-02: 添加了“必须单独添加制冷剂回收/重新加注校正代码”的说明。
注
This procedure requires the A/C Refrigerant (Recovery and Recharge) procedure to be performed. If not already automatically added to the Service Visit, add correction code 18200102 as a separate correction within the same activity to the Service Visit.

拆卸

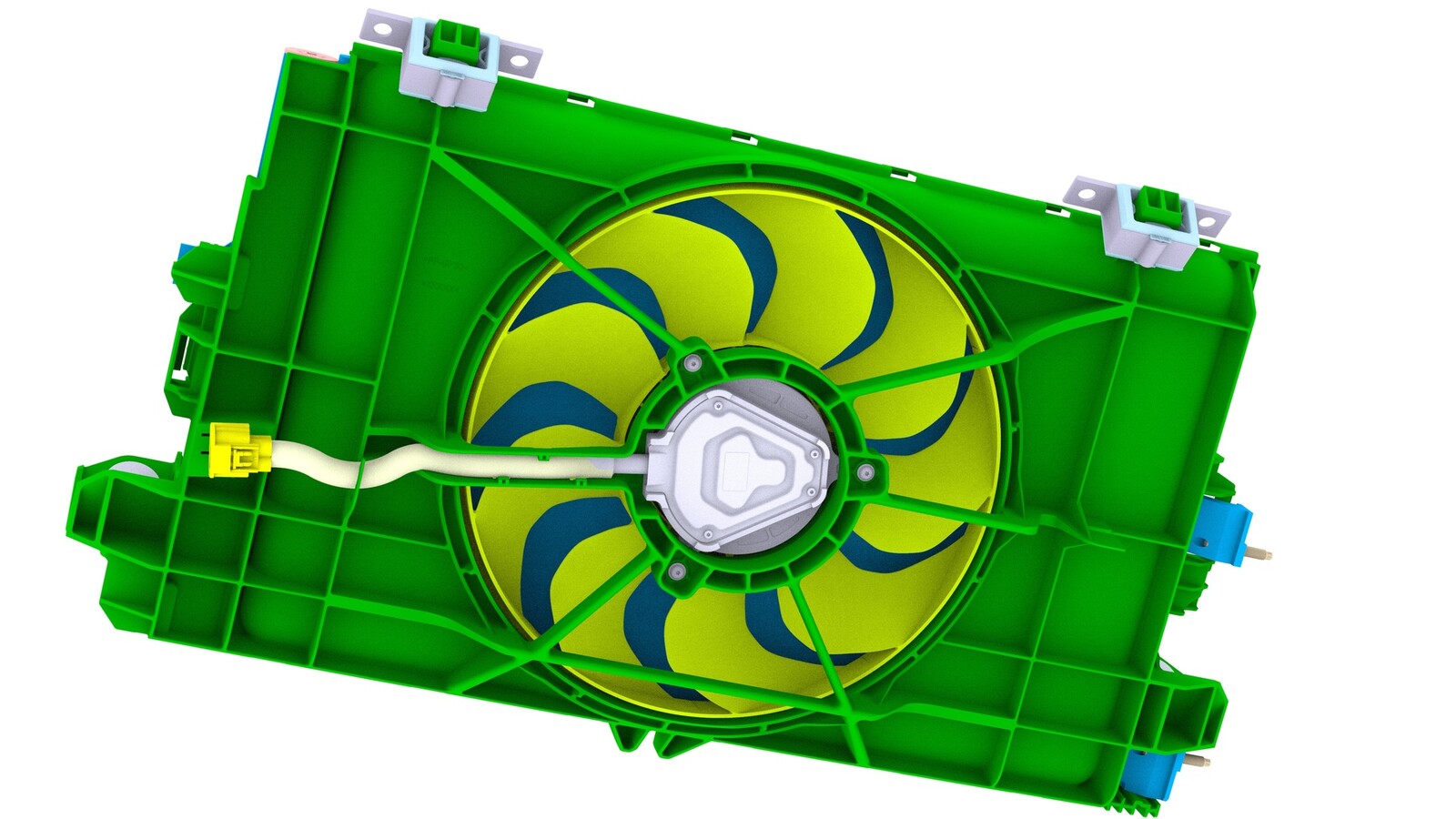

  1. 拆卸冷却风扇模块。请参阅 模块 - 冷却风扇（拆卸和安装）。

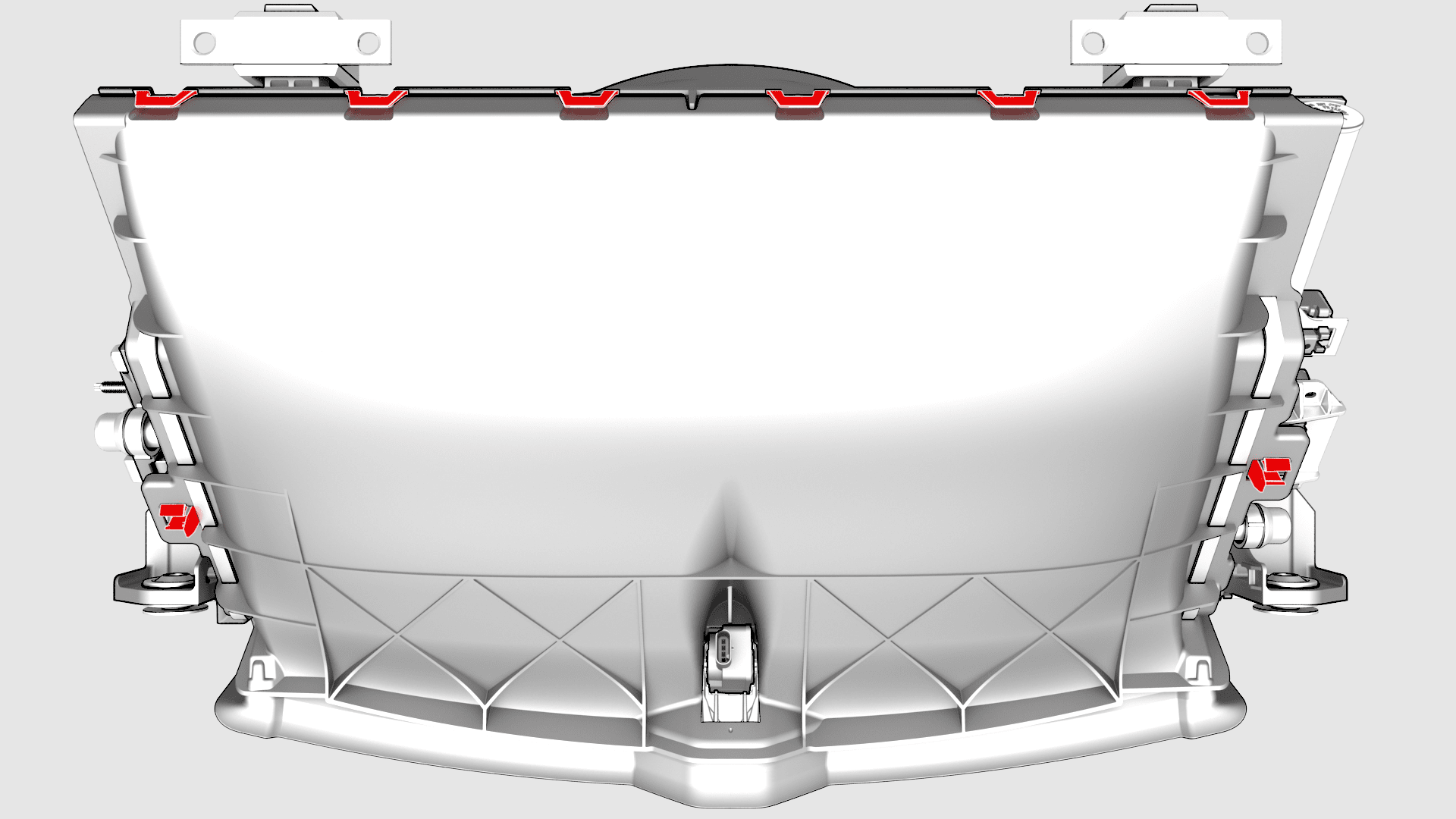

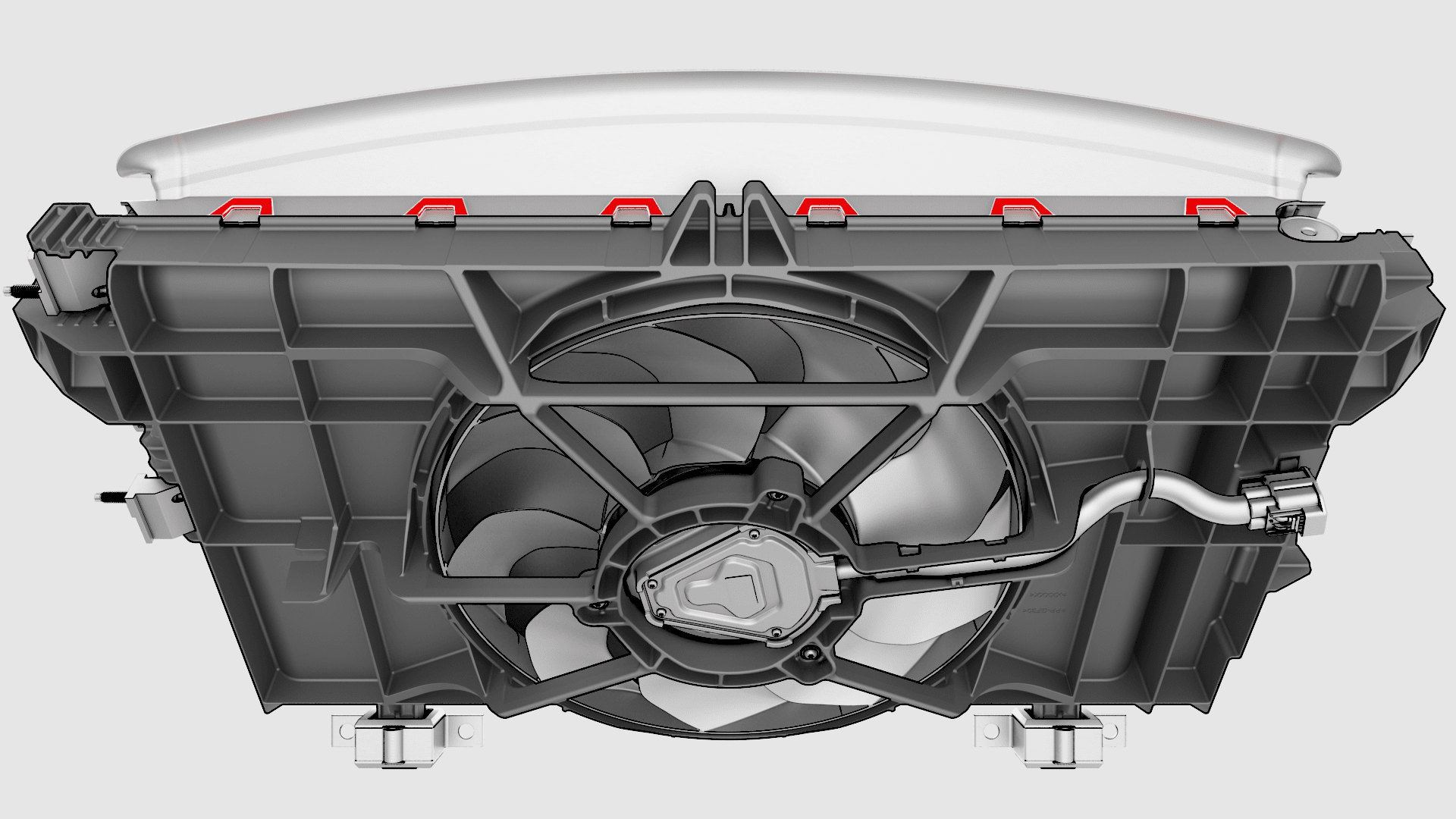

  2. 松开将主动进气格栅固定到冷却风扇模块的夹子 (x14)，然后从模块上拆下主动进气格栅。

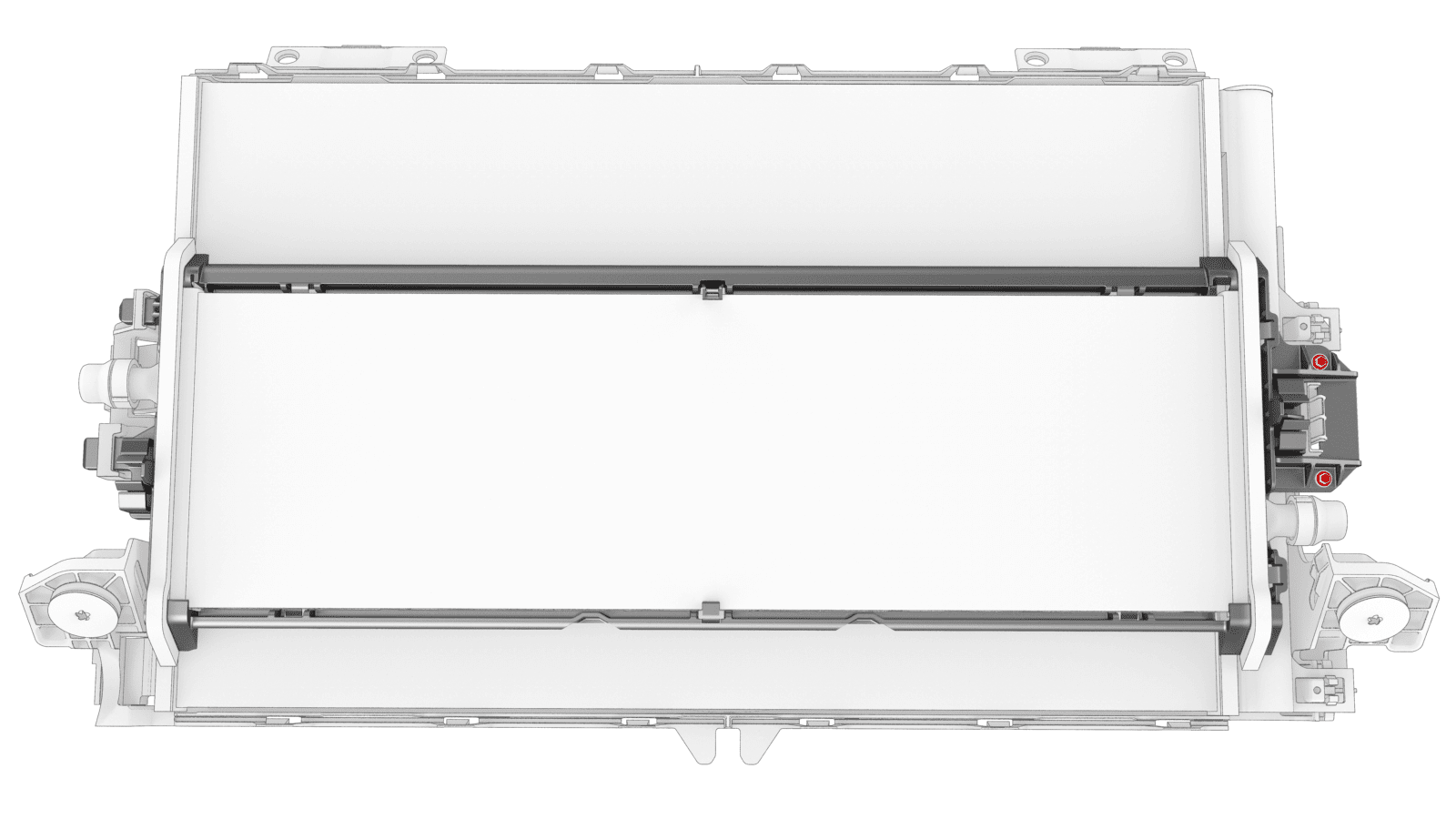

  3. 拆下将散热器固定到冷却风扇模块的螺钉 (x2)。
    10 Nm (7.4 lbs-ft)

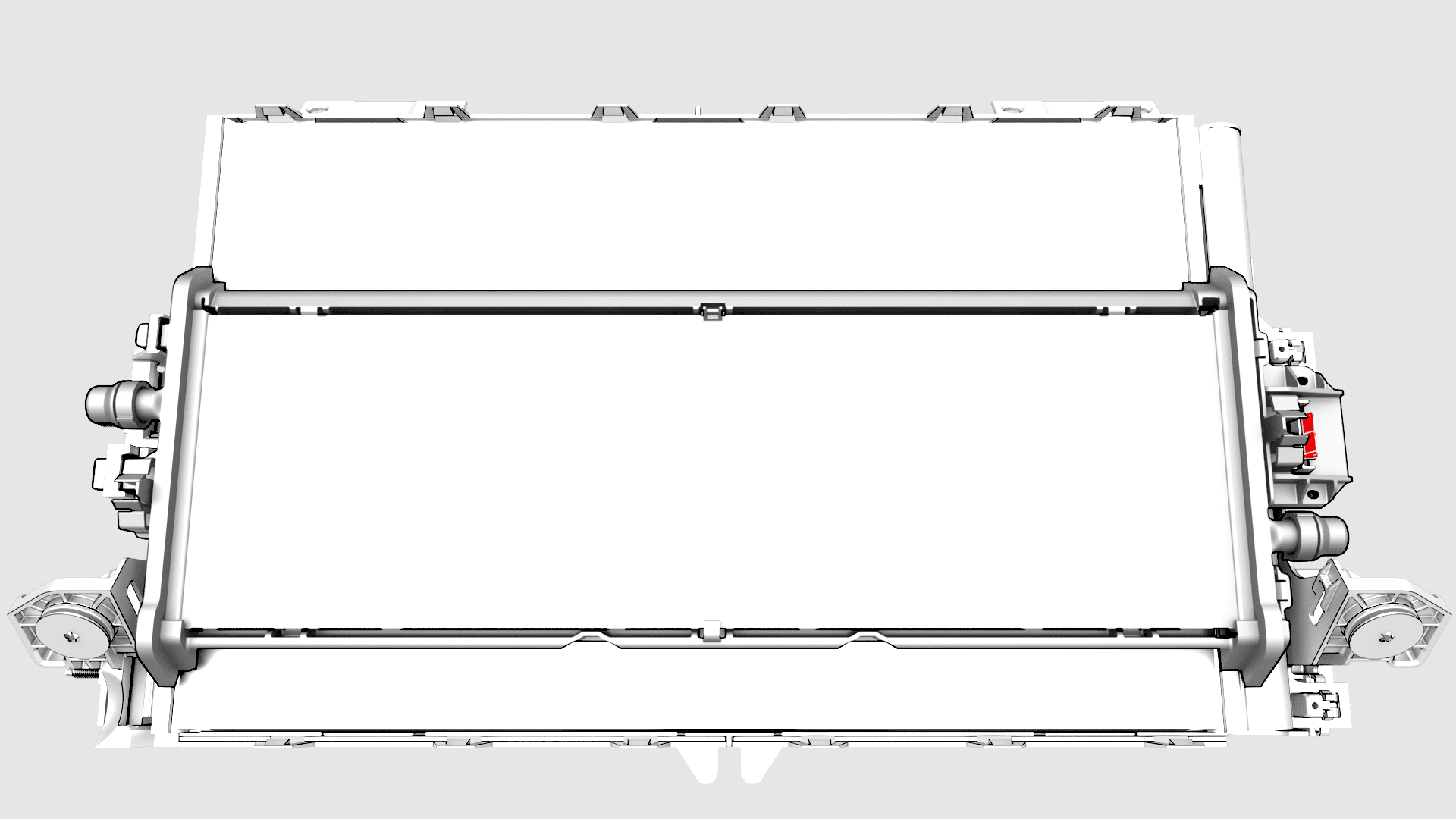

  4. 松开将散热器固定到冷却风扇模块的夹子，然后从冷却风扇模块上拆下散热器。

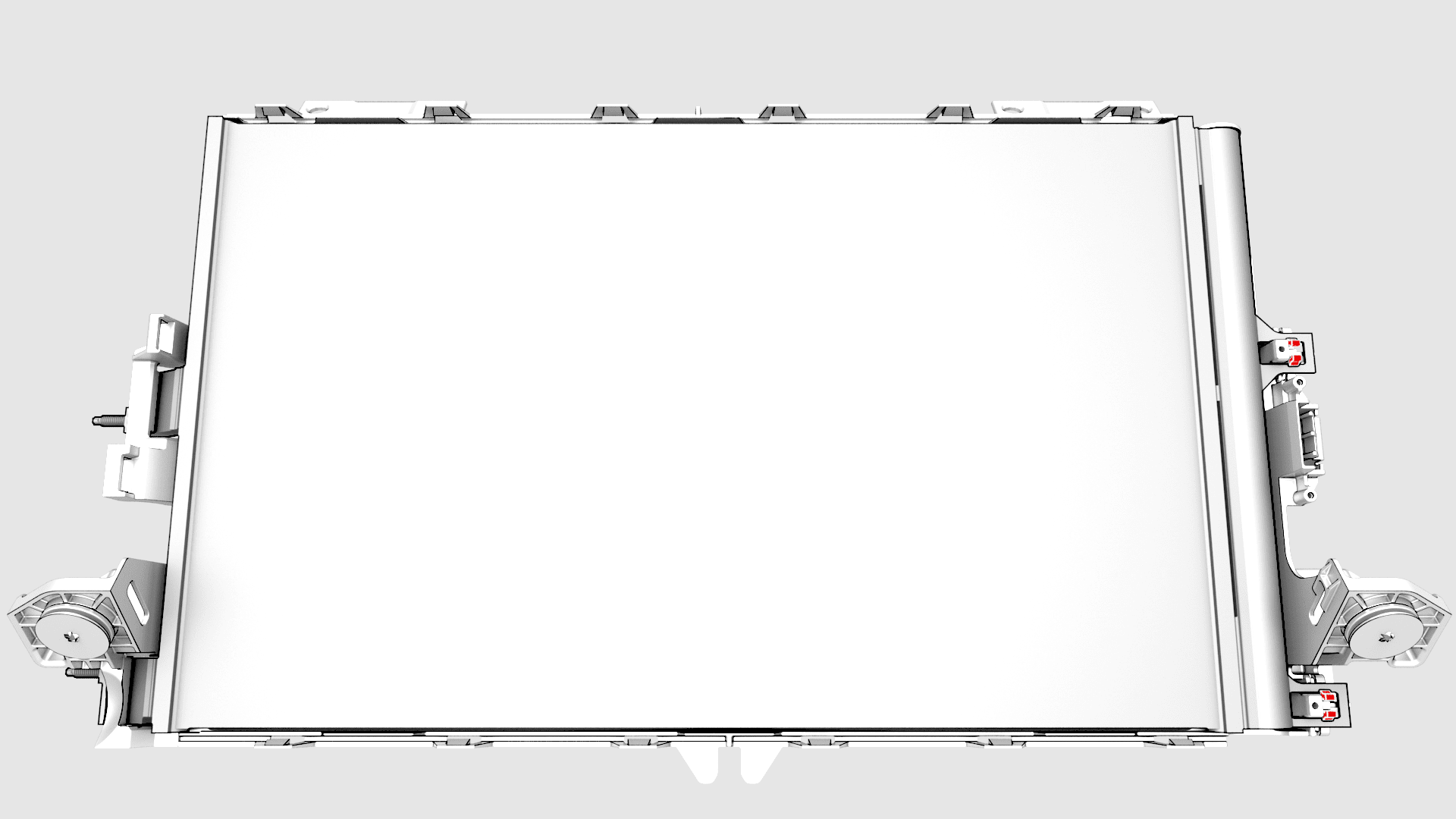

  5. 松开将冷凝器固定到冷却风扇模块的夹子 (x2)，然后从冷却风扇模块上拆下冷凝器。

安装

安装程序与拆卸程序相反，以下各项除外：

通过“维护模式”或 Toolbox 执行以下例行程序（请参阅0005 - 维护模式）： TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCEvia Service Mode:Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
  • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
  • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
  • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
  • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
  • Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
  • Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
via Toolbox:(link)
