气囊 - 膝部 - 驾驶位（拆卸和更换）

校正代码 20010202 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-02-20: 添加了“如需通过本程序诊断辅助约束系统 (SRS) ，请使用 PROC_RCM_DISARM”的说明。
警告
If using this procedure to diagnosis the vehicle's Supplemental Restraint Systems (SRS), disarm the RCM, which will prevent all airbags and pretensioners from deploying. Re-arm the RCM after all of the vehicle's SRS components are re-installed.
  • Disarm RCM:PROC_RCM_DISARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Disarm RCM
    • Safety & Restraints ➜ Seats ➜ Disarm RCM
    via Toolbox:(link)
  • Re-arm RCM:PROC_RCM_ARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Re-Arm RCM
    • Safety & Restraints ➜ Seats ➜ Re-Arm RCM
    via Toolbox:(link)
警告
Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see 气囊和辅助约束系统 (SRS) 预防措施.
注
仅北美车辆装配有驾驶位膝部气囊。
警告
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See
警告
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

拆卸

  1. 拆卸驾驶位膝部气囊。请参阅 气囊 - 膝部 - 驾驶位（拆卸和安装）。

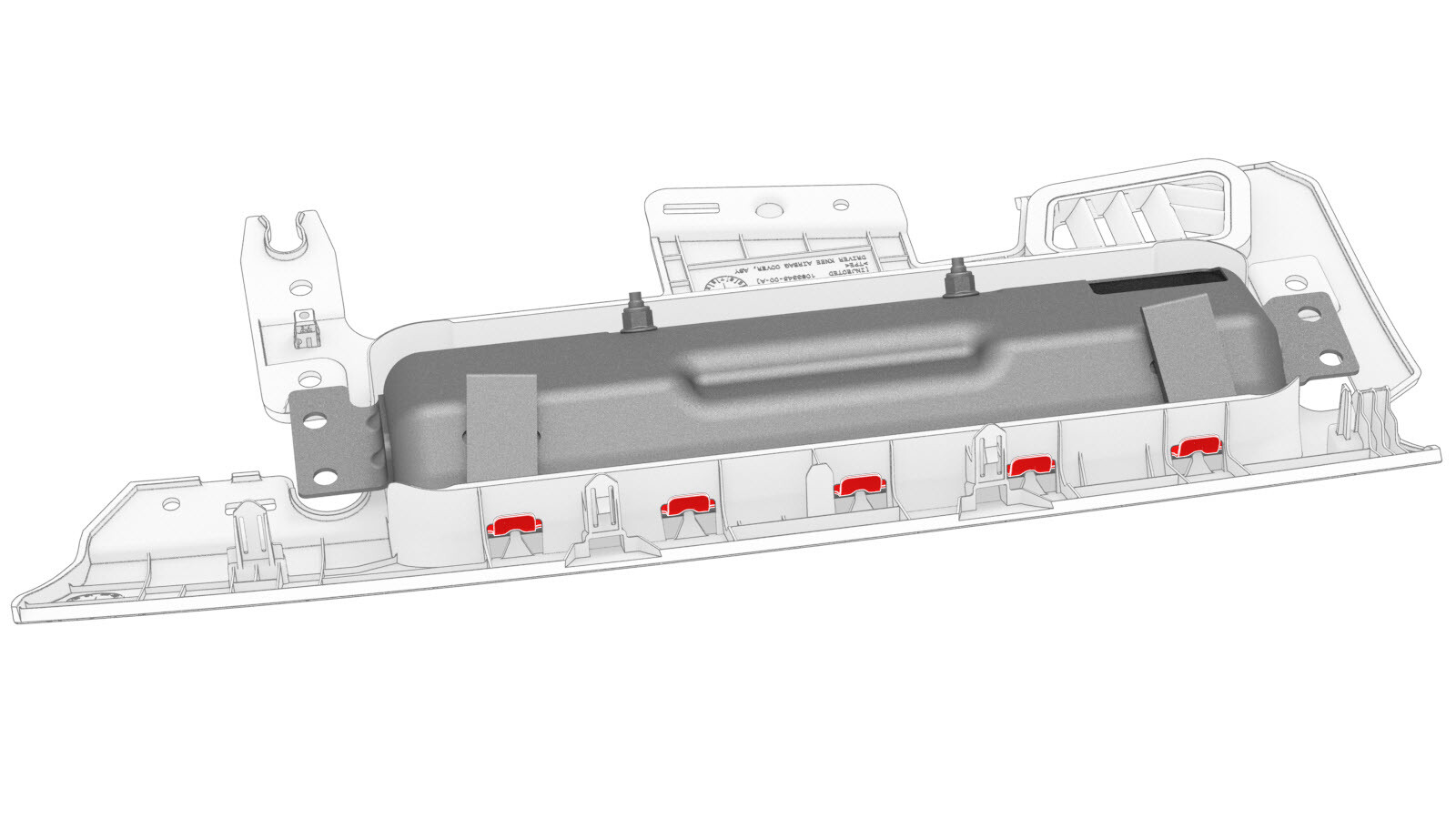

  2. 使用平头螺丝刀，沿气囊总成的后部边缘施加压力，执行此操作的同时，折曲膝部气囊罩壳四周，以松开罩壳四周 5 个气囊锁片中的每一个。

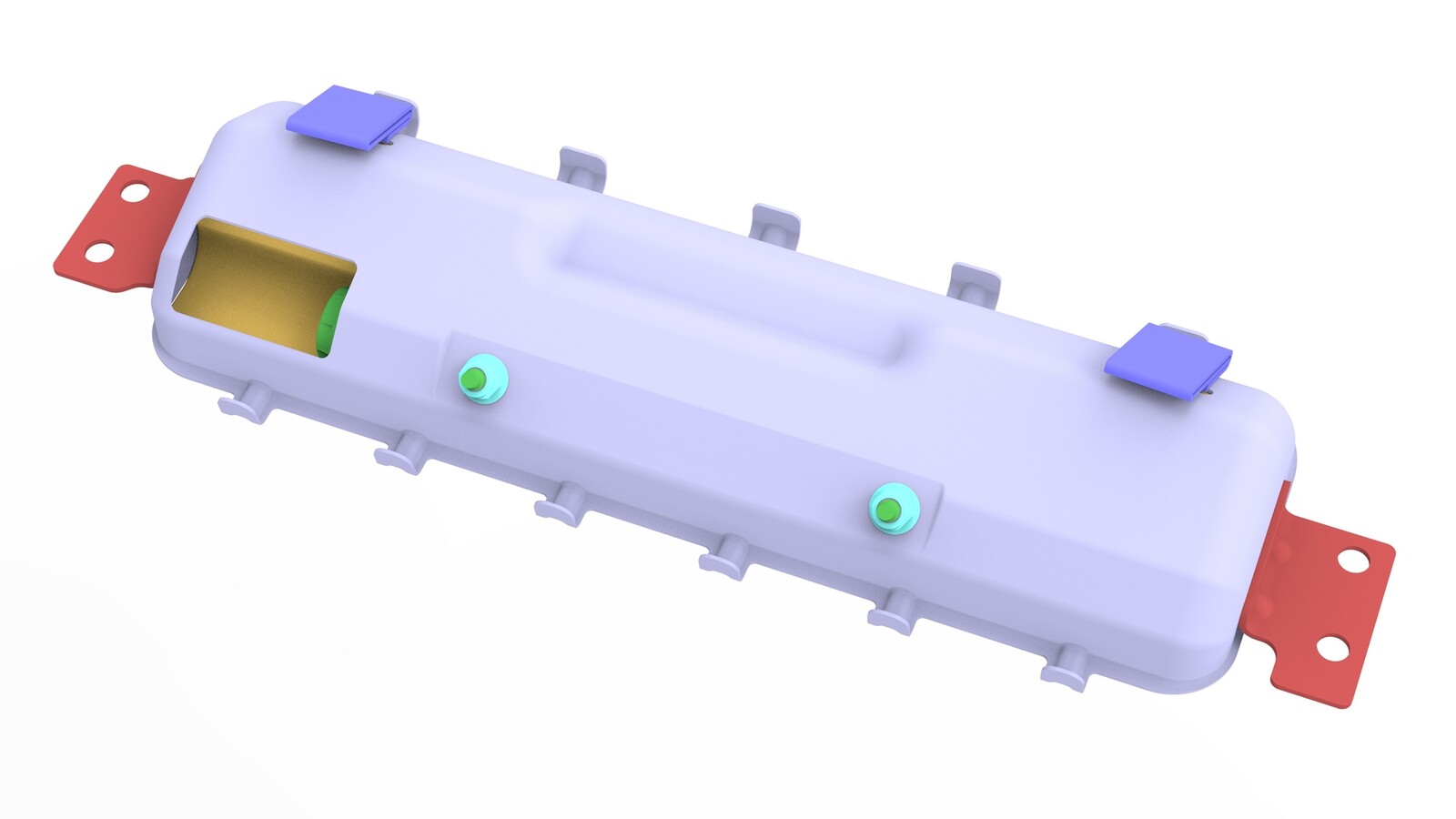

  3. 向上转动气囊，从罩壳四周分开气囊前部的 6 个锁片，然后从罩壳上拆下气囊。
    警告
    妥善弃置气囊。

安装

安装程序与拆卸程序相反。
