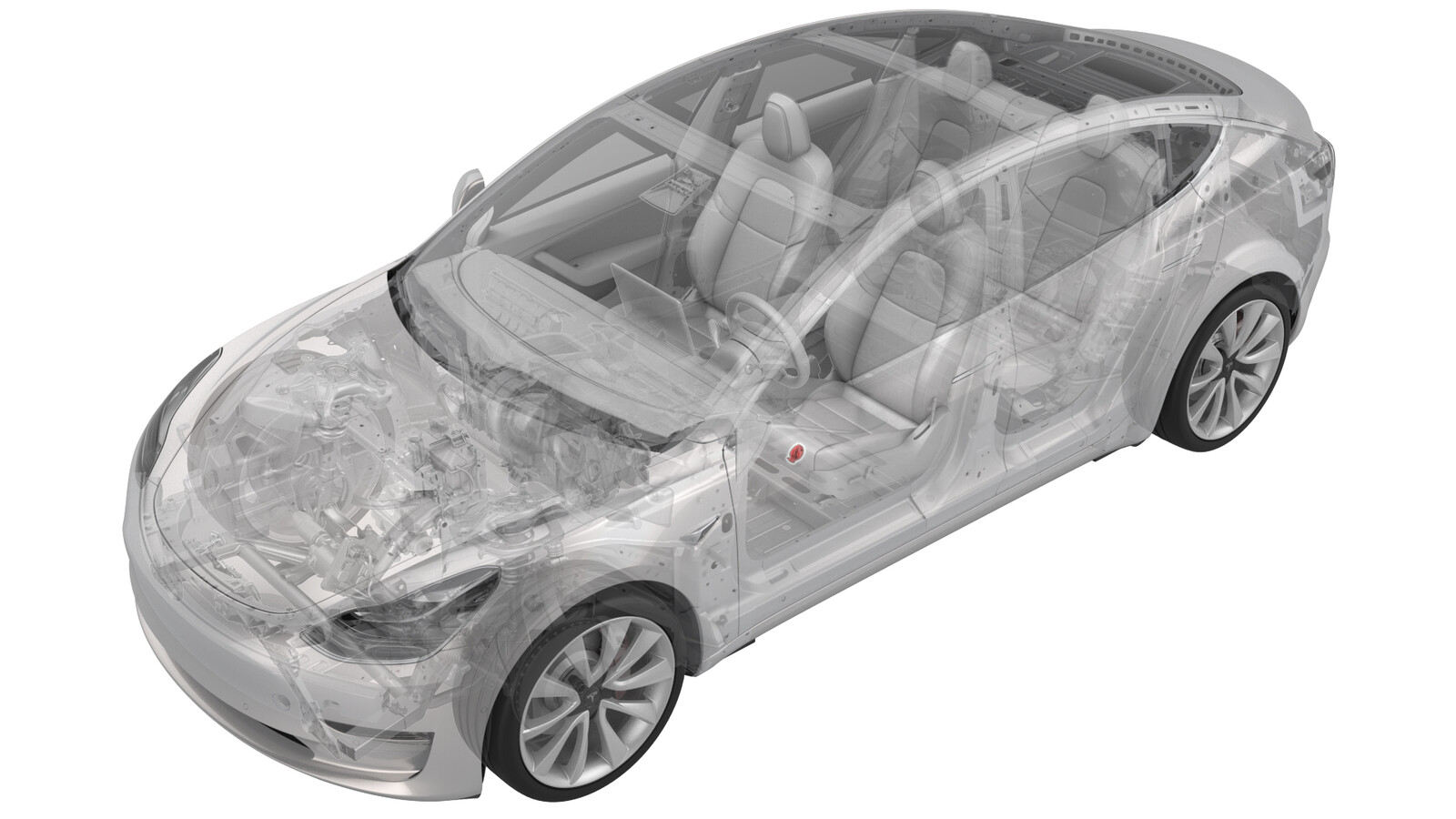

传感器 - 压力 - 车门 - 前部 - 左侧(拆卸和更换)
校正代码
20200102 0.36
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
警告
Make sure 12V/LV power has
been disconnected for at least 1 minute before disconnecting the electrical harness from
Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors,
airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so
can result in unintended safety system behaviors. For more information on SRS precautions,
see 气囊和辅助约束系统 (SRS) 预防措施.
拆卸
- 拆下第二排座椅下部座垫。请参阅座椅座垫 - 下部 - 第二排(拆卸和更换)。
- 安装前备箱后部挡板。请参阅前备箱挡板 - 后部(拆卸和更换)。
- 断开 12V 电源。请参阅 12V/低压电源(断开和连接)。
- 拆下 LH 前门饰板。请参阅面板 - 车门饰板 - 前 - 左侧(拆卸和安装)。
-

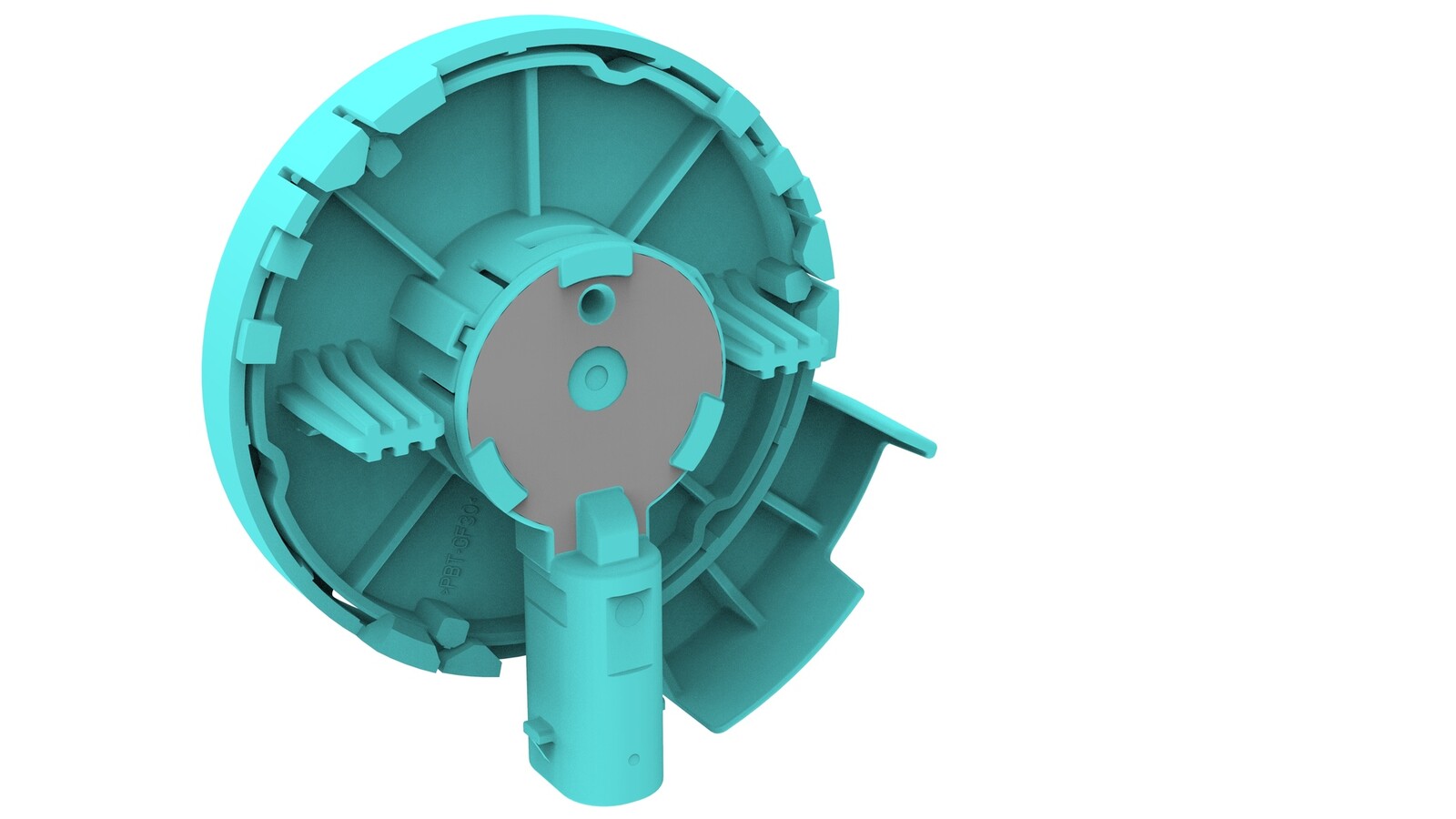

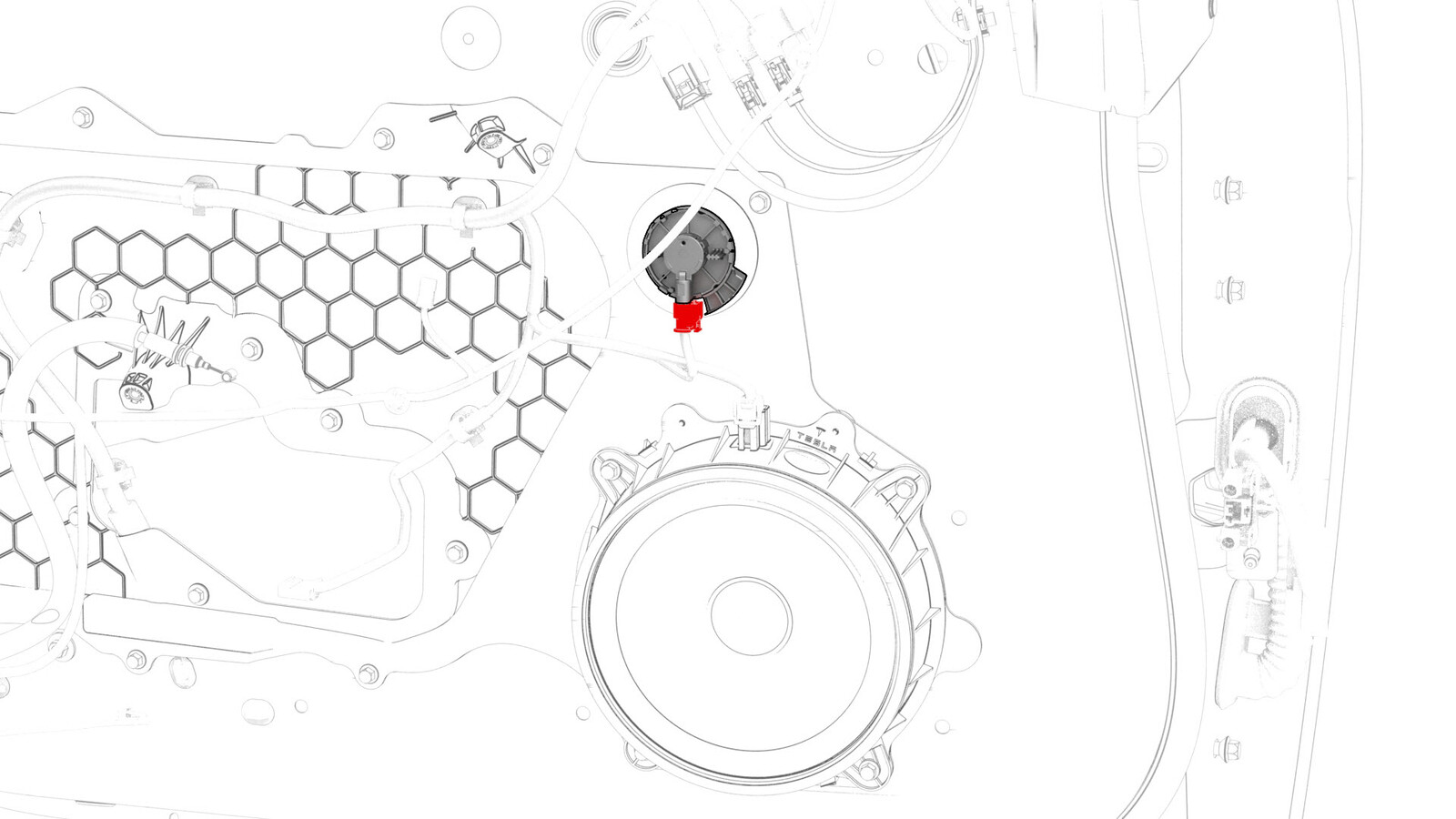

断开电气连接器与前门气囊传感器的连接。
-
逆时针转动锁片,然后从封闭板上拆下前门气囊传感器。
安装
安装程序与拆卸程序相反。
