维修面板 - 仪表板（拆卸和更换）

校正代码 21051212 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. Open the LH front door and lower the LH front window.

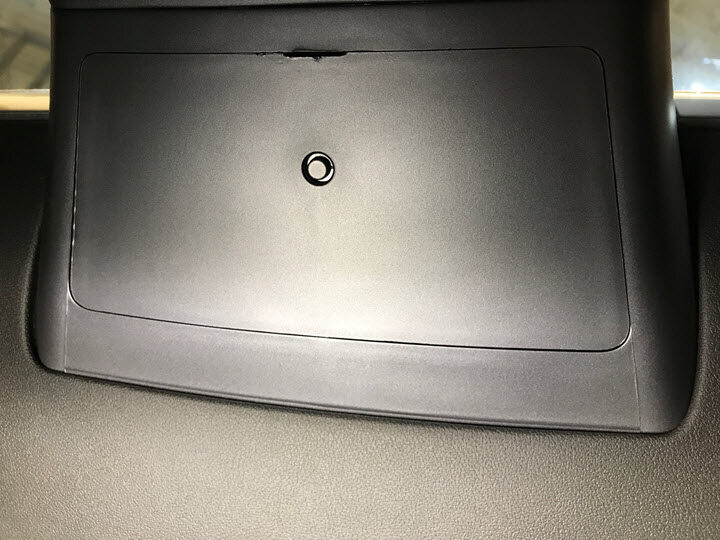

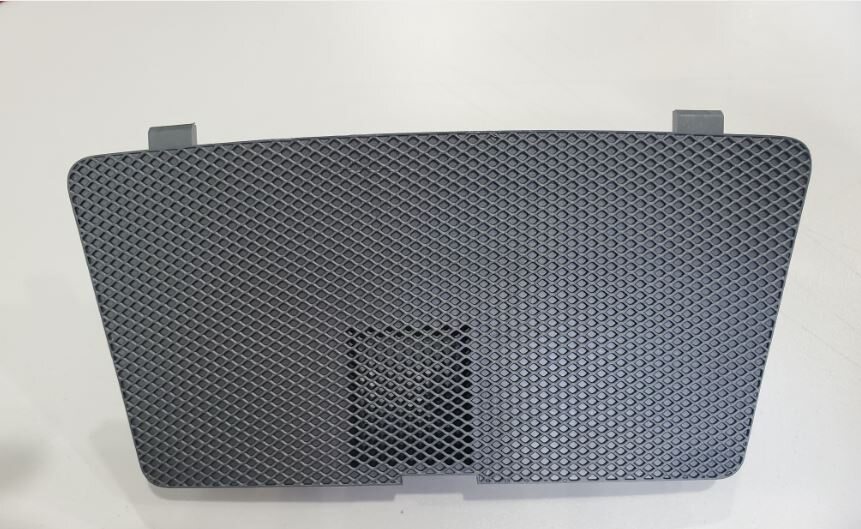

  2. Release the clips (x4) and tabs (x4) that attach the instrument panel service panel to the vehicle, and then disconnect the temperature sensor connector.

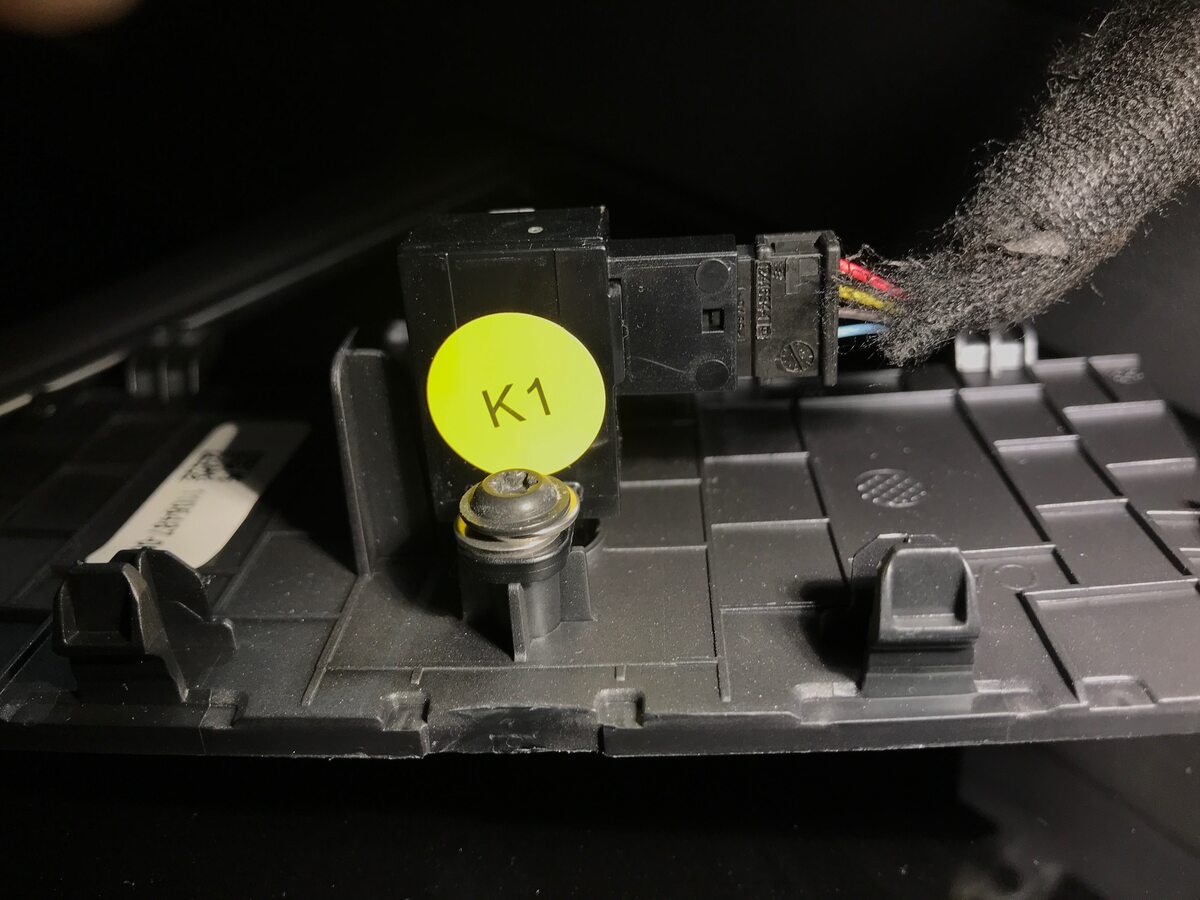

  3. Remove bolts (x2) that attach the cabin temperature sensor to instrument panel service panel, and then remove the sensor from the service panel.
    0.7 Nm (6 lbs-in)
    提示
    推荐使用以下工具
    • Torx T20 钻头

安装

  1. Position the cabin temperature sensor to instrument panel service panel, and then install the bolts (x2) that attach the sensor to the service panel.
    0.7 Nm (6 lbs-in)
    提示
    推荐使用以下工具
    • Torx T20 钻头
  2. Position the instrument panel service panel assembly to the instrument panel, connect the temperature sensor connector, and then secure the clips (x4) and tabs (x4) that attach the service panel to the vehicle.
  3. Raise the LH front window and close the LH front door.
