无檐罩 - 后视镜 - 左侧(拆卸和更换)
校正代码
12091702 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
警告
The video(s)
included in this procedure are meant as an overview for supplemental purposes only.
Follow all of the steps listed in the procedure to avoid damage to components and/or
personal
injury.
拆卸
-
向外拉动以便松开将 LH 后视镜无檐罩后部固定到 LH 后视镜的夹子。

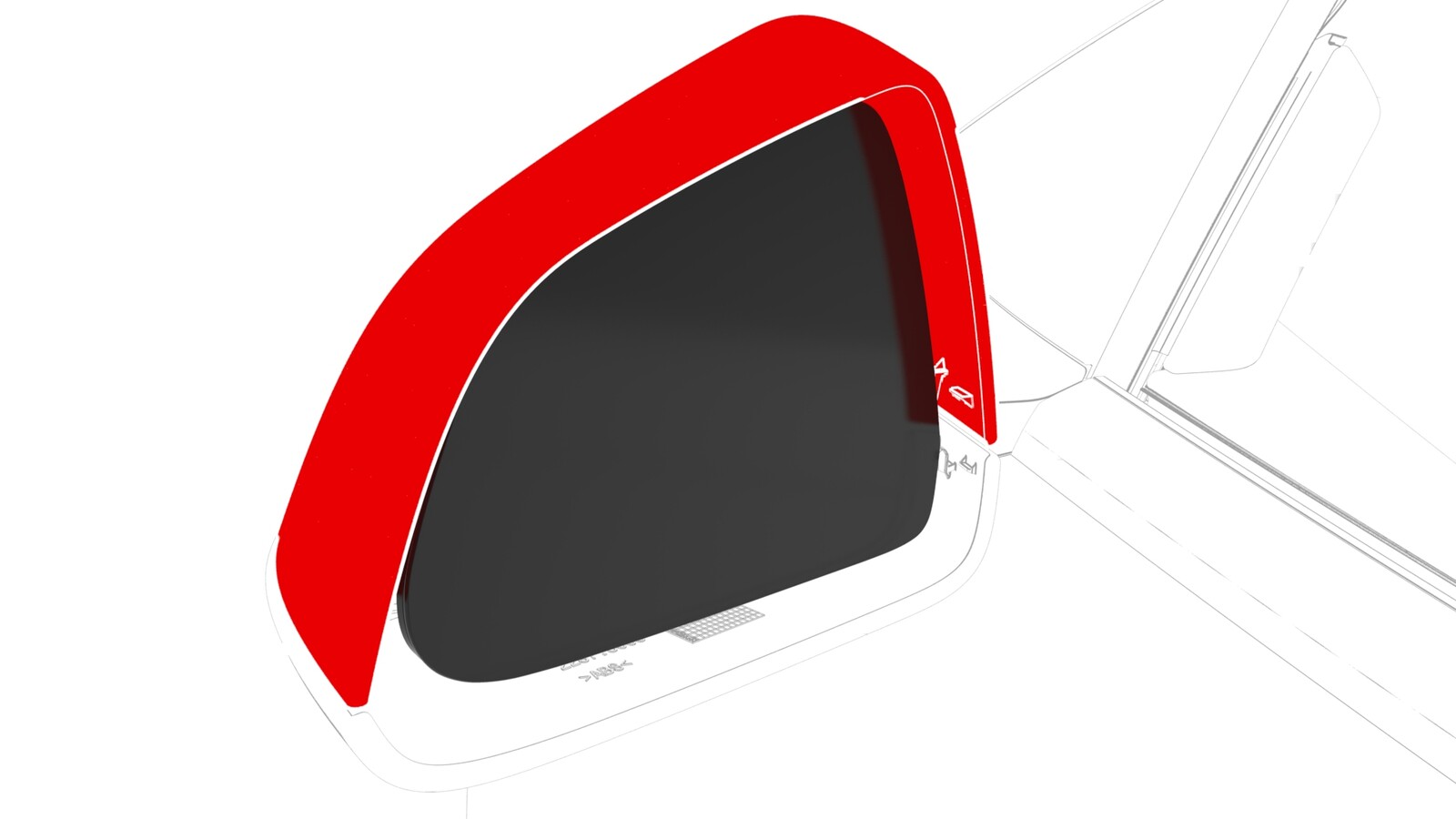

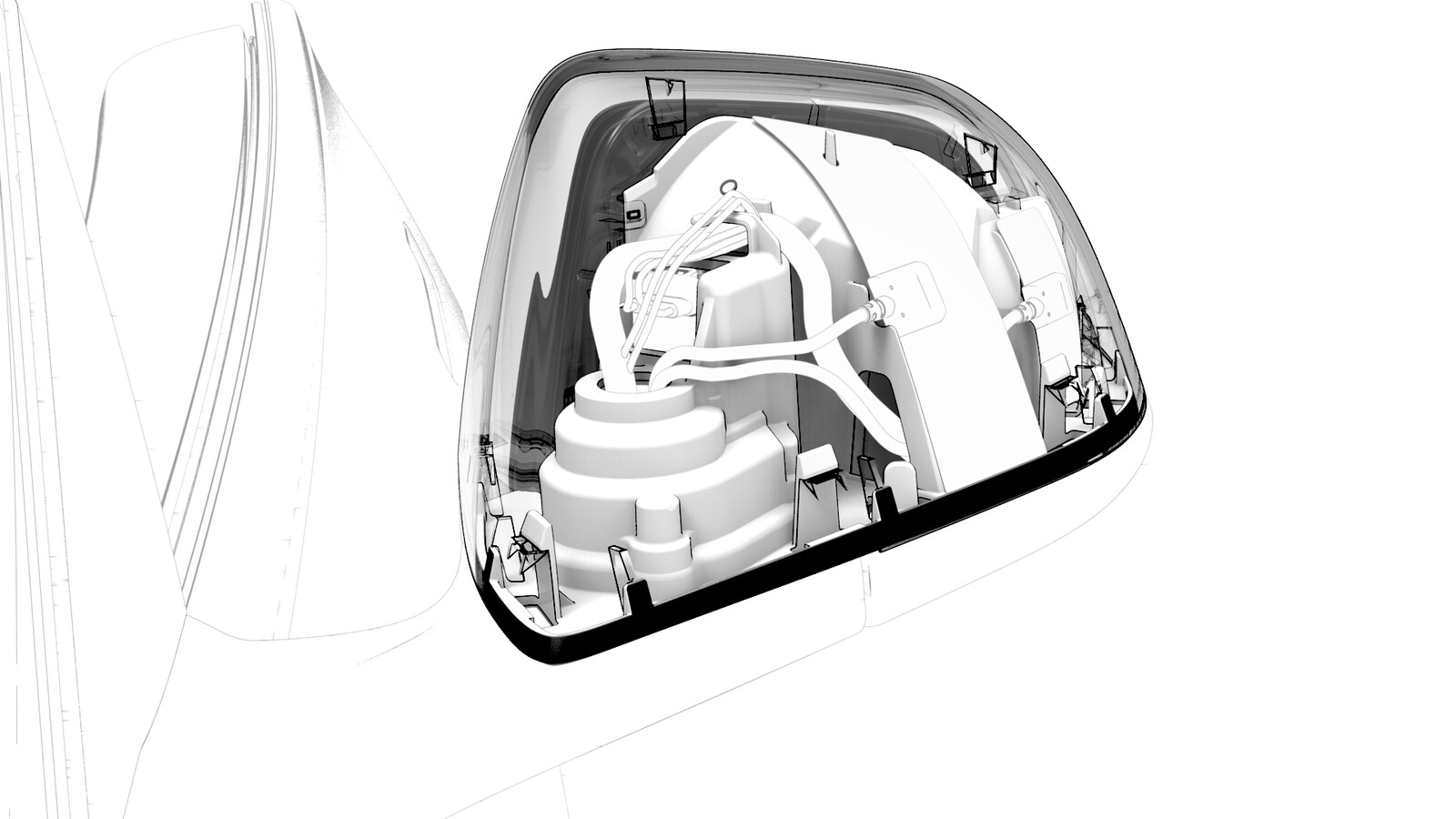

图 1. 无檐罩的外缘 图 2. 无檐罩的内缘 - 撬起 LH 后视镜无檐罩的内外边缘,以无檐罩的前部为起点。
-
松开将 LH 后视镜无檐罩固定到 LH 后视镜的剩余夹子,然后从后视镜上拆下无檐罩。
安装
安装程序与拆卸程序相反。
-
将左后视镜无檐罩放置在左后视镜上,将无檐罩锁片与后视镜对齐。
-
向下推动 LH 后视镜无檐罩的顶部,以便紧固将无檐罩固定到 LH 后视镜的夹子。
注下压无檐罩内外边缘,直至听到咔哒声。注确保无檐罩的内缘与后视镜总成之间的间隙在规格范围内。

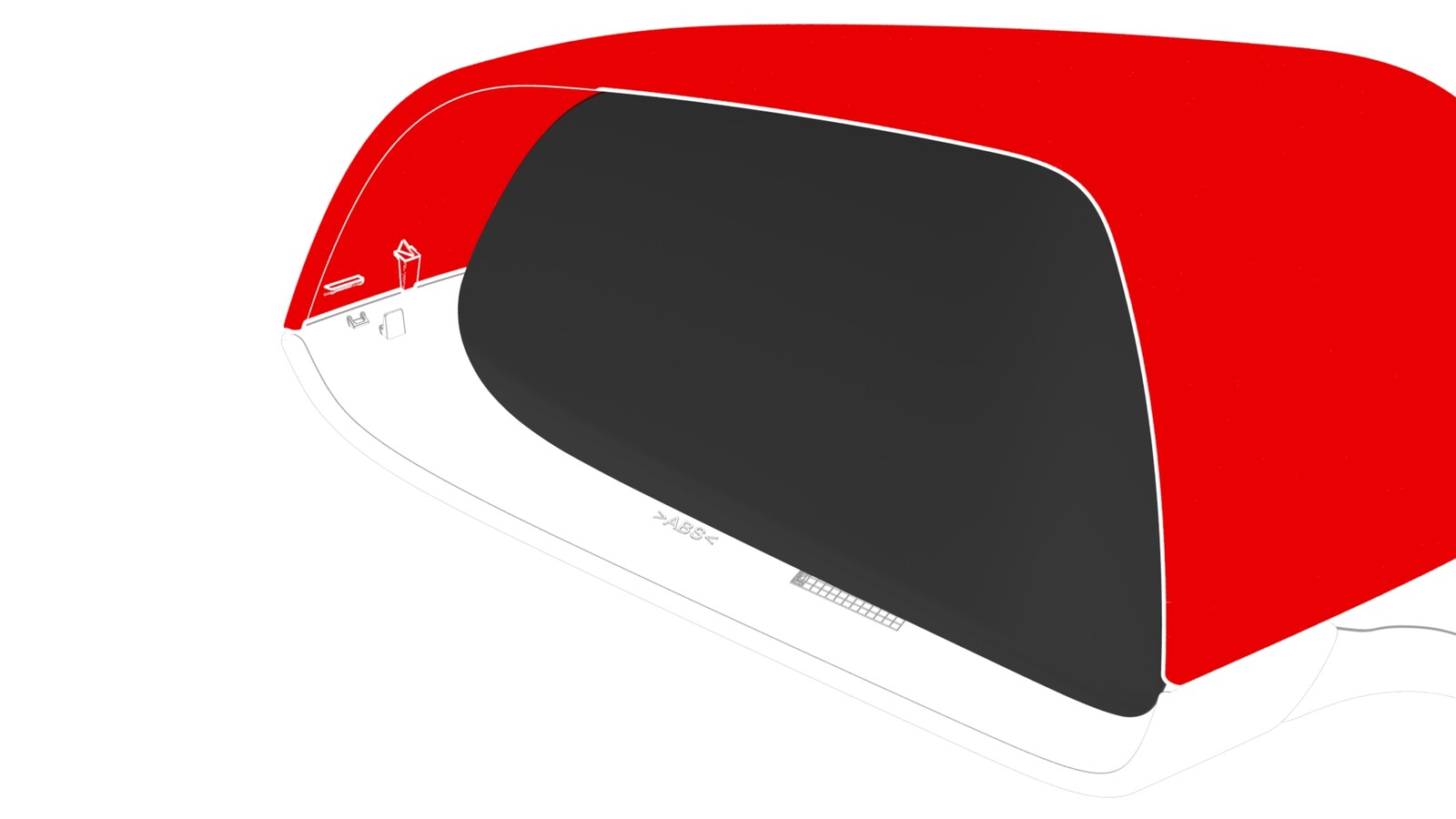

图 3. 无檐罩的外缘 图 4. 无檐罩的内缘
