螺柱 - 缓冲止动块 - 灯座 - 成对（维修）

校正代码 10102318 0.72 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
仅适用于欧洲：只有接受过二异氰酸酯操作培训并完成所有必修认证课程的技术人员才允许执行使用聚氨酯和含有二异氰酸酯的其他产品的程序。处理含有二异氰酸酯的产品时必须穿戴适当的个人防护装备 (PPE)。
  • 1460222-00-B - BUMP STOP SOCKET
  • 1014689-00-A - MOLYKOTE M-77 PASTE
  • 1820212-00-A - BOLT, PANHEAD, M6X16

Repair

  1. Remove the LH and RH tail light. See 尾灯 - LH（拆卸和安装）.

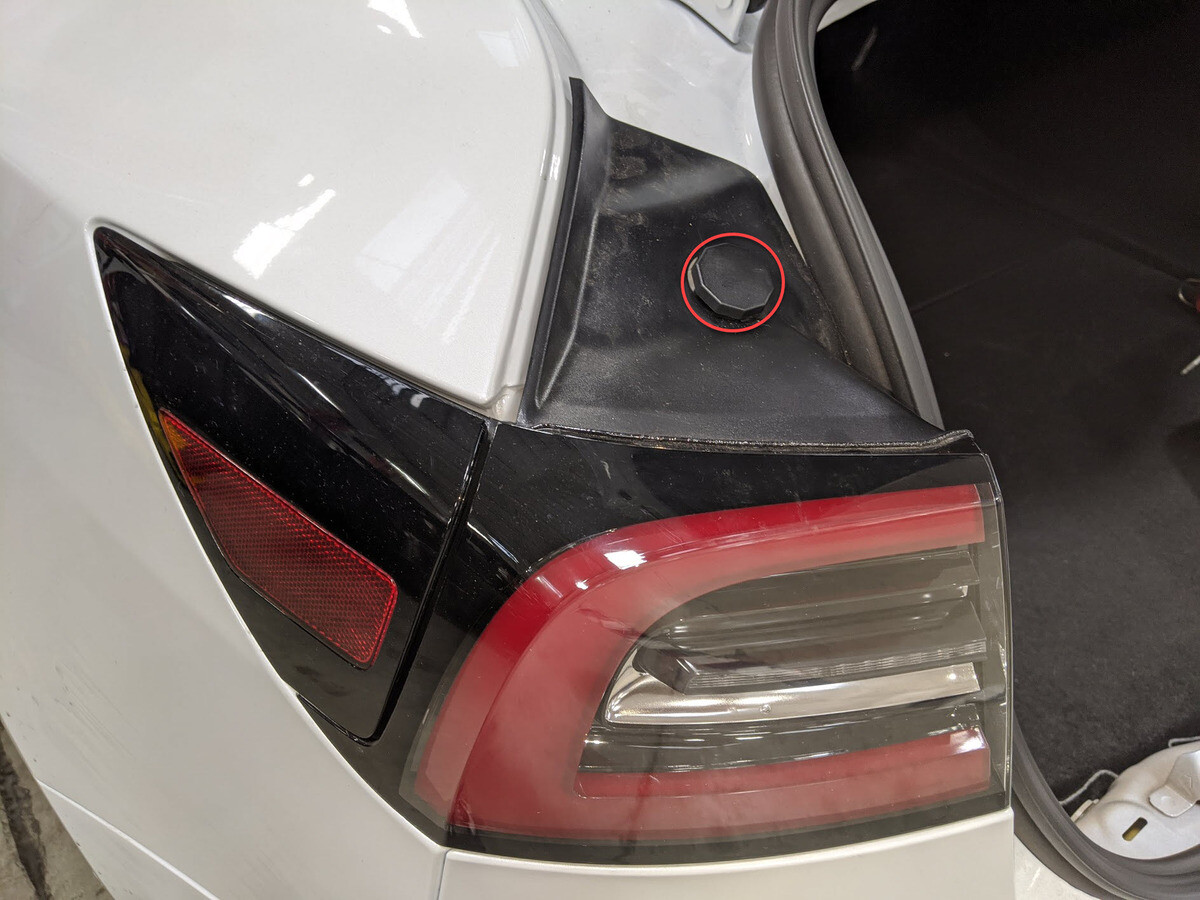

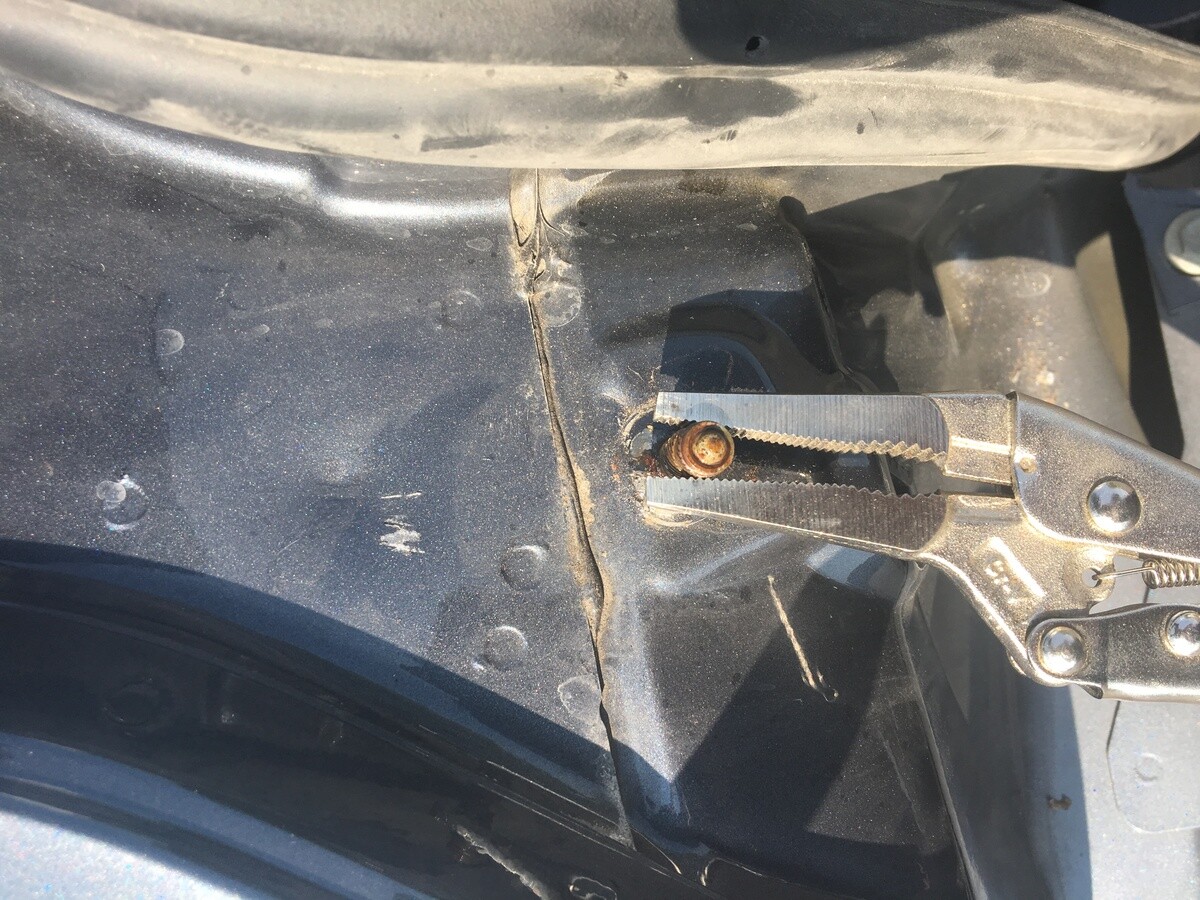

  2. Remove the damaged LH and RH liftgate stop stud from the LH lamp can panel.

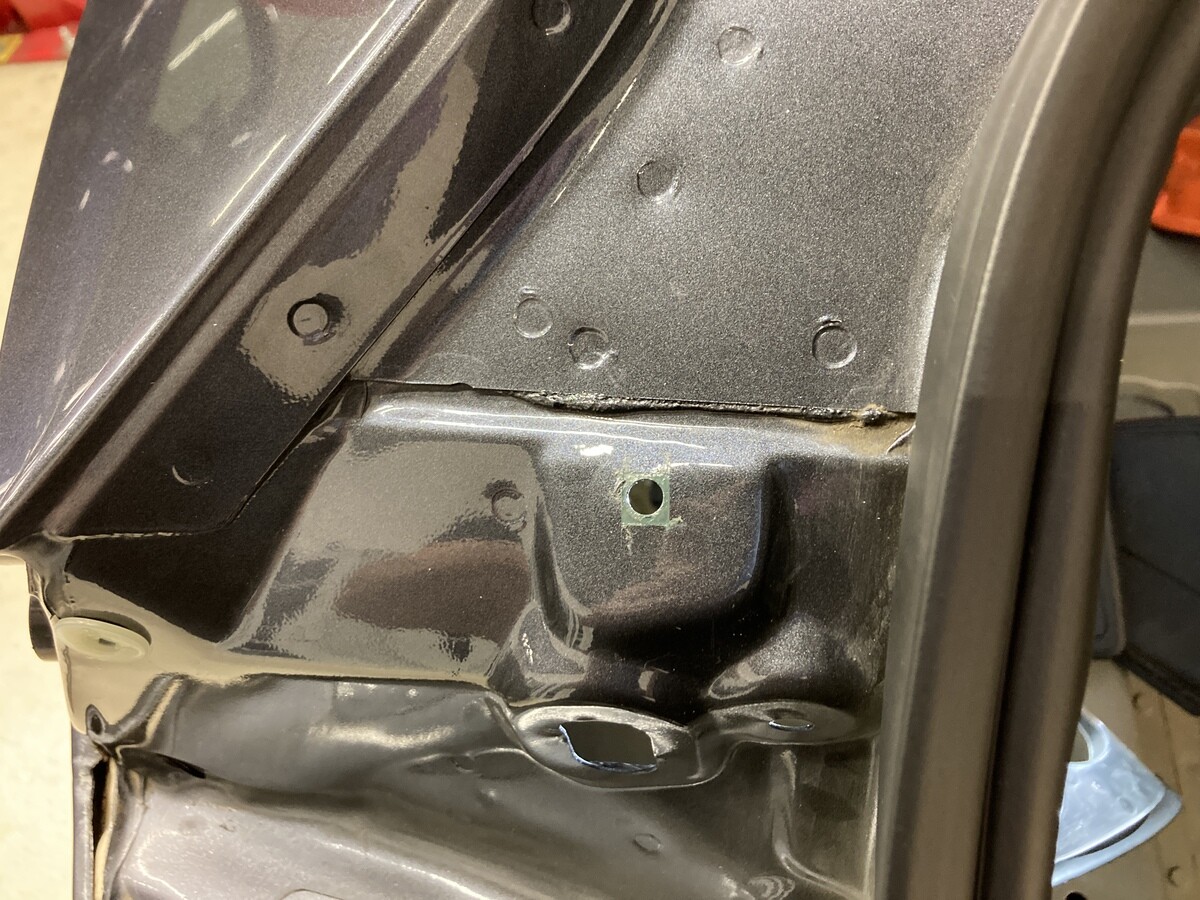

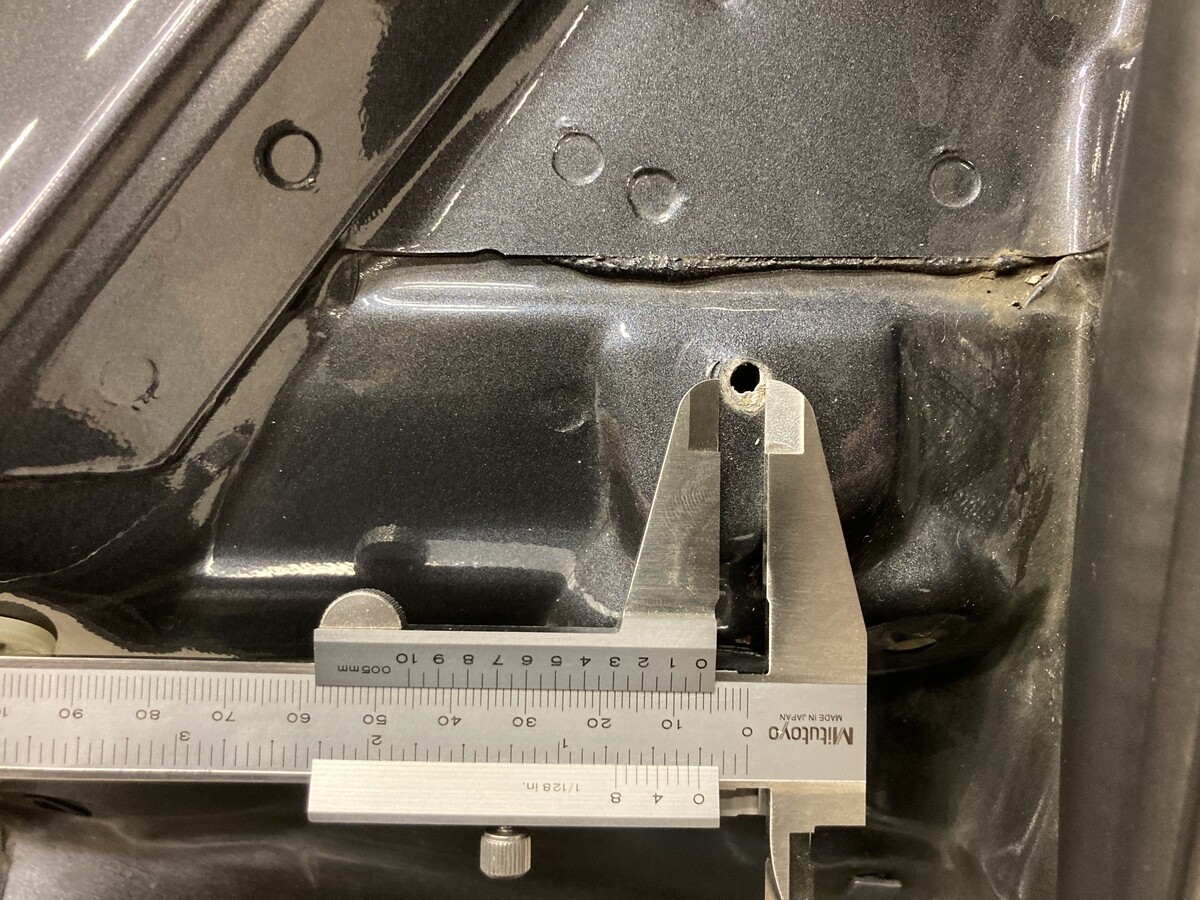

  3. Measure the diameter of the hole on the LH and RH lamp can panel that was created after removal of the liftgate stop stud.
    Informational PurposesAn informational icon, calling your attention
    注
    The diameter of the hole must not exceed 10.5 mm (0.43 in). If the hole is larger, then the panel should be replaced.

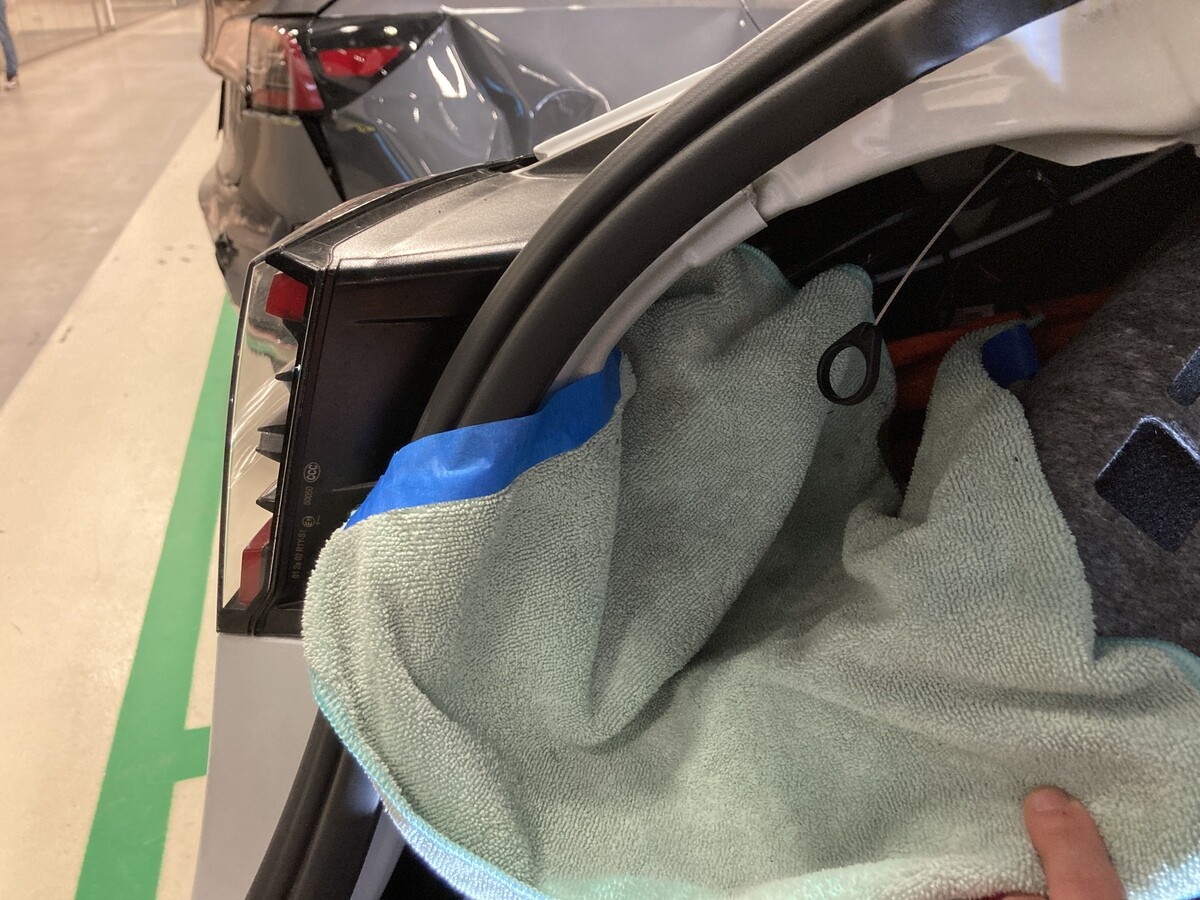

  4. Apply a shop towel behind the LH and RH trunk side trim carpet.
    Informational PurposesAn informational icon, calling your attention
    注
    Position the shop towel under the LH and RH lamp can panel to catch metal shavings that are created in the next steps.

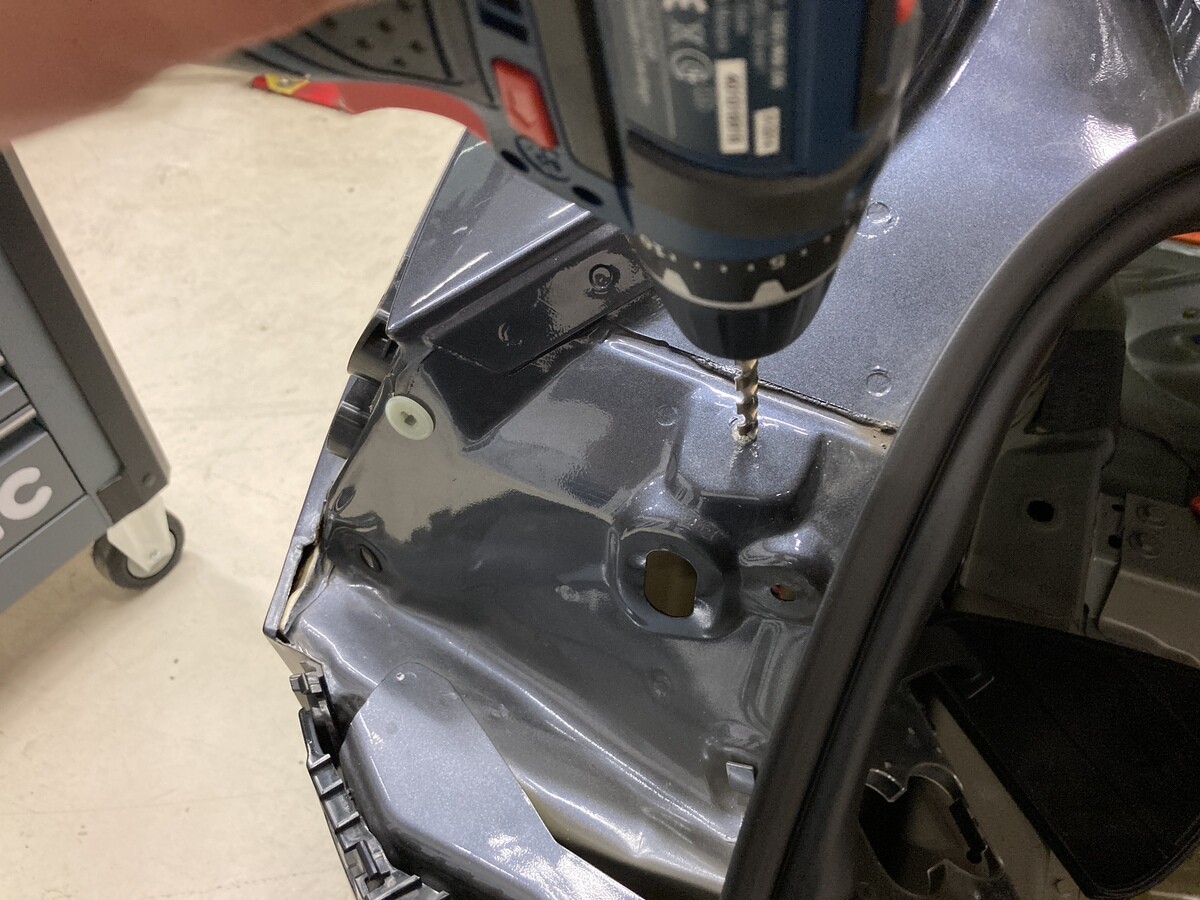

  5. Drill out the LH and RH lamp can panel.
    Informational PurposesAn informational icon, calling your attention
    注
    Depending on how much rust is present, drill out the hole on each lamp can panel with a 6.5-10.5 mm (1/4 - 13/32 in) drill. Try to remove as much rust as possible but do not exceed 10.5 mm (13/32 in).

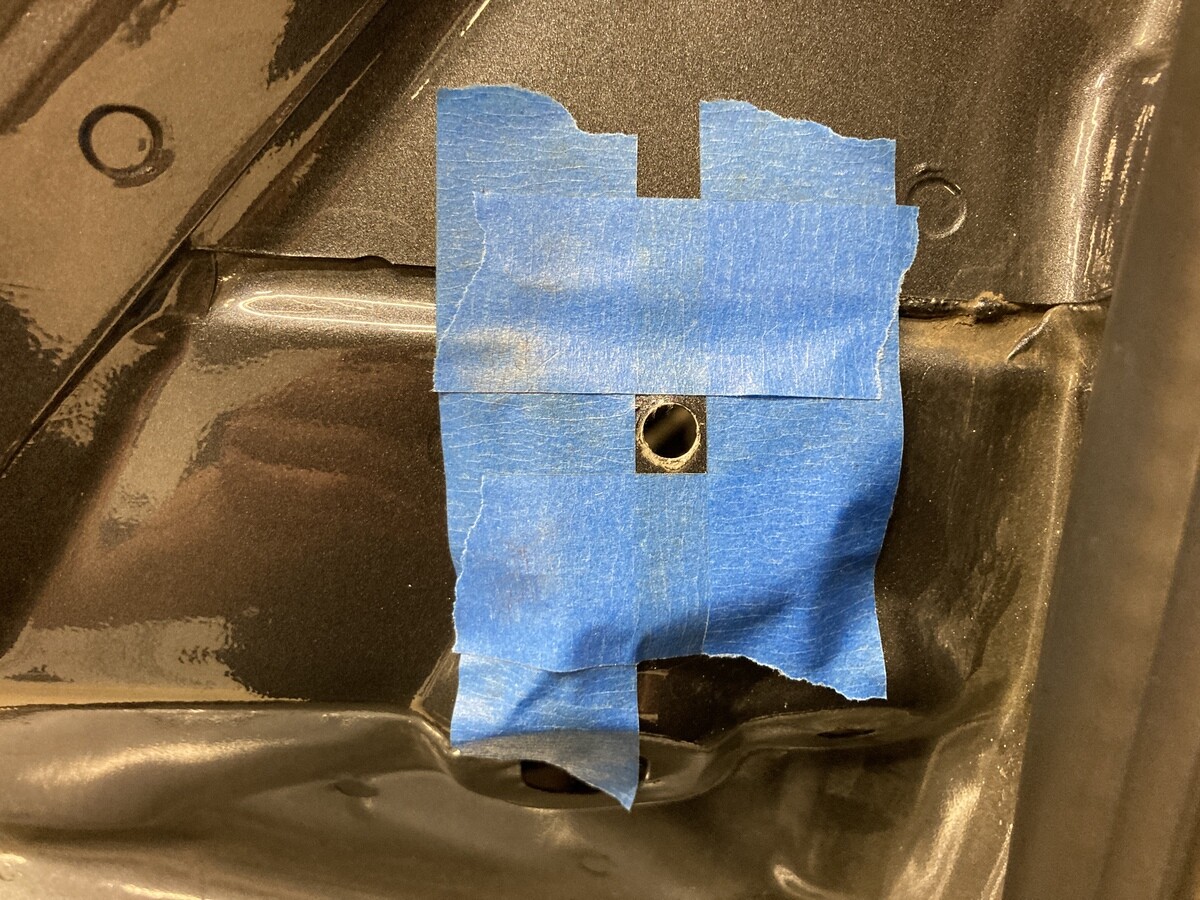

  6. Apply masking tape around the hole on the LH and RH lamp can panel.
  7. Sand out any remaining rust on the LH and RH lamp can panel.
    Informational PurposesAn informational icon, calling your attention
    注
    Clean with an IPA wipe afterwards and allow 1 minute to dry.

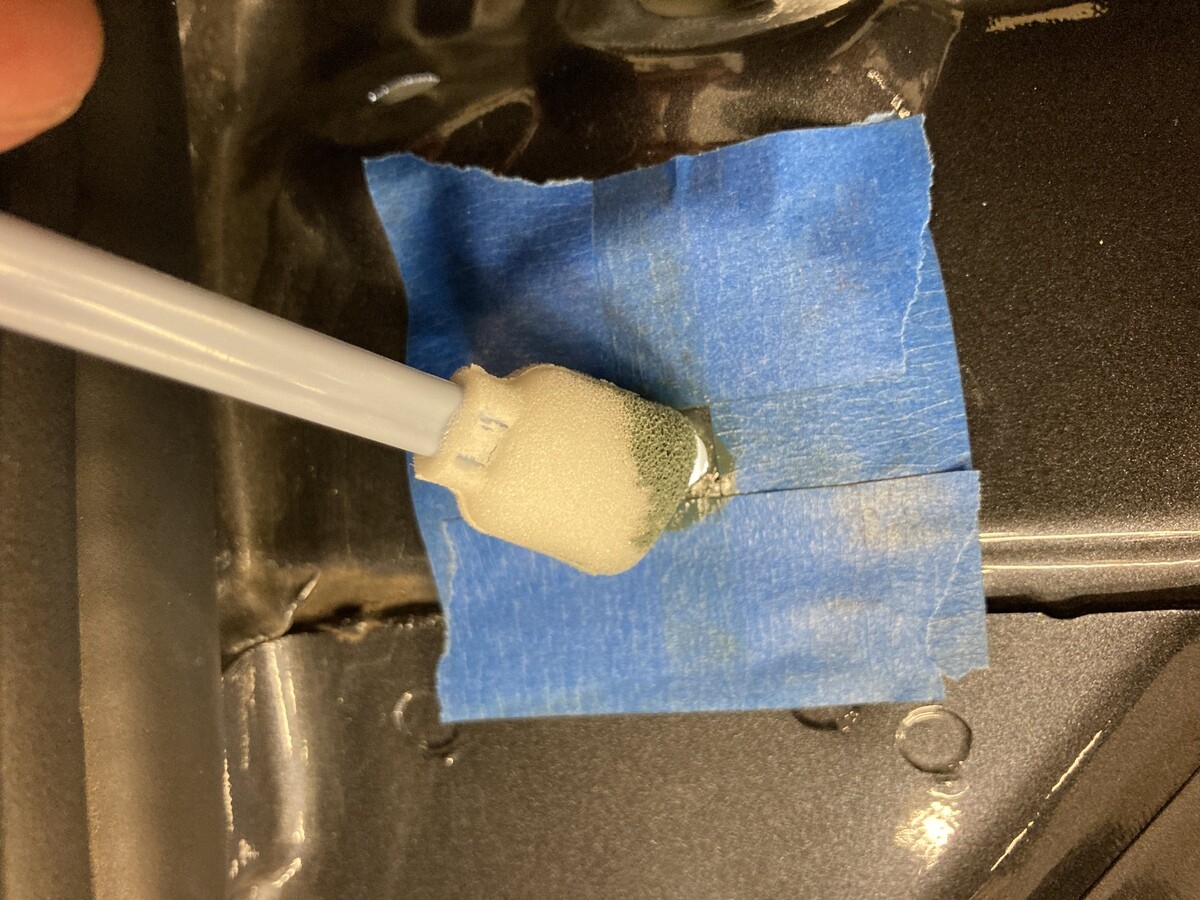

  8. Apply self-etching primer onto the LH and RH lamp can panel.
    Informational PurposesAn informational icon, calling your attention
    注
    Recommend to use a brush to apply primer to prevent paint overspray on the body panel when primer spray is used.
  9. Allow the primer to dry for 5 minutes, and then apply a second coat of primer onto the LH and RH lamp can panel.
  10. Allow the second coat of primer to dry for 5 minutes, and then apply a third coat of primer to the LH and RH lamp can panel.
  11. Remove the masking tape from around the hole on the LH and RH lamp can panel.
  12. Install the LH and RH rear bodyside tail light to the vehicle. See 尾灯 - LH（拆卸和安装）.
    Informational PurposesAn informational icon, calling your attention
    注
    Install new gaskets to each taillight mounting bolt (x2) and the taillight electrical connector housing (x1).

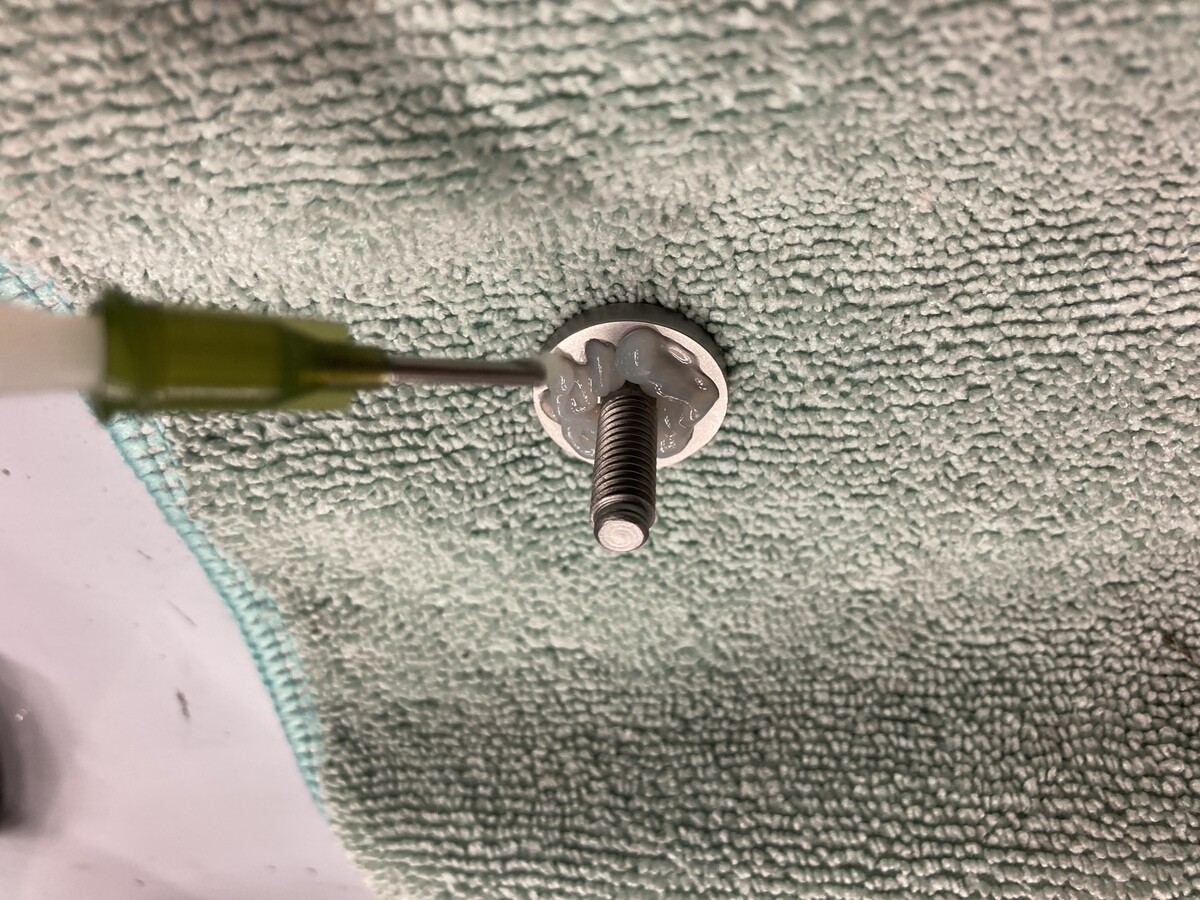

  13. Apply approved structural adhesive on the slotted pan head screws (x2)
    Informational PurposesAn informational icon, calling your attention
    注
    Apply structural adhesive only on the inner side of the head of the screw. Avoid contact with the thread. Refer to the Model 3 Colliision Repair Manual for Approved Structural Adhesives, see .
  14. From the inside of the lamp can panel, install the slotted pan head screw onto the LH and RH lamp can panel.
  15. Install the LH and RH trunk bump stop (torque 1.5 Nm).
    Informational PurposesAn informational icon, calling your attention
    注
    Apply a light coat of Molykote M-77 on the studs.

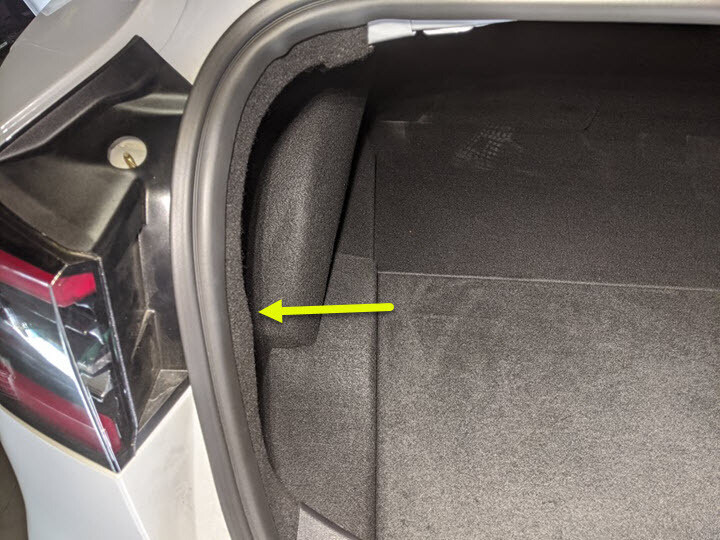

  16. Remove the shop towel from behind the LH and RH trunk side trim carpet.
  17. Install the LH and RH trunk side trim carpet.

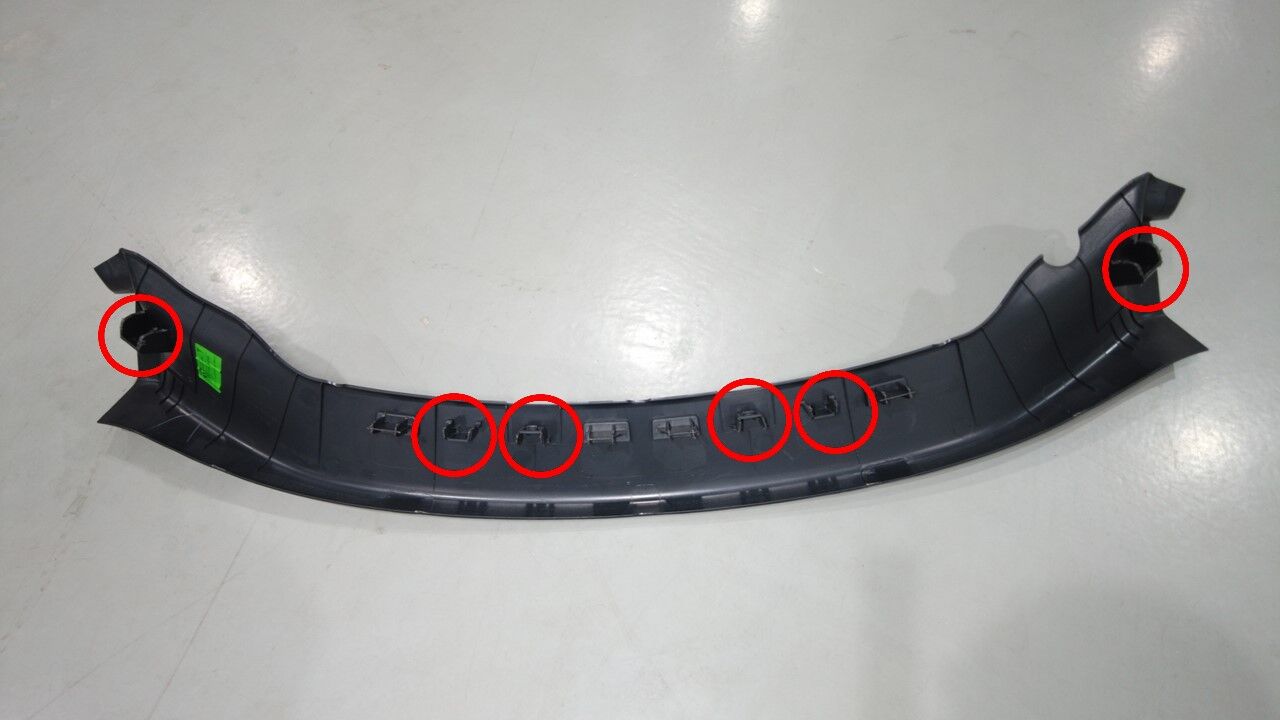

  18. Install the trunk garnish onto the body.
