侧板 - 中控台 - 左侧(拆卸和更换)

校正代码 15196802 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

注
已提供 LH 侧的操作,RH 侧的操作程序与之相同。
  1. 将前排 LH 座椅移至最后侧。
  2. 从车上拆下前排 LH 脚垫。

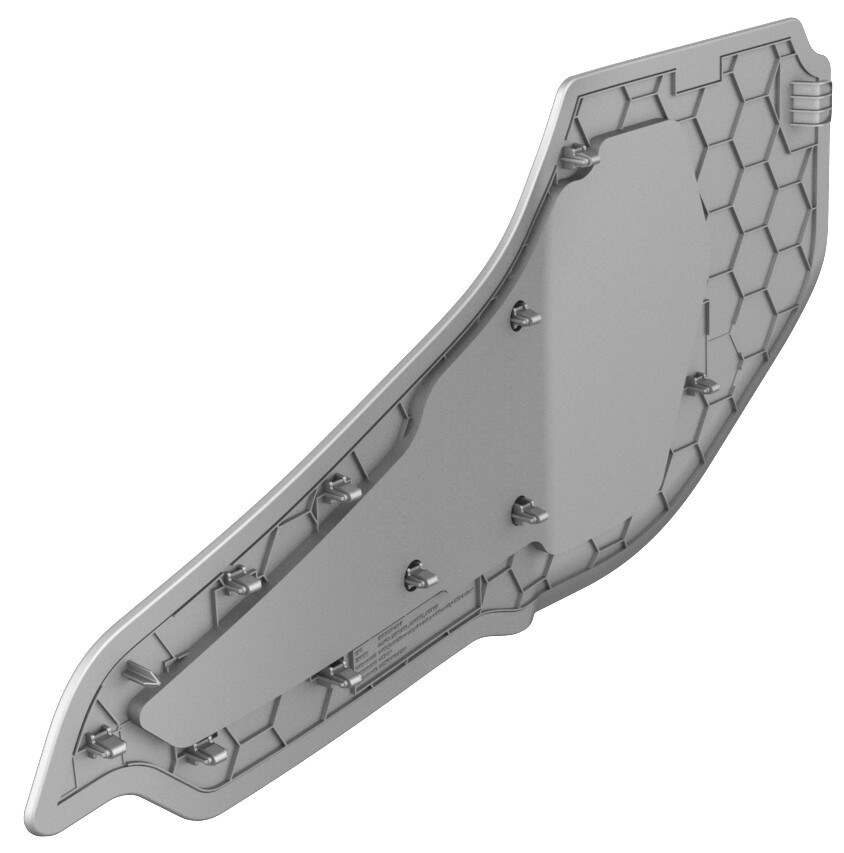

  3. 松开将中控台侧面板毡毯固定到中控台的卡扣和锁片,然后从车上拆下侧面板。
    注
    先松开最后面的卡扣,然后依次向前松开其余卡扣。将中控台以及横梁中剩余的所有卡扣转移至中控台侧面板毡毯。

安装

安装程序与拆卸程序相反,以下各项除外:

  • 将左侧面板处地毯的前部锁片对齐,然后固定卡子。
