蓝牙低能耗胎压监测系统 (BLE TPMS)（改装）

校正代码 34040006 1.56 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

改装

  1. Remove the TPMS sensor from the wheel. See 传感器 - 胎压监测系统 (TPMS)（拆卸和更换）.
  2. Use an IPA wipe to thoroughly clean the inside and outside of the TPMS sensor mounting hole.

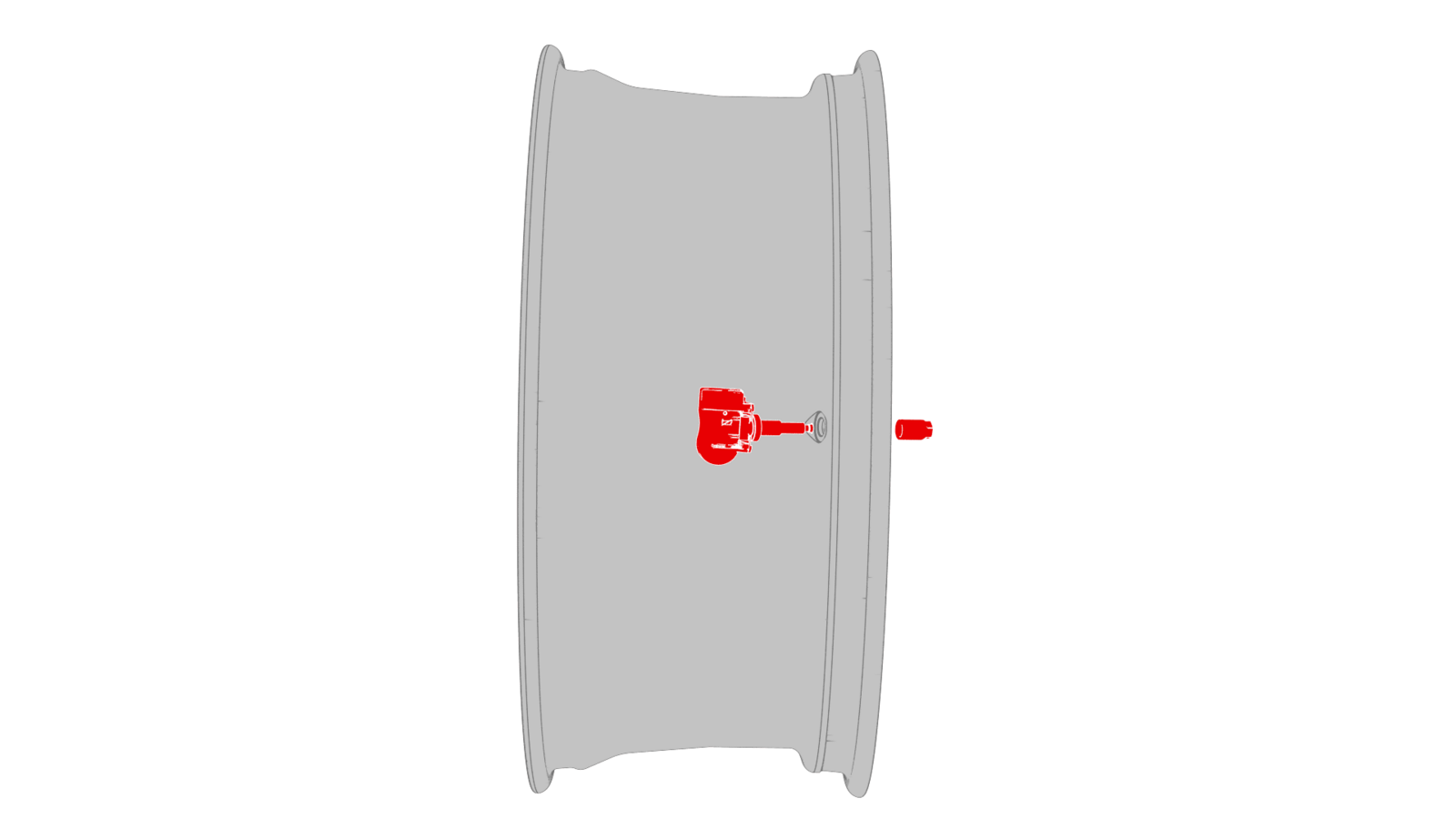

  3. Install the BLE TPMS sensor so that it fits closely to the wheel.
    注
    安装前，先使用异丙醇 (IPA) 湿巾彻底清洁胎压监测系统 (TPMS) 传感器安装孔的内外侧。
    注
    确认胎压监测系统 (TPMS) 密封件完全固定在底座上，否则安装过程中密封件会受到损坏。
  4. Install the nut that secures the BLE TPMS sensor to the wheel.
    8 Nm (5.9 lbs-ft)
  5. Release the upper bead roller, and allow the bead to seat against the wheel.
  6. Inflate the tire to seat the bead.
  7. Install the valve stem core, and then remove the wheel from the tire changer.
  8. Rebalance the wheel. See 轮胎 - 前 - 左侧（平衡）.
  9. Reinstall the wheel. See 轮毂（拆卸和安装）.
  10. Repeat steps 1 through 9 for all wheels.
  11. Update the Vehicle Configuration. See 蓝牙低能耗胎压监测系统 (BLE TPMS)（更新配置）.
  12. Test drive the vehicle to at least 15 mph (24 kph) for 1-3 minutes to reconnect the TPMS sensors.
  13. Confirm on the vehicle touchscreen that all 4 TPMS sensors are providing tire pressure readings.
