底座支架 - 前围篦板 - 左侧（拆卸和更换）

校正代码 12251122 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

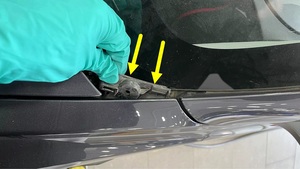

  1. 拆卸前备箱盖左侧铰链盖。请参阅盖板 - 铰链 - 主动防护前罩 - 左侧（拆卸和更换）。

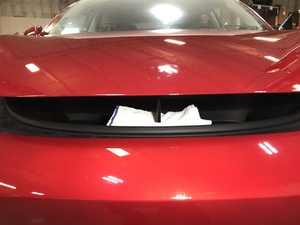

  2. 在前备箱盖闩锁上插入一片碎布，保持前备箱盖始终微启。

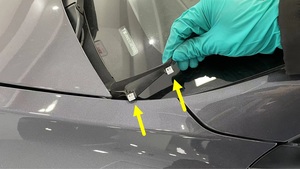

  3. 拆卸将前围篦板左侧固定到车辆的卡子（2 个），然后将前围篦板左侧从车辆上松开。

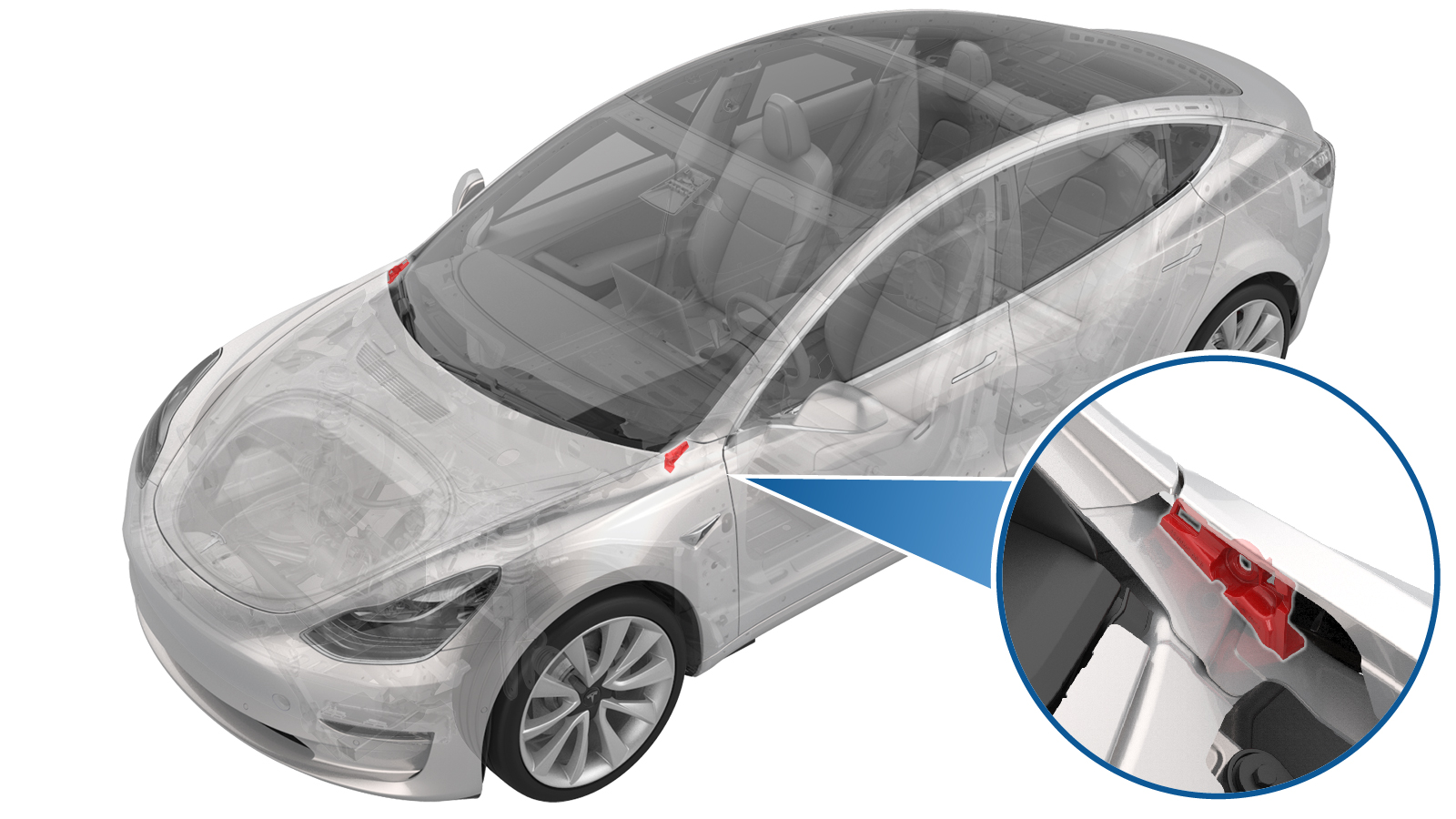

  4. 松开将前围篦板左侧底座支架固定到车辆的卡子，然后将前围篦板左侧底座支架从车辆上拆下。
