控制器 - 高压（拆卸和安装）
校正代码
16301601 1.08
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
Only
technicians who have completed all required certification courses are permitted to
perform this procedure. Tesla recommends third party service provider technicians
undergo equivalent training before performing this procedure. For more information on
Tesla Technician requirements, or descriptions of the subject matter for third parties,
see HV Certification Requirements. Proper personal protective equipment (PPE) and insulating HV
gloves with a minimum rating of class 0 (1000V) must
be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness
Care Points
for additional safety
information.
拆卸
- 拆下前备箱后部挡板。请参阅前备箱挡板 - 后部（拆卸和更换）。
- 断开 12V/低压电源。请参阅12V/低压电源（断开和连接）。
- 执行车辆隔离程序。请参阅车辆高压禁用程序。
- 拆下第二排座椅座垫。请参阅座椅座垫 - 下部 - 第二排（拆卸和更换）。
- 拆下高压电池仓盖板。请参阅盖板 - 高压电池仓（拆卸和安装）。
- 拆下烟火电池隔离开关。请参阅烟火电池断接开关（拆卸和更换）。
-
将高压电池仓线束从高压控制器连接器上断开。
-
拆下将高压控制器固定到铰链托盘的螺栓，然后将控制器从车辆上拆下。

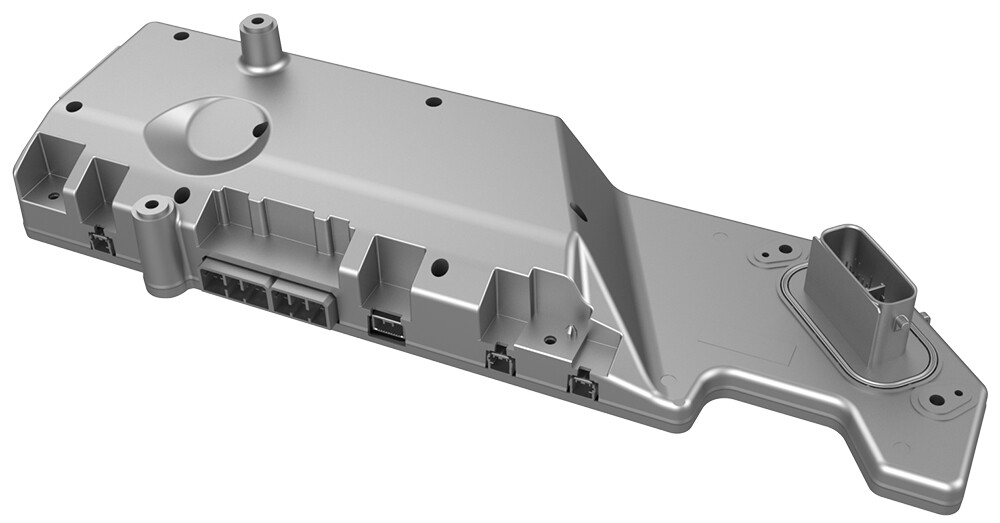

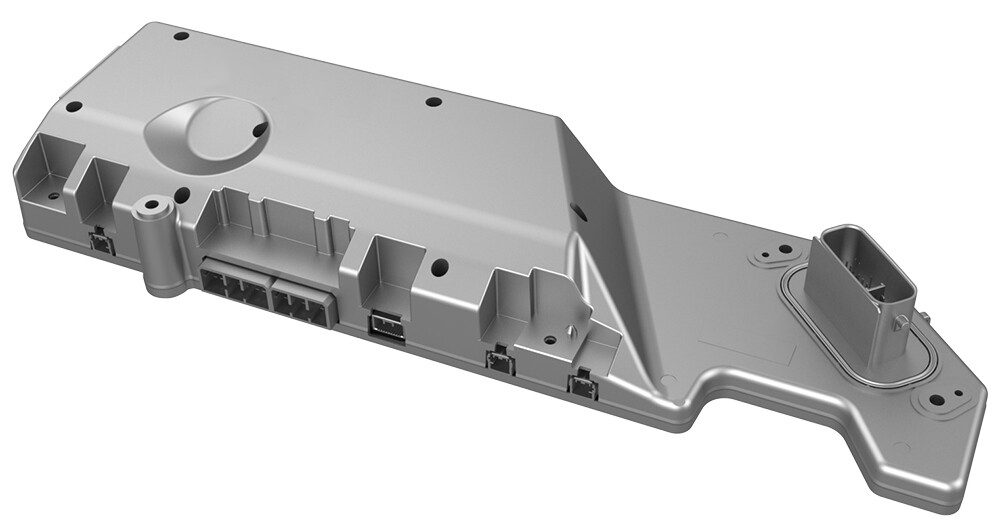

2 Nm (1.5 lbs-ft)图 1. 5 个螺栓固定的高压控制器 图 2. 4 个螺栓固定的高压控制器 图 3. 3 个螺栓固定的高压控制器
安装
-
将高压控制器安装到高压电池仓上，然后安装将高压控制器固定到铰链托盘的螺栓。2 Nm (1.5 lbs-ft)
-
将高压电池仓线束连接到高压控制器连接器。
- 将高压控制器向上提起，以便接触并拆下保险丝绝缘体。
- 安装烟火电池断接开关。请参阅烟火电池断接开关（拆卸和更换）。
- 安装高压电池仓盖板。请参阅盖板 - 高压电池仓（拆卸和安装）。
- 连接 12V/低压电源。请参阅12V/低压电源（断开和连接）。
- 安装前备箱后部挡板。请参阅前备箱挡板 - 后部（拆卸和更换）。
- 安装第二排座椅座垫。请参阅座椅座垫 - 下部 - 第二排（拆卸和更换）。
