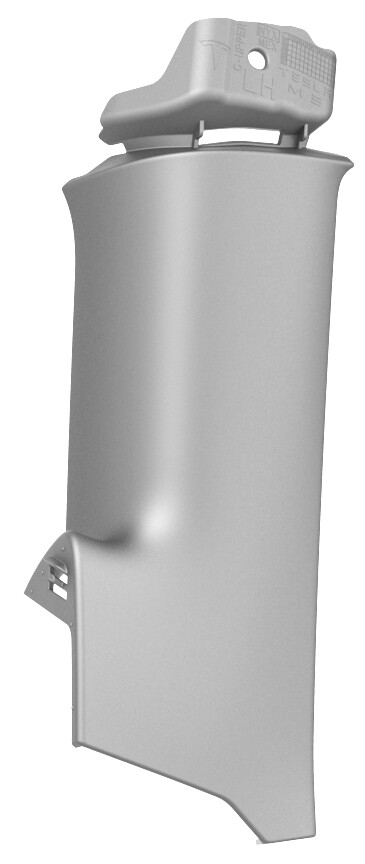

饰板 - C 柱 - 上 - 左侧(拆卸和更换)
校正代码
15186002 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆卸第二排座椅左侧侧部承梁。请参阅承梁 - 侧 - 座椅 - 第二排 - 左侧(拆卸和更换)。
- 降下左侧边梁饰板。请参阅饰板 - 纵梁 - 左侧(拆卸和安装)。
-

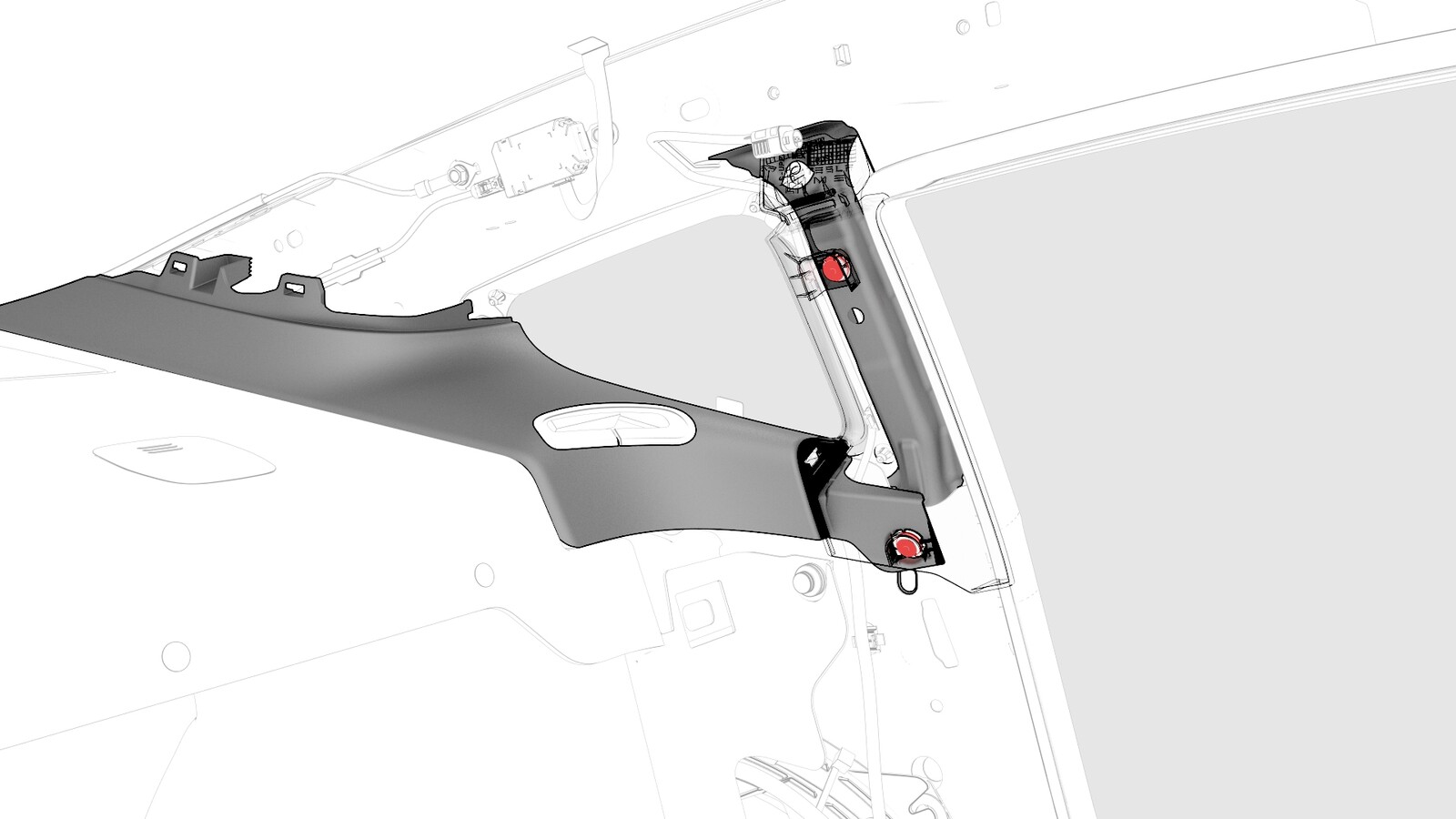

松开用于固定 C 柱上饰板的卡子,然后从车辆上拆下饰板。
提示向外拉动 C 柱上饰板的下部,直至松开两处卡子,然后将饰板稍稍向下移动,以从车辆上拆下饰板。
安装
- 将左侧 C 柱上饰板滑入侧面帘式气囊下方,以安装饰板,然后对齐上部卡子。使用卡子(2 个)固定饰板。
- 安装左侧纵梁饰板。请参阅饰板 - 纵梁 - 左侧(拆卸和安装)。
- 安装第二排座椅左侧侧部承梁。请参阅承梁 - 侧 - 座椅 - 第二排 - 左侧(拆卸和更换)。
