Noise Absorber - Motor Bay - Front (Remove and Replace)
校正代码
12010102
3.00
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
- 1133569-00-A 卡子拆卸钳
- 2025-01-08: 更新了左前车门线束至主前线束的链接,为清晰起见,还添加了连接器图片。
拆卸
- 拆下制动助力器。请参阅Electromechanical Brake Booster Assembly (Non-Heat Pump) (LHD) (Remove & Replace)。
- 拆下挡风玻璃清洗器储液罐。请参阅Reservoir - Windshield Washer (Remove and Replace)。
- 拆下转向柱控制模块。请参阅Module - Steering Column Control (Remove and Replace)。
- 从车载电脑上松开冷却液软管。请参阅GUID-994B4C5E-5DBE-4BAB-A037-D142FE9AF2FF.html。

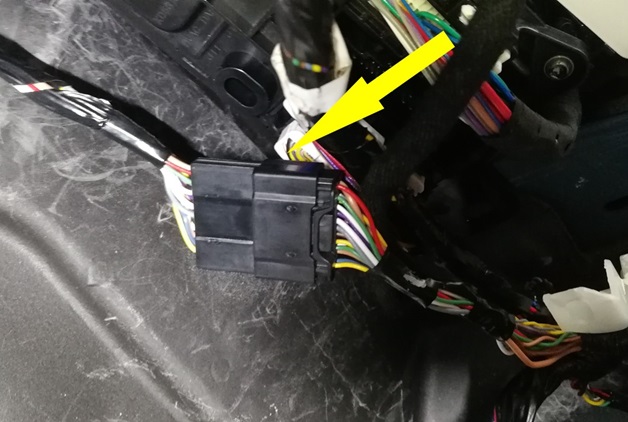

- 将黑色连接器从右侧车身控制器上松开,然后将其断开。请参阅GUID-514D8D56-A8EC-47C0-8BE1-D862251DB817.html。
- 从车辆上拆下前围板降噪材料块。
安装
- 将前围板降噪衬垫安装到车辆上。
- 将黑色连接器连接到右侧车身控制器上,然后将其断开。请参阅Harness - Door - Front - LH (Remove and Replace)。
- 在车载电脑上连接冷却液软管。请参阅GUID-994B4C5E-5DBE-4BAB-A037-D142FE9AF2FF.html。
- 安装转向柱控制模块。请参阅Module - Steering Column Control (Remove and Replace)。
- 安装挡风玻璃清洗器储液罐。请参阅Reservoir - Windshield Washer (Remove and Replace)。
- 安装制动助力器。请参阅Electromechanical Brake Booster Assembly (Non-Heat Pump) (LHD) (Remove & Replace)。
