支架 - 角 - 主动防护前罩 - 左侧（拆卸和更换）

校正代码 20302102 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 打开左前车门并降低左前车窗。
  2. 拆下前备箱储物单元。请参阅前备箱储物单元（拆卸和更换）。

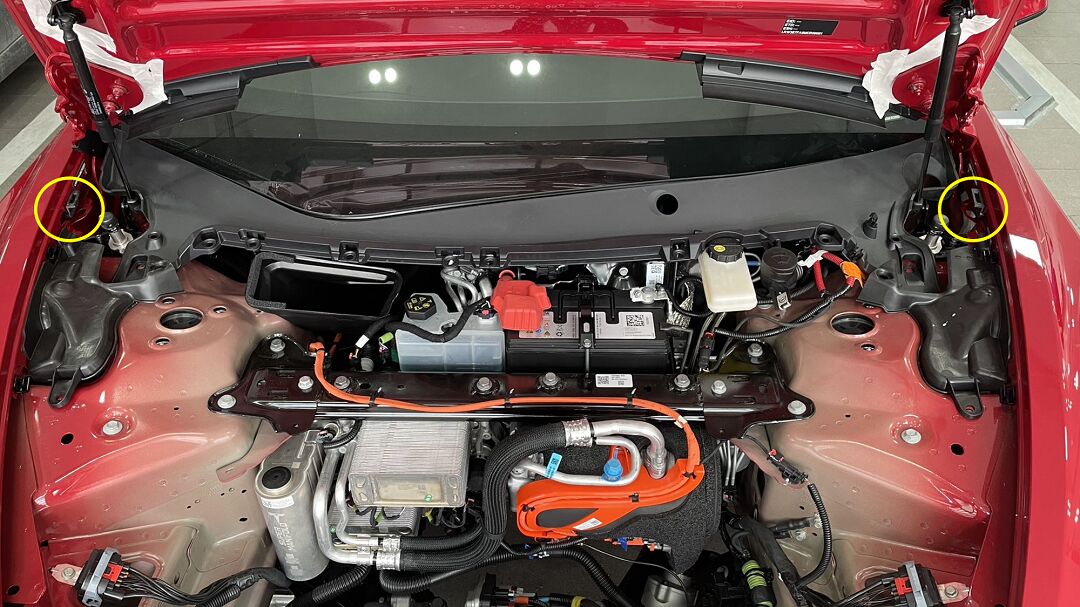

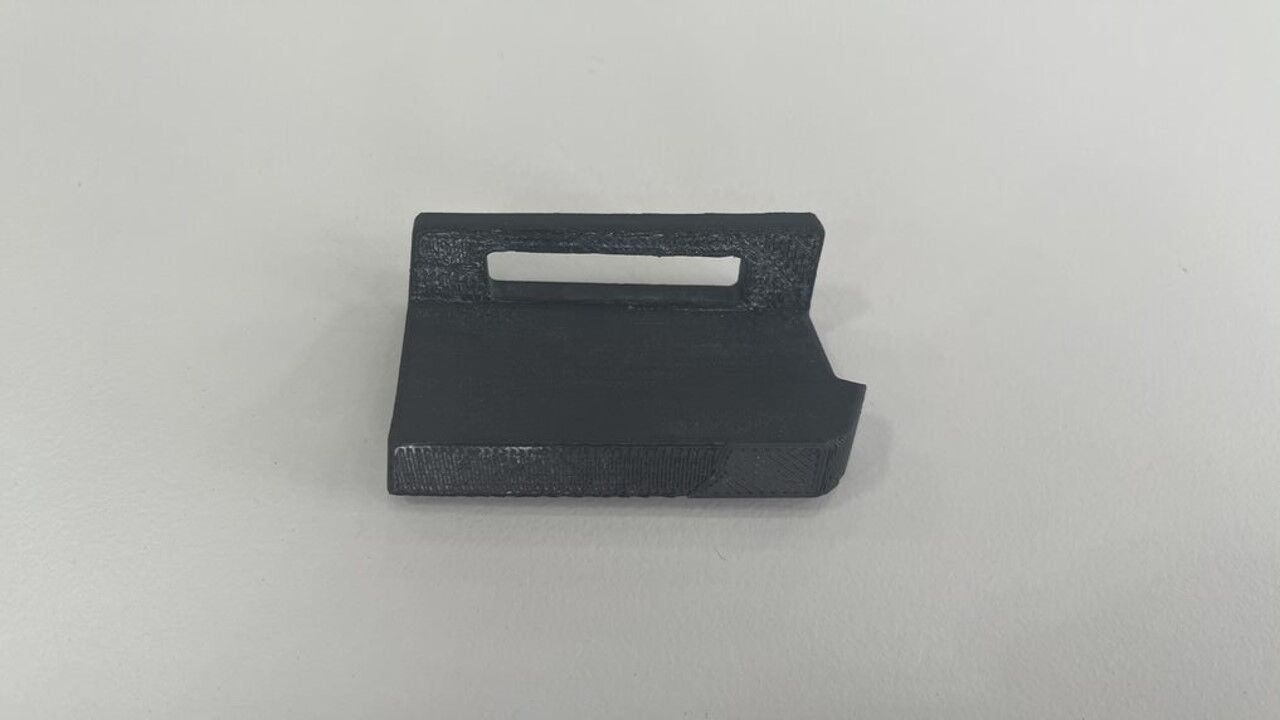

  3. 从车上松开 LH 主动防护前罩角支架。
    注
    如有必要，使用 IPA 湿巾清洁翼子板上的双面胶带。

安装

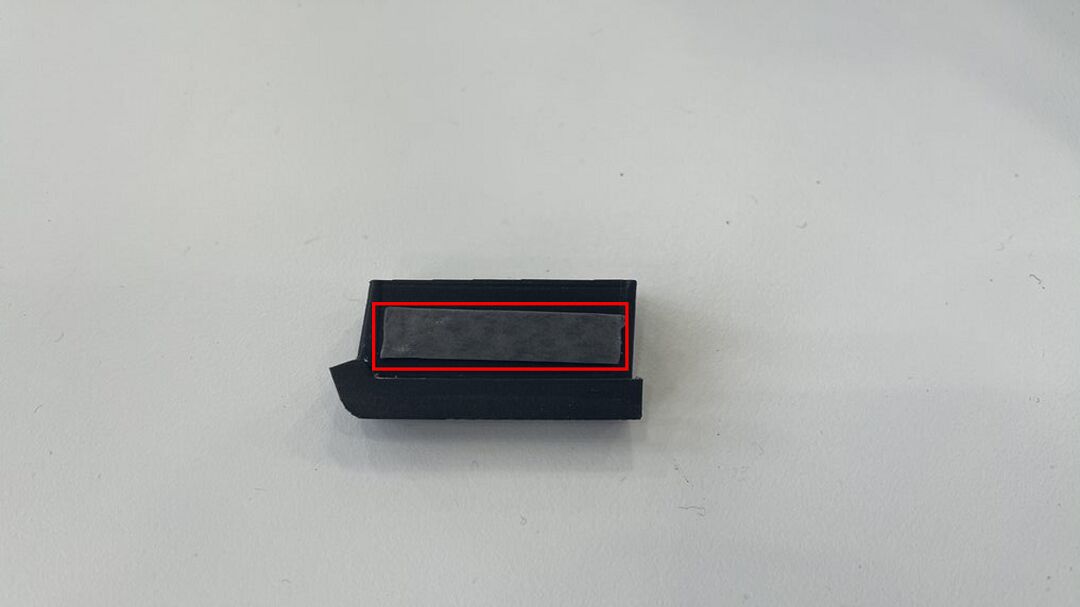

  1. 拆下双面胶带背衬，然后将 LH 主动防护前罩角支架安装到车辆中。
  2. 安装前备箱储物单元。请参阅前备箱储物单元（拆卸和更换）。
  3. 升起左侧前车窗，关闭左侧前车门。
