校正代码 15302602 15302601 FRT 0.42 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅 人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

1. Open all four doors
   注

   If vehicle is being powered down, Latch rear doors to prevent accidental closure



2. Lower all four windows



3. Move LH front seat forward



4. Move RH front seat forward

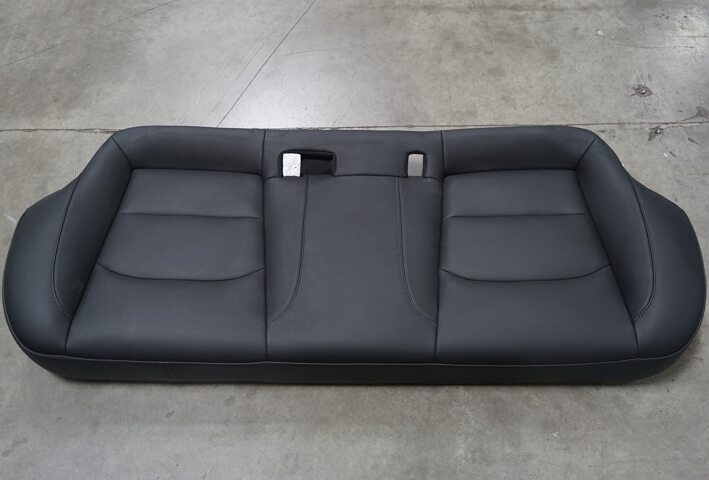

5. Remove 2nd row seat cushion
   注

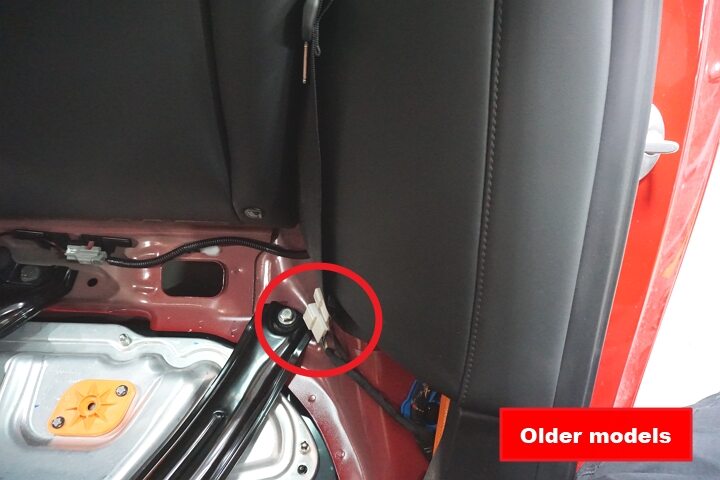

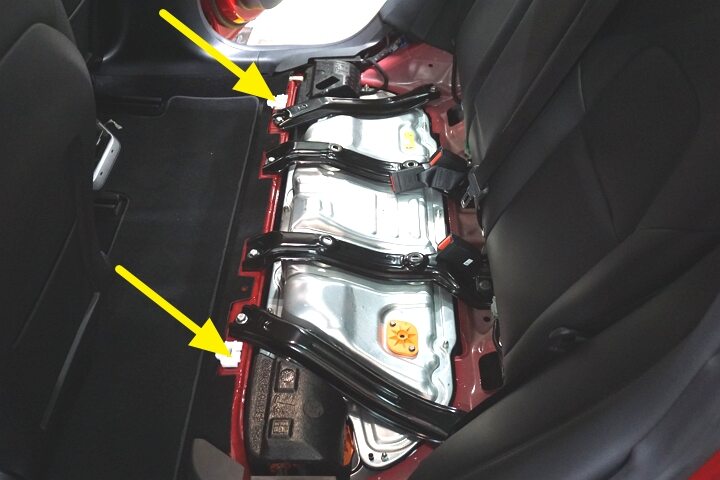

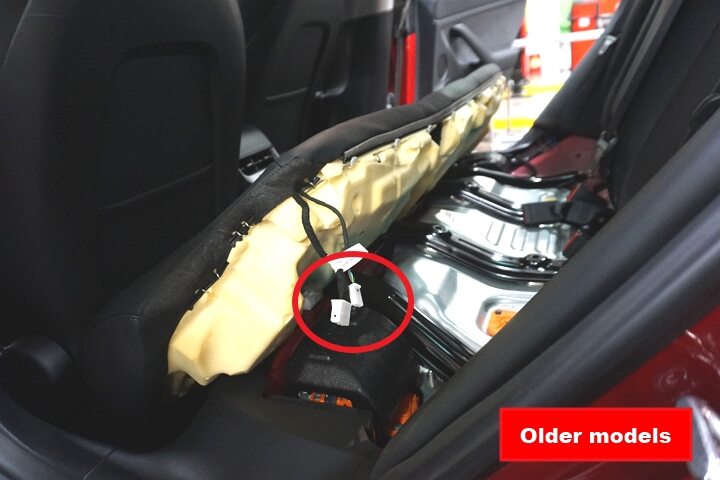

   2x tabs, 2x connectors, Slide locking tabs to left of vehicle while lifting up seat bench. Newer models have connectors on both sides of bench, Older models have 2x connectors on one side of bench

















6. Open liftgate from exterior switch



7. Remove load floor
   注

   Use pull tab located at rear edge of panel





8. Remove trunk sill trim assembly
   注

   4x clips, 1x location pin, Pull corner upward release clip on the end the away from body for remaining clips





9. Remove clips securing rear trunk carpet
   注

   2x push clips

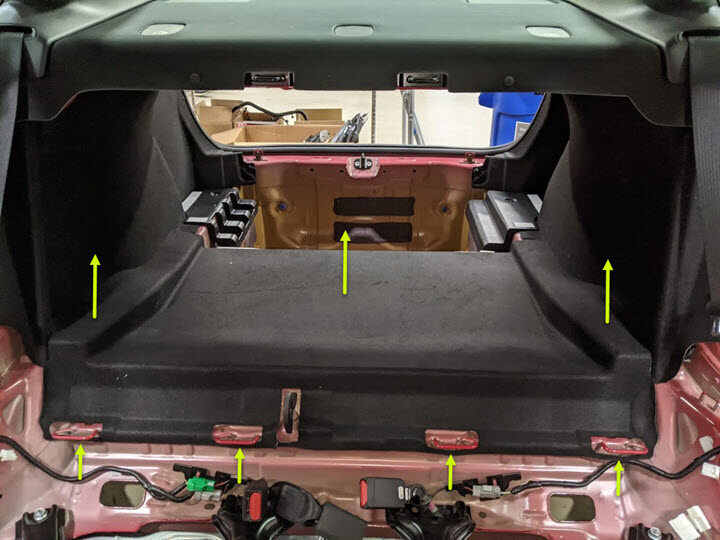

10. Remove rear trunk carpet from vehicle
    注

    4x velcro strips

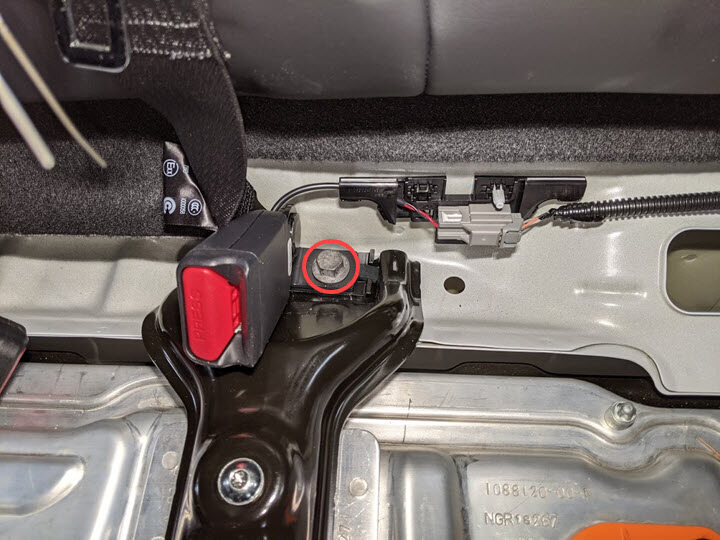

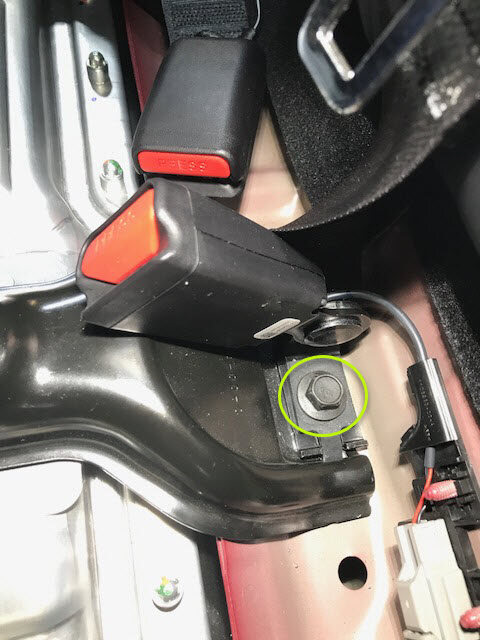

11. Remove LH rear seat belt buckle
    注

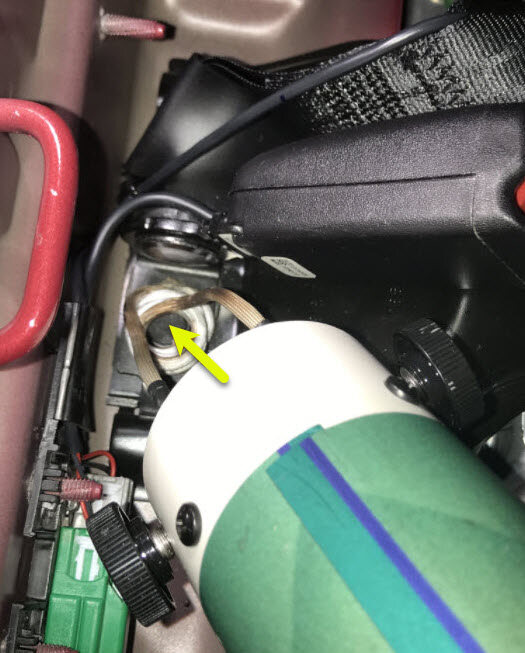

    1x patch bolt, 15mm, 40 Nm, If the bolt is difficult to remove, Use an inductive heating tool to melt the adhesive patch material, Position the inductive heating tool coil around the bolt, then heat the bolt for 20 seconds, Allow the bolt to cool for 2 minutes, Discard after removal

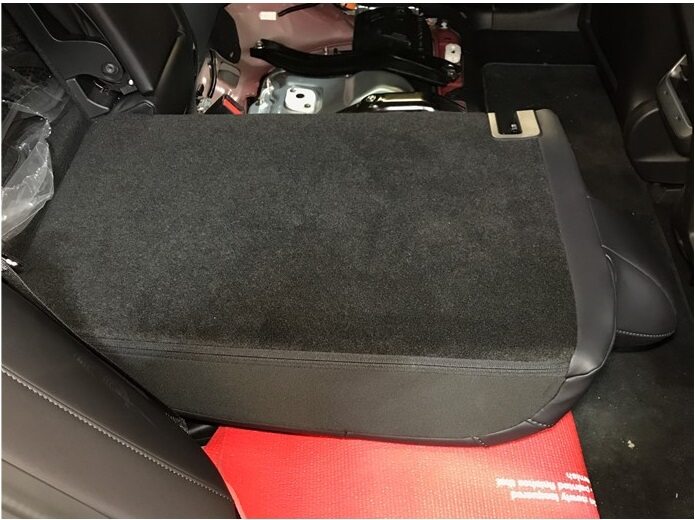

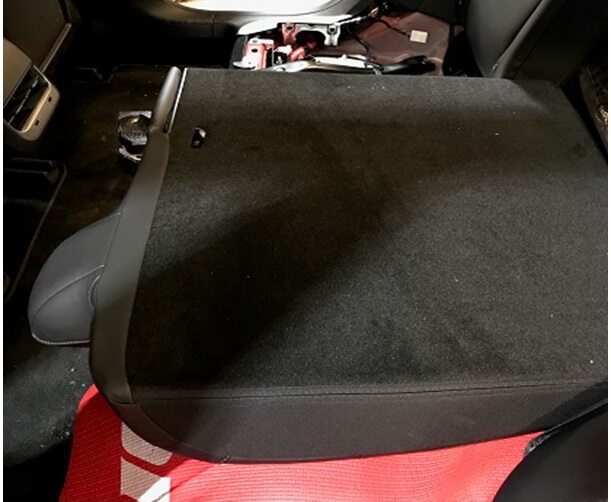

12. Fold 60 seat in down position
    注

    Protect the seat cushion

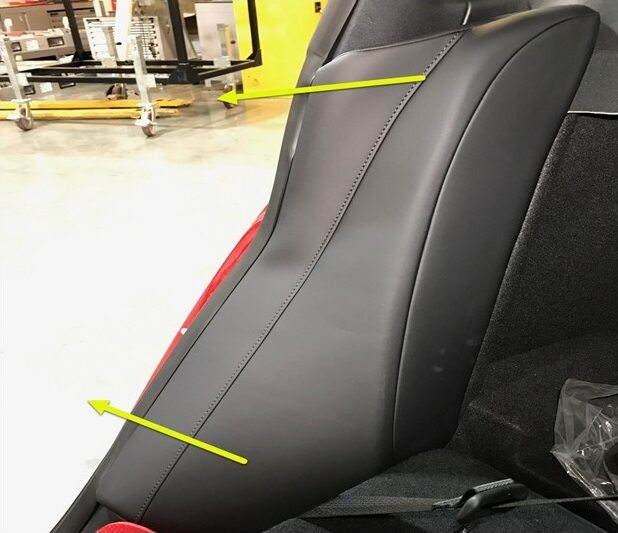

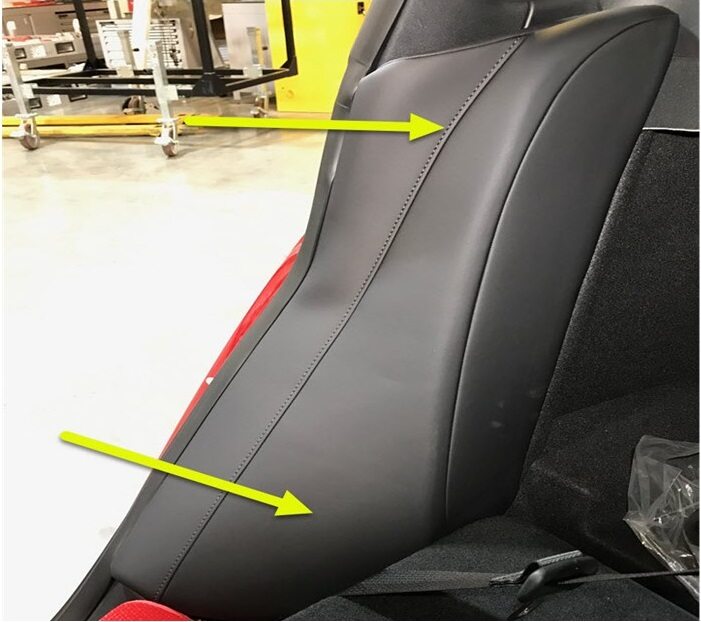

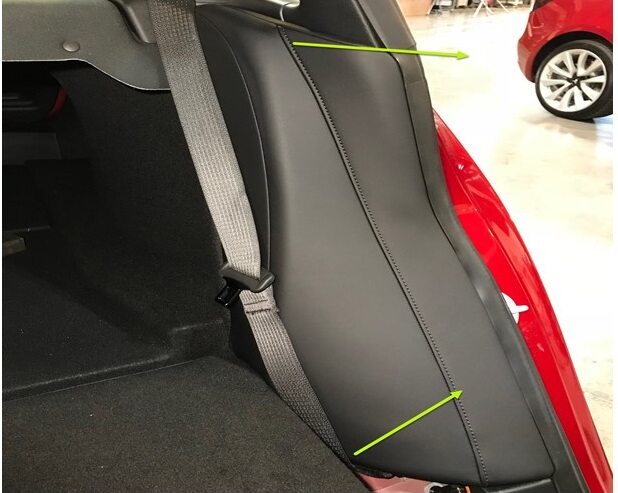

13. Remove LH side bolster
    注

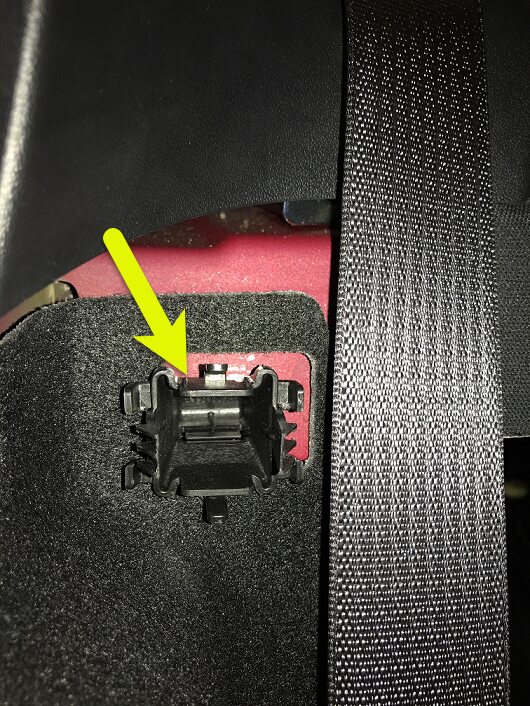

    1x clip, 2x location pins, Pull outward then slightly upward to remove

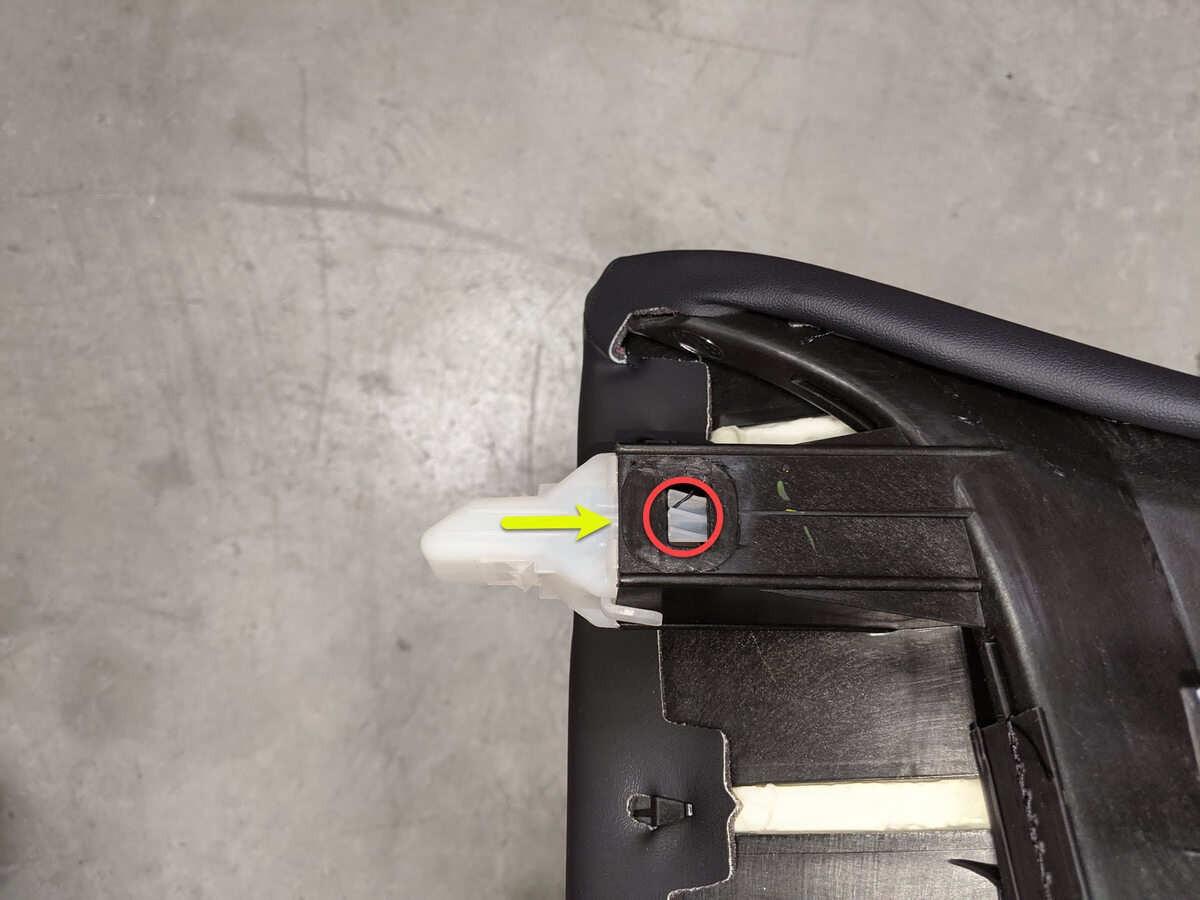

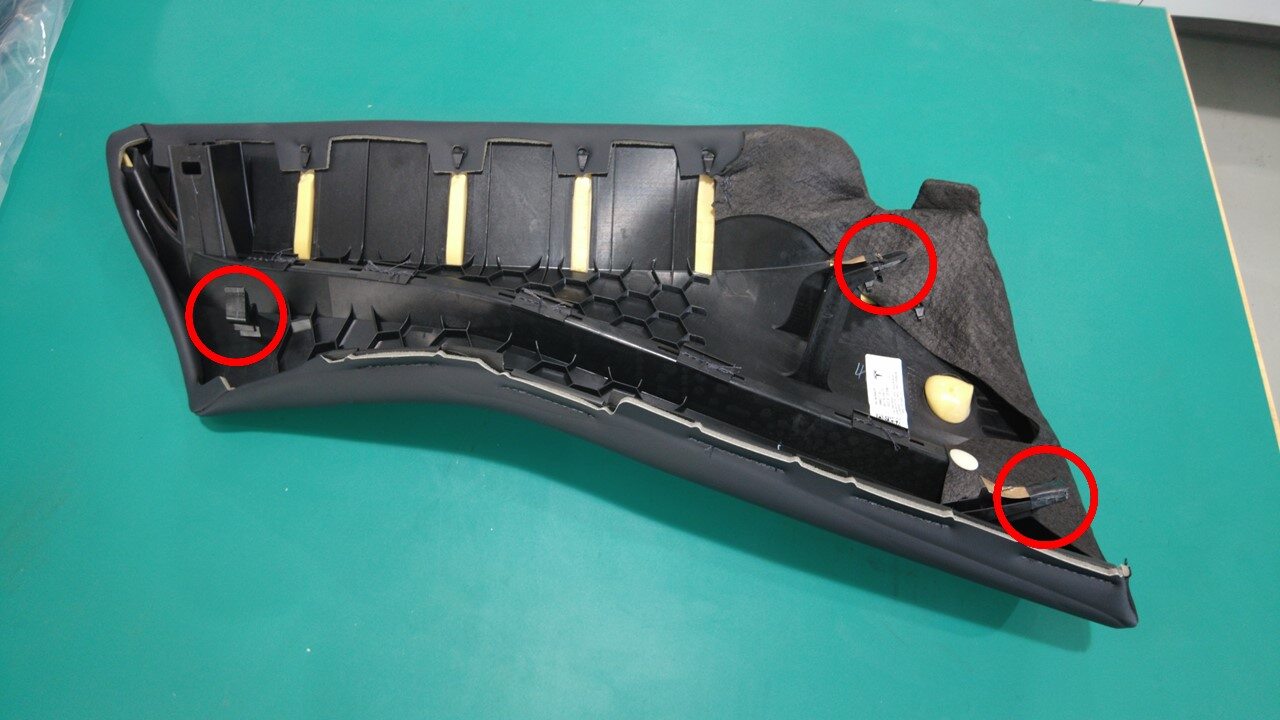

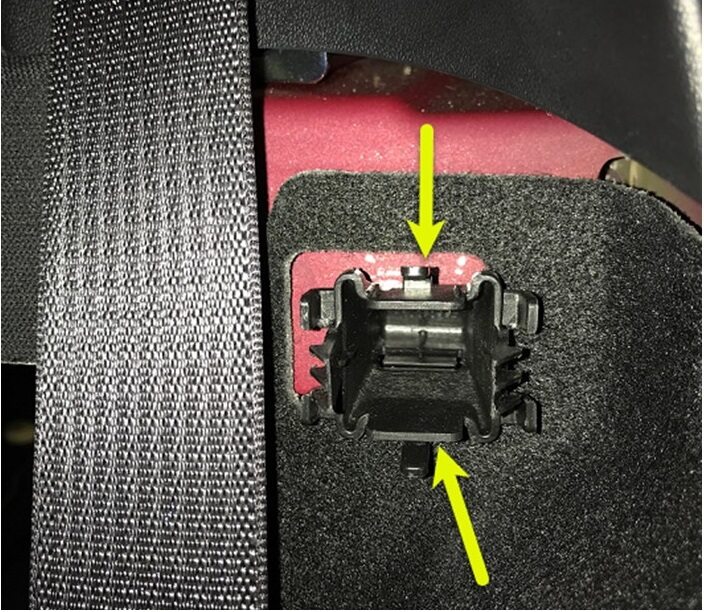

14. Remove and discard bolster plastic bracket from RH side
    注

    2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal



15. Fold 60 seat into vertical position
    注

    Remove seat protection

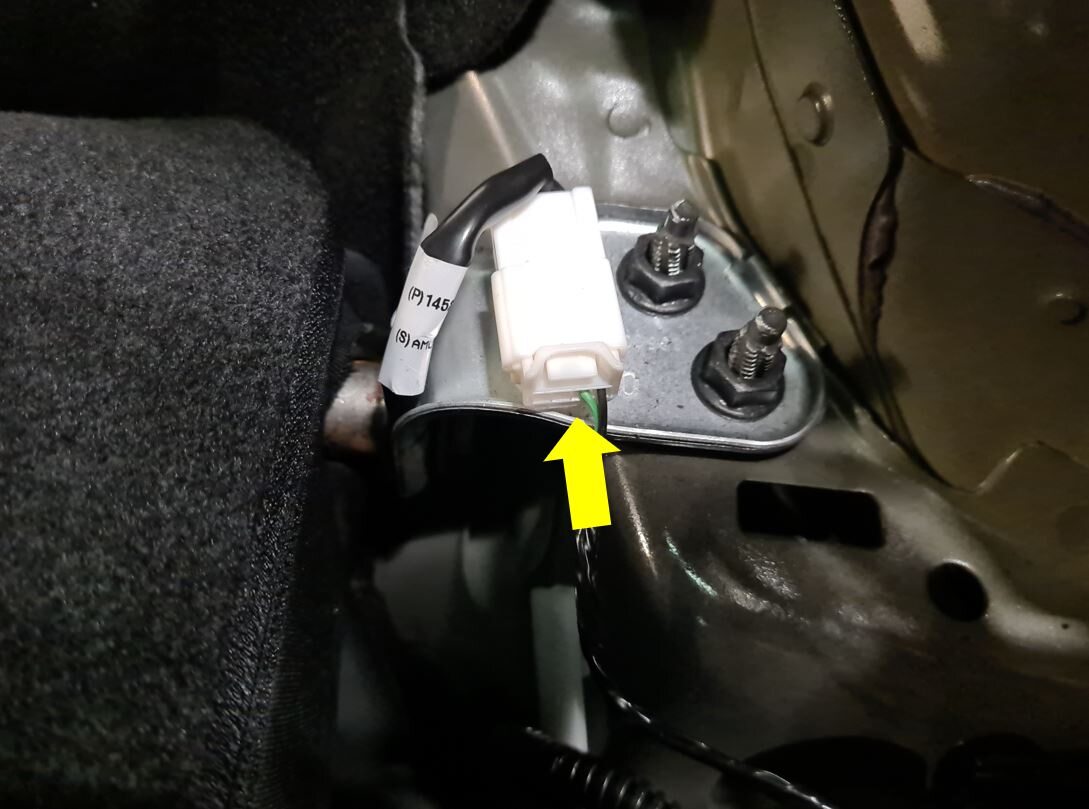

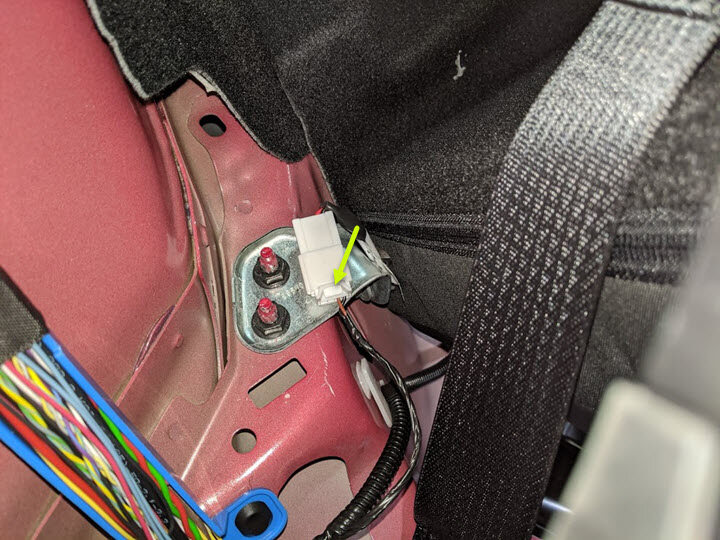

16. Disconnect 60 seat back seat heater harness
    注

    1x connector

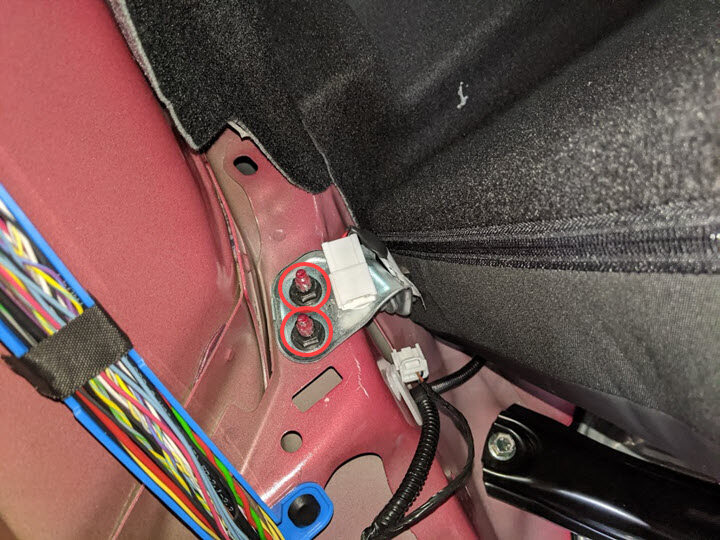

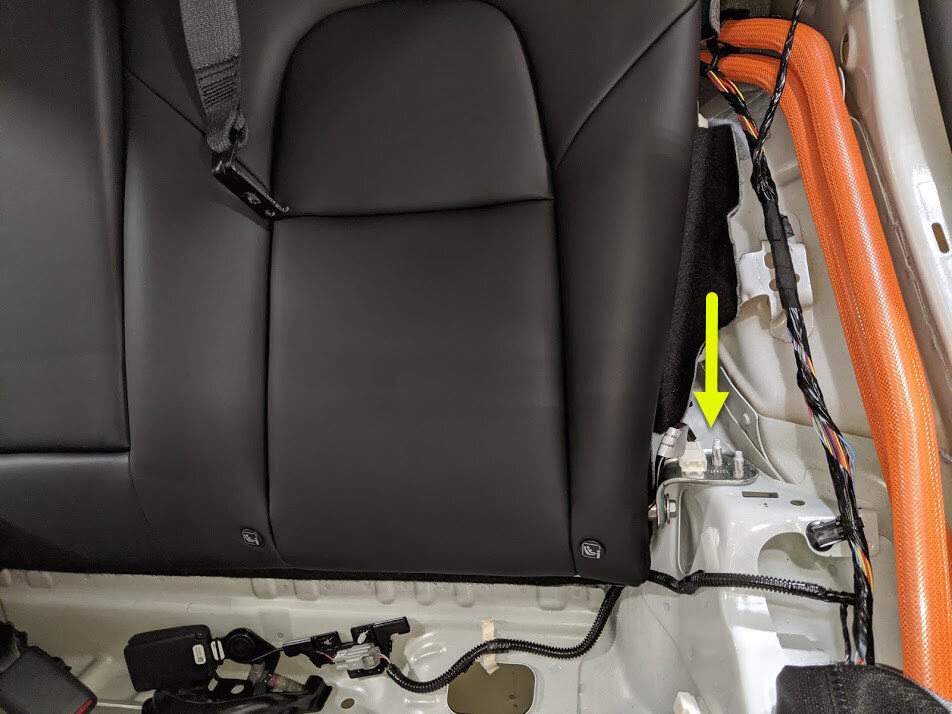

17. Remove nuts securing 60 seat back hinge bracket to body
    注

    2x nuts, 13mm, 18 Nm

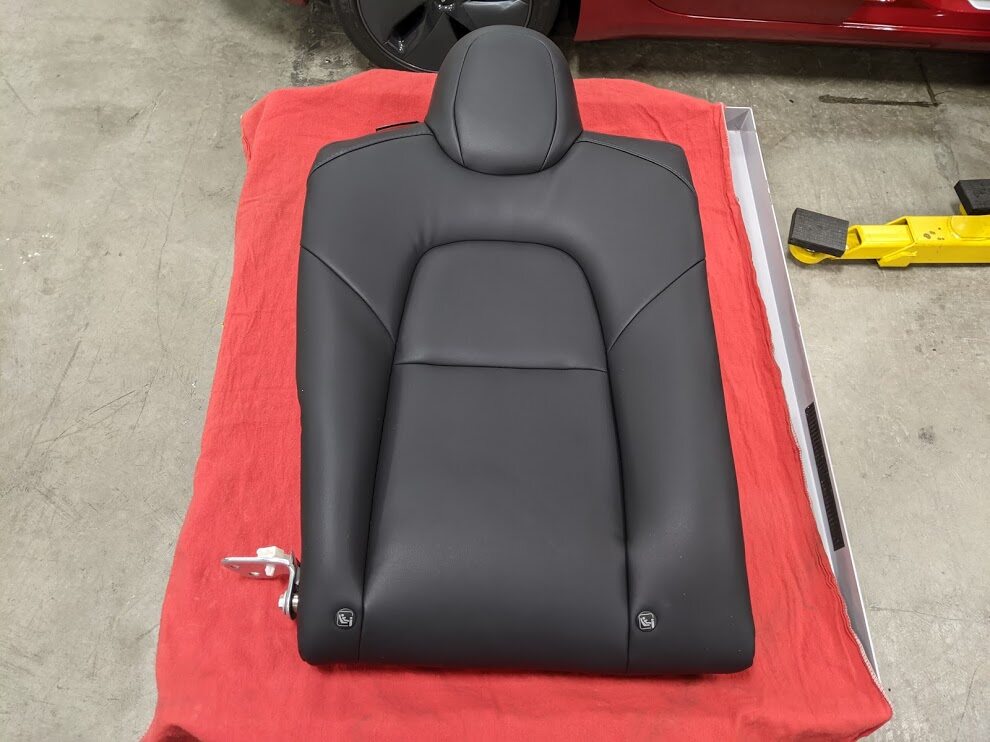

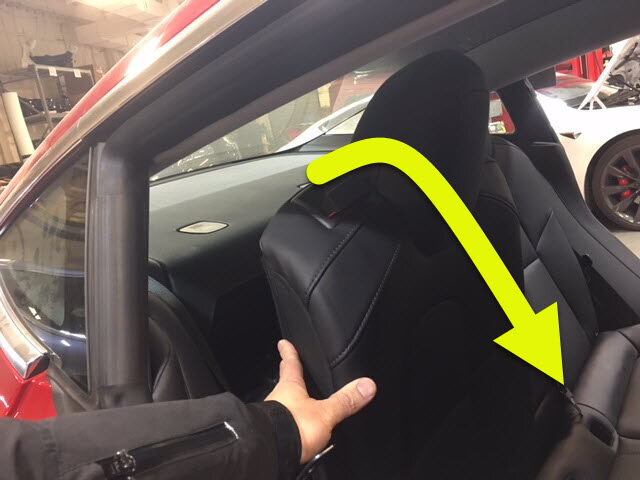

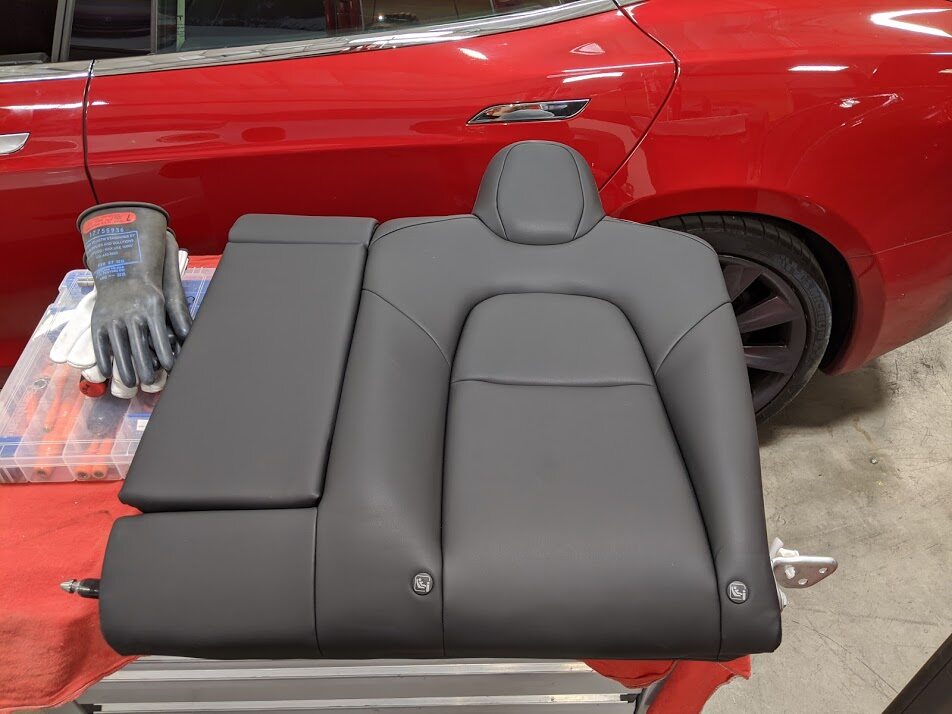

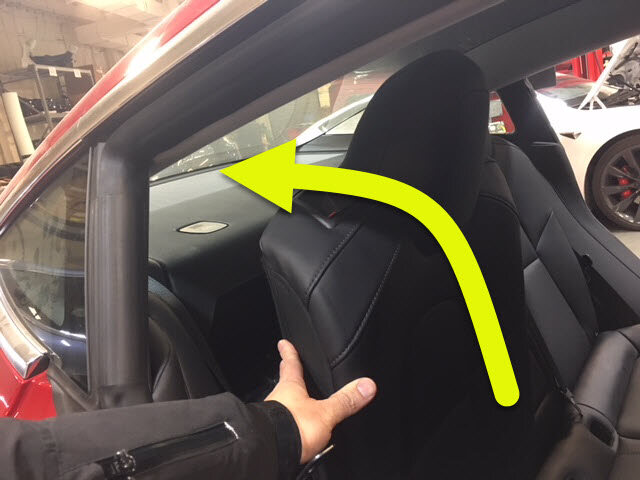

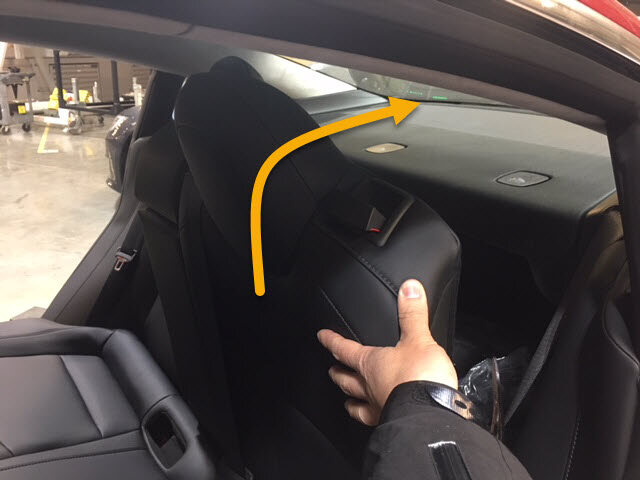

18. Remove 60 seat back by lifting up on LH side and pulling inner pivot out of 40 seat back and set onto padded work surface



19. Fold 40 seat in down position
    注

    Protect the seat cushion

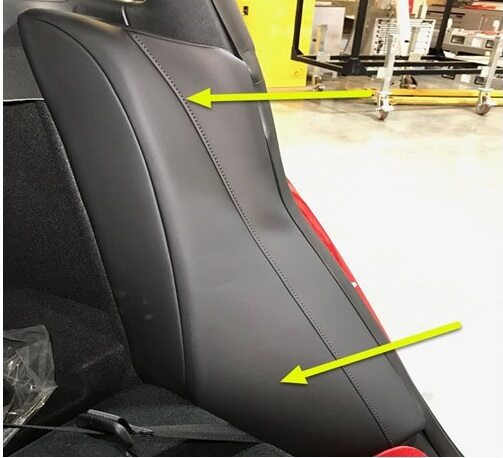

20. Remove RH side bolster
    注

    1x clip, 1 tab, Pull outward then slightly upward to remove



21. Remove and discard bolster plastic bracket from LH side
    注

    2x clips, If necessary, depress the clips from behind, This bracket may come out with bolster, Discard after removal



22. Disconnect 40 seat back seat heater harness
    注

    1x connector

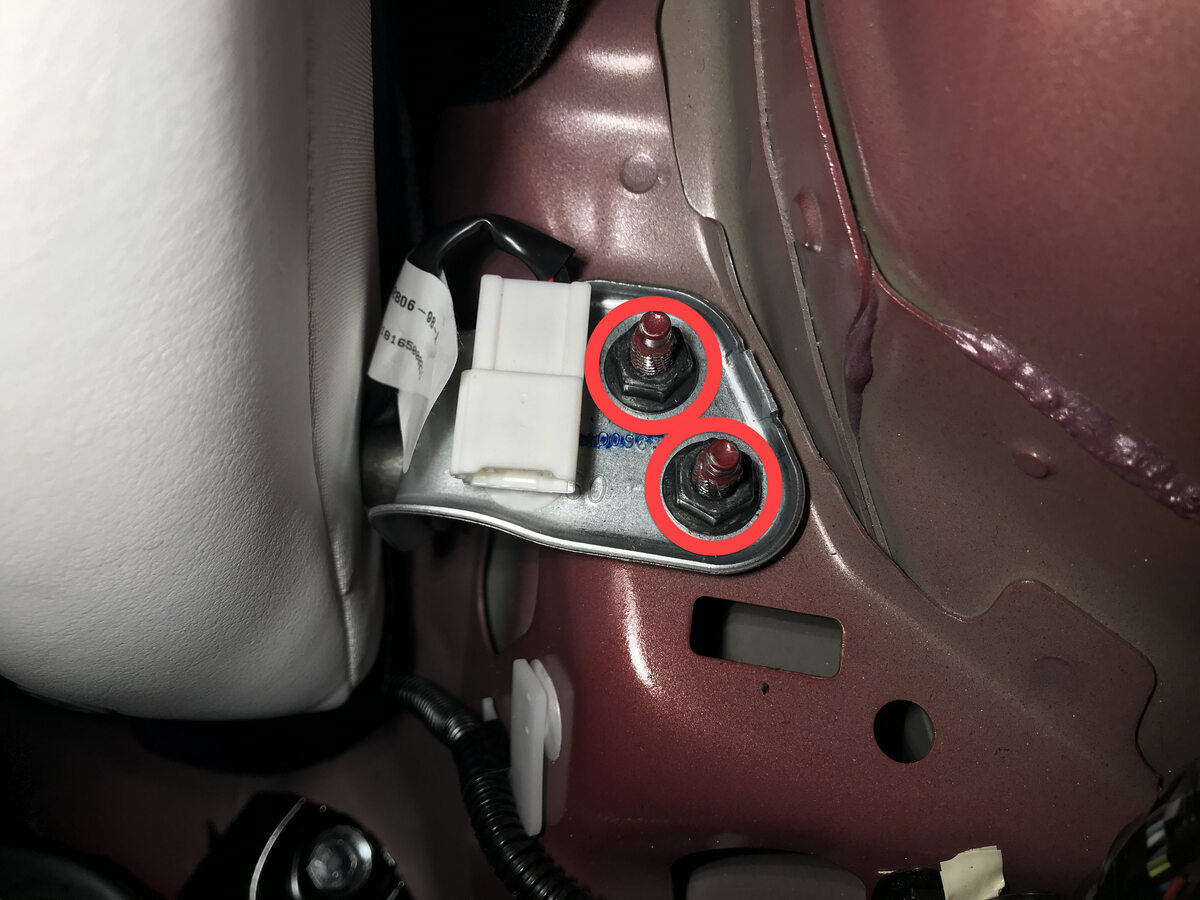

23. Remove nuts securing 40 seat back hinge bracket to body
    注

    2x nuts, 13mm, 18 Nm



24. Remove 40 seat back from vehicle
    注

    Lift bracket from studs and slide outward

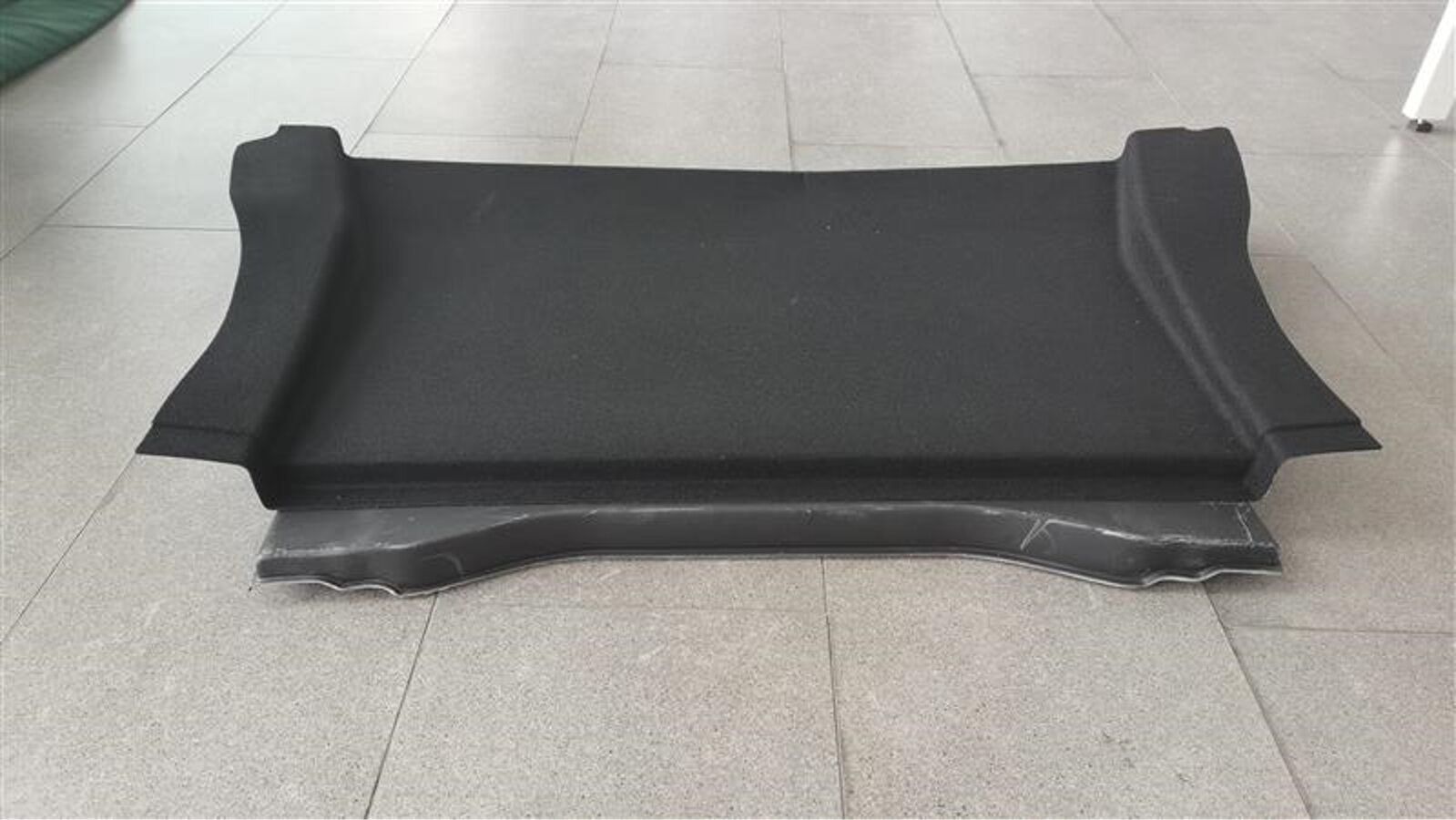

25. Remove front trunk carpet from vehicle
    注

    2x clips, Lift trunk carpet off of isofix bars





26. Install front trunk carpet into vehicle
    注

    2x clips, Align the trunk carpet to isofix bars





27. Install 60 seat back to vehicle
    注

    Align center and outer pivot locations



28. Install nuts securing 60 seat back hinge bracket to body
    注

    2x nuts, 13mm, 18 Nm



29. Connect 60 seat back seat heater harness
    注

    1x connector



30. Install bolt securing LH seat belt catch and center seat belt to vehicle
    注

    1x patch bolt, 15mm, 40 Nm, Install new patch bolt, Position center seat belt under buckle, Make sure the guide pin is aligned



31. Fold 60 seat in down position
    注

    Protect the seat cushion if necessary



32. Install bolster plastic bracket to LH side bolster
    注

    2x tabs, Install new bolster bracket



33. Install LH side bolster
    注

    1x clip, 2x location pins, Align the bottom tab then push inward to install





34. Fold 60 seat into vertical position
    注

    Remove seat cushion protection, Be careful not to pinch the seat belt



35. Install 40 seat back to vehicle
    注

    Align center and outer pivot locations



36. Install nuts securing 40 seat back hinge bracket to body
    注

    2x nuts, 13mm, 18 Nm



37. Connect 40 seat back seat heater harness
    注

    1x connector



38. Fold the 40 seat in down position
    注

    Protect the seat cushion if necessary



39. Install bolster plastic bracket to RH side bolster
    注

    2x tabs, Install new bolster bracket



40. Install RH side bolster
    注

    1x clip, 1x tab, Align the bottom tab then push inward to install



41. Fold seat into vertical position
    注

    Remove seat cushion protection

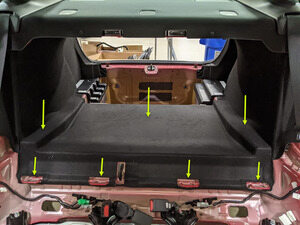

42. Install rear trunk carpet into vehicle
    注

    4x velcro strips, Fully seat carpet at velcro strips





43. Install clips securing trunk carpet
    注

    2x push clips



44. Install trunk sill trim assembly
    注

    4x clips, 1x location pin, Align the latch with center slot then 2 locator to their slot and then press to secure the clips, Adjust the seal to overlap the trim









45. Install load floor





46. Close trunk





47. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    注

    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push pull test near clips

















48. Move RH front seat to original position



49. Move LH front seat to original position



50. Raise all four windows



51. Close all four doors
