轮毂轴承 - 前 - 左侧（双电机）（拆卸和更换）

校正代码 31010802 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-10-27: Added note to refer to the Collision Repair Manual to verify whether the steering gear must be replaced.
  • 2023-11-03: Move the step order of removing the brake rotor bolt due to the hub puller tool is updated.
CAUTION
If performing this procedure as a result of a collision, see the Collision Repair Manual to verify whether the steering gear must be replaced as well.

拆卸

  1. If equipped, remove the LH front wheel center cap. See 中心盖 - 轮毂（拆卸和更换）.
  2. Loosen the LH front wheel lug nuts.
    CAUTION
    Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
    CAUTION
    Use a 6 point socket. Do not use a 12 point socket or a specialty socket.

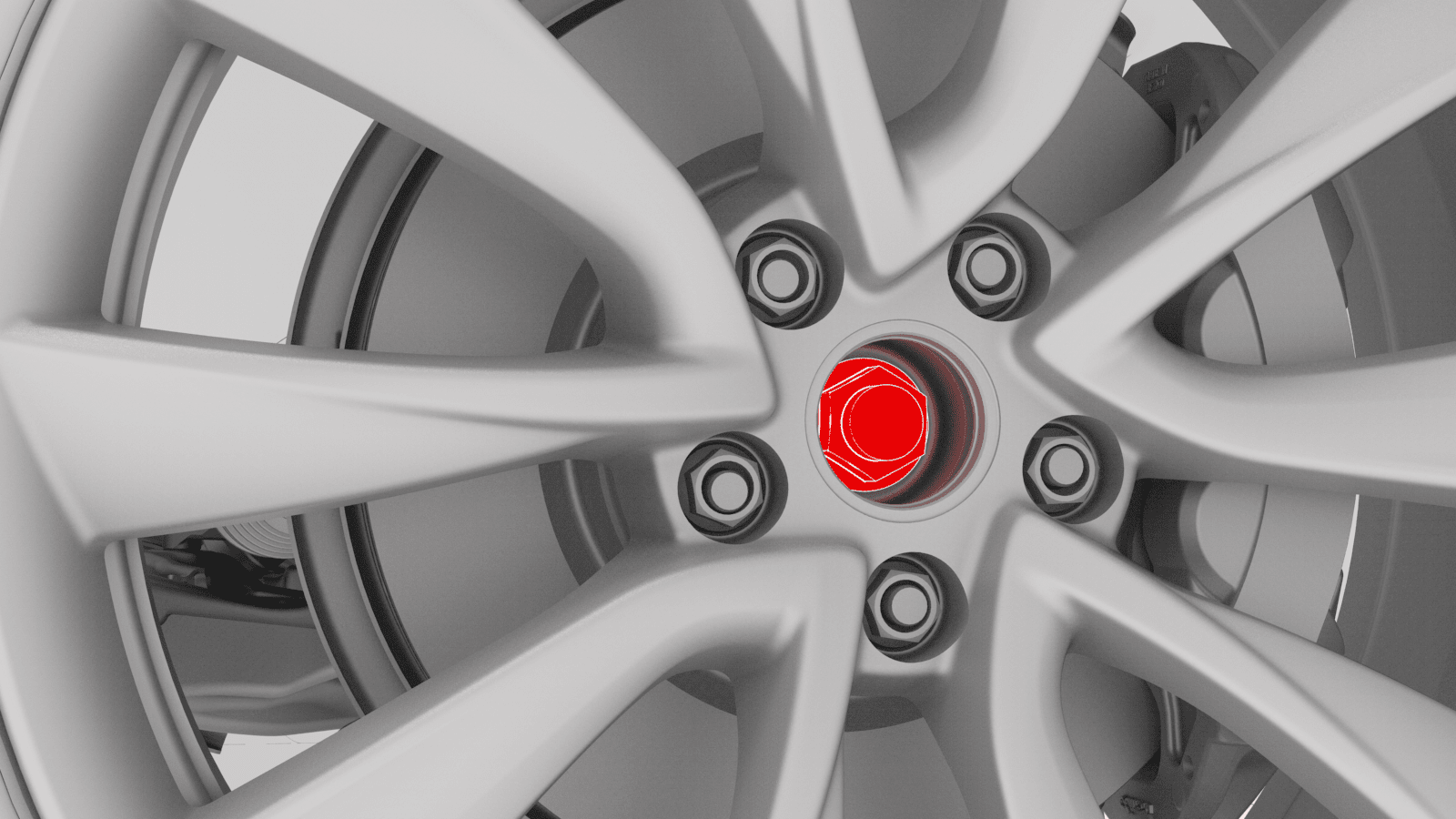

  3. Loosen the LH front drive unit halfshaft nut.
  4. Raise and support the vehicle. See 举升车辆 - 双柱举升机.
  5. Remove the LH front wheel. See 轮毂（拆卸和安装）.

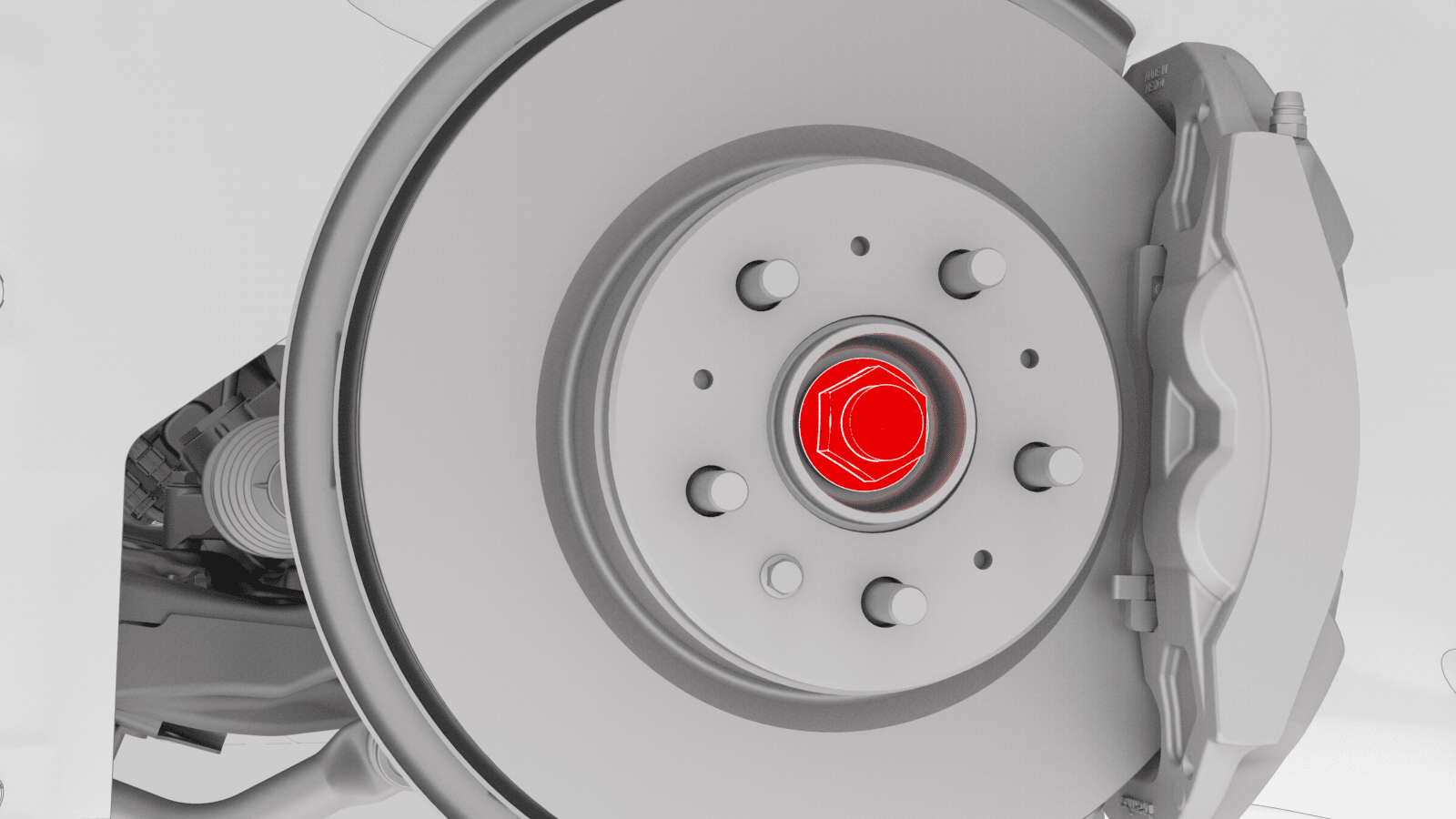

  6. Remove and discard the LH front drive unit halfshaft nut and washers.
    Note
    The washers are attached to the nut.
  7. Position the hydraulic hub puller tool (1096075-00-A) onto the LH front wheel studs, and then hand tighten the wheel lug nuts (x5).
  8. Remove the LH front drive unit halfshaft from the LH front hub assembly.
    Note
    While holding the hub in position, turn the hydraulic hub puller tool handle clockwise to separate the LH front drive unit halfshaft from the hub assembly.
  9. Remove the hub puller tool from the LH front wheel studs.

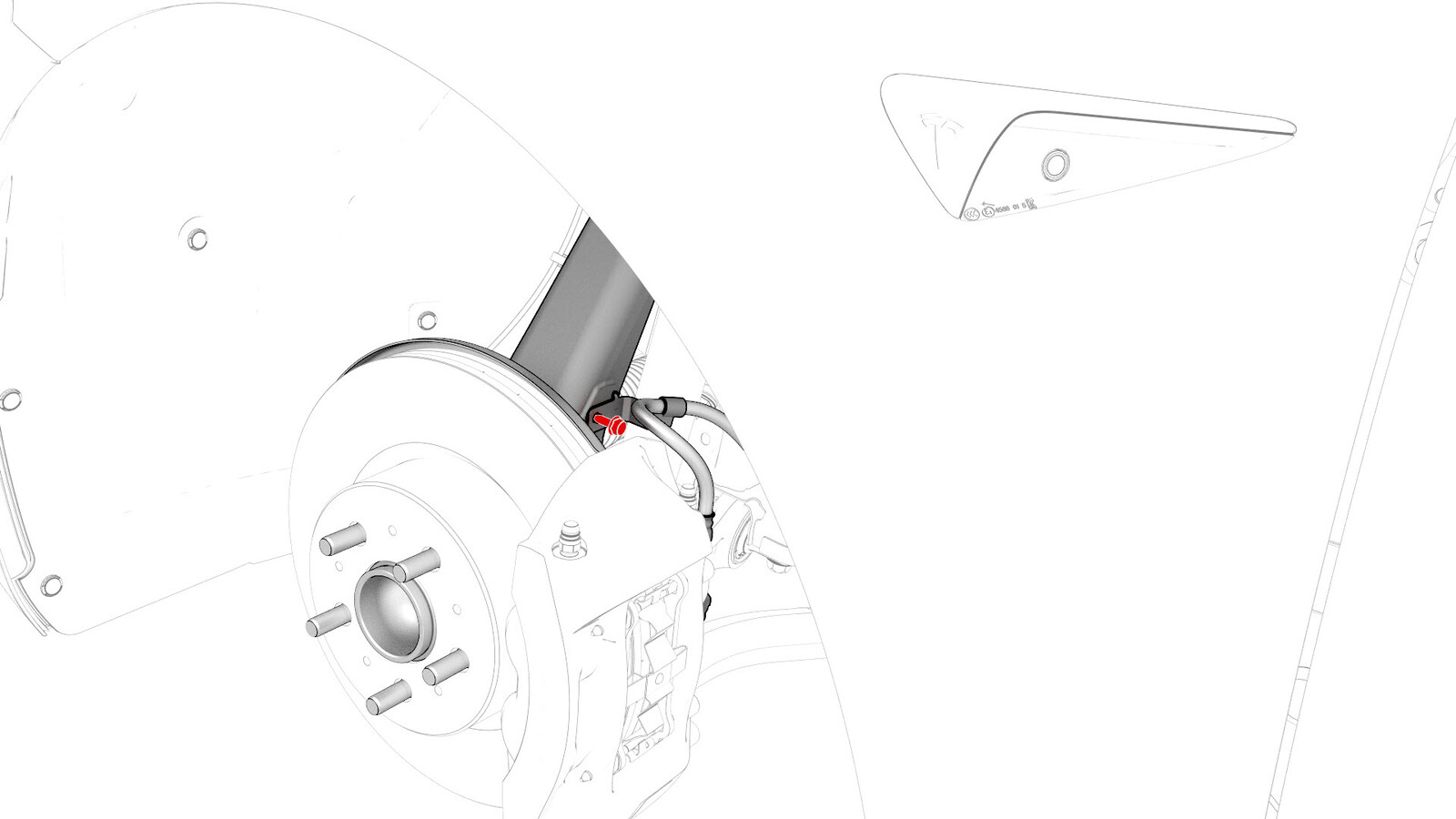

  10. Remove the bolt that attaches the front brake hose bracket to the LH front knuckle.

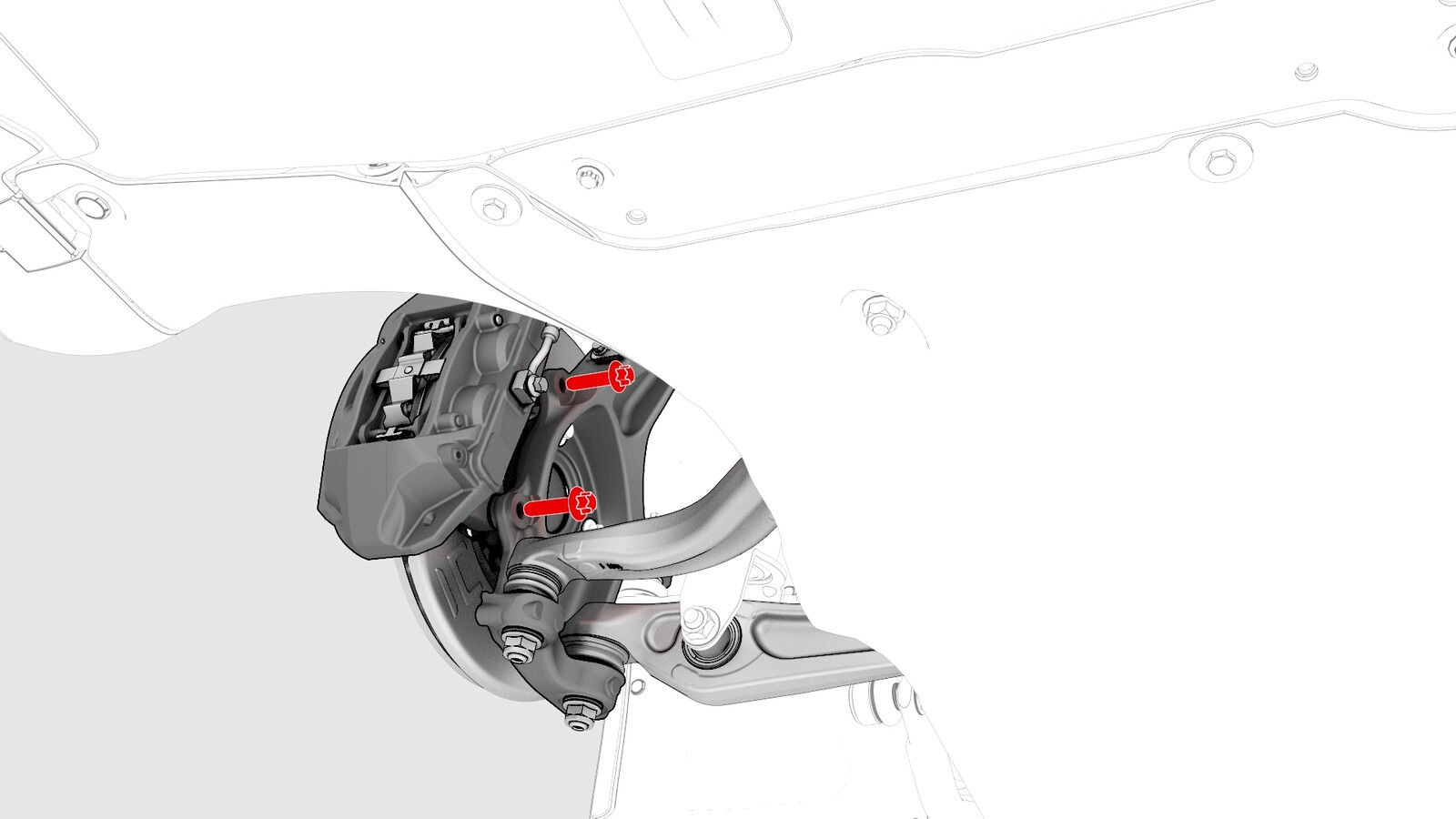

  11. Remove and discard the bolts that attach the LH front brake caliper to the LH front knuckle, and then hang the caliper aside with an S-hook.

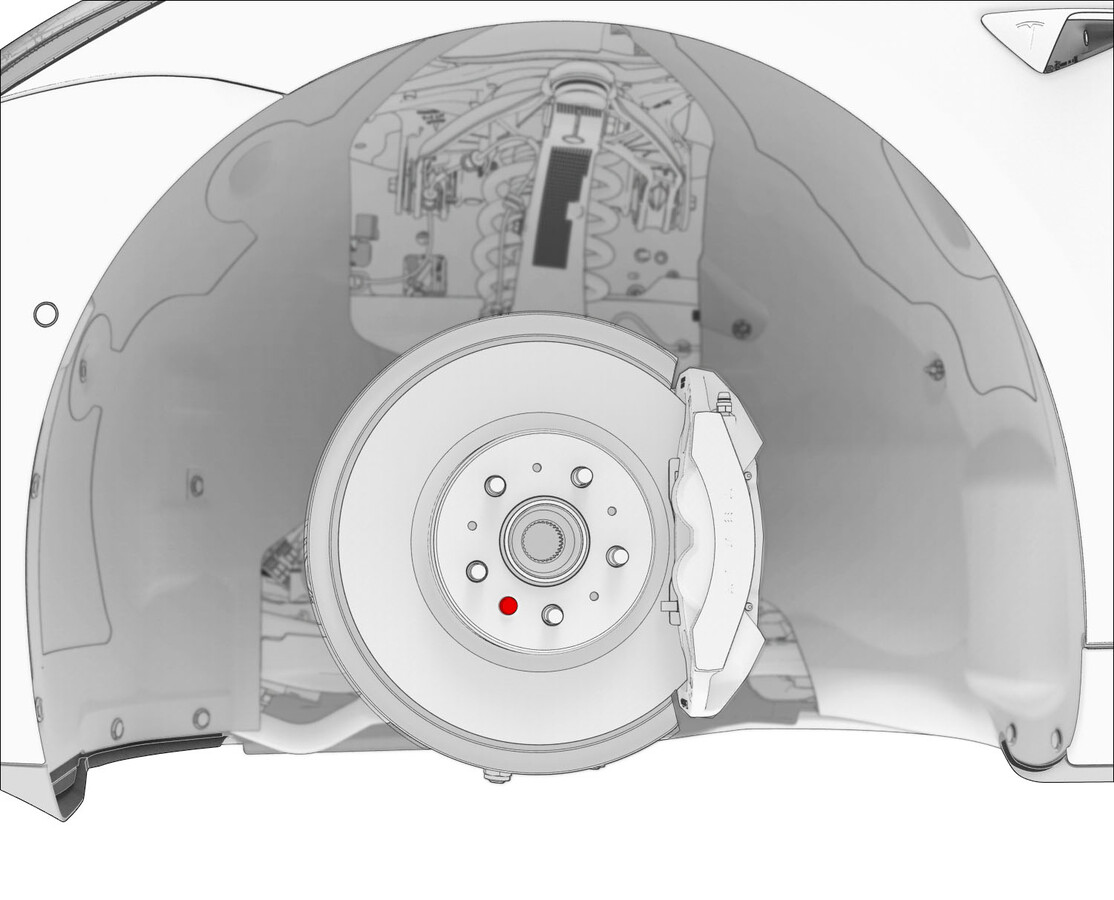

  12. Remove the bolt that attaches the LH front brake rotor to the hub, but do not remove the rotor at this time.

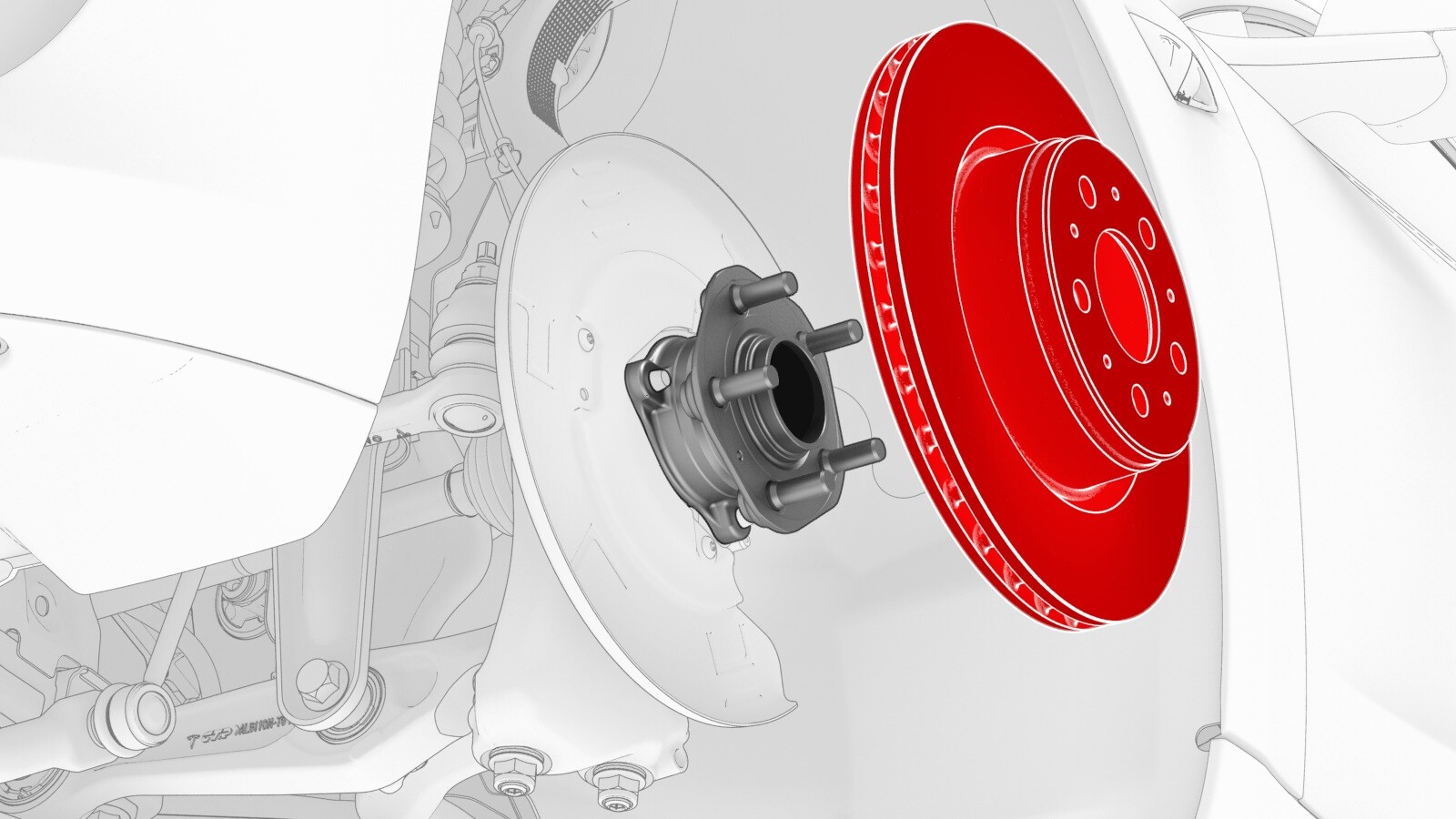

  13. Remove the LH front rotor from the vehicle.

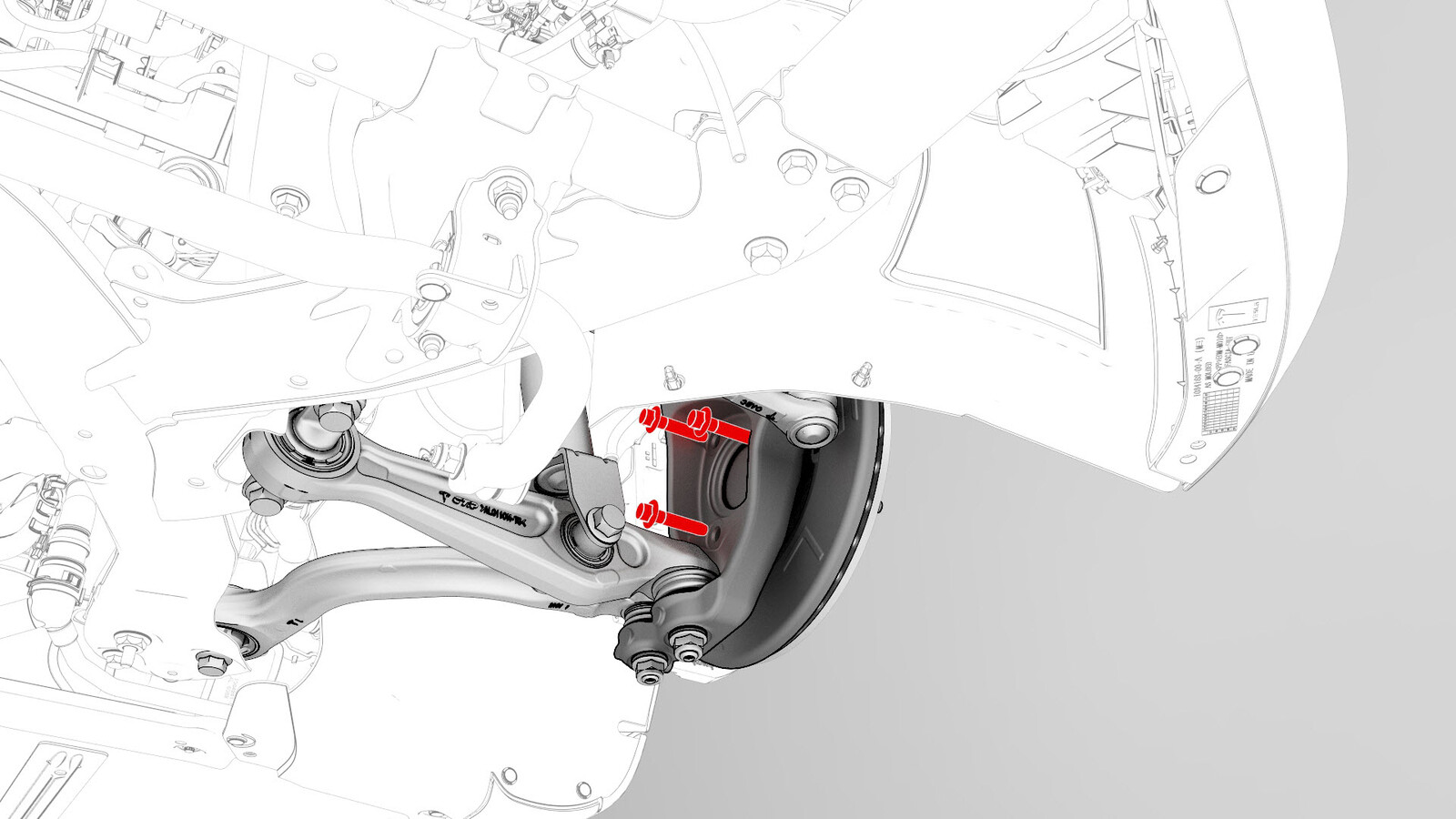

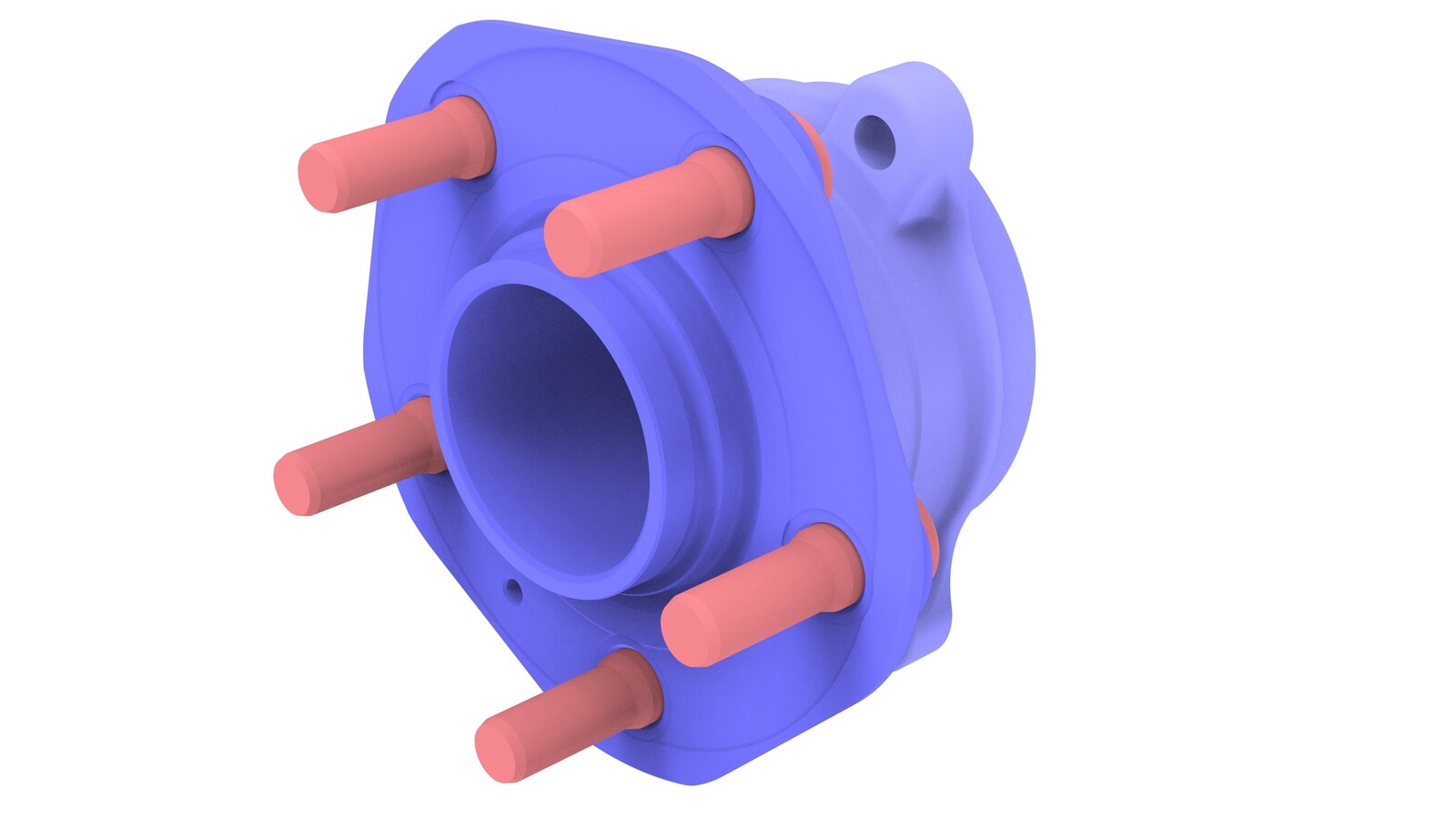

  14. Remove the bolts that attach the LH front hub to the LH front knuckle.
  15. Remove the LH front hub from the vehicle.

安装

  1. Use a magnetic field viewing card to check the LH front hub's tone ring.

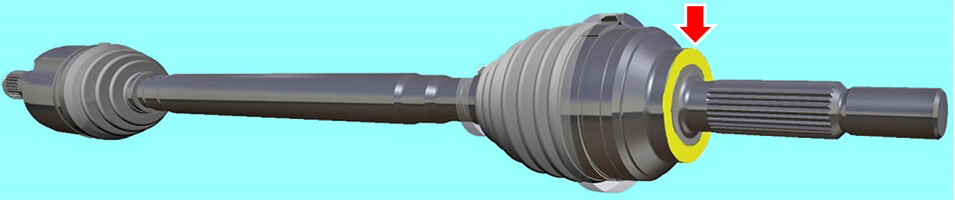

  2. Apply Molykote M-77 Lubricant Paste to the outboard side of the LH rear halfshaft assembly.
    Note
    Clean the halfshaft before applying if necessary.
    Note
    Apply no more than 1 gram to axle only.
  3. Line up the LH front drive unit halfshaft splines, and then install the LH front hub on the LH front knuckle.
  4. Install the bolts that attach the LH front hub to the LH front knuckle.
    85 Nm (62.7 lbs-ft)
  5. Install the LH front rotor on the LH front hub, and then install the bolt that attaches the rotor to the hub.
    5 Nm (3.7 lbs-ft)
  6. Install the new bolts that attach the LH front brake caliper to the LH front knuckle, and then remove the S-hook from the vehicle.
    94 Nm (69.3 lbs-ft)
    Note
    Mark the bolts with a paint pen.
  7. Install the bolt that attaches the front brake hose bracket to the LH front knuckle.
    5 Nm (3.7 lbs-ft)
  8. Pull on the inner halfshaft cup to confirm that the circlip is locked into place. If the halfshaft detaches from the drive unit then reinstall the halfshaft and then test that it is fully seated.
    CAUTION
    If reinstalling the halfshaft to the drive unit:
    • Take care not to damage or displace the oil seals.
    • Make sure that the opening of the snap rings are facing towards the bottom of the drive unit.

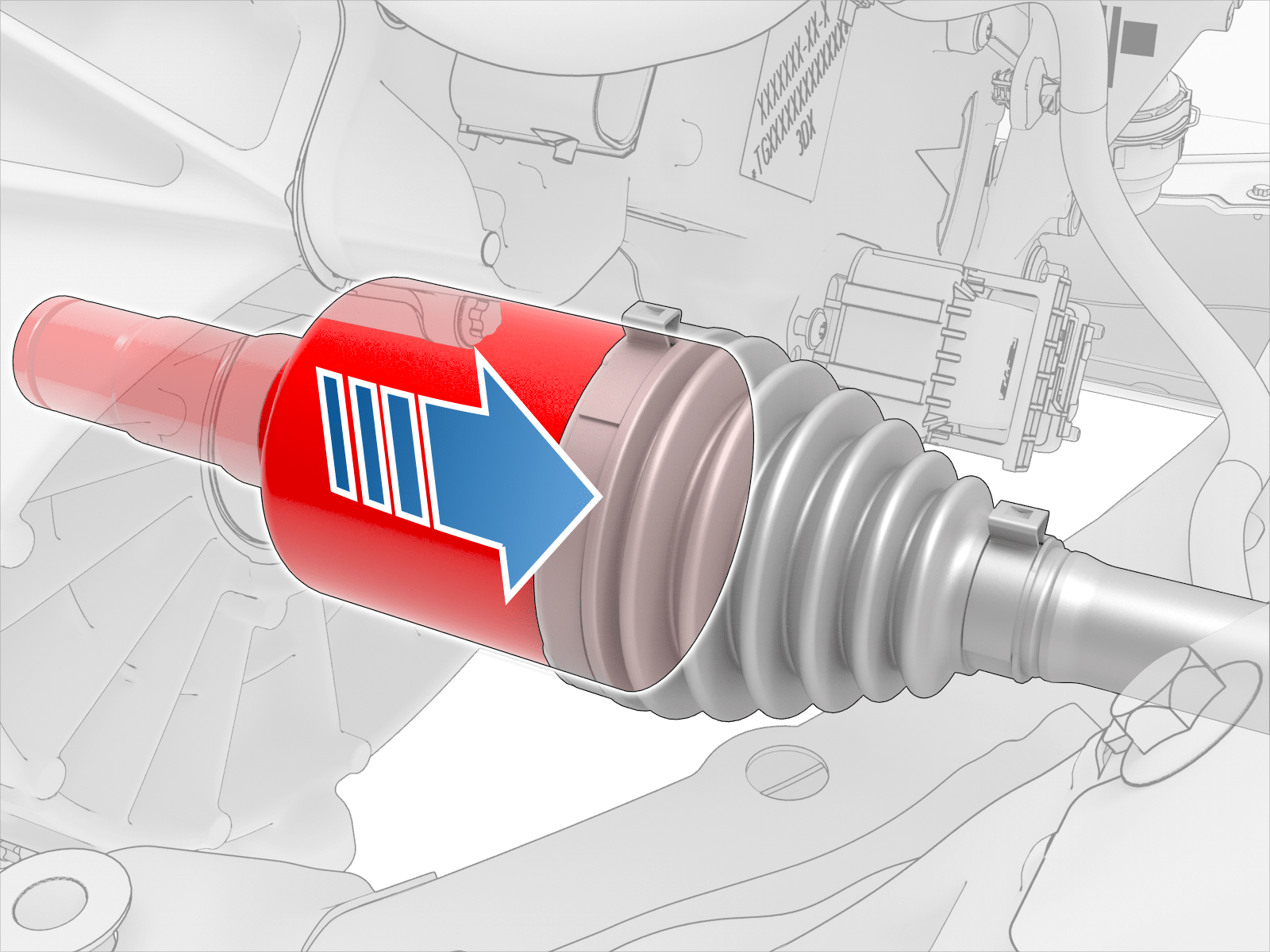

    • Carefully push the halfshaft into the drive unit until there is an audible "click" from the halfshaft stub contacting the pinion shaft.
    • There will be a slight pulling sensation on the halfshaft as the halfshaft circlip locks into place.
    • Pull on the inner halfshaft cup to confirm that the circlip is locked into place. If the halfshaft detaches from the drive unit then reinstall the halfshaft and then test that it is fully seated.
  9. Install the LH front drive unit halfshaft into the LH front hub assembly, and then hand tighten a new halfshaft nut on the halfshaft.
  10. Install the LH front wheel and hand tighten the wheel lug nuts.
  11. Lower the vehicle until the tires are touching the ground. See 举升车辆 - 双柱举升机.
  12. Fully tighten the wheel lug nuts. See 轮毂（拆卸和安装）.
  13. Fully tighten the new LH front drive unit halfshaft nut.
    300 Nm (221.2 lbs-ft)
  14. If equipped, install the LH front wheel center cap. See 中心盖 - 轮毂（拆卸和更换）.
  15. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See 定位要求 - 悬架.
