绝缘子 - 高压电池（安装和拆卸）

校正代码 16302001 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告

Only technicians who have completed all required certification courses are permitted to perform this procedure. Tesla recommends third party service provider technicians undergo equivalent training before performing this procedure. For more information on Tesla Technician requirements, or descriptions of the subject matter for third parties, see HV Certification Requirements. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional safety information.

警告
执行本程序时，请确保穿戴了高压绝缘手套和皮革手套。
此程序需要使用专用工具：
  • 1467483-00-C 高压电池仓高压绝缘子套件，3Y

安装

  1. 注
    本程序是对“在无高压绝缘子的情况下拆卸高压电池仓盖板”这一程序的补充。绝缘子安装完成后，请继续执行需要拆卸高压电池仓盖板的程序。
    注
    高压绝缘子并非消耗品，需要在安装高压电池仓盖板前拆卸。
  2. 将方形绝缘体盖安装到烟火电池断接开关母排螺栓头上。

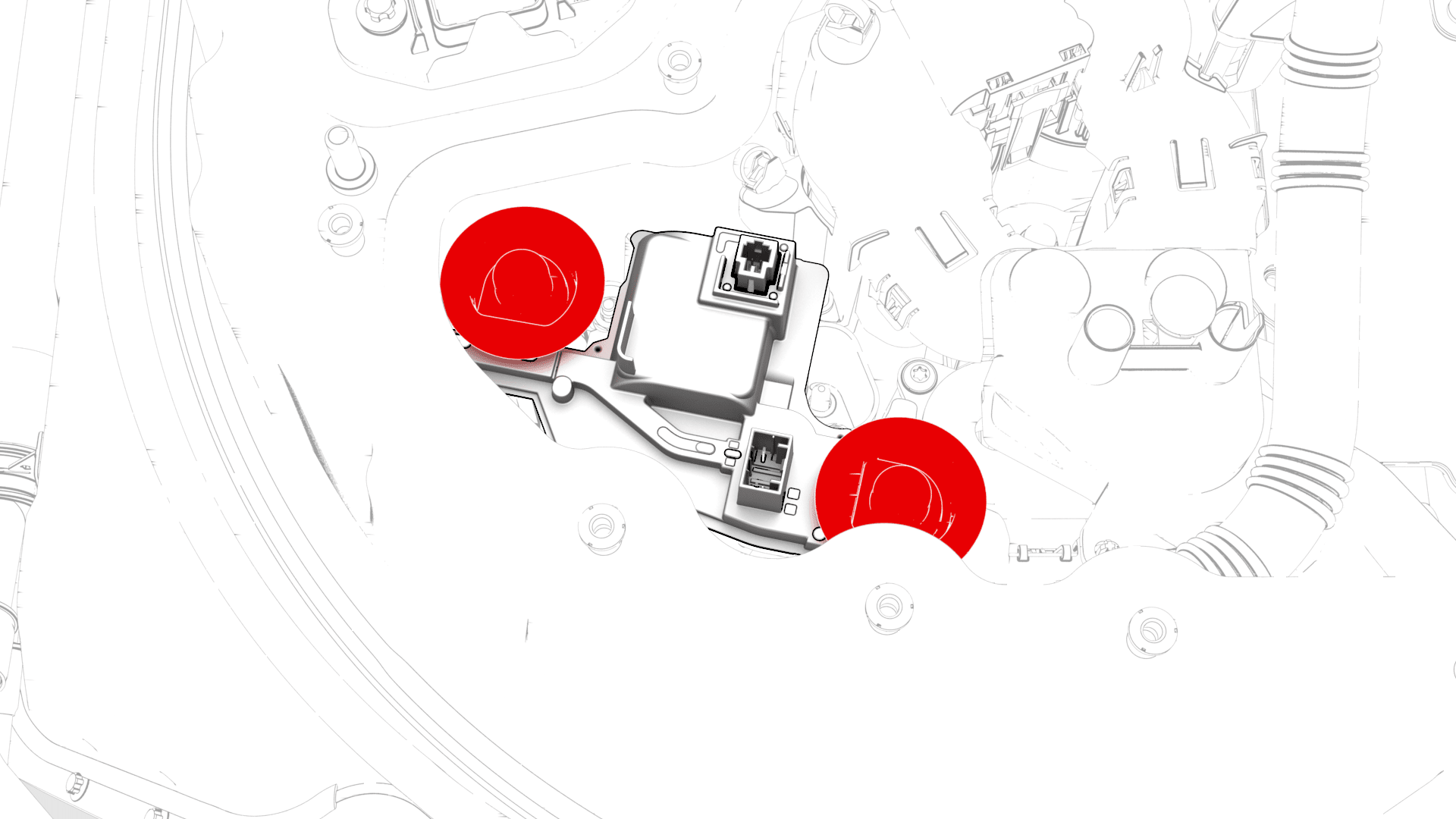

  3. 将圆形绝缘体盖安装到高压电池正极触点开关母排螺栓头上。

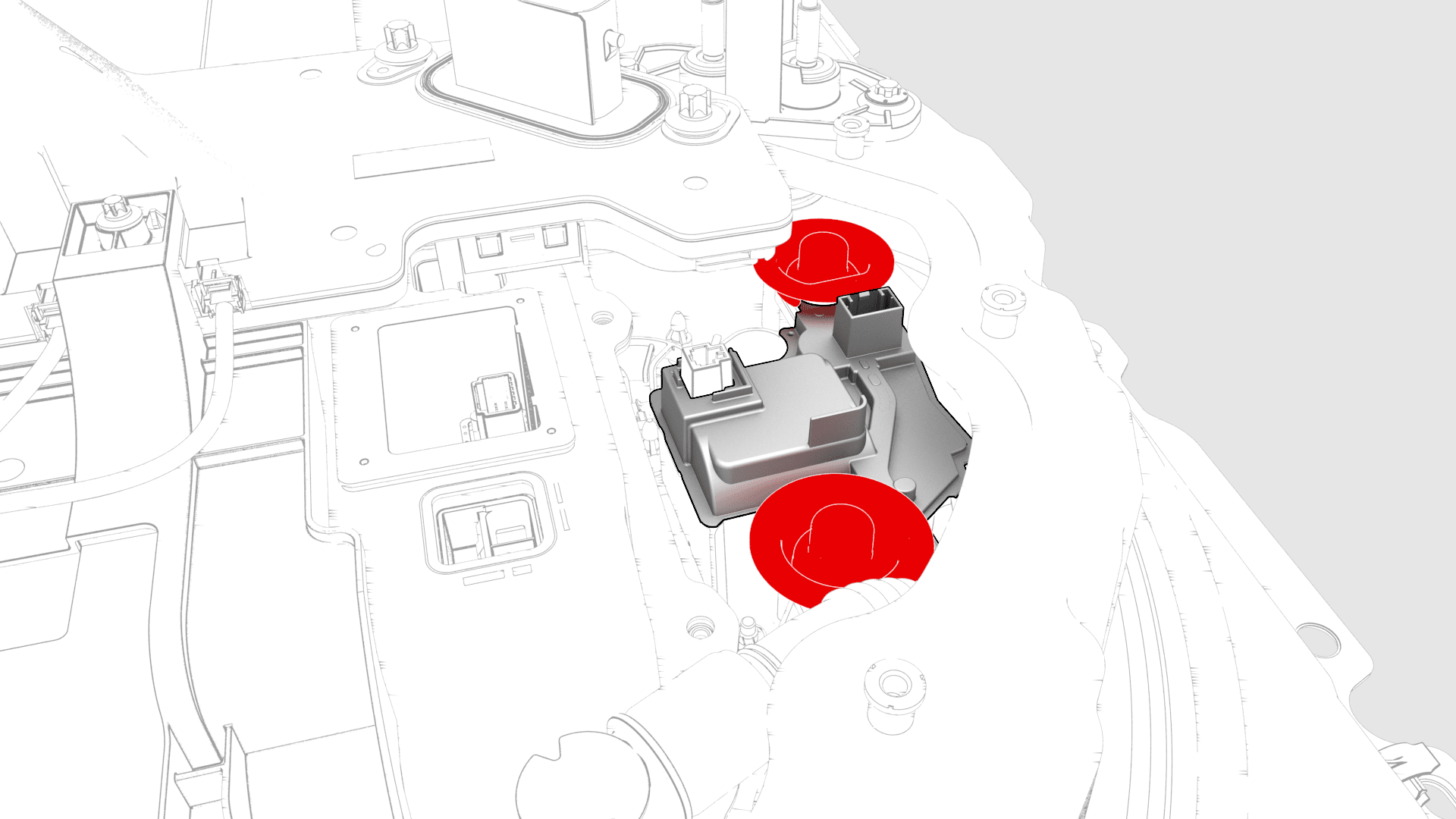

  4. 将圆形绝缘体盖安装到高压电池负极触点开关母排螺栓头上。

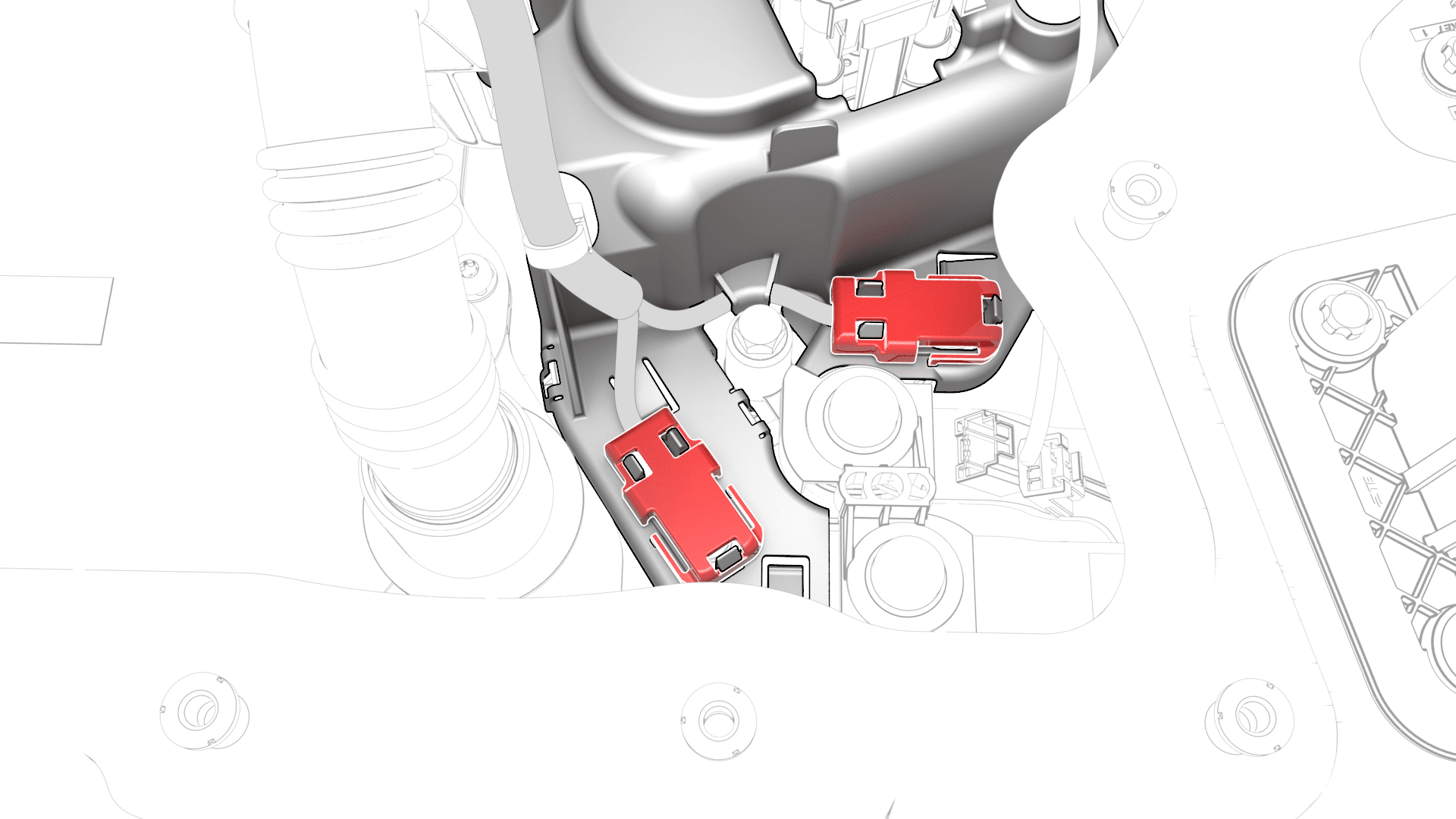

  5. 抬高高压控制器，将保险丝检修口绝缘体安装到右侧高压电池仓母排盖板上，紧固将绝缘体固定到盖板的卡子，然后降下高压控制器。

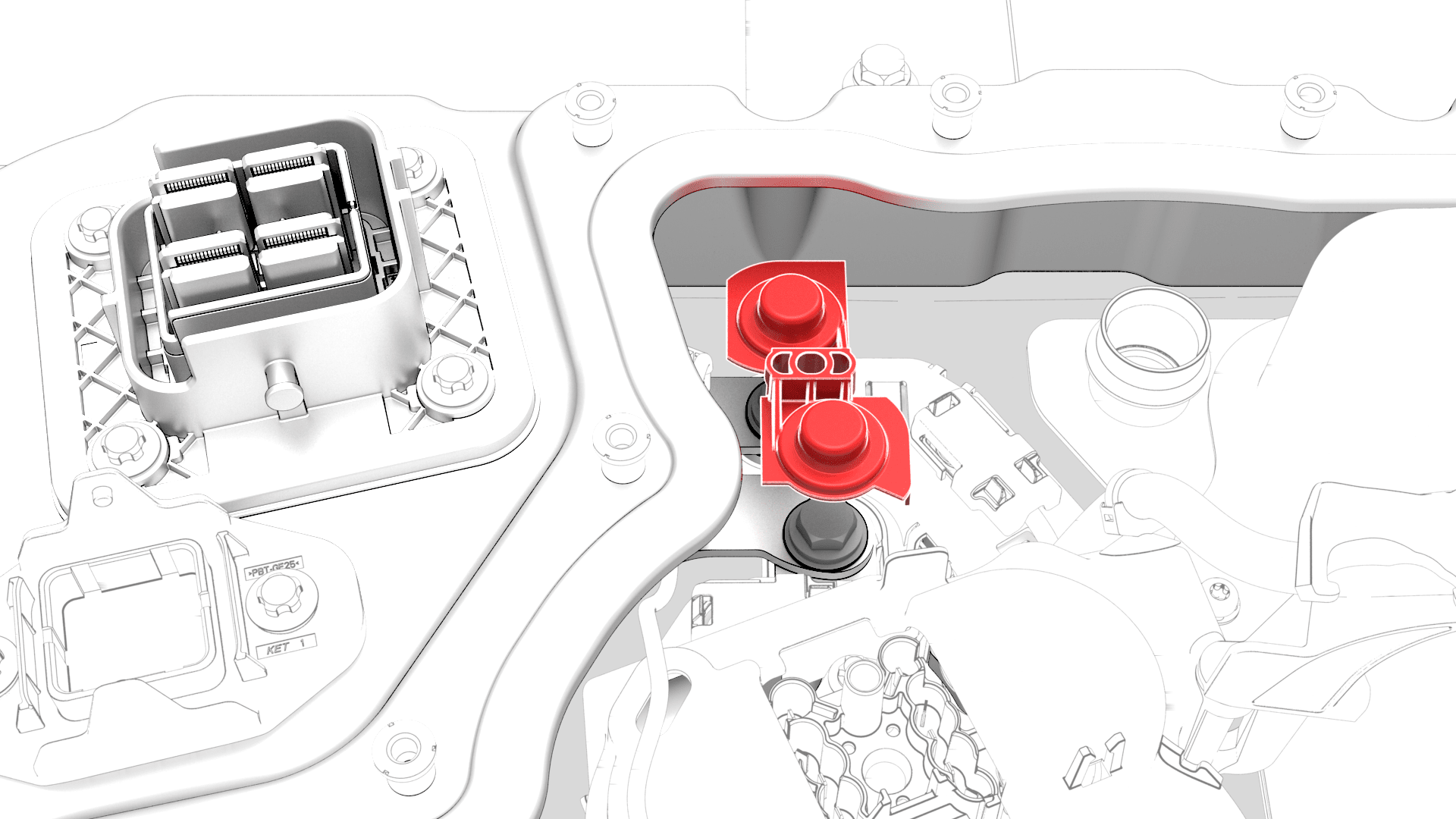

  6. 将专用绝缘体安装到直流输入总成母排螺栓头上。

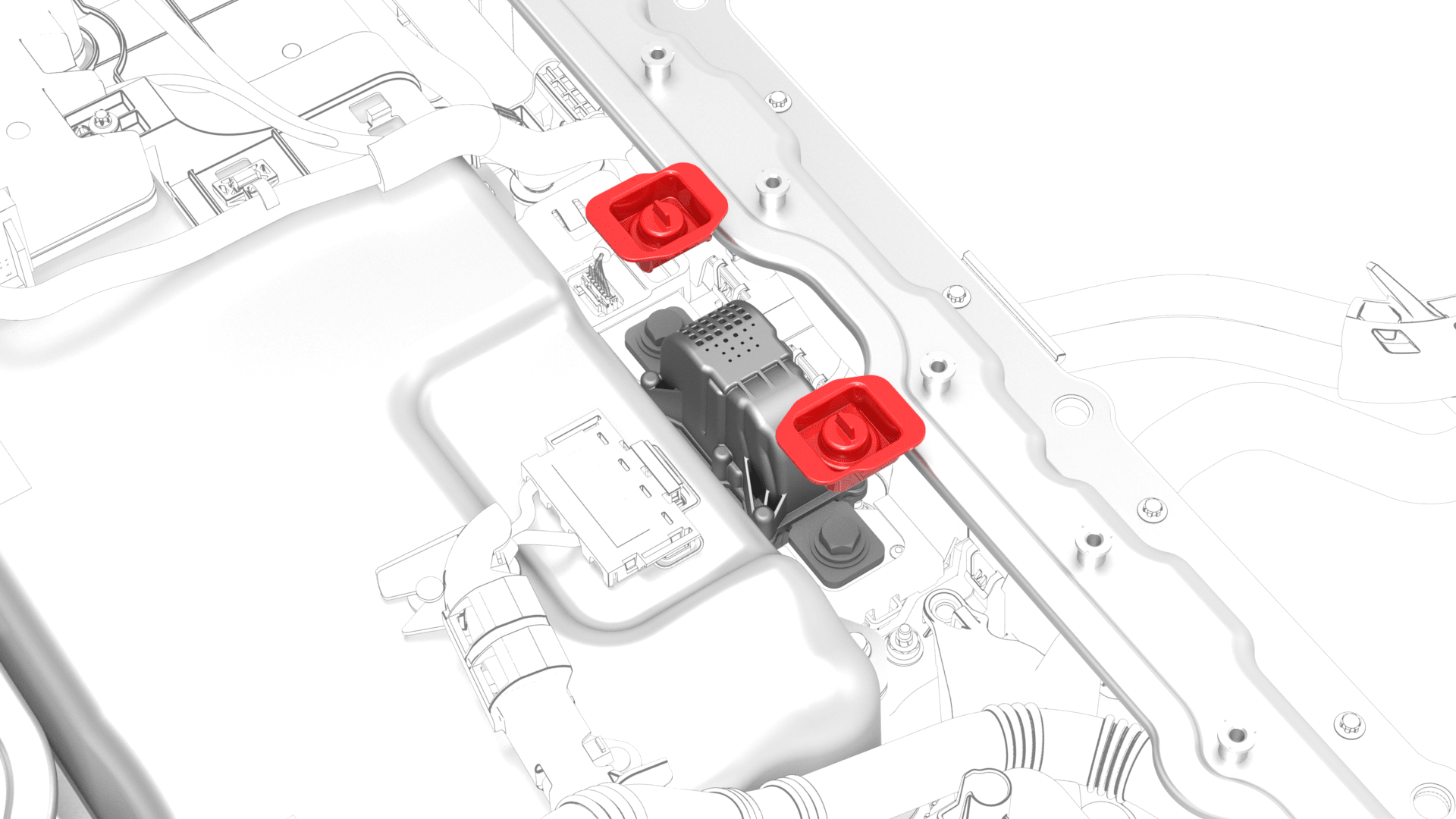

  7. 将交流输入端子盖安装到正极和负极环形端子螺栓上，然后紧固将直流输入端子盖固定到高压电池快充触点开关盖上的卡子。
  8. 继续执行高压电池仓拆卸程序。

拆卸

拆卸程序与安装程序相反。
