防晒板 - 左侧(拆卸和更换)

校正代码 15051002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-02-02: 添加了“注意避免损坏线束”的说明。
  • 2023 年 7 月 20 日:在“拆卸”部分添加了一个视频。

扭矩规格

表 1. 扭矩规格: 防晒板 - 左侧(拆卸和更换)
描述 扭矩值 推荐工具 重复使用/更换 备注
将遮阳板固定到车辆的螺栓
3.5 Nm (2.6 lbs-ft)
  • T25 梅花套筒
重复使用

拆卸

警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

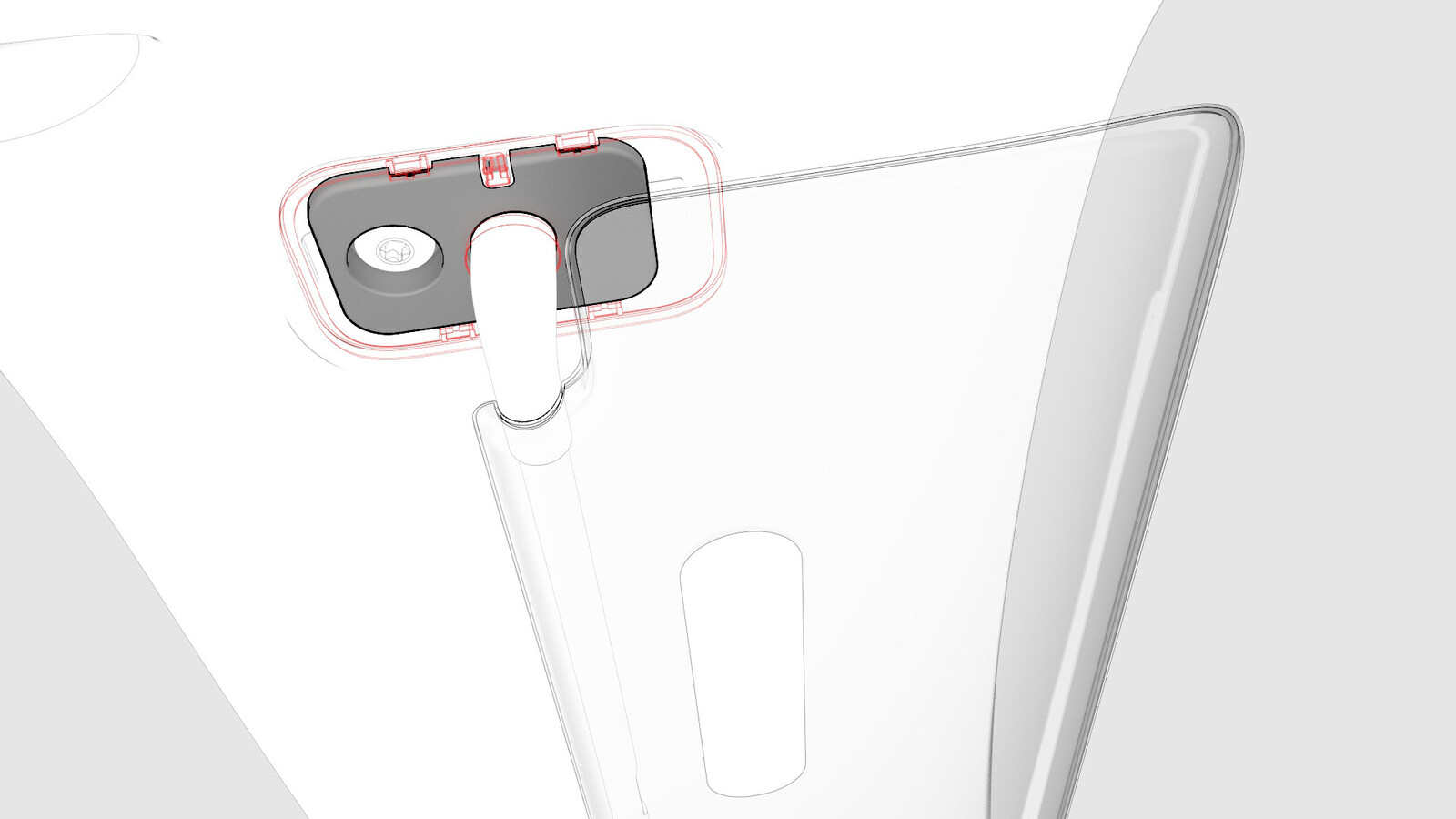

  1. 松开将遮阳板支架盖固定到车辆的夹子 (x4)。

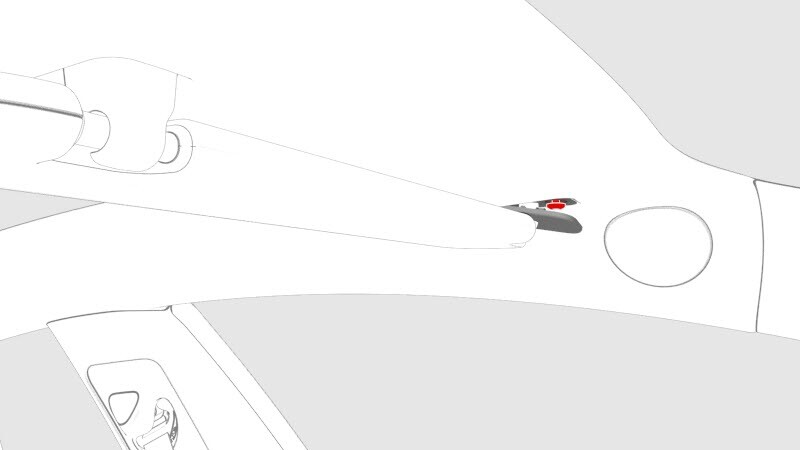

  2. 拆下将遮阳板固定到车辆的紧固件。
    3.5 Nm (2.6 lbs-ft)
    提示
    推荐使用以下工具
    • T25 梅花套筒

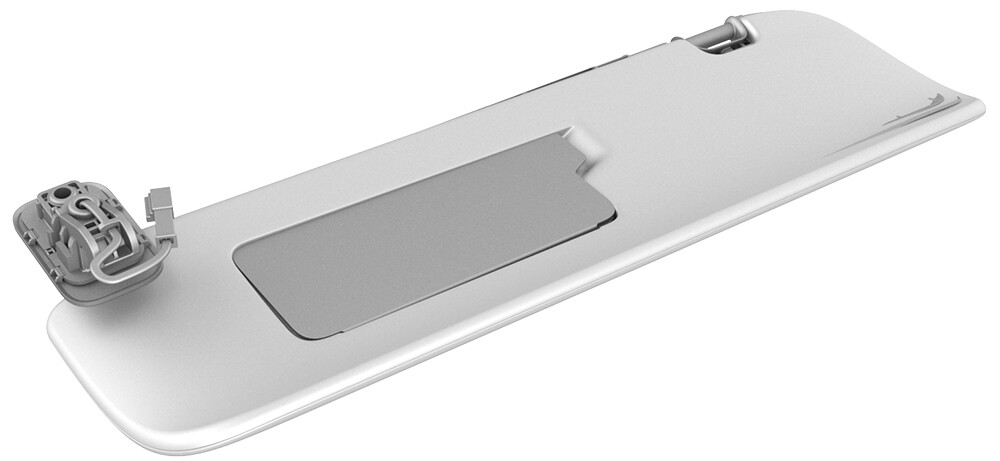

  3. 将电气连接器从遮阳板上断开。
  4. 将遮阳板从车辆上拆下。

安装

安装程序与拆卸程序相反。

警告
Make sure the sun visor electrical harness is routed so that it isn't damaged during installation.
