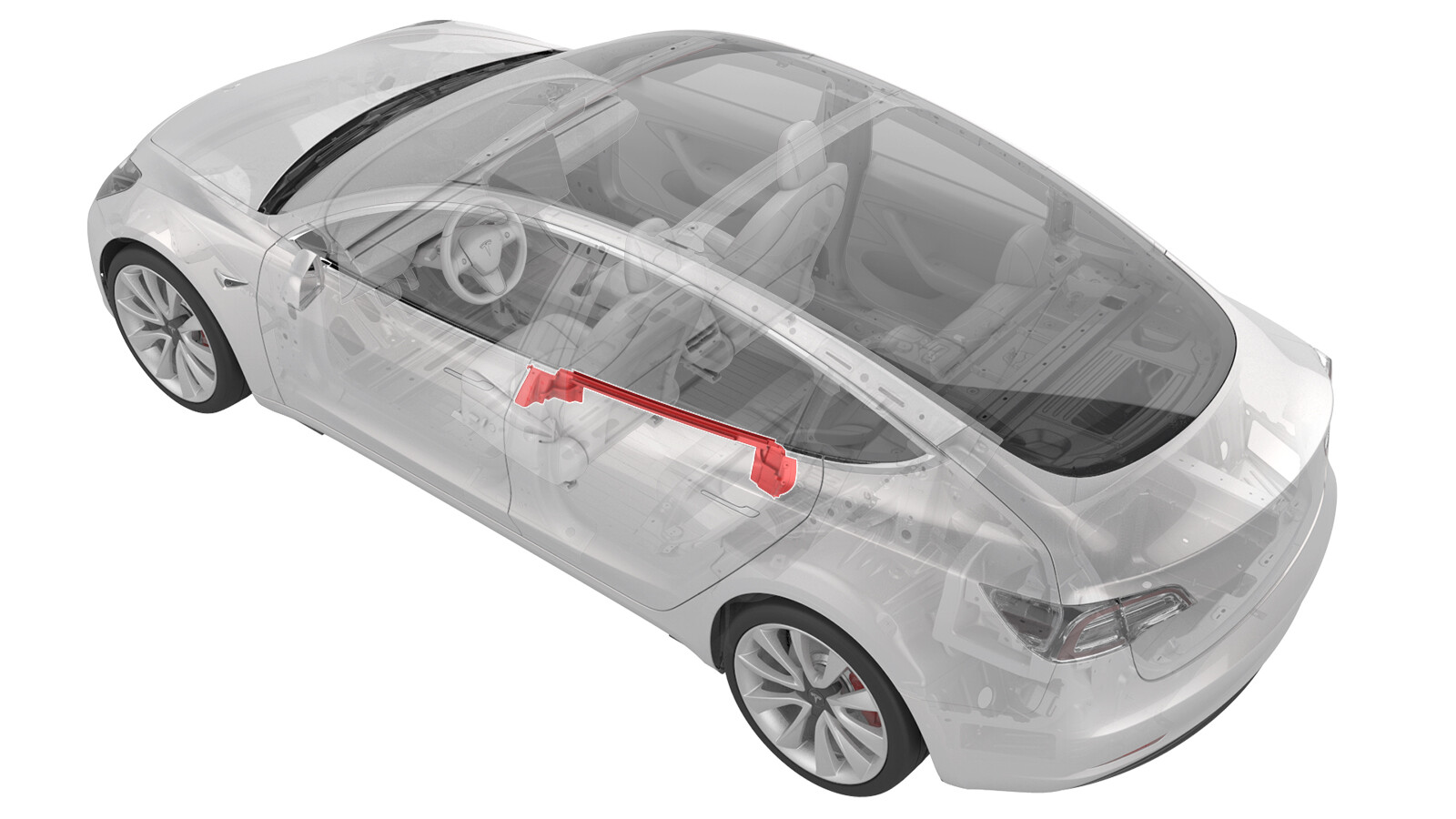

密封件 - 内侧密封条 - 后车门 - 左侧(拆卸和更换)
校正代码
11704102 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下 LH 后门饰板。请参阅面板 - 车门饰板 - 后 - 左侧(拆卸和安装)。
-

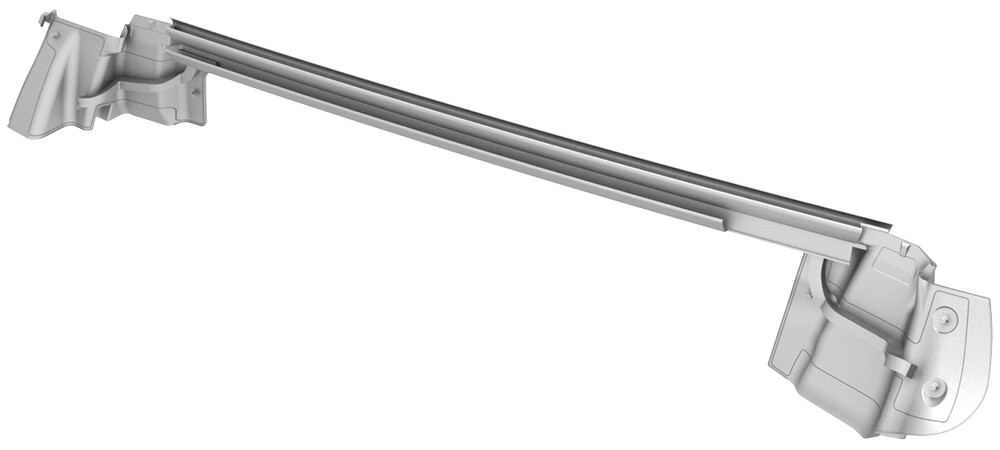

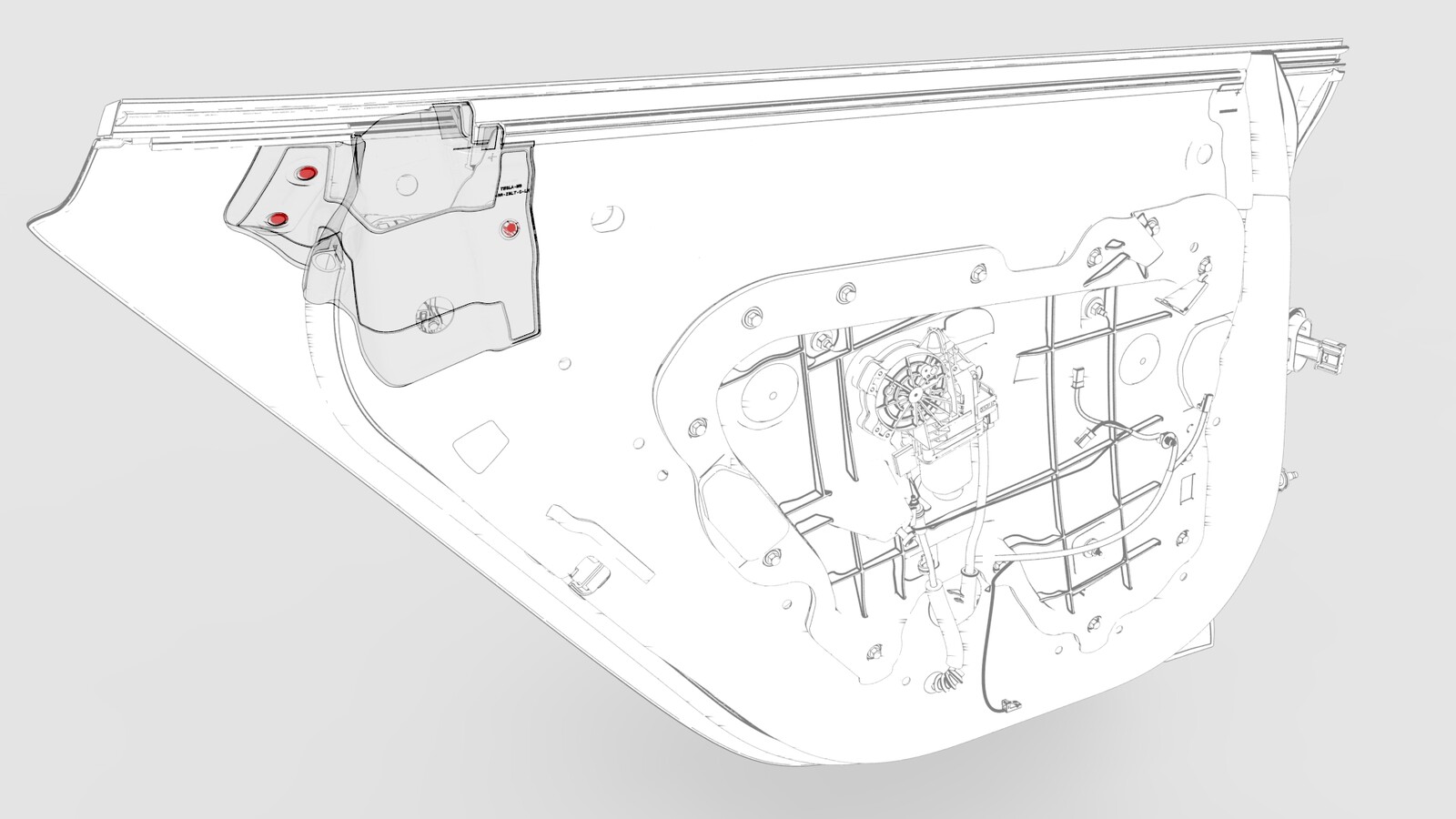

松开将内侧安全带密封件前后两端固定到后车门的夹子,然后拆下内侧密封条前后两端。
-
从后门上慢慢剥落整条密封条。
安装
- 将后门内存密封条下压入后门内。
- 安装将内侧密封条固定到后门的卡扣。
- 安装 LH 后门饰板。请参阅面板 - 车门饰板 - 后 - 左侧(拆卸和安装)。
