充电接口 - 手动释放缆索

校正代码 44013205 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

程序

  1. 确保车辆未处于充电状态。
    警告
    请勿在车辆充电期间执行此程序。
  2. 打开后备箱。

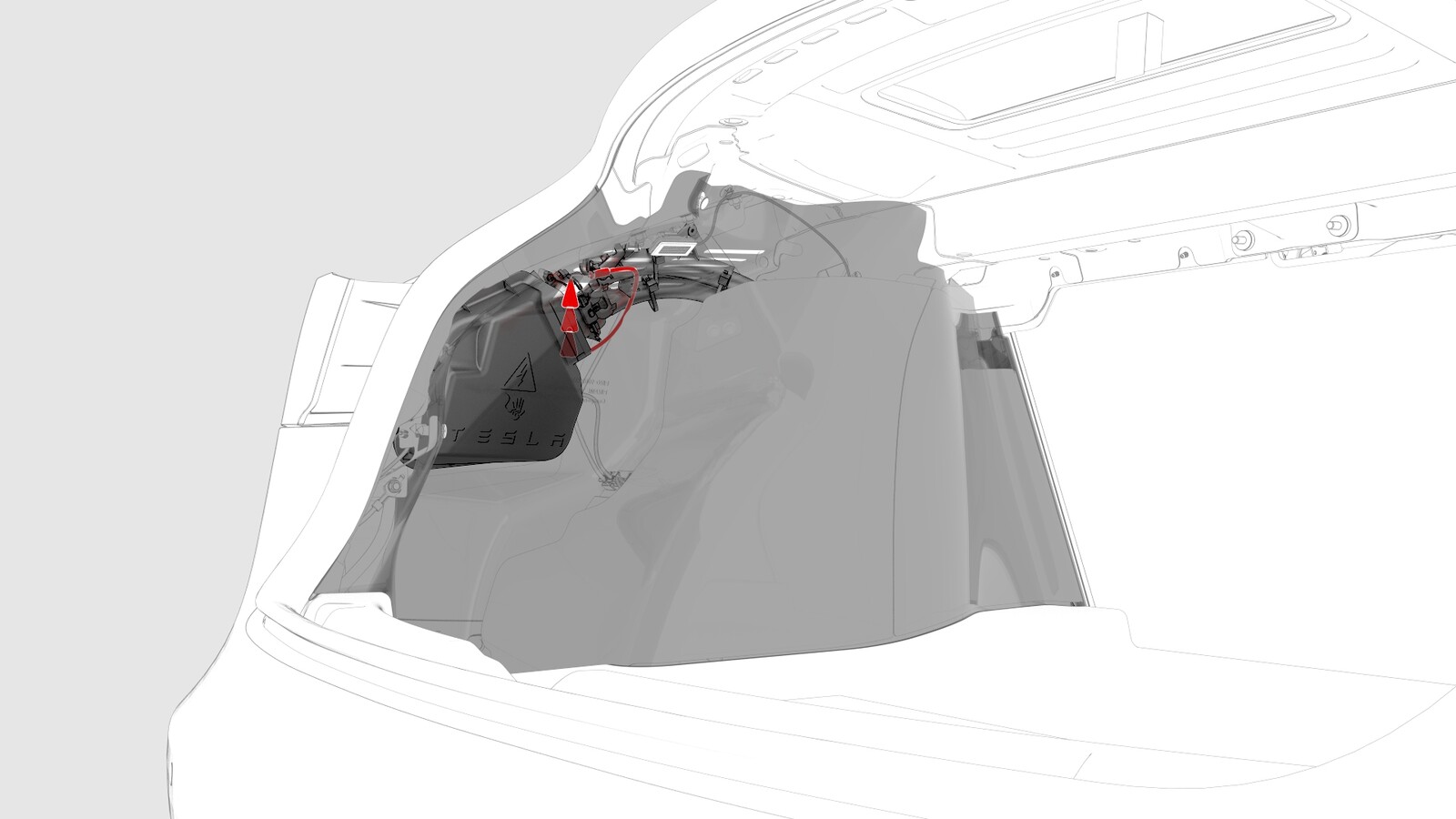

  3. 穿过 LH 行李箱壁开口将吊耳向下拉,从充电端口上松开充电电缆。
  4. 从充电端口上拆下充电电缆。
    警告
    请勿尝试在拉释放拉索的同时拆卸充电电缆。务必在尝试从充电端口拆下充电电缆之前拉出释放拉索。
  5. 关闭后备箱。
