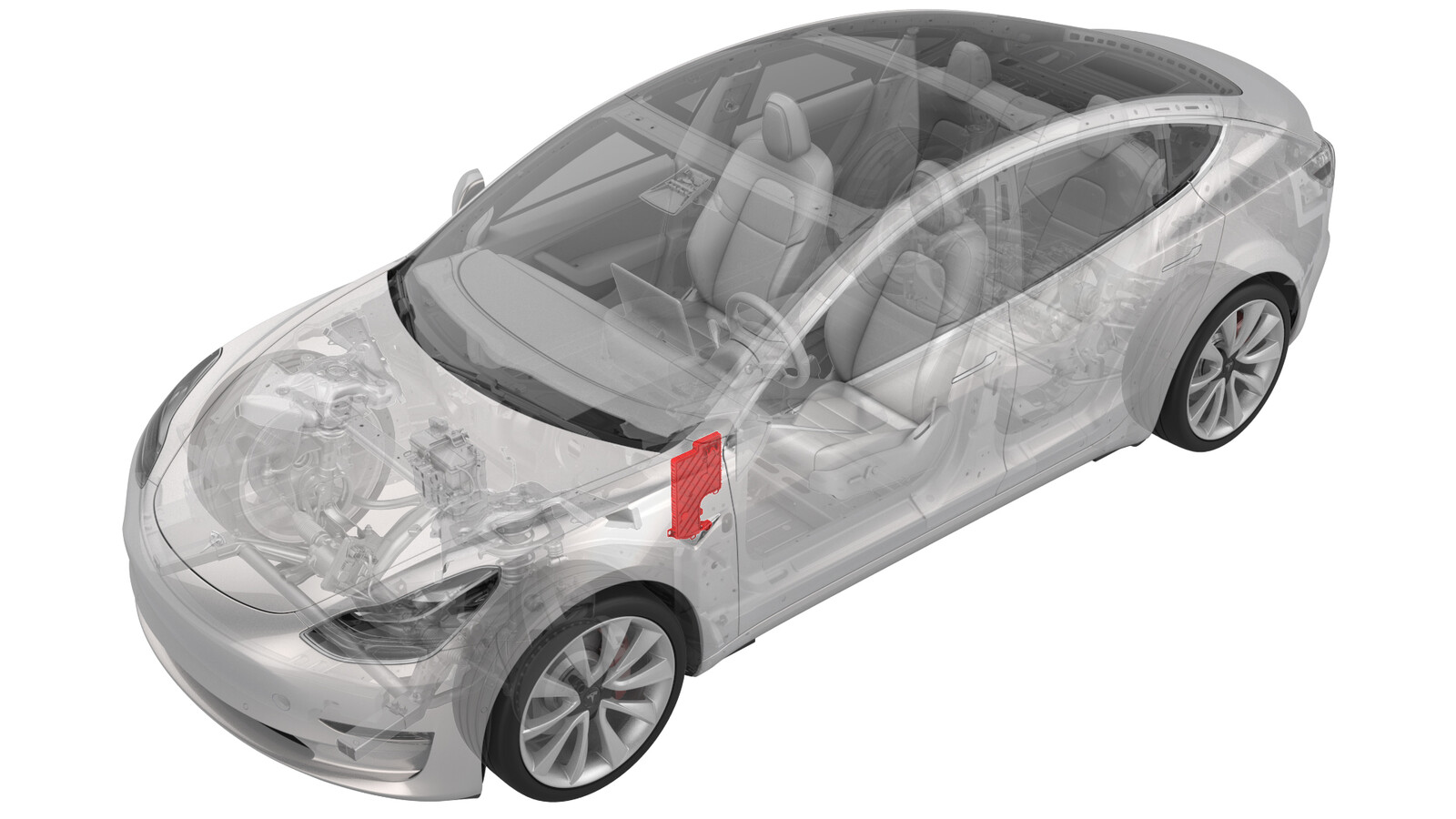

模块 - 车身控制器 - LH(左侧驾驶)(带加热泵款)(拆卸和更换)

校正代码 17152112 0.48 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2023-11-13: Fixed error in routine.

拆卸

  1. Open all doors and lower all windows.
  2. Remove the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  3. Move the driver seat fully rearward.
  4. Disconnect 12V power. See 12V/低压电源(断开和连接).
  5. Remove the LH instrument panel end cap. See 端盖 - 仪表板 - LH(拆卸和更换).
  6. Remove the LH middle A-pillar trim. See 饰板 - A 柱 - 中部 - LH(拆卸和更换).
  7. Remove the LH lower A-pillar trim. See 饰板 - A 柱 - 下 - LH(拆卸和更换).
  8. Remove the driver footwell cover. See 盖板 - 脚部空间 - 驾驶位(拆卸和更换).
  9. Remove the driver knee airbag. See 气囊 - 膝部 - 驾驶位(拆卸和更换).
  10. Remove the LH footwell duct. See 风管 - 脚部空间 - LH(左侧驾驶)(拆卸和更换).

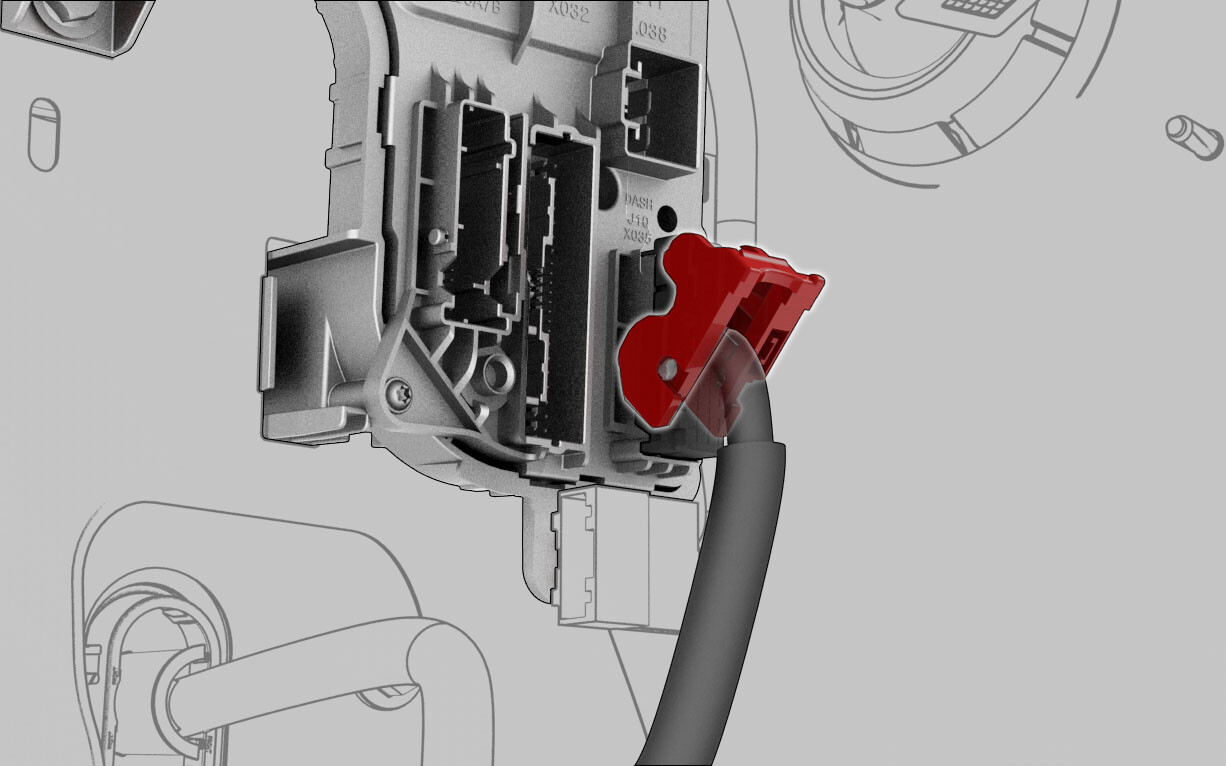

  11. Release the connector lock, and then disconnect the J7 LH front door electrical connector from the LH body controller module.
  12. Release the connector lock, and then disconnect the J9 LH front seat electrical connector from the LH body controller module.
  13. Release the connector lock, and then disconnect the J10 instrument panel electrical connector from the LH body controller module.
  14. Disconnect the J11 HVAC electrical connector from the LH body controller module.

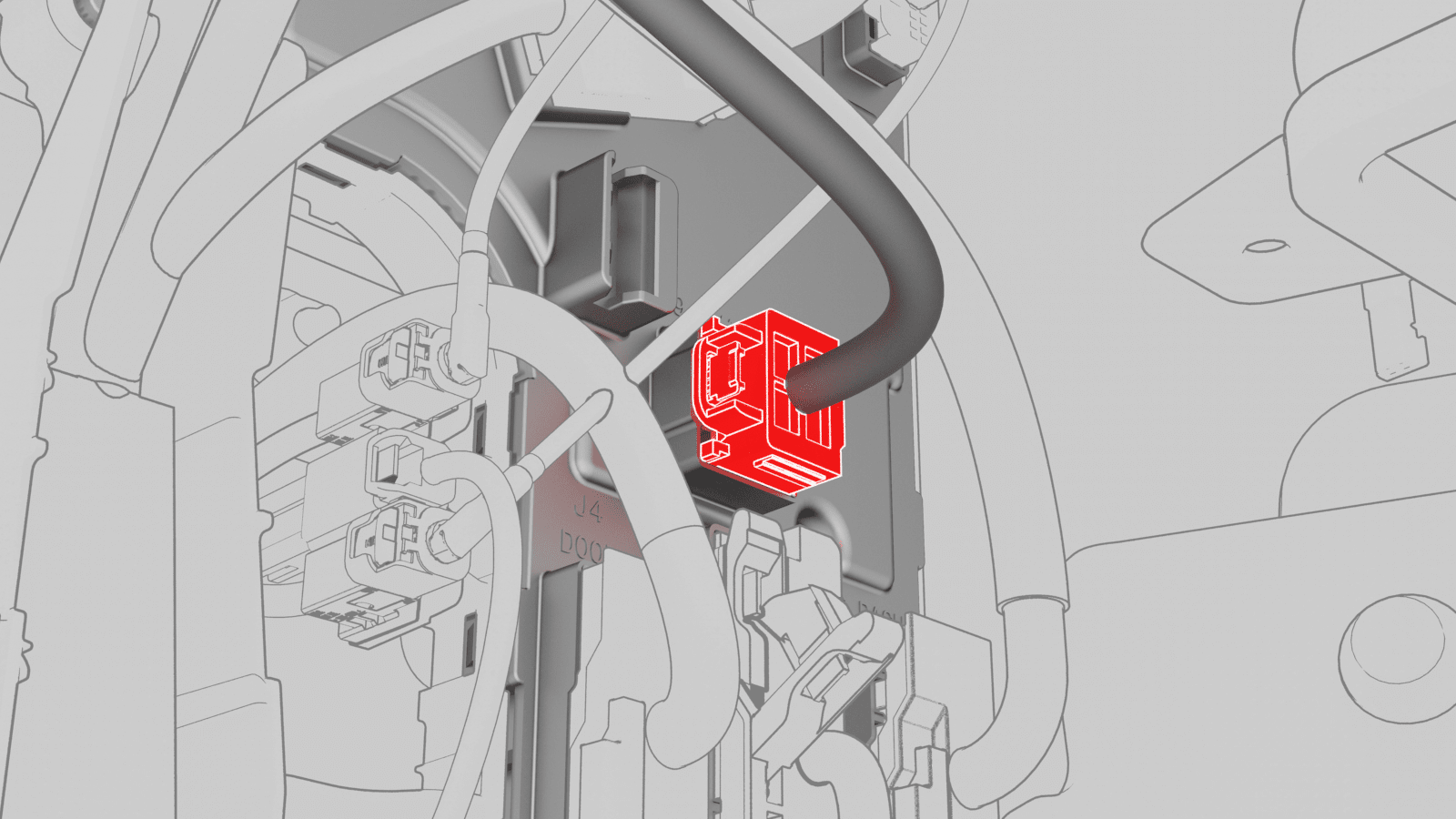

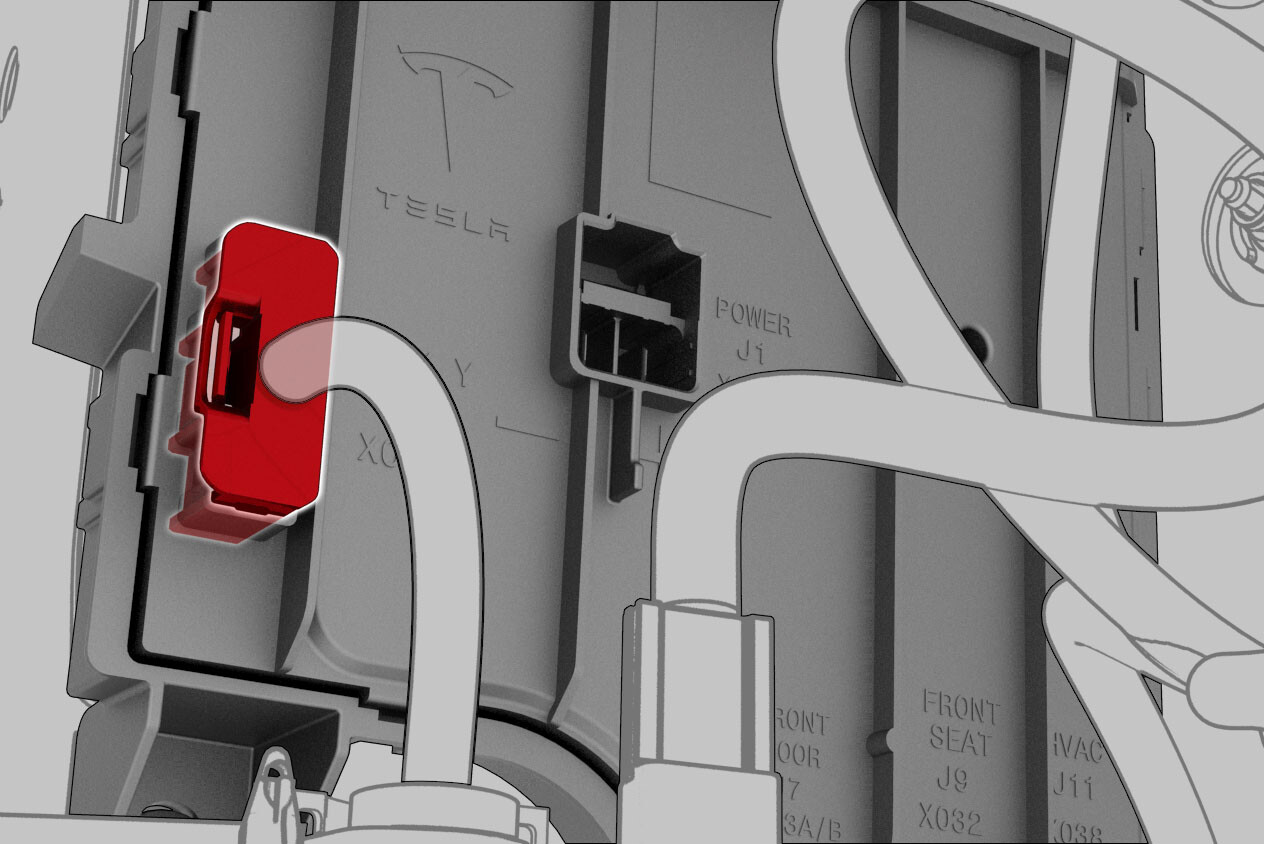

  15. Disconnect the inline electrical harness connector X909 from the LH body harness, and then separate it from the LH body controller module.

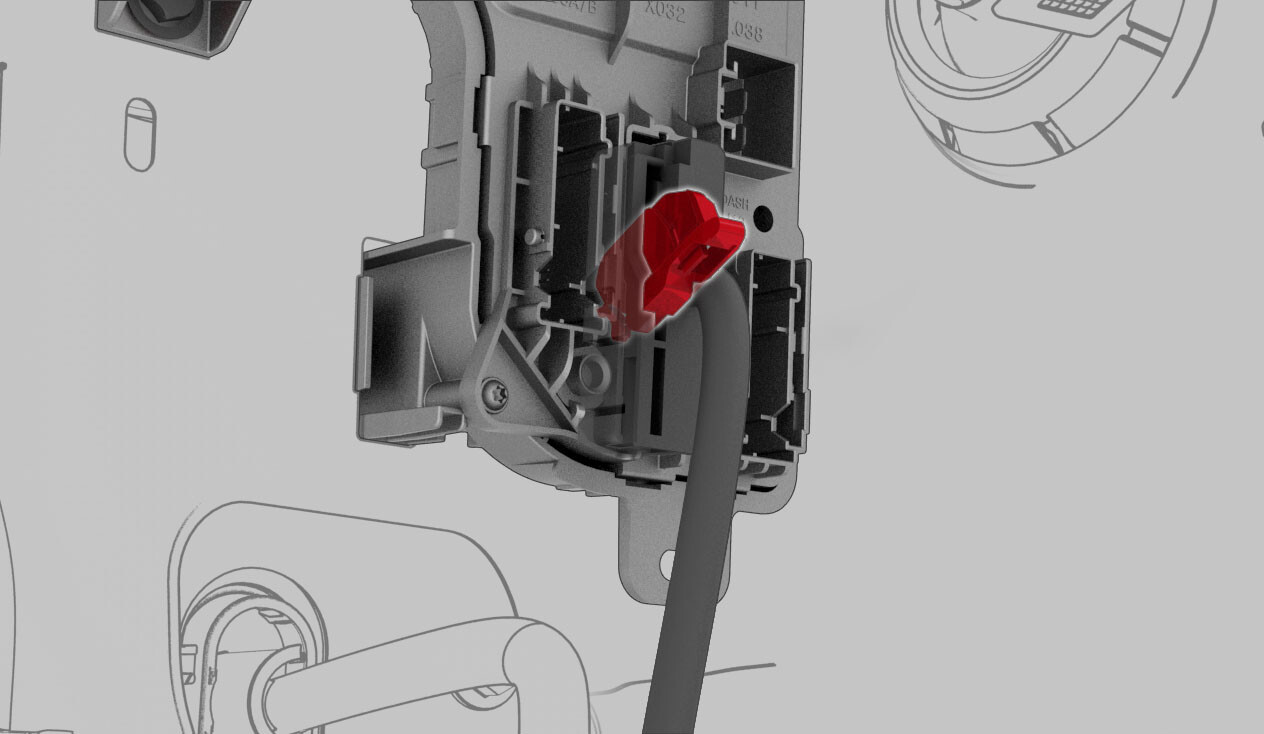

  16. Release the connector lock, and then disconnect the J1 power connector from the LH body controller module.

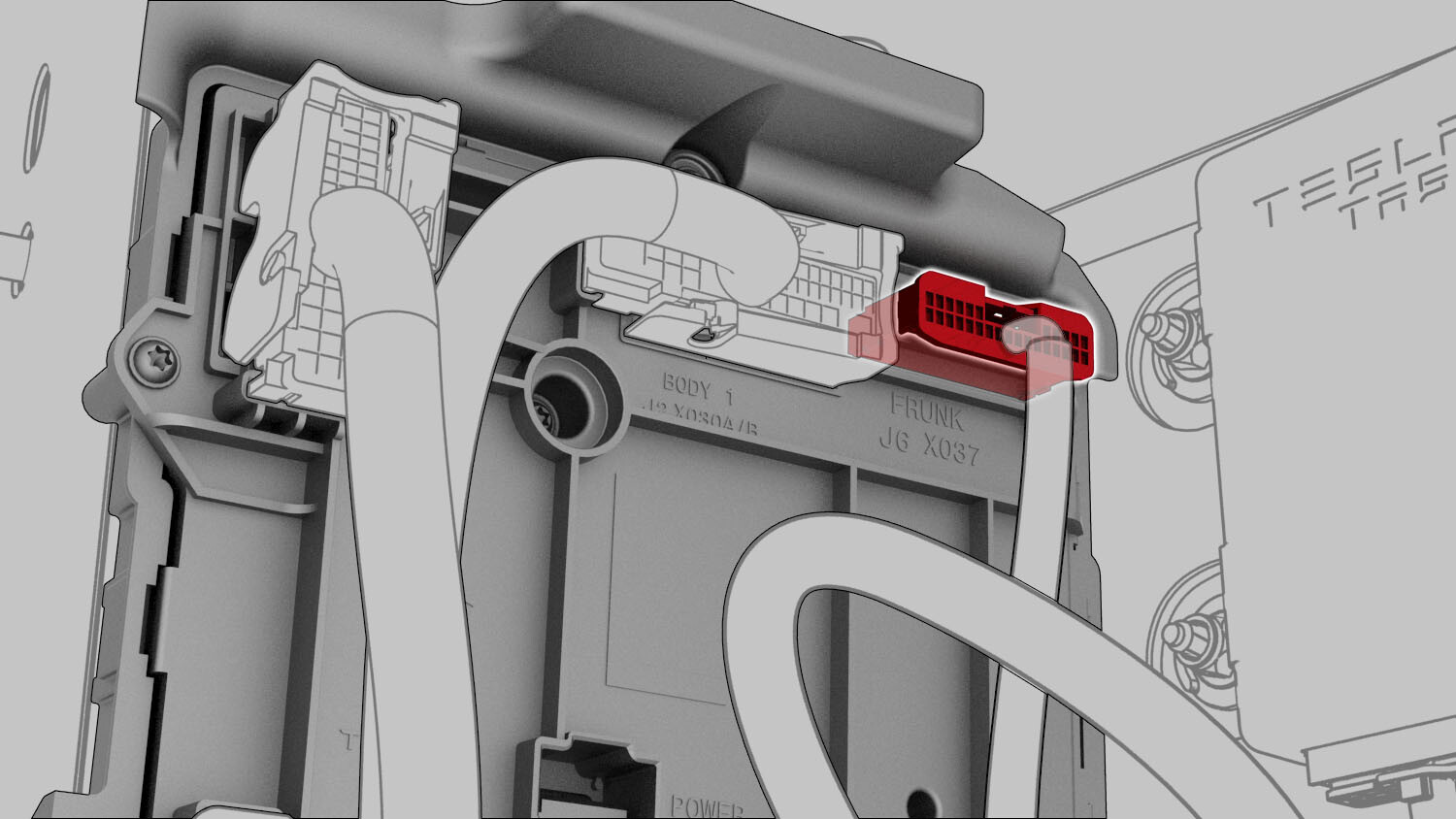

  17. Disconnect the J6 front underhood storage connector from the LH body controller module.

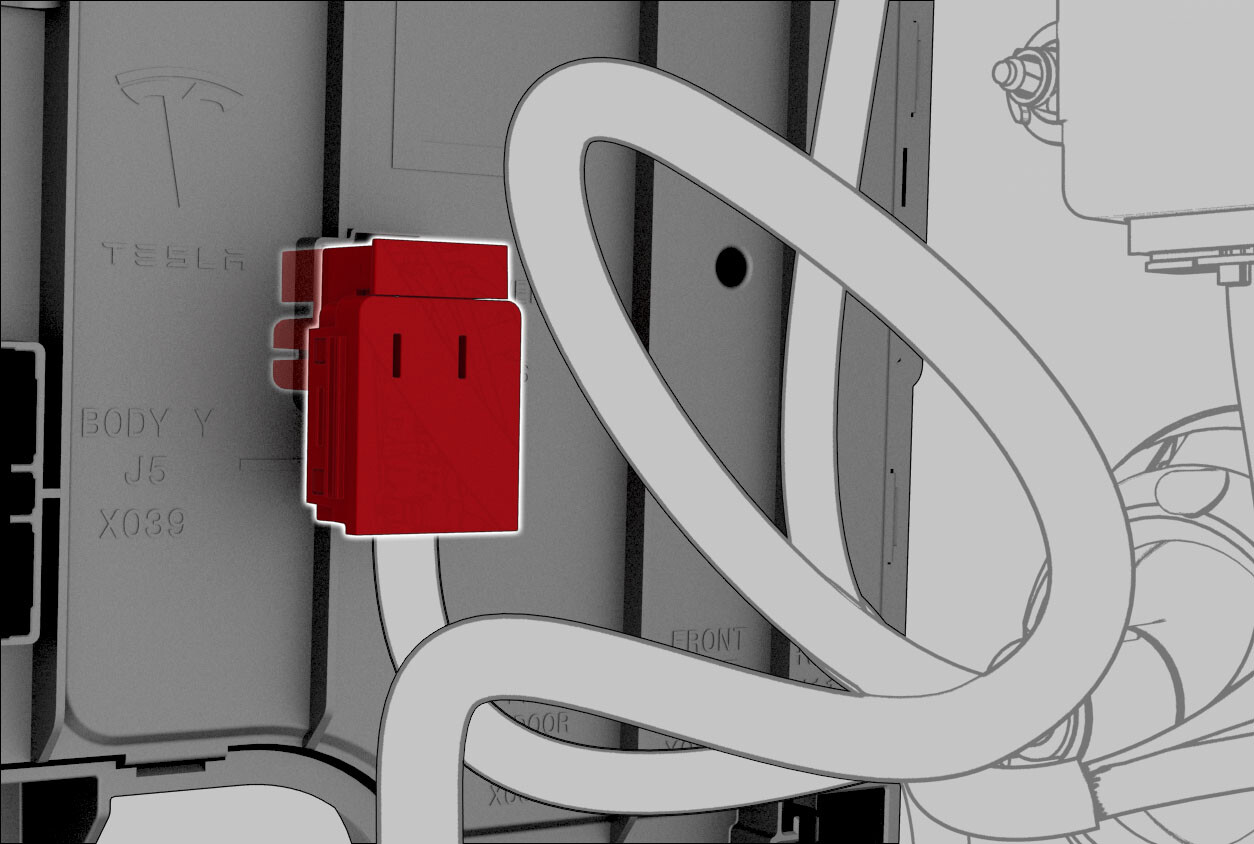

  18. Disconnect the J5 body 3 electrical connector from the LH body controller module.

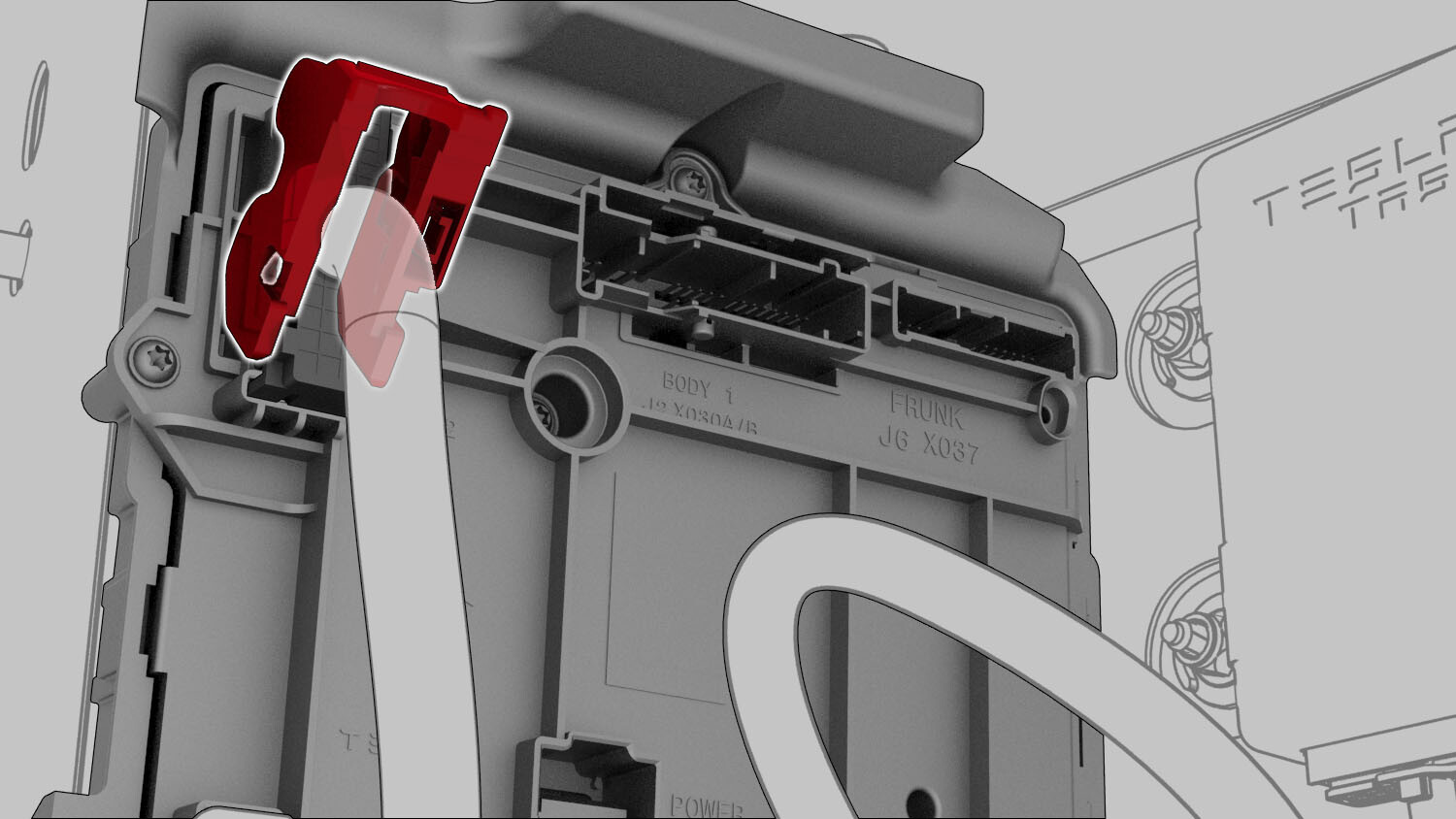

  19. Release the connector lock, and then disconnect the J4 body 2 connector from the LH body controller module.
  20. Disconnect the J2 body 1 electrical connector from the LH body controller module.

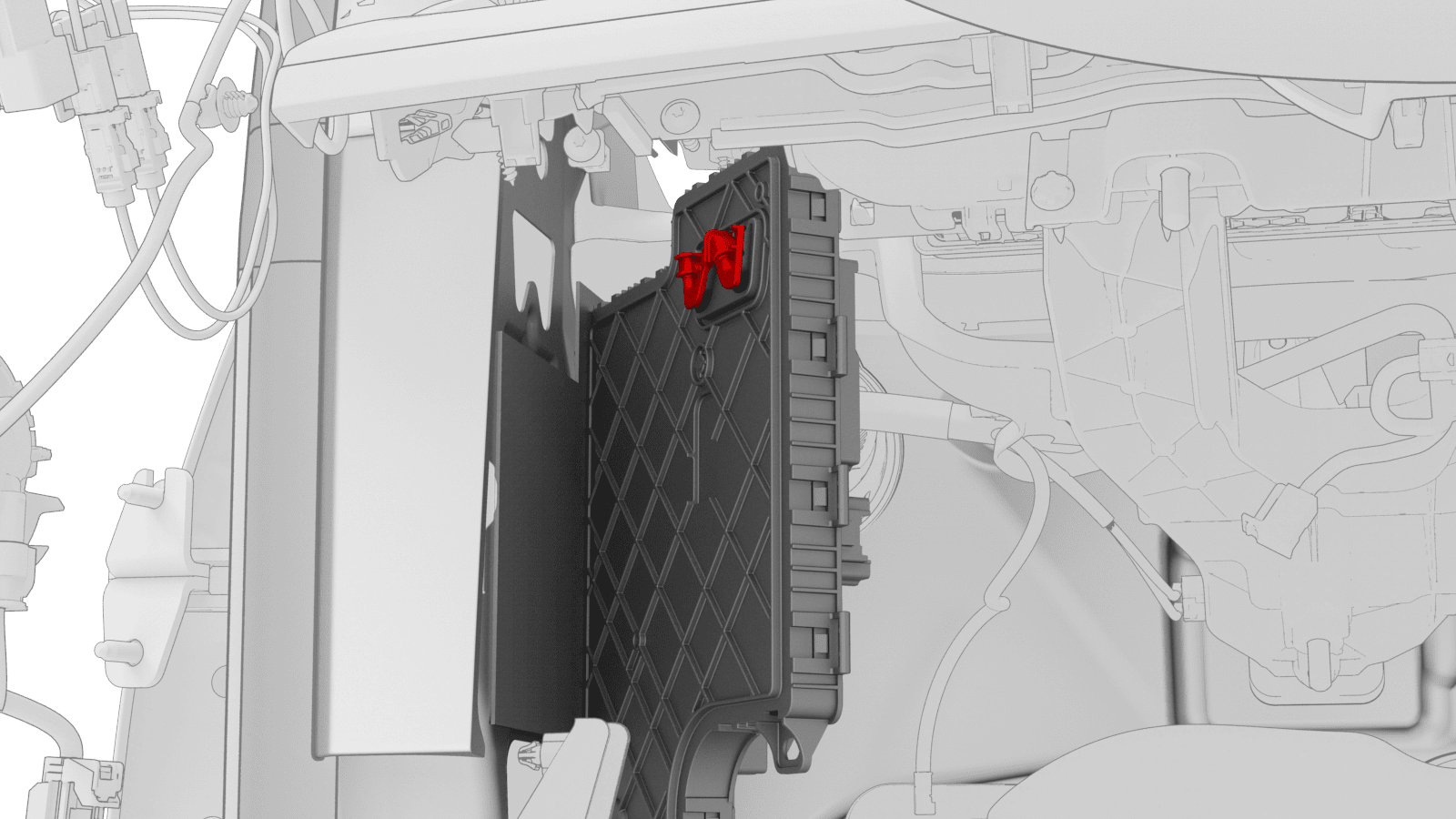

  21. Release the electrical harness clips that attach the LH body controller module to the vehicle.
  22. Move the LH body harness away from the LH body controller module.

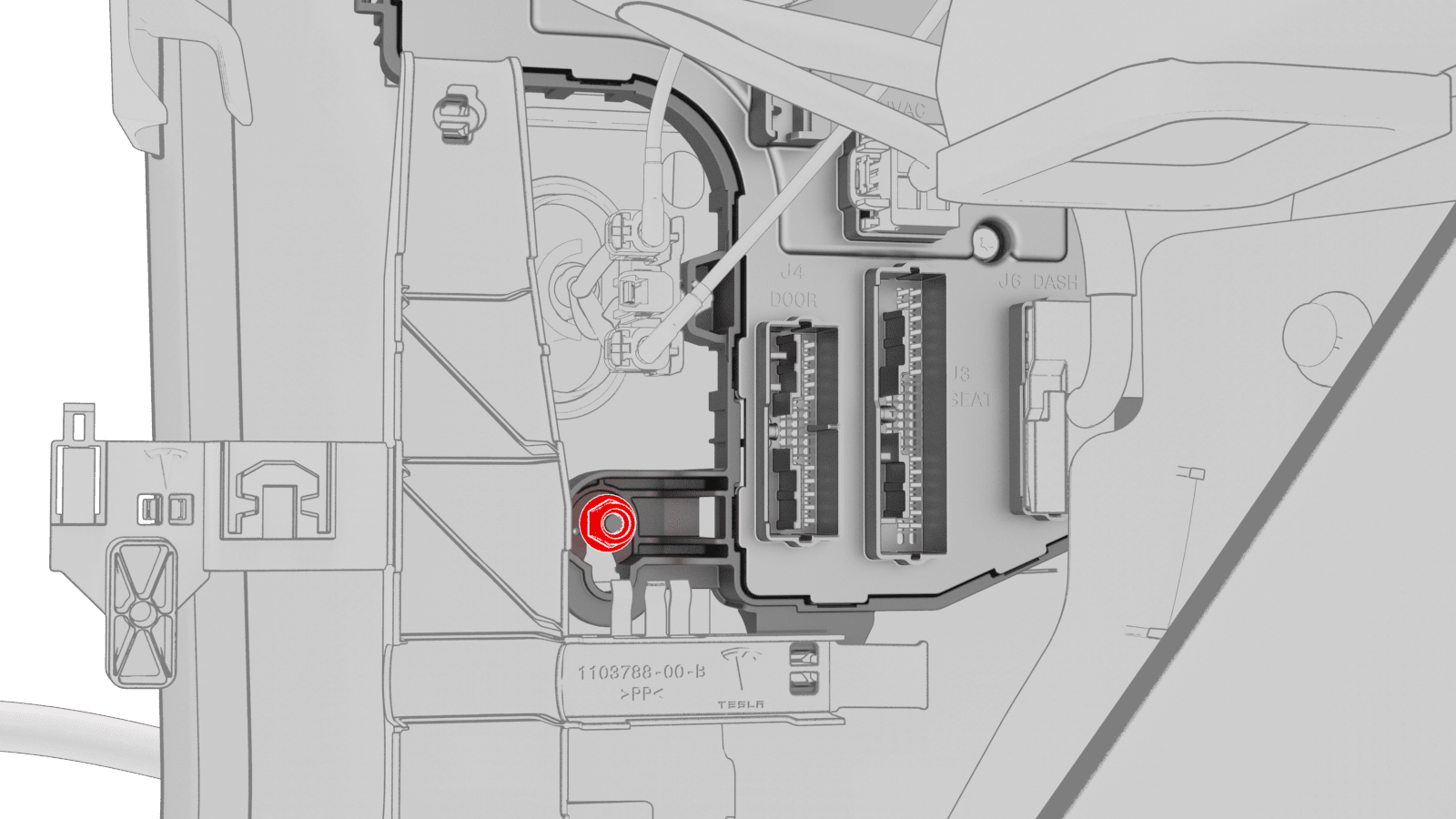

  23. Remove and discard the nut that attaches the LH body controller module to the vehicle.
    提示: 推荐使用以下工具:
    • 10 毫米深 12 角套筒
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手(仅适用于安装程序)
    • 2 英寸加长件
  24. Slide the LH body controller upwards to release the W-clip, and then move the LH body controller module out from underneath the instrument panel.
  25. Remove the LH body controller module from the vehicle.

安装

  1. Maneuver the LH body controller module into position under the IP carrier. Align the W-clip with the body cutout, and then slide down to attach the LH body controller module to the body.
  2. Install a new nut that attaches the LH body controller module onto the body.
    6 Nm (4.4 lbs-ft)
    提示: 推荐使用以下工具:
    • 10 毫米深 12 角套筒
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手(仅适用于安装程序)
    • 2 英寸加长件
  3. Move the LH body harness towards the left side of the LH body controller module, and then attach the harness clips to the LH body controller module.
  4. Connect the J2 body 1 electrical connector to the LH body controller module , and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  5. Connect the J4 body 2 electrical connector to the LH body controller module, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  6. Connect the J5 body 3 electrical connector to the LH body controller module, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  7. Connect the J6 front underhood storage unit connector to the LH body controller module.
  8. Connect the J1 power connector to the LH body controller module, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  9. Connect the inline electrical connector X909 to the LH body harness, and then clip it to the LH body controller module.
  10. Connect the J11 HVAC electrical connector to the LH body controller module.
  11. Install the J10 instrument panel electrical connector to the LH body controller module, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  12. Connect the J9 LH front seat electrical connector to the LH body controller module, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  13. Connect the J7 LH front door electrical connector to the LH body controller module, and then engage the connector lock.
    Informational PurposesAn informational icon, calling your attention
    Ensure the electrical connector is fully seated.
  14. Install the LH footwell duct. See 风管 - 脚部空间 - LH(左侧驾驶)(拆卸和更换).
  15. Install the driver knee airbag. See 气囊 - 膝部 - 驾驶位(拆卸和更换).
  16. Install the driver footwell cover. See 盖板 - 脚部空间 - 驾驶位(拆卸和更换).
  17. Install the LH lower A-pillar trim. See 饰板 - A 柱 - 下 - LH(拆卸和更换).
  18. Install the LH middle A-pillar trim. See 饰板 - A 柱 - 中部 - LH(拆卸和更换).
  19. Install the LH instrument panel end cap. See 端盖 - 仪表板 - LH(拆卸和更换).
  20. Connect 12V power. See 12V/低压电源(断开和连接).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not power on the climate control system until this procedure has been fully completed.
  21. Install the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  22. Connect to vehicle using Toolbox 3.0.
    Informational PurposesAn informational icon, calling your attention
    Vehicle connection is integrated into LH footwell cover.
  23. Perform a service CAN redeploy. See 软件重新安装 - Toolbox.
  24. Sit in the front passenger seat and close the RH front door.
  25. In Toolbox, click the Actions tab, and then type "PROC_VCLEFT" in the search field.
  26. Click PROC_VCLEFT_X_POST-REPLACEMENT-PROCEDURESearch for routine in ToolboxVCLEFT post replacement procedureLowVoltage / VCLEFT Post Replacement - VCLEFT Post Replacement Procedure, and then click Run and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Keep the driver seat clear of all objects during calibration.
  27. Move the front passenger seat to the original position.
  28. Raise the RH front window and close the RH front door.
  29. Disconnect the laptop from the vehicle.
  30. Move the driver seat to the original position.
  31. Close the LH front door.
  32. Inform the customer that their liftgate opening height settings have been reset and to refer to the owner's manual for instructions on setting the liftgate opening height.
