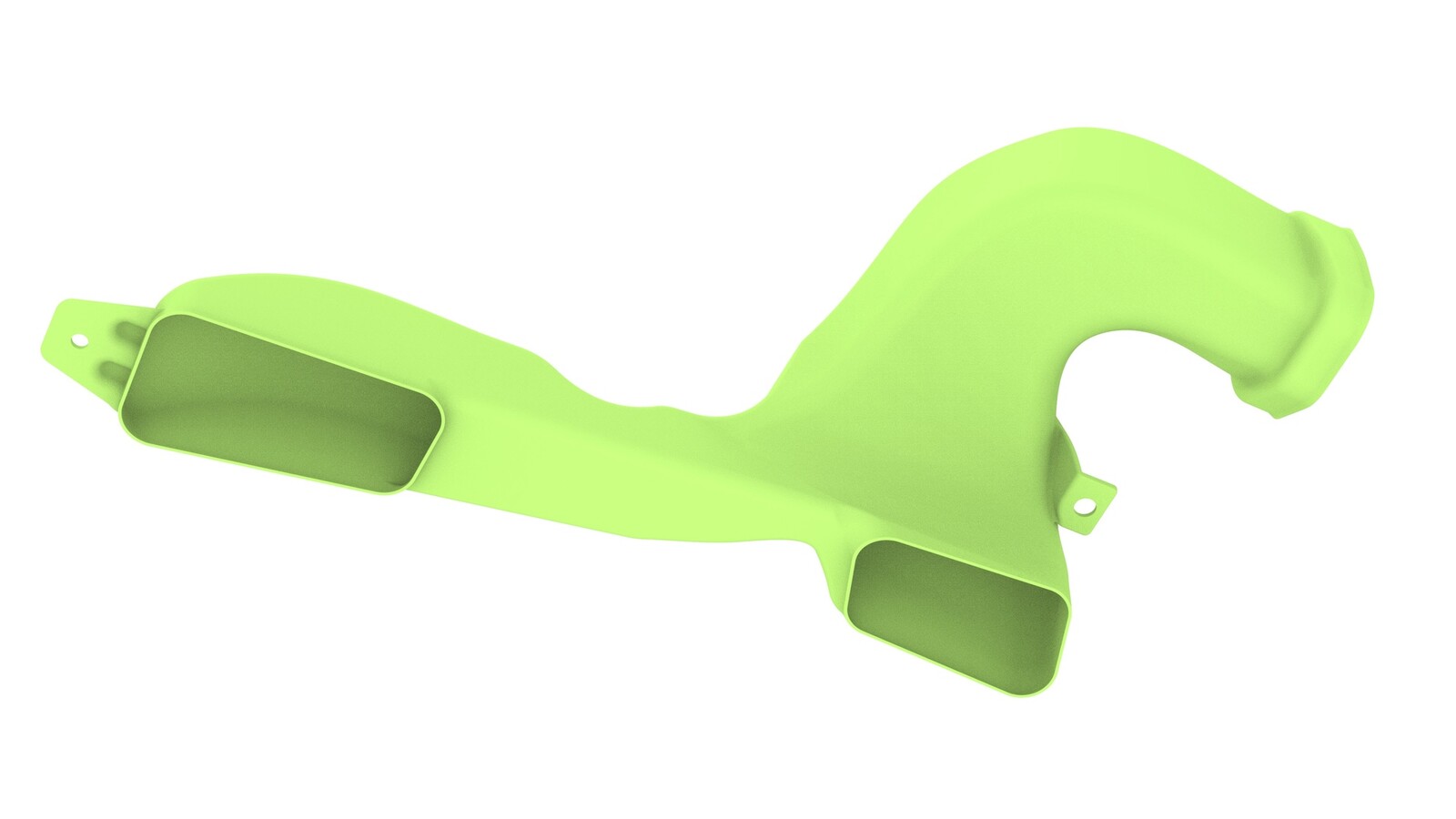

风管 - 脚部空间 - LH(左侧驾驶)(拆卸和更换)
校正代码
18108602 0.36
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下中控台 LH 板毡毯。请参阅侧板 - 中控台 - 左侧(拆卸和更换)。
- 断开 12V 电源。请参阅12V/低压电源(断开和连接)。
- 拆下驾驶位脚部空间罩。请参阅盖板 - 脚部空间 - 驾驶位(拆卸和更换)。
- 拆下驾驶位膝部气囊。请参阅气囊 - 膝部 - 驾驶位(拆卸和安装)。
-
松开将 LH 脚部空间进气槽固定到暖通空调模块的夹子,然后拆下 LH 脚部空间进气槽。
安装
安装程序与拆卸程序相反。
