反光灯 - 车门 - 前 - 左侧（拆卸和更换）

校正代码 15130602 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 打开 LH 前车门。

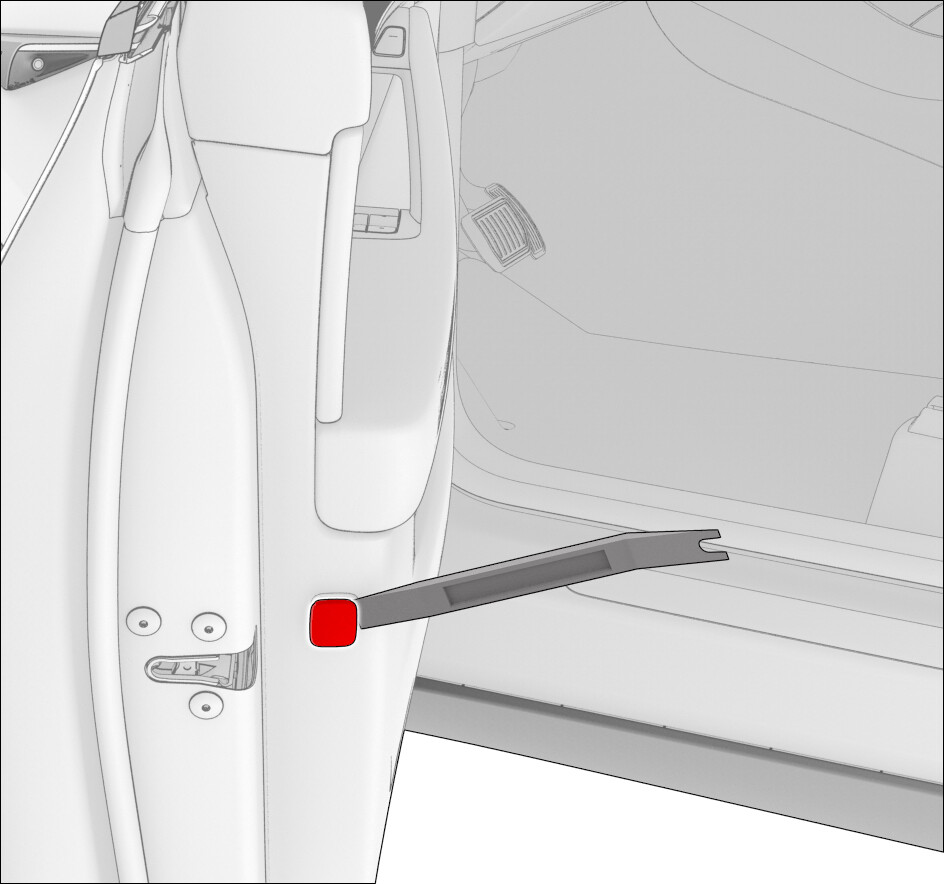

  2. 使用塑料饰板工具从前车门面板的后边缘松开前车门反光板。
    警告
    小心不要损坏车门面板。

安装

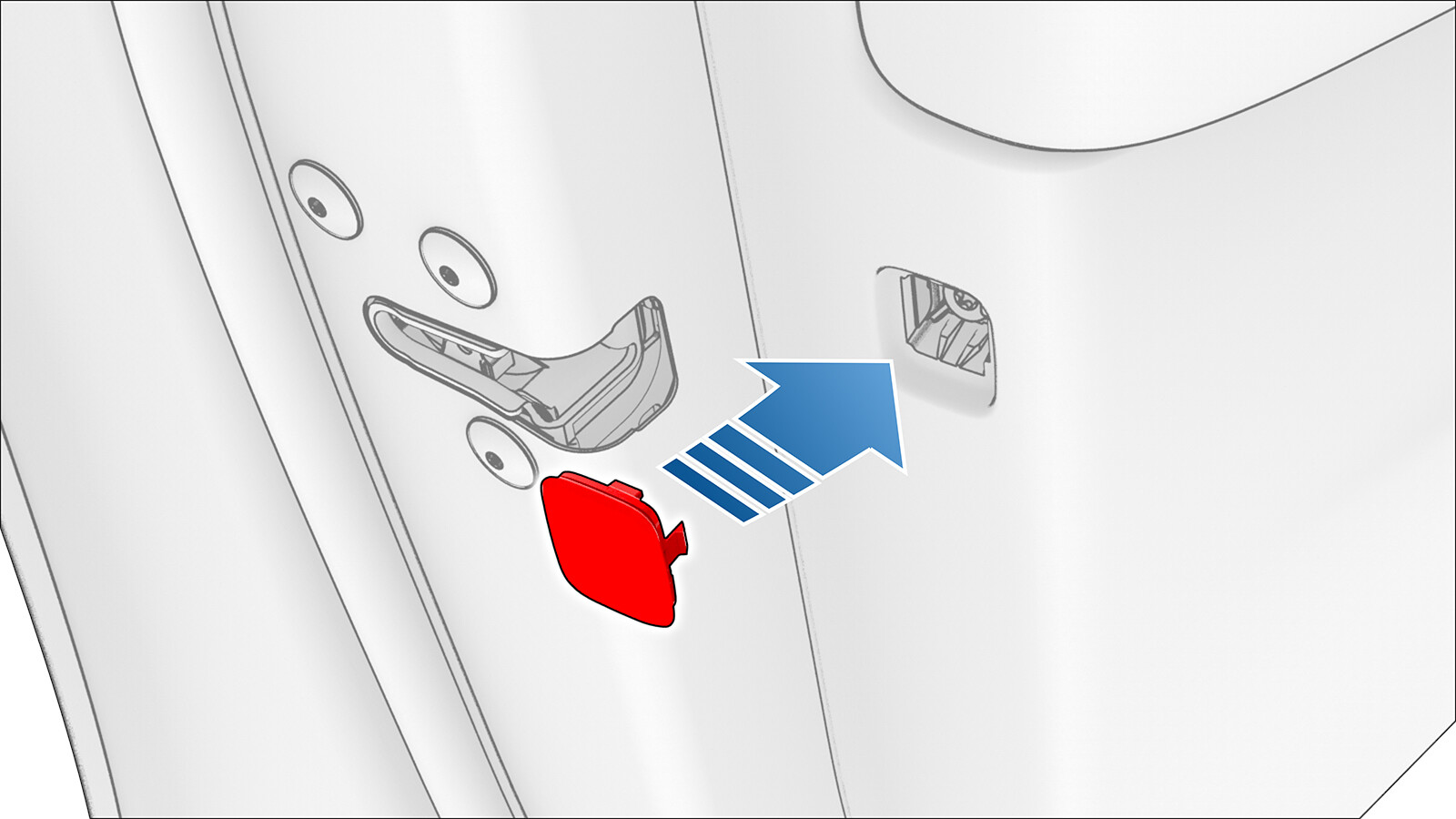

  1. 将前车门反光板推进车门面板中，将其安装到位。确保前车门反光板已完全固定。
  2. 关闭 LH 前车门。
