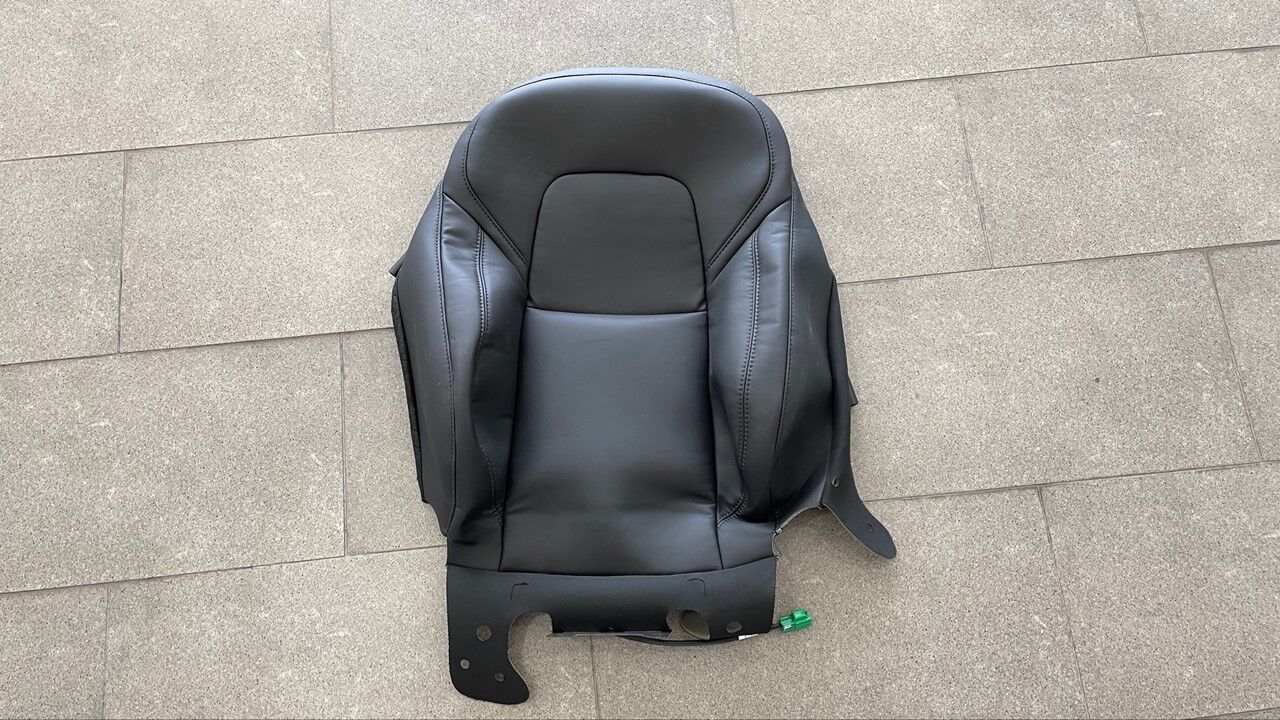

Trim - Seat Back - Driver Seat (Remove and Replace)

校正代码 13072002 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2023 年 5 月 3 日:添加了副驾位座椅校准和乘员分类系统 (OCS) 校准的步骤。

拆卸

  1. 拆下前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)
  2. 将驾驶位座椅从车辆上拆下。请参阅Seat Assembly - 1st Row - LH (Remove and Replace)
  3. 拆下驾驶位座椅头枕饰板。请参阅Trim - Headrest - Driver (Remove and Replace)
  4. 将座椅靠背外壳从驾驶位座椅上拆下。请参阅Shell - Seat Back - Driver (Remove and Replace)
  5. 将驾驶位座椅靠背饰板固定件(7 个)从驾驶位座椅靠背框架上拆下。
  6. 拆下覆盖驾驶位座椅靠背框架外侧角的下部盖板。
    Informational PurposesAn informational icon, calling your attention
    将饰板垂直向上拉离固定锁片,以将其松开。
  7. 拆下覆盖驾驶位座椅靠背框架外侧角的上部盖板。
    Informational PurposesAn informational icon, calling your attention
    将饰板下部从固定锁片中拉出,以将其松开,然后将饰板垂直向上拉离上部固定锁片。
  8. 拆下覆盖驾驶位座椅靠背框架内侧角的下部盖板。
    Informational PurposesAn informational icon, calling your attention
    将饰板垂直向上拉离固定锁片,以将其松开。
  9. 拆下覆盖驾驶位座椅靠背框架内侧角的上部盖板。
    Informational PurposesAn informational icon, calling your attention
    将饰板下部从固定锁片中拉出,以将其松开,然后将饰板垂直向上拉离上部固定锁片。
  10. 将驾驶位座椅靠背饰板拉离驾驶位座椅侧安全气囊,以接触气囊电气连接器。
  11. 断开驾驶位座椅侧安全气囊,然后将橙色锁片(2 个)向下拉动以松开连接器。
  12. 拆下将腰部支撑底部固定到座椅靠背框架的螺栓。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    此螺栓位于腰部电子控制单元 (ECU) 下方。拆卸此螺栓有助于下一步操作。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
    • 2 英寸加长件
    • 棘轮/扭矩扳手
  13. 松开将腰部支撑底部固定到座椅靠背框架的锁片(2 个)。
  14. 拆下将驾驶位座椅侧安全气囊固定到座椅靠背框架的螺母 (2 个)。
    5.4 Nm (4.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
    • 棘轮/扭矩扳手
  15. 小心地将驾驶位座椅侧安全气囊滑槽从座椅靠背框架中拉出。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    切勿将气囊从气囊滑槽中拆下。
  16. 将座椅靠背饰板底部拉离座椅靠背框架,以拆下座椅蒙皮。
    Informational PurposesAn informational icon, calling your attention
    确保加热器线束和座椅靠背饰板均与座椅靠背框架完全分离。
  17. 将气囊滑槽连同其内部的气囊一起滑过座椅靠背泡沫,然后小心地将气囊从气囊滑槽上拆下。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    确保驾驶位侧安全气囊安装柱未卡在气囊滑槽孔中。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    从气囊滑槽上拆下气囊时,请务必谨慎操作。气囊以特定方式配置/折叠,一旦掉落或以任何方式改动或操作,则需进行更换。
  18. 松开将驾驶位座椅靠背饰板固定到座椅靠背泡沫的系带。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    松开系带时请务必小心,以免损坏。
  19. 松开将驾驶位座椅靠背饰板固定到座椅靠背泡沫的卡子(2 个)。
  20. 将驾驶位座椅靠背饰板从座椅靠背泡沫上拆下。

安装

  1. 将驾驶位座椅靠背饰板安装到座椅靠背泡沫上。
  2. 安装将驾驶位座椅靠背饰板固定到座椅靠背泡沫的卡子(2 个)。
    Informational PurposesAn informational icon, calling your attention
    确保卡子已固定。
  3. 安装将驾驶位座椅靠背饰板固定到座椅靠背泡沫的系带。
    Informational PurposesAn informational icon, calling your attention
    确保系带已固定。
  4. 将驾驶位侧安全气囊安装到气囊滑槽中,然后将气囊滑槽连同其内部气囊一起插入座椅靠背泡沫上的凹槽中。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    确保驾驶位侧安全气囊安装柱伸出滑槽孔外。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    将气囊安装到气囊滑槽中时,请务必谨慎操作。气囊以特定方式配置/折叠,一旦掉落或以任何方式改动或操作,则需进行更换。
    Informational PurposesAn informational icon, calling your attention
    请观看以下视频,了解如何正确地将驾驶位侧安全气囊安装到气囊滑槽中,以及如何将该滑槽安装到座椅泡沫中。
  5. 将驾驶位座椅靠背和泡沫安装到座椅靠背框架上。
    Informational PurposesAn informational icon, calling your attention
    首先,将泡沫饰板垂直滑入座椅靠背框架。确保头枕柱与座椅靠背泡沫接合。务必将与框架接合的加热器线束及下饰板推入框架背面。
  6. 将驾驶位座椅侧安全气囊支柱安装到座椅靠背框架中。
    Informational PurposesAn informational icon, calling your attention
    这些支柱应与两个圆孔对齐。此零件不使用延伸孔。
  7. 安装将驾驶位座椅安全气囊固定到座椅靠背框架的螺母(2 个)。
    5.4 Nm (4.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
    • 棘轮/扭矩扳手
  8. 连接驾驶位座椅侧安全气囊电气连接器。
  9. 安装将腰部支撑底部固定到座椅靠背框架的锁片(2 个)。
  10. 安装将腰部支撑底部固定到座椅靠背框架的螺栓。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    此螺栓位于腰部电子控制单元 (ECU) 下方。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
    • 2 英寸加长件
    • 棘轮/扭矩扳手
  11. 安装覆盖驾驶位座椅靠背框架外侧角的上部盖板。
    Informational PurposesAn informational icon, calling your attention
    将板拉到金属凸起上以将其固定住。
  12. 安装覆盖驾驶位座椅靠背框架内侧角的上部盖板。
    Informational PurposesAn informational icon, calling your attention
    将饰板下部从固定锁片中拉出,以将其松开,然后将饰板垂直向上拉离上部固定锁片。
  13. 安装覆盖驾驶位座椅靠背框架外侧角的下部盖板。
    Informational PurposesAn informational icon, calling your attention
    将板拉到金属凸起上以将其固定住。
  14. 安装覆盖驾驶位座椅靠背框架内侧角的下部盖板。
    Informational PurposesAn informational icon, calling your attention
    将板拉到金属凸起上以将其固定住。
  15. 将驾驶位座椅靠背饰板固定件(7 个)安装到驾驶位座椅靠背框架上。
  16. 将座椅靠背外壳安装到座椅上。请参阅Shell - Seat Back - Driver (Remove and Replace)
  17. 安装驾驶位座椅头枕饰板。请参阅Trim - Headrest - Driver (Remove and Replace)
  18. 将驾驶位座椅装入车内。请参阅Seat Assembly - 1st Row - LH (Remove and Replace)
  19. If servicing the front passenger seat in a North American vehicle:
    1. Remove all objects from the front passenger seat before beginning calibration.
    2. On the vehicle touchscreen, touch Controls (Vehicle Icon) > Software and check the vehicle firmware version. If the vehicle firmware is 2023.2.11 or newer, perform a software reinstall. See Software Reinstall - Touchscreen. If the vehicle firmware is not 2023.2.11 or newer, update the vehicle firmware. See Software Update.
    3. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect).
    4. Unlock the vehicle gateway. See 网关(解锁).
    5. In Toolbox, click on the Actions tab, and then search for "OCS".
    6. Run the PROC_OCS1P_SELF-CALIBRATIONvia Toolbox: (link)via Service Mode Plus: Safety & Restraints ➜ Seats ➜ OCS1P Self Capacitance Calibration routine.
    7. Click on the Actions tab, and then search for "Seat calibration".
    8. Run the PROC_VCRIGHT_SEAT-CALIBRATEvia Toolbox: (link) routine.
    9. Disconnect Toolbox and remove the laptop from the vehicle.
