模块 - ECU - 乘员分类系统 (OCS) - 前排乘客（拆卸和更换）

校正代码 13010012 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.

拆卸

  1. 确认固件版本为 2023.2.11 或更高。如果固件版本不是 2023.2.11 或更高，请更新车辆固件。
  2. 打开 RH 前车门并降下 RH 前车窗。
  3. 向前移动副驾位座椅，并将座椅升至最高位置。

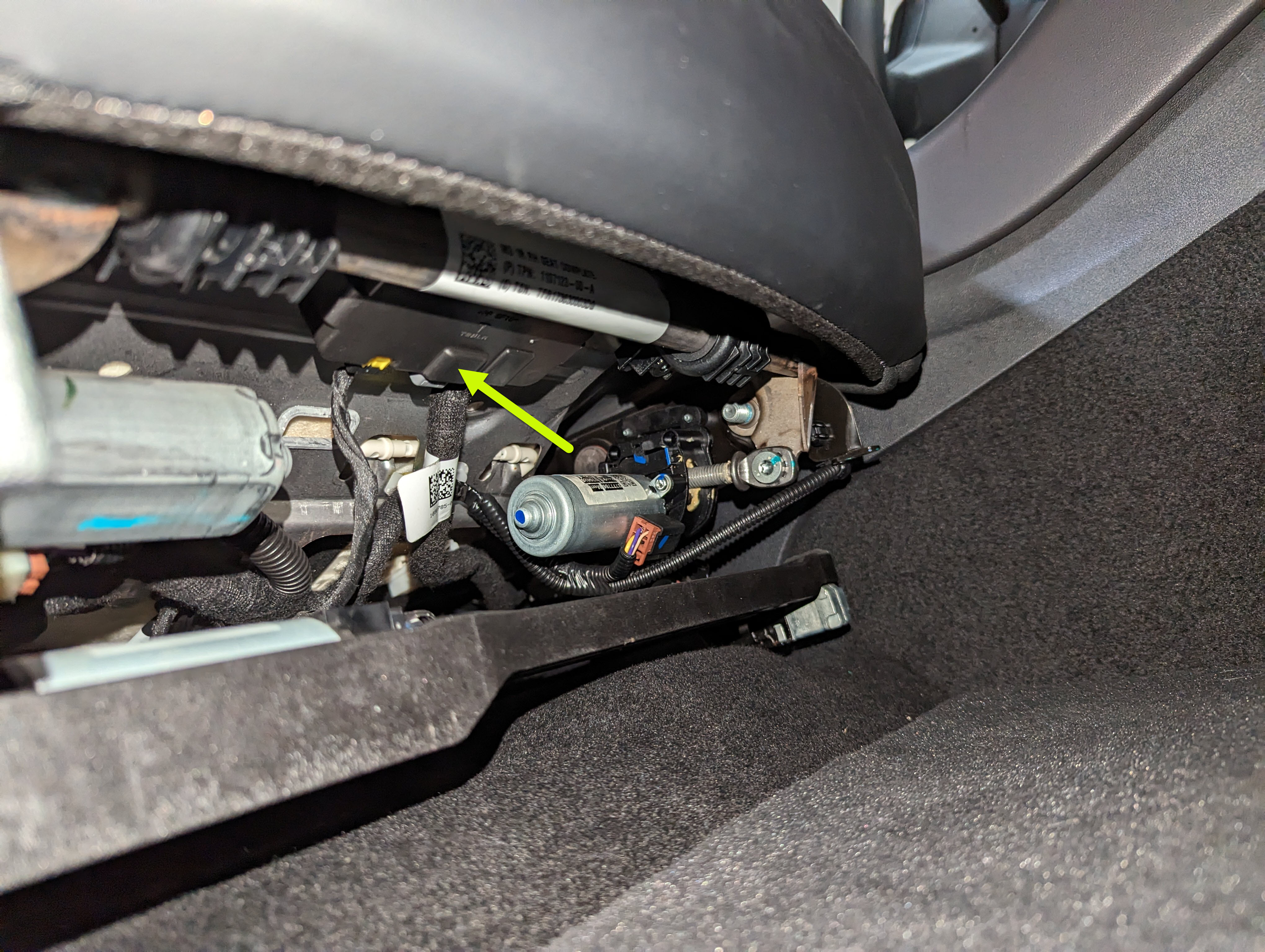

  4. 断开自电容走线连接器与 OCS 电子控制单元模块的连接。

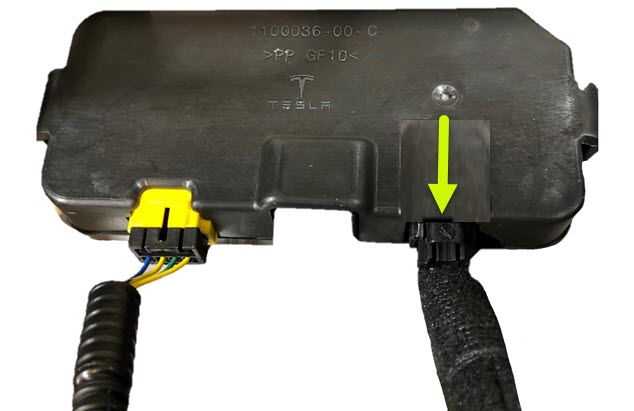

  5. 断开 RH 前座椅线束连接器与 OCS 电子控制单元模块的连接。

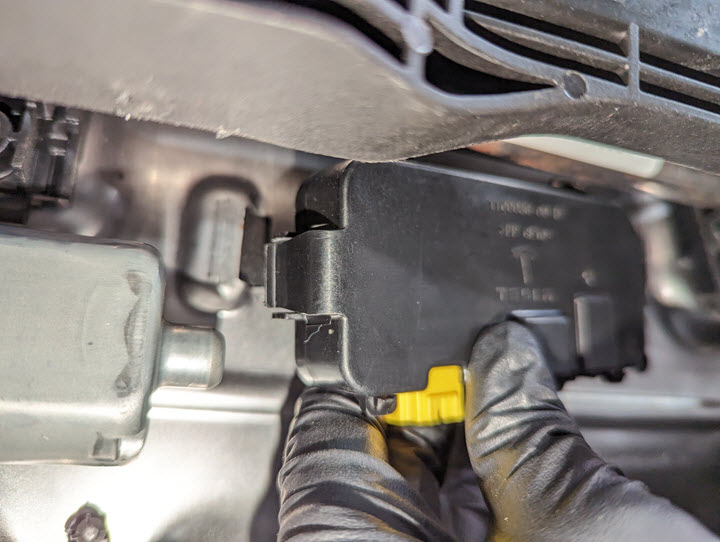

  6. 松开将副驾位 OCS 电子控制单元模块固定到座椅总成的锁片 (x2)，然后从车辆上拆下模块。

安装

  1. 将副驾位 OCS 电子控制单元模块放置到车辆上，然后紧固将模块固定到座椅总成的锁片 (x2)。
  2. 将 RH 前座椅线束连接器连接到 OCS 电子控制单元模块。
  3. 将自电容走线连接器连接到 OCS 电子控制单元模块。
  4. 将副驾位座椅移回原位。
  5. 升起右侧前车窗，关闭右侧前车门。
  6. If servicing the front passenger seat in a North American vehicle:
    1. Remove all objects from the front passenger seat before beginning calibration.
    2. On the vehicle touchscreen, touch Controls (Vehicle Icon) > Software and check the vehicle firmware version. If the vehicle firmware is 2023.2.11 or newer, perform a software reinstall. See 软件重新安装 - 触摸屏. If the vehicle firmware is not 2023.2.11 or newer, update the vehicle firmware. See 软件更新.
    3. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox（连接和断开）.
    4. Unlock the vehicle gateway. See 网关（解锁）.
    5. In Toolbox, click on the Actions tab, and then search for "OCS".
    6. Run the PROC_OCS1P_SELF-CALIBRATIONvia Service Mode Plus:Safety & Restraints ➜ Seats ➜ OCS1P Self Capacitance Calibrationvia Toolbox:(link) routine.
    7. Click on the Actions tab, and then search for "Seat calibration".
    8. Run the PROC_VCRIGHT_SEAT-CALIBRATEvia Service Mode:Low Voltage ➜ Seats ➜ Calibrate Seatvia Toolbox:(link) routine.
    9. Disconnect Toolbox and remove the laptop from the vehicle.
