减震器 - 手套箱（拆卸和更换）

校正代码 14051202 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. 拆卸手套箱。请参阅手套箱 - 有膝部气囊（不带加热泵款）（拆卸和更换）。

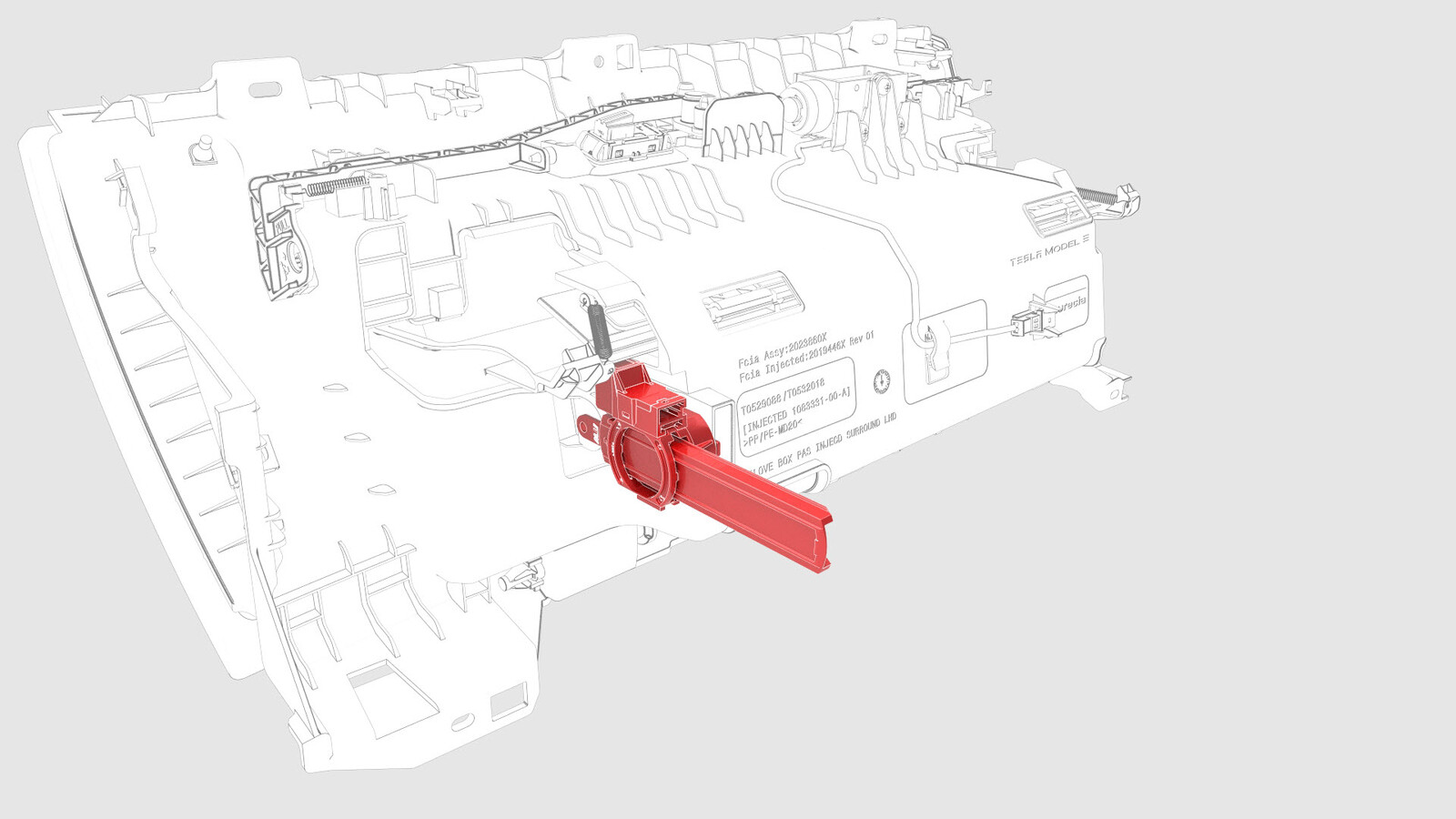

  2. 使用尖嘴钳拆下将手套箱减震器固定到手套箱的插销。
  3. 完全打开手套箱。
    注
    手套箱闭合时，手套箱减震器会阻碍拆卸。

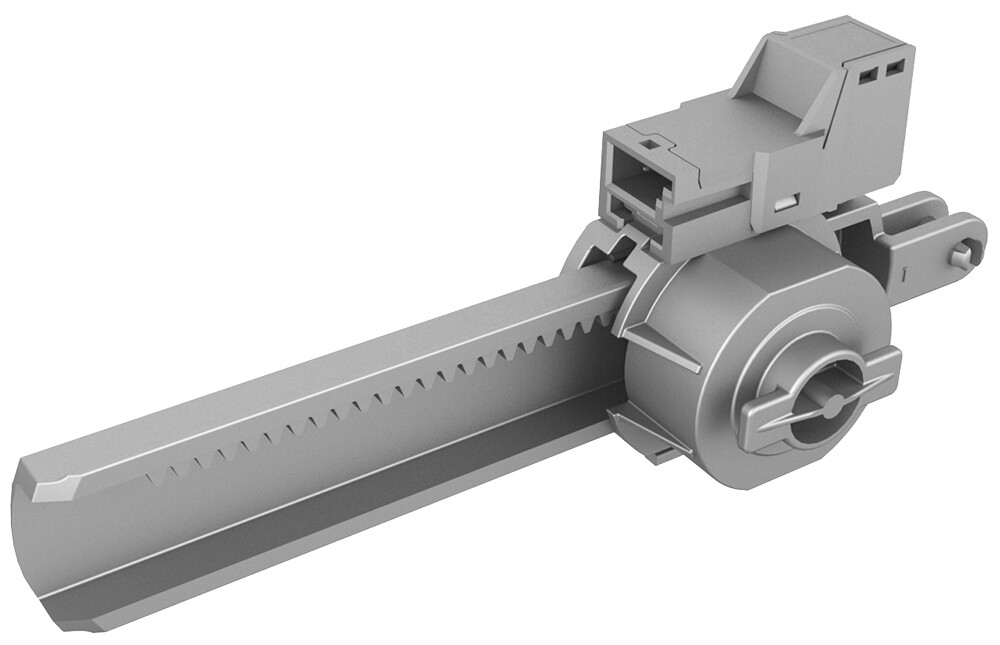

  4. 逆时针转动手套箱减震器 90 度，然后从手套箱上拆下手套箱减震器。

安装

  1. 将手套箱减震器顺时针转动 90 度，安装到手套箱上。
  2. 闭合手套箱，以便手套箱减震器锁入手套箱顶盖中。
  3. 安装将手套箱减震器固定到手套箱的插销。
    注
    确保手套箱减震器插销完全入位，安装手套箱时，不得碰撞手套箱减震器。
  4. 安装手套箱。请参阅 手套箱 - 有膝部气囊（不带加热泵款）（拆卸和更换）。
